Special feature is the digital adjustment of the x-over frequencies (no potentiometers). But generally it is an analogue topology, probably according Sallen-Key.
No hits on Google.
low resolution images under
Aktive Frequenzweiche in Rheinland-Pfalz - Ubereisenbach | eBay Kleinanzeigen

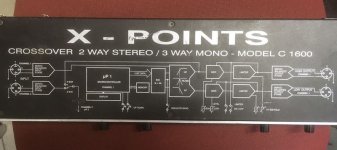

simplified schematic in the attached image.
Thanks for advices.
No hits on Google.
low resolution images under
Aktive Frequenzweiche in Rheinland-Pfalz - Ubereisenbach | eBay Kleinanzeigen
simplified schematic in the attached image.
Thanks for advices.
