Unboxing ZK-502MT CS8673E

[Freedom666]

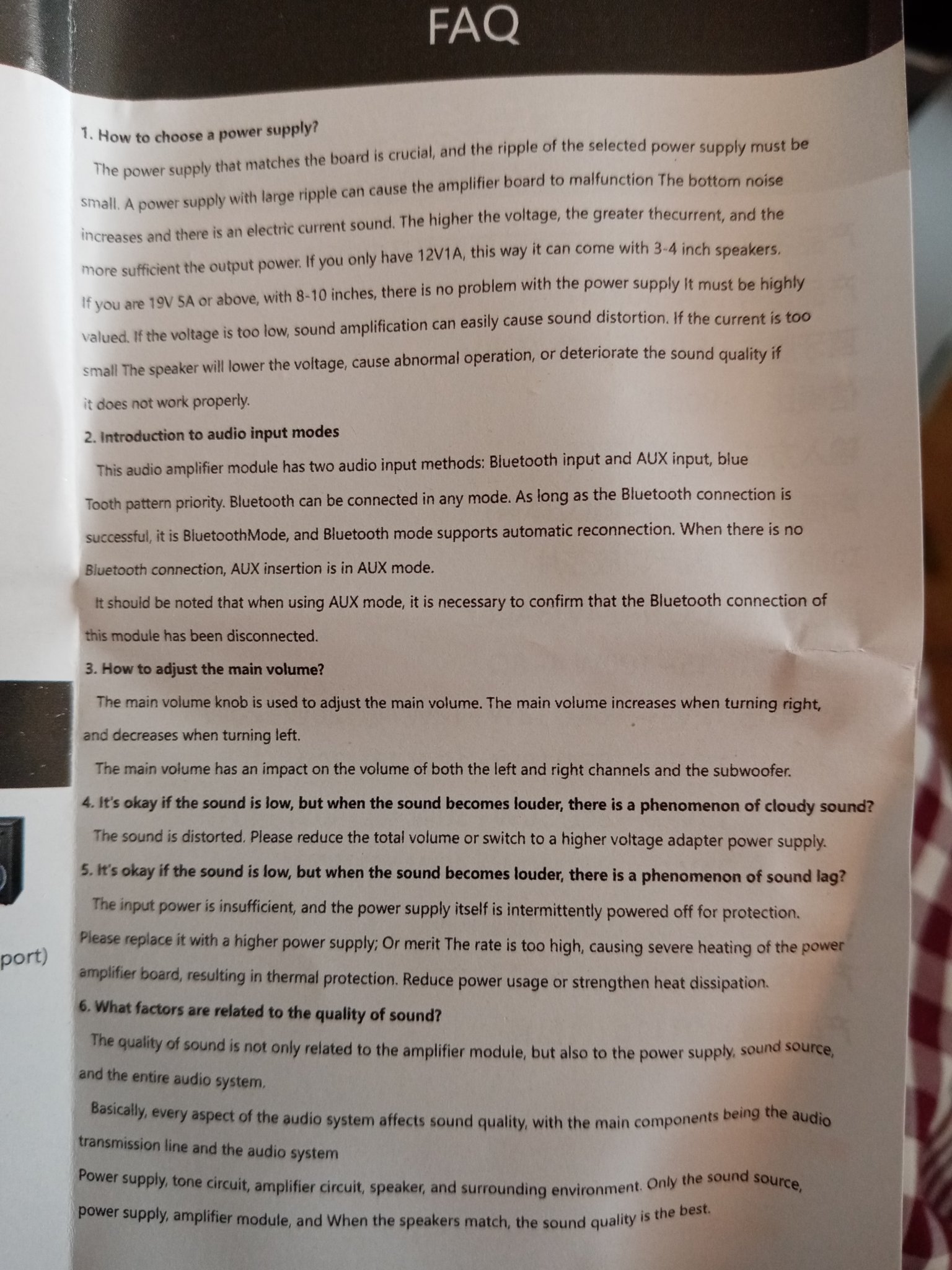

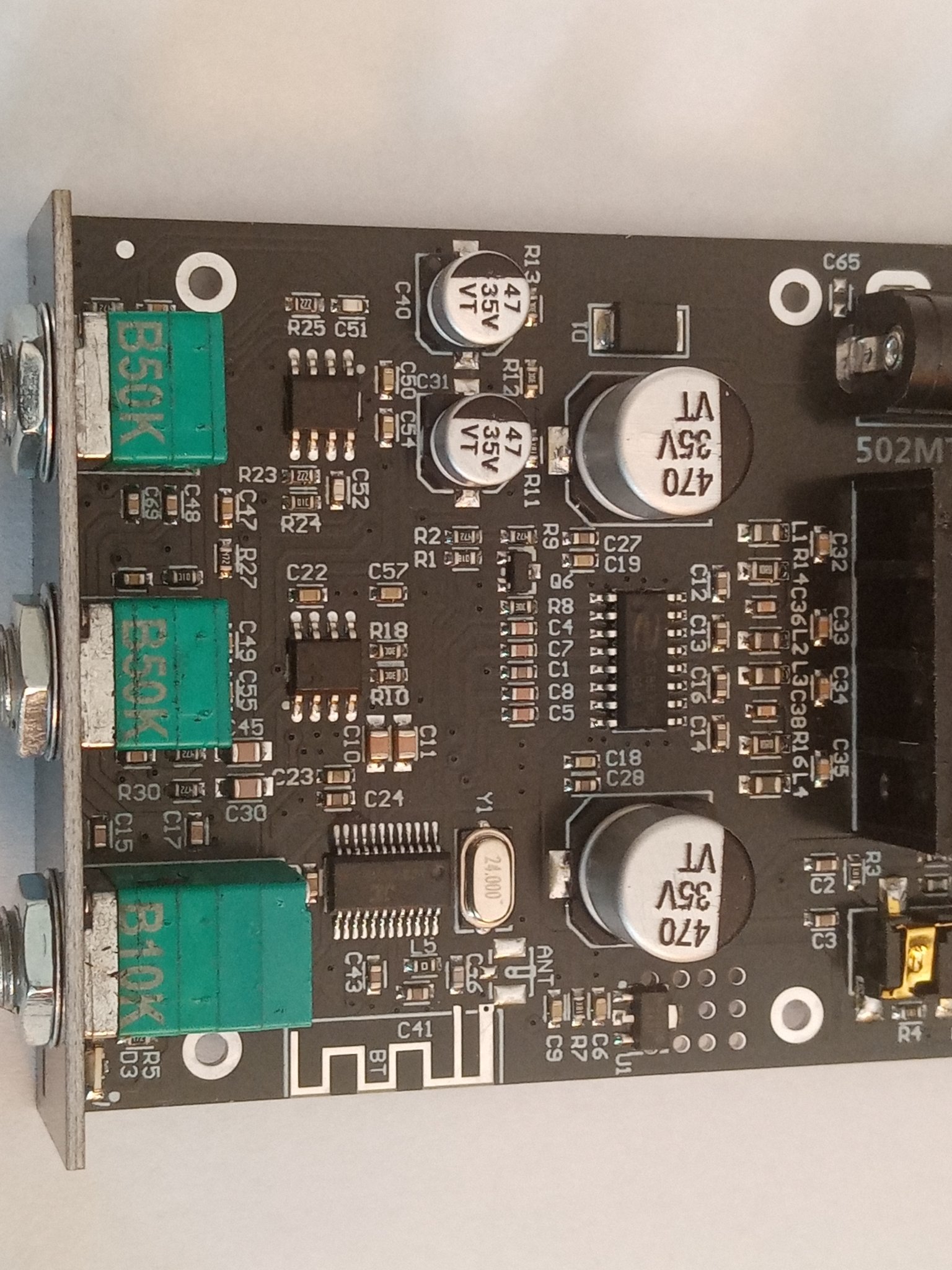

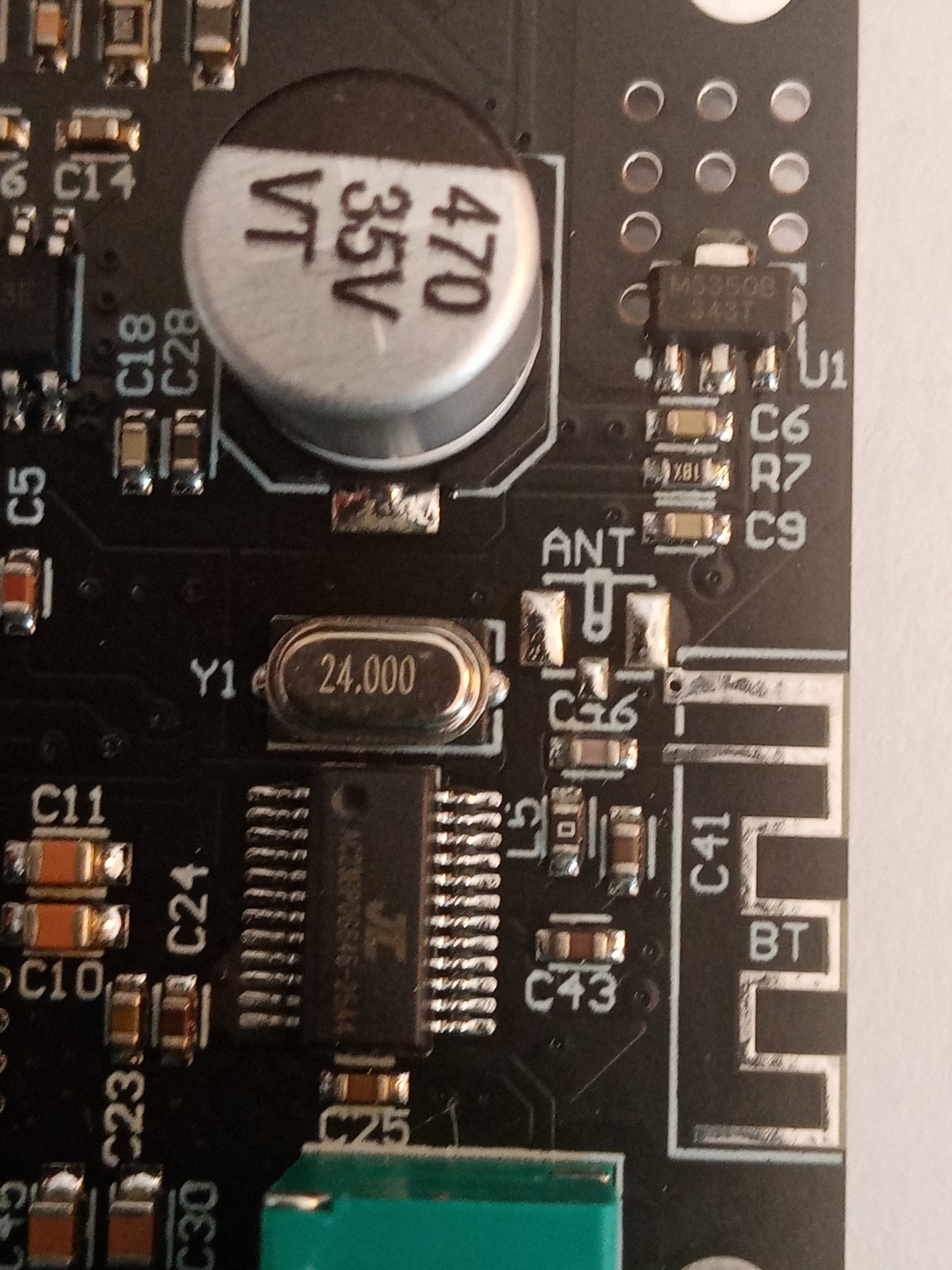

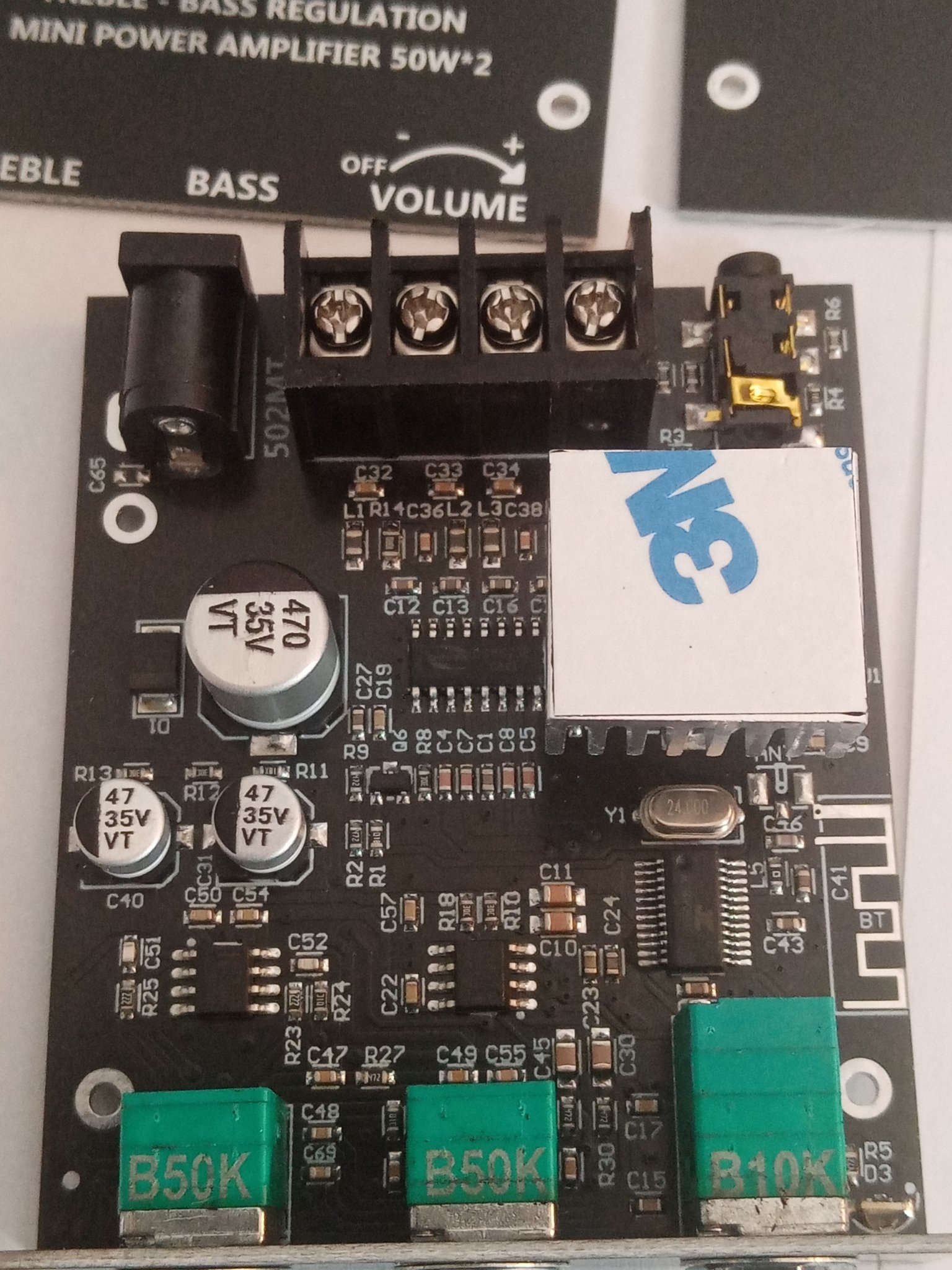

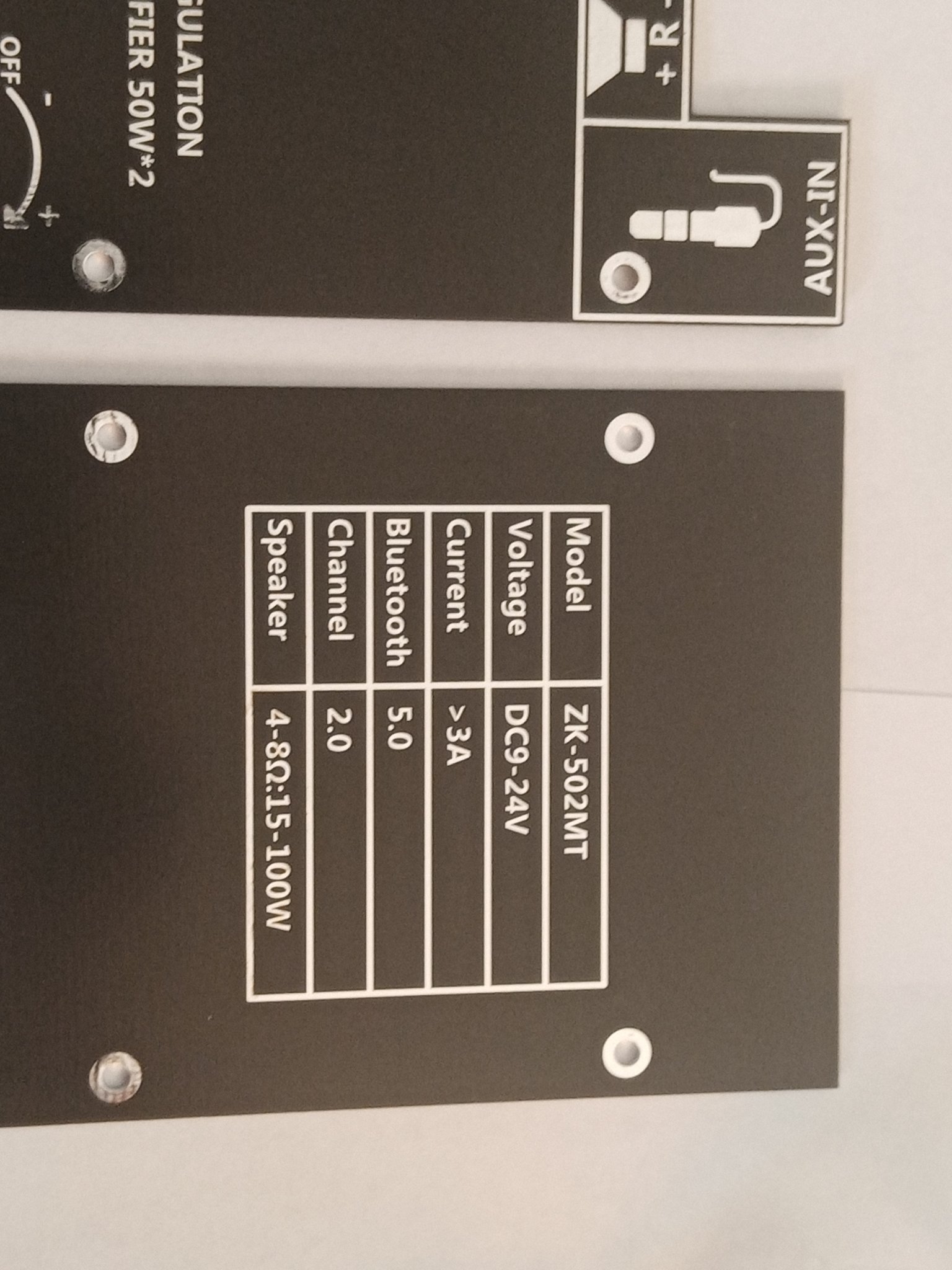

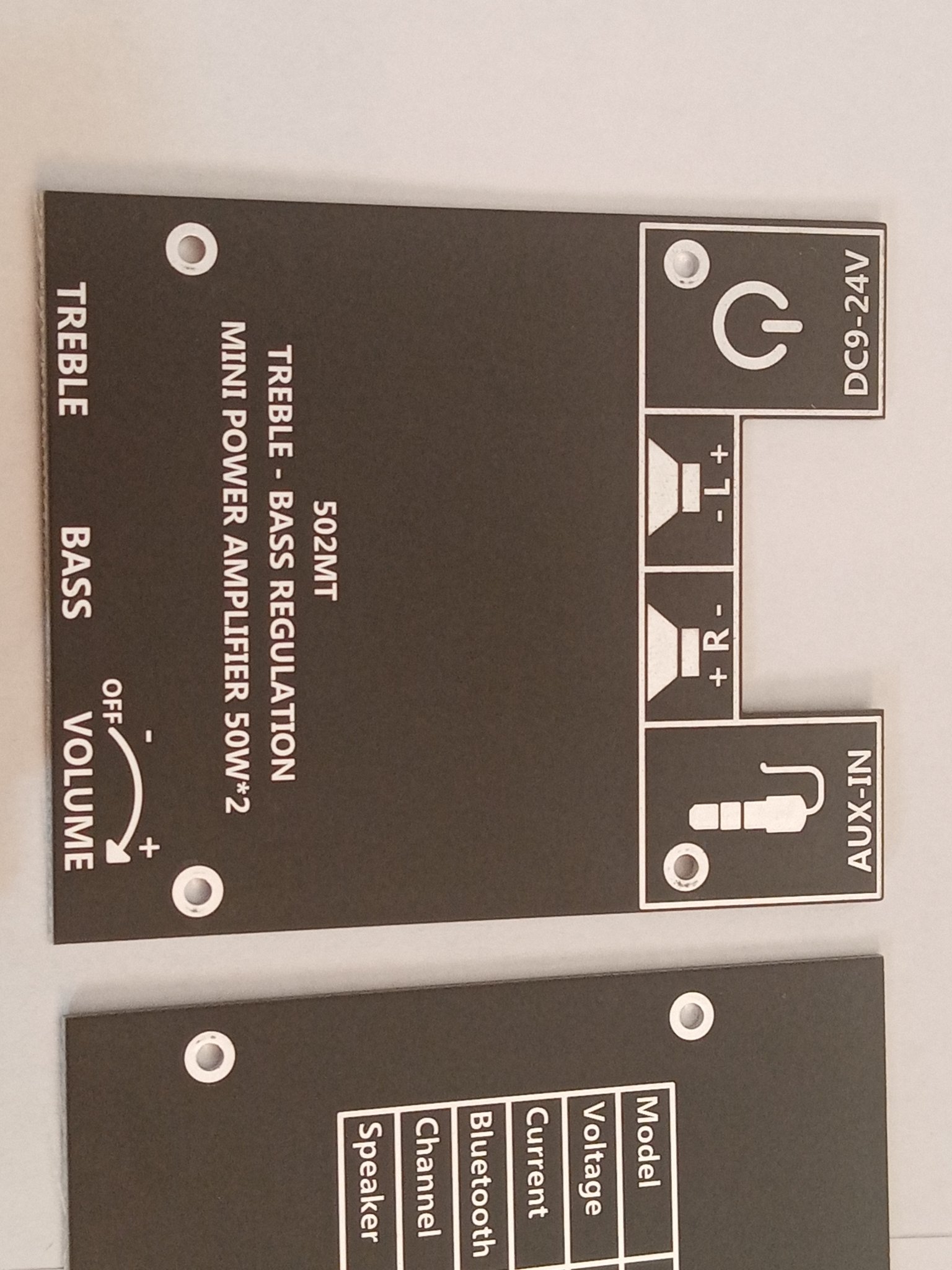

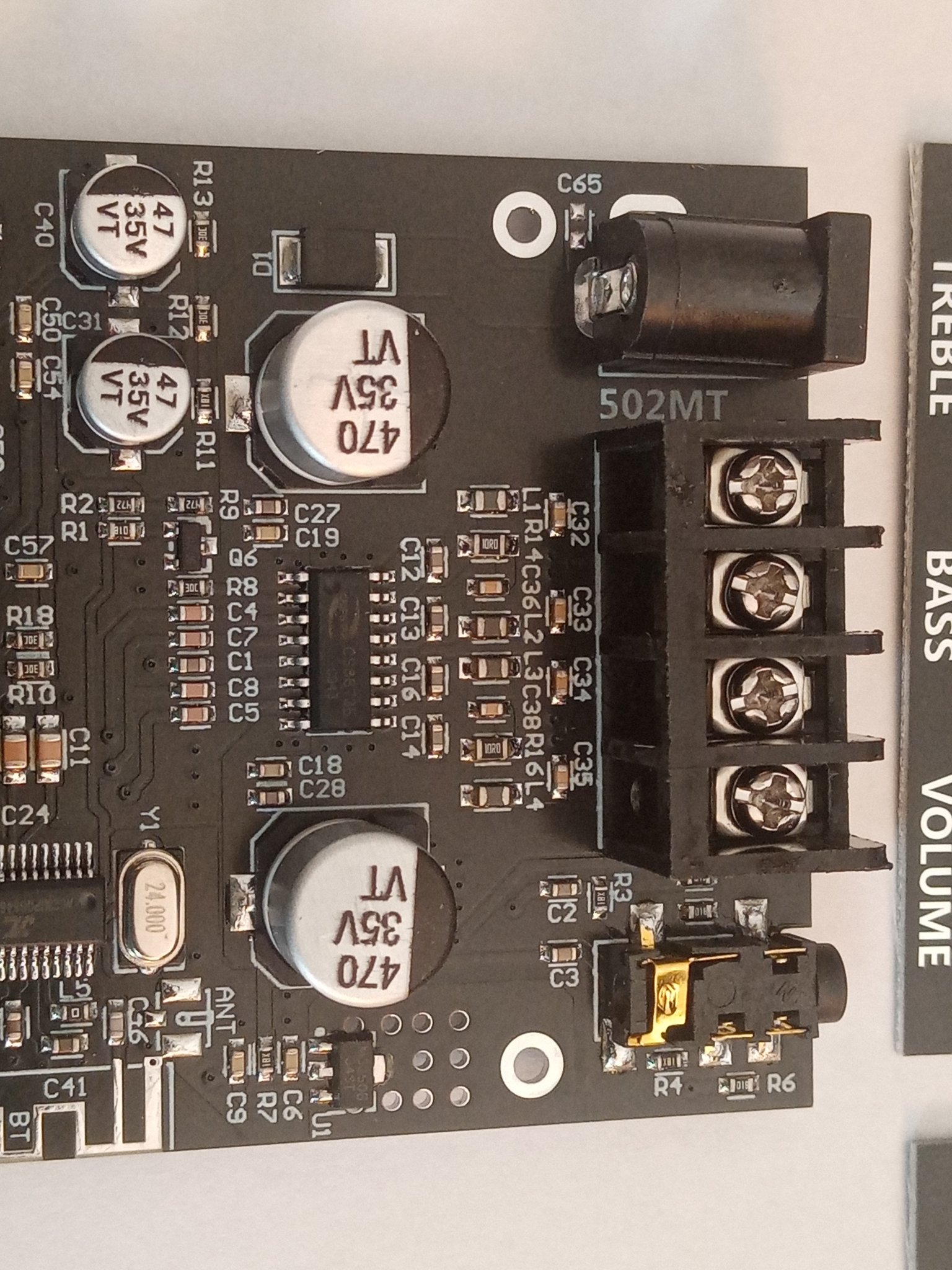

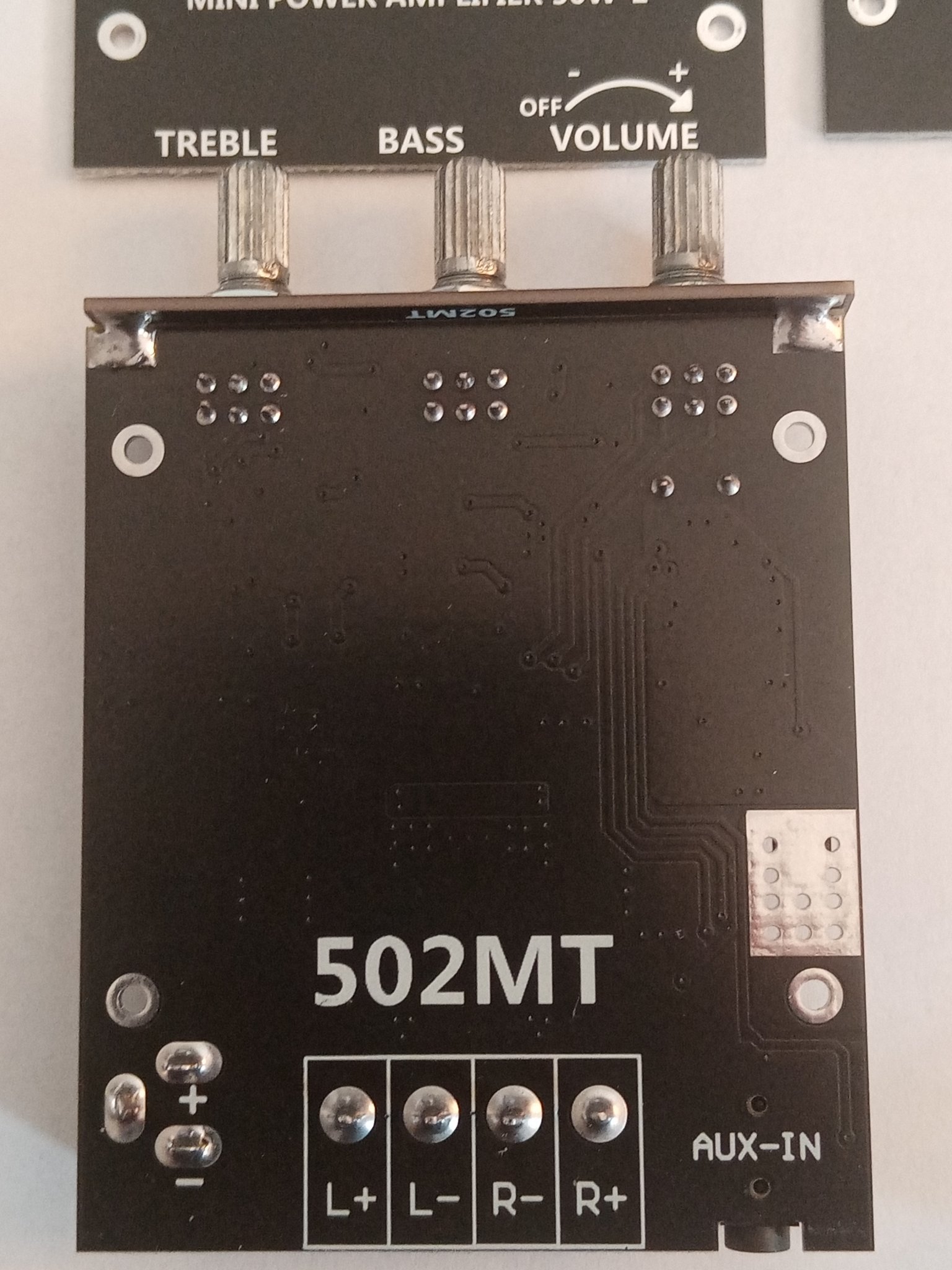

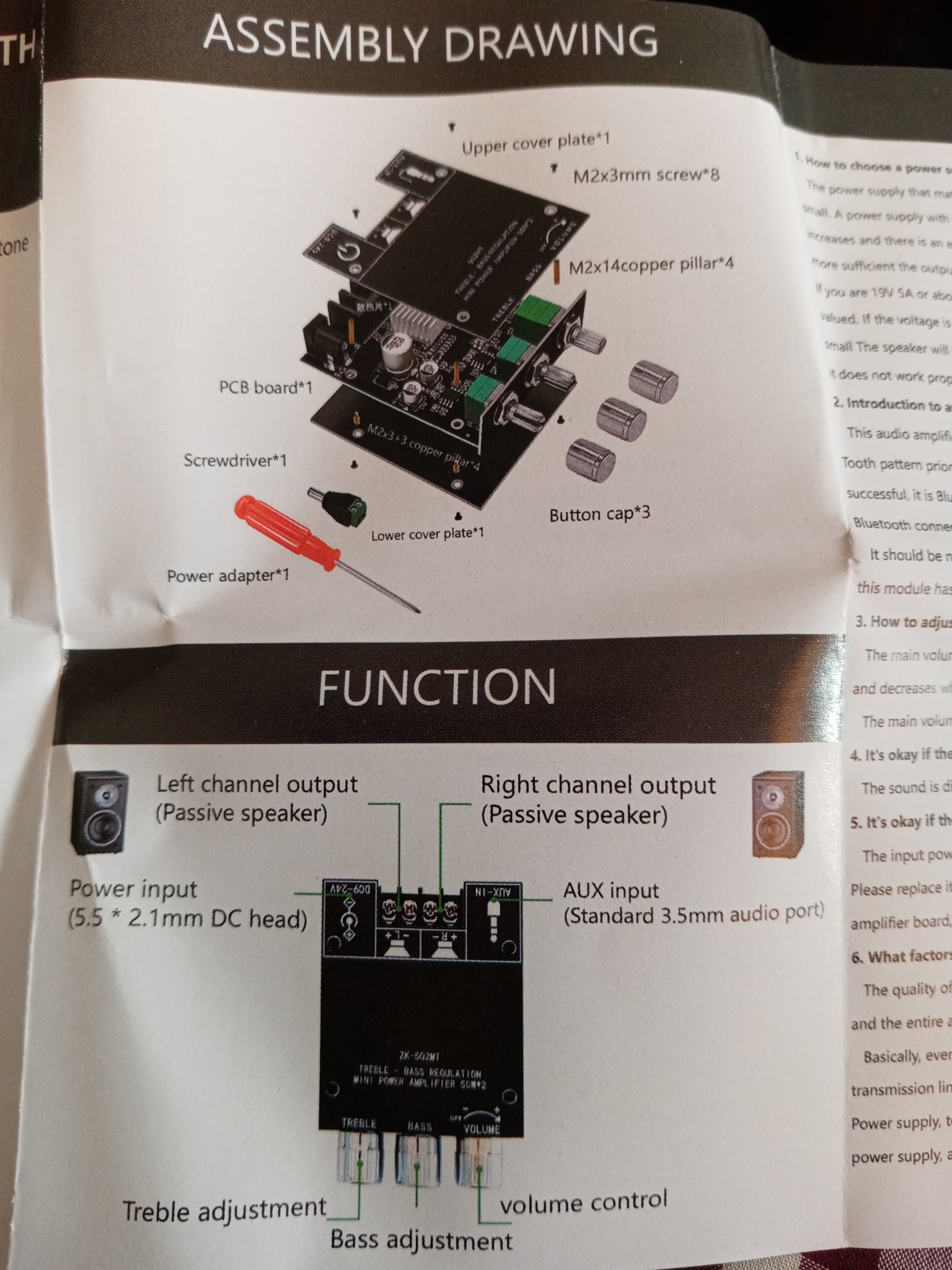

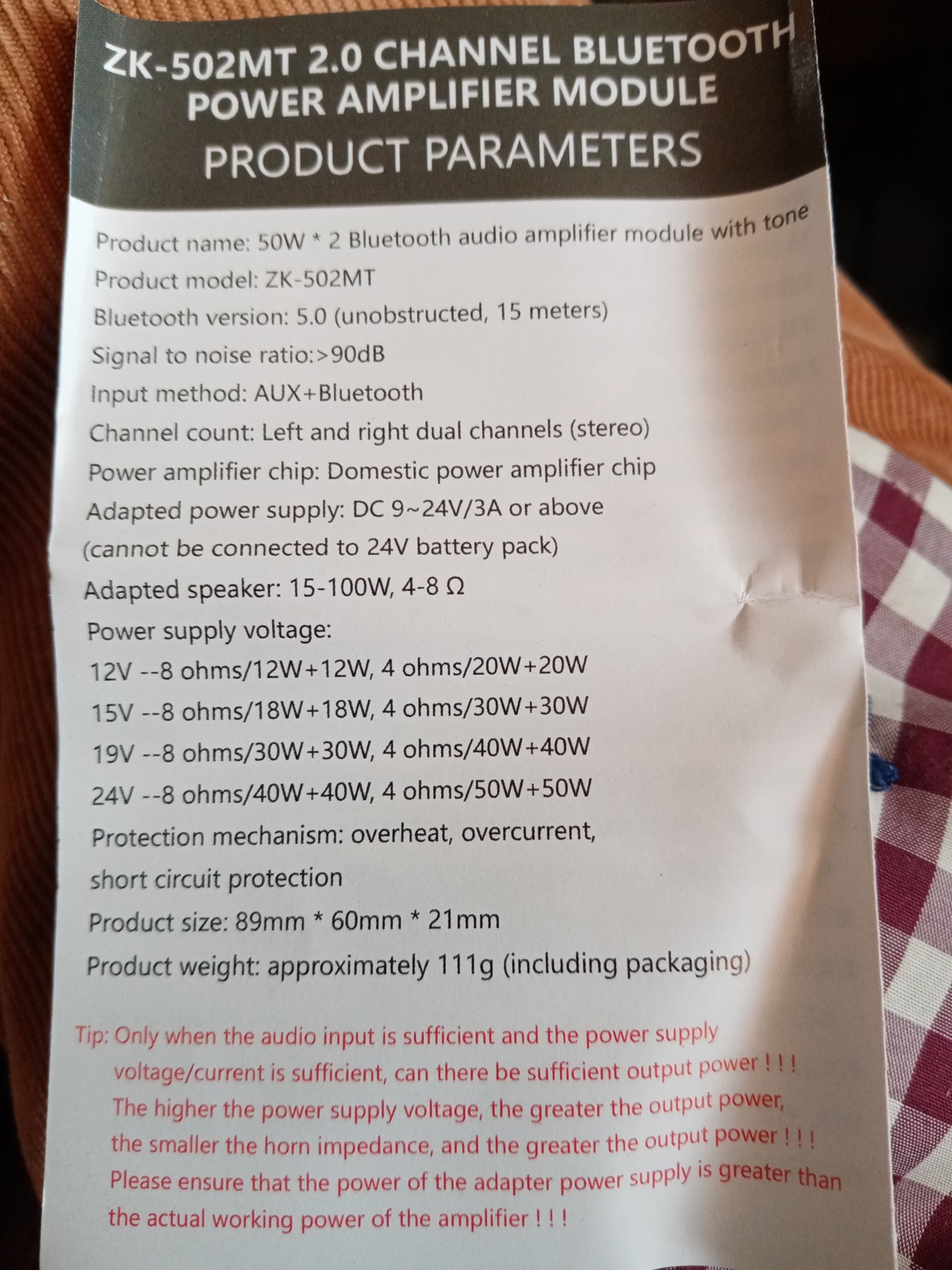

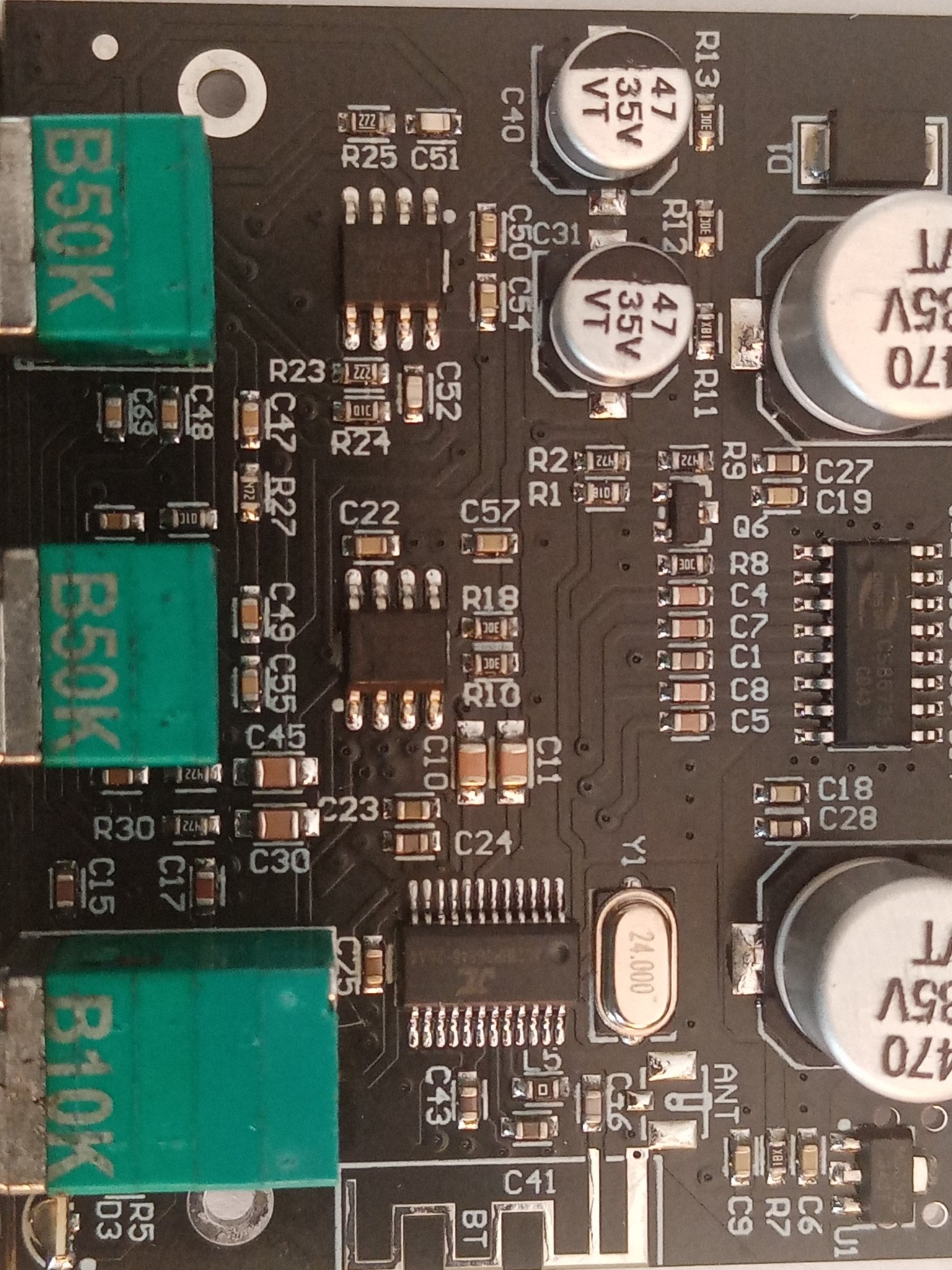

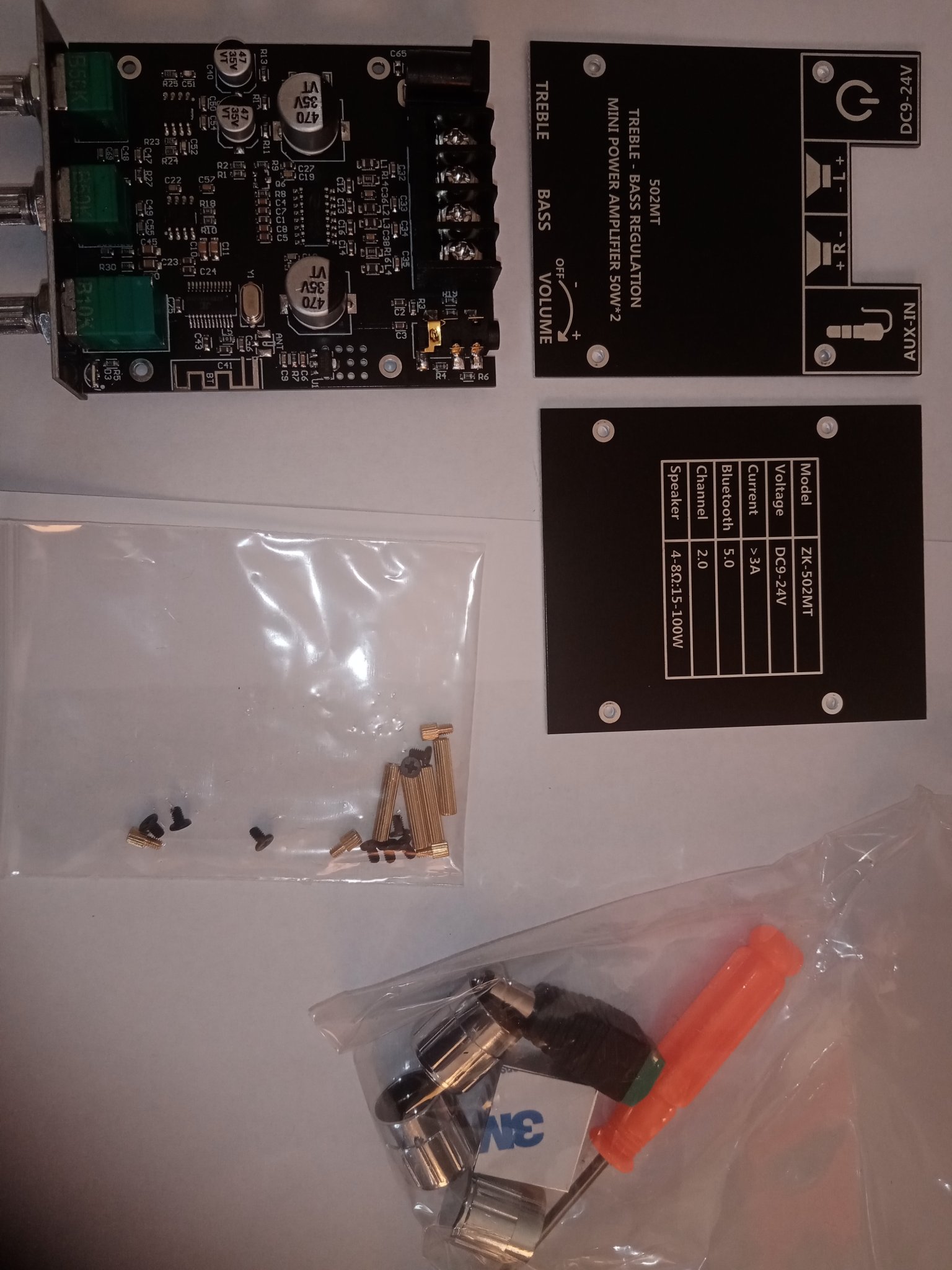

Unboxing / unpacking 2x 50 watt amplifier



[Freedom666]



[Freedom666]



[Freedom666]



[Freedom666]

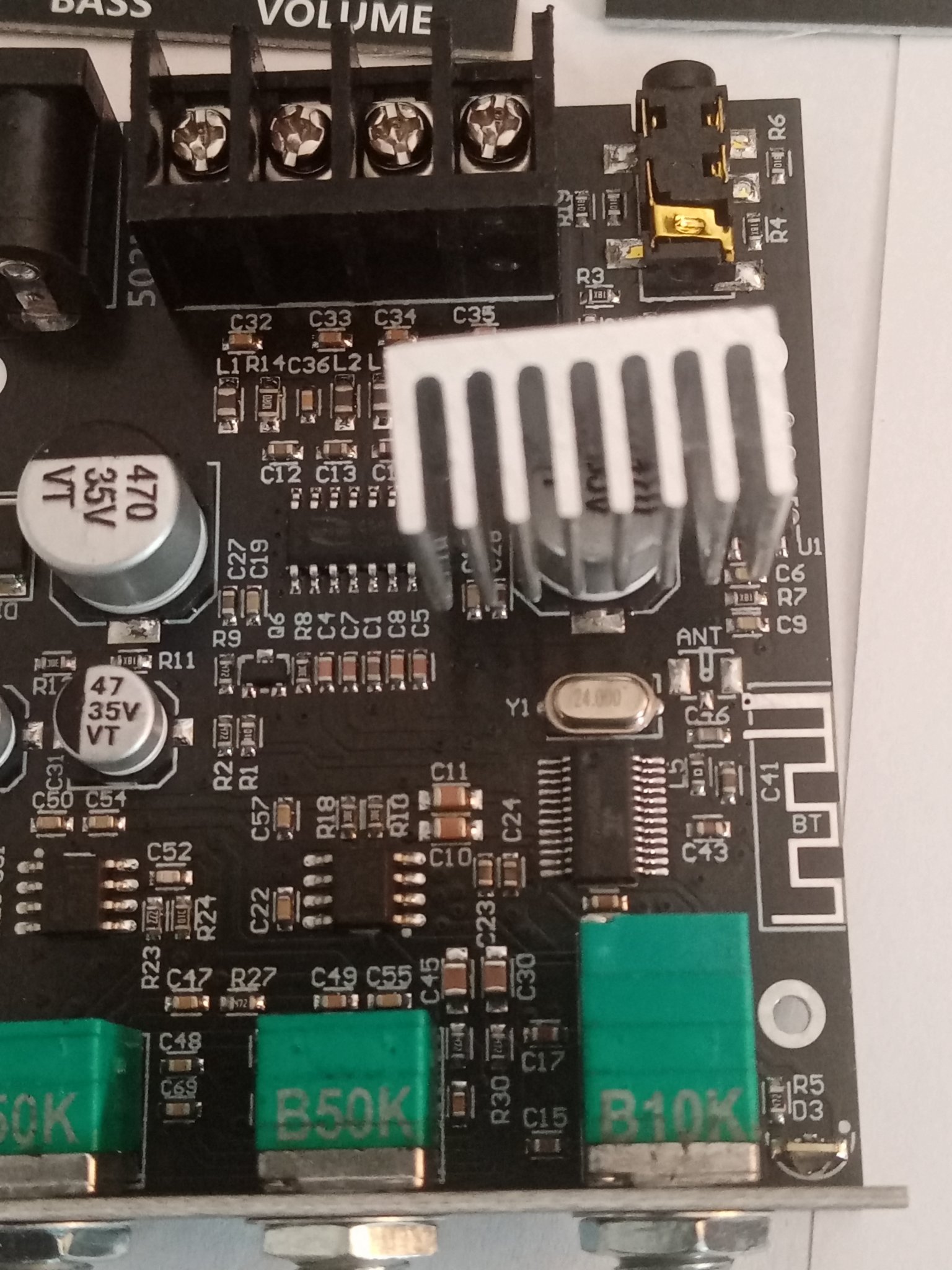

Heat sink is not very stable on the chip.

Fixed additionally with two drops of glue on the sides.



[Freedom666]

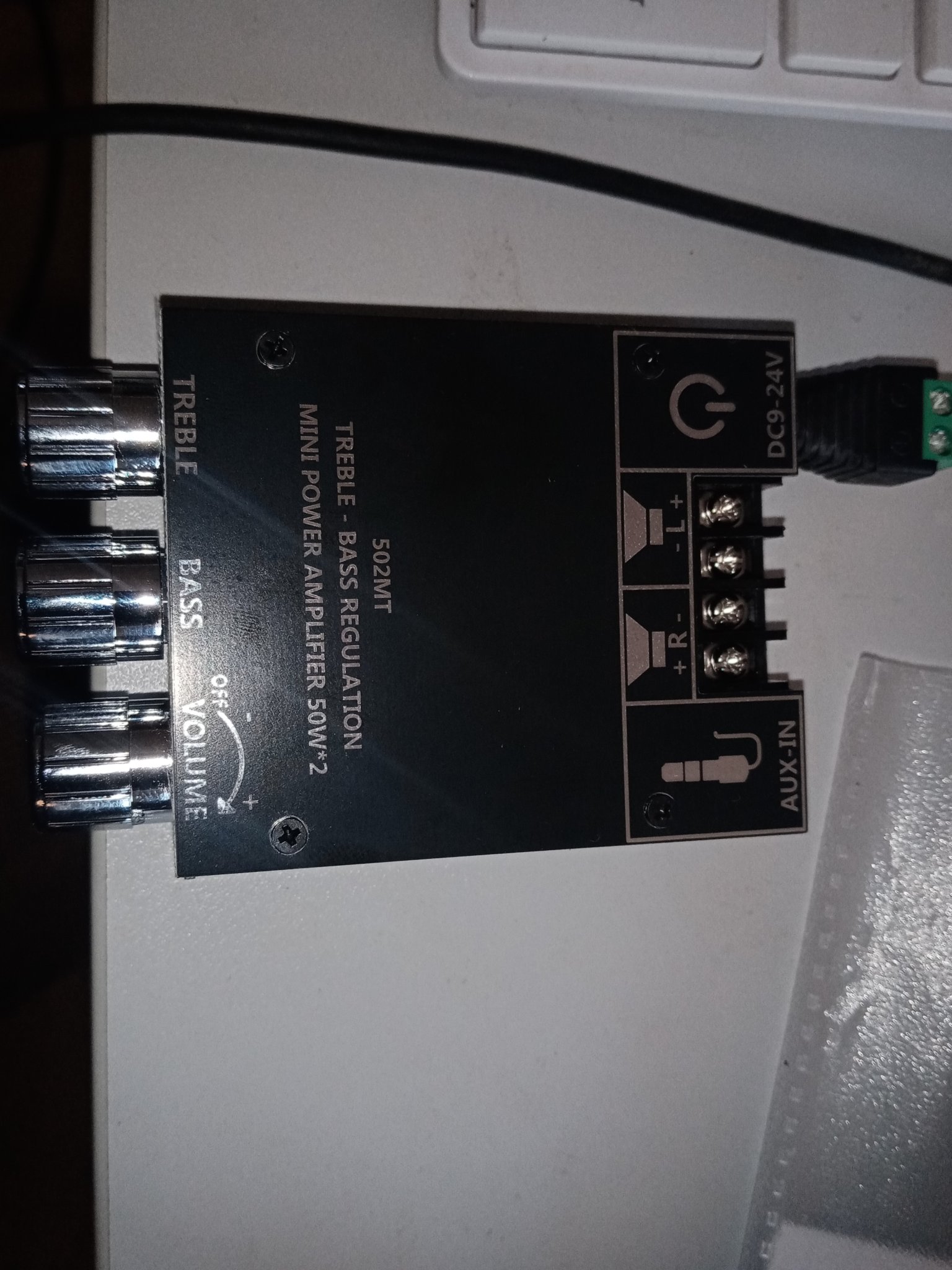

Assembled



[Freedom666]

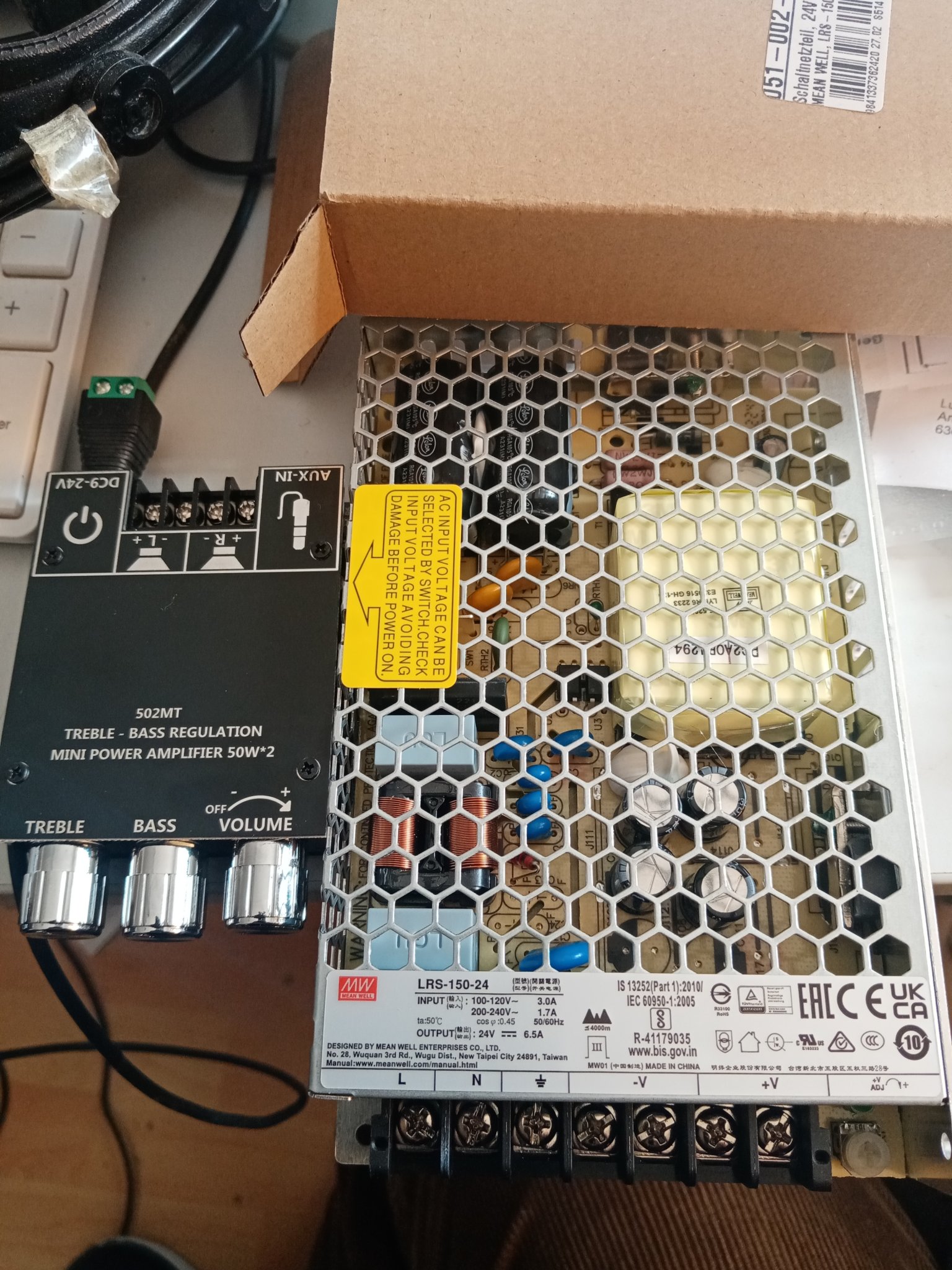

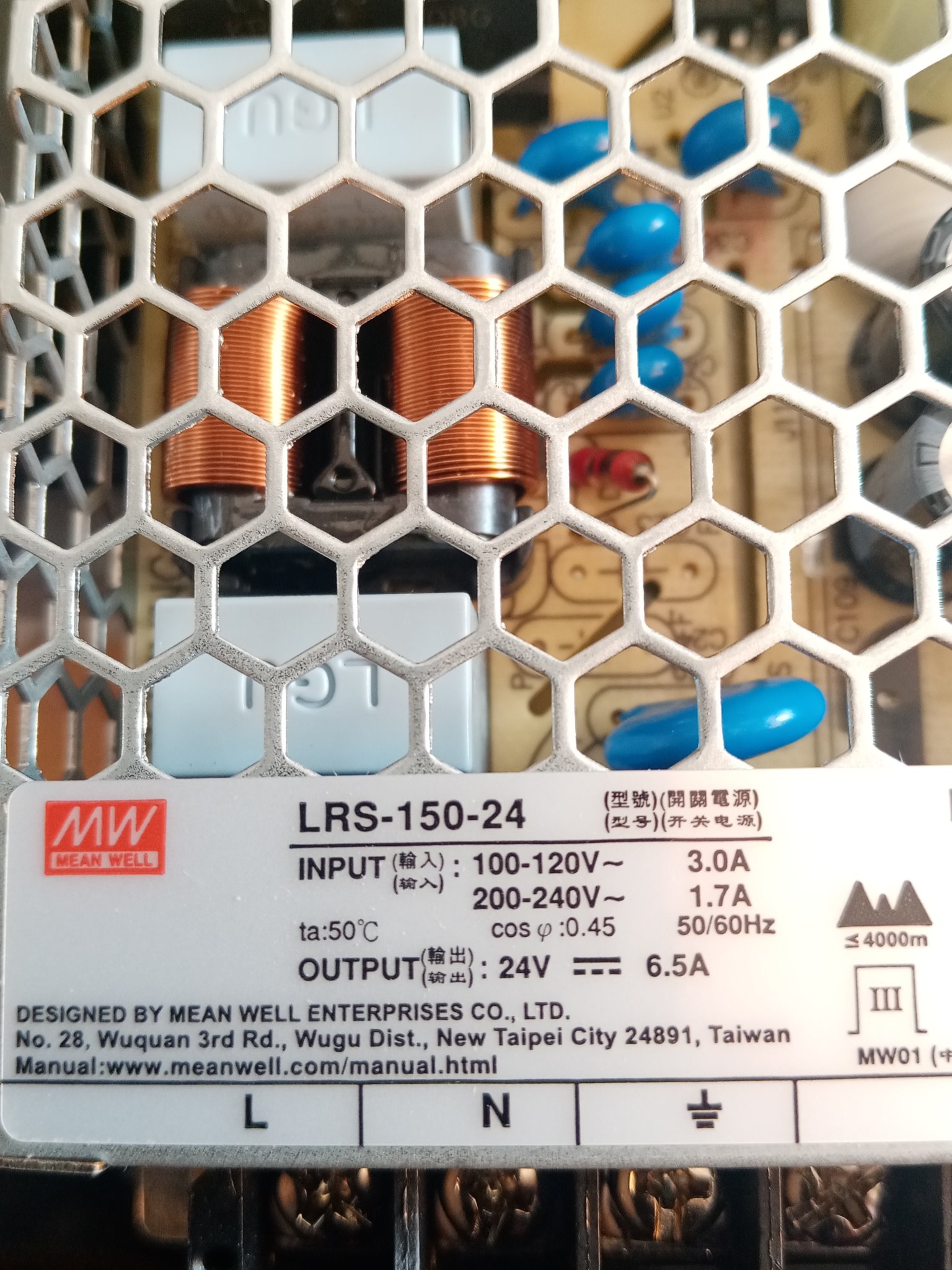

With meanwell lrs 150 24, 6.5ampere 24v



[Freedom666]

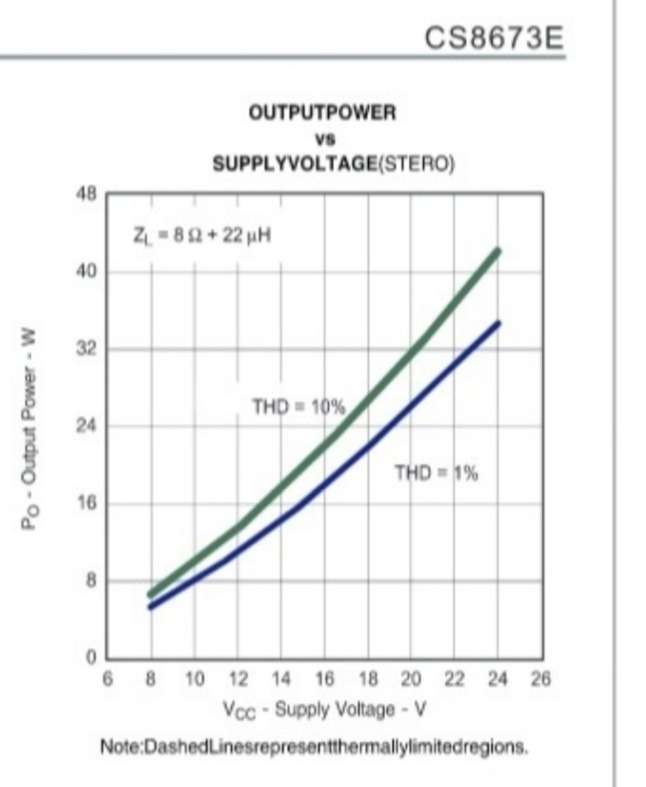

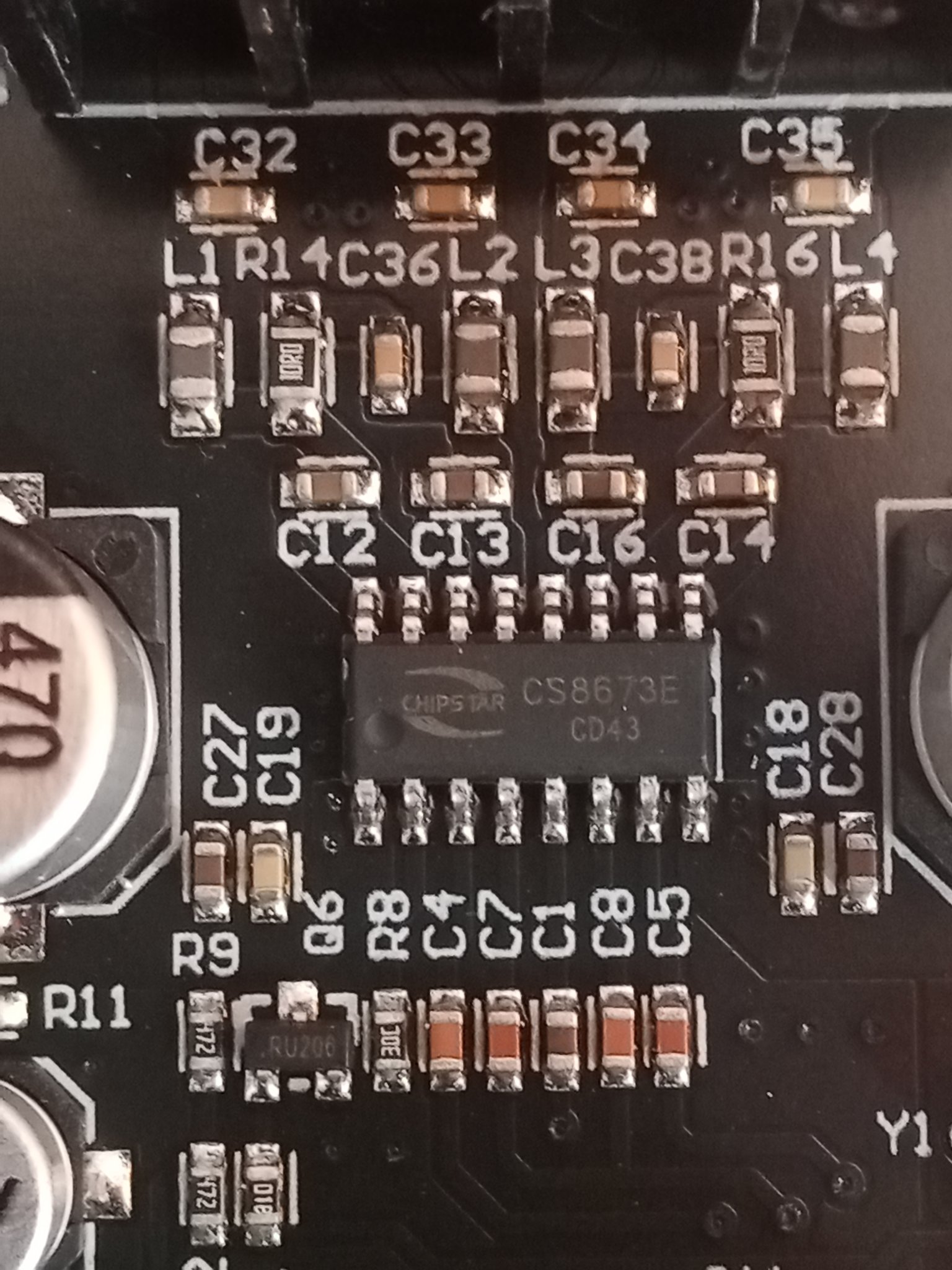

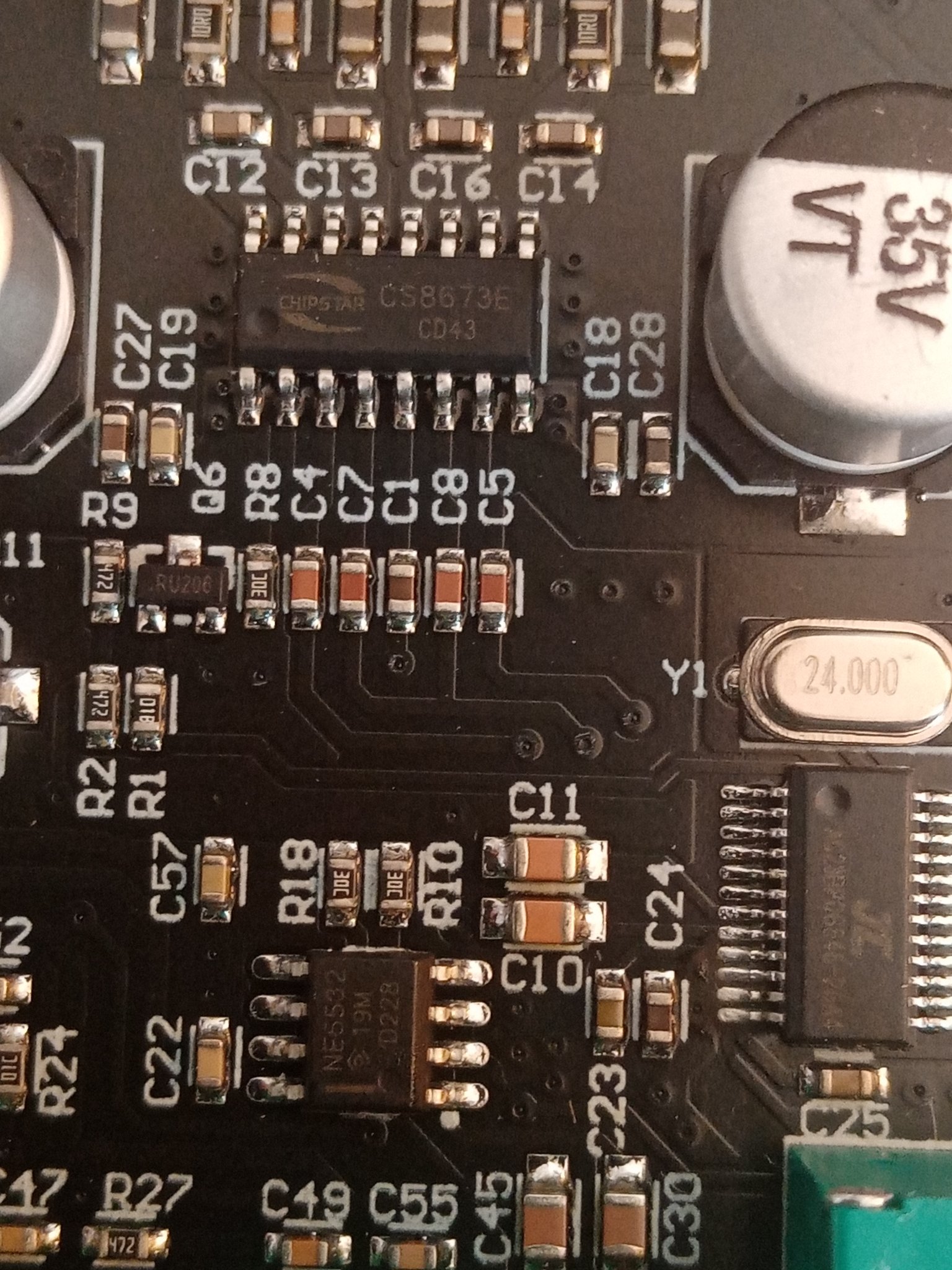

CS8673 amplifier chip - datasheet:

https://www.diyaudio.com/community/threads/difference-between-cs8673-and-tpa3116.405281/



[Freedom666]

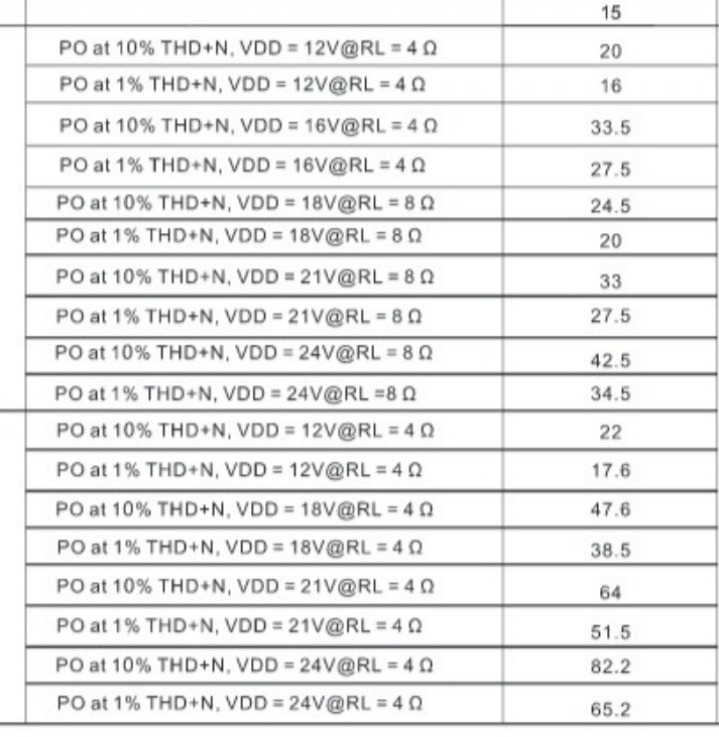

How much power can this Chinese class D chip put out due to datasheet?

At 1% distortion, 24v supply and 4 ohms: 65.2 watts

At 1% distortion and 8 ohms:
34.5 watts



[Freedom666]

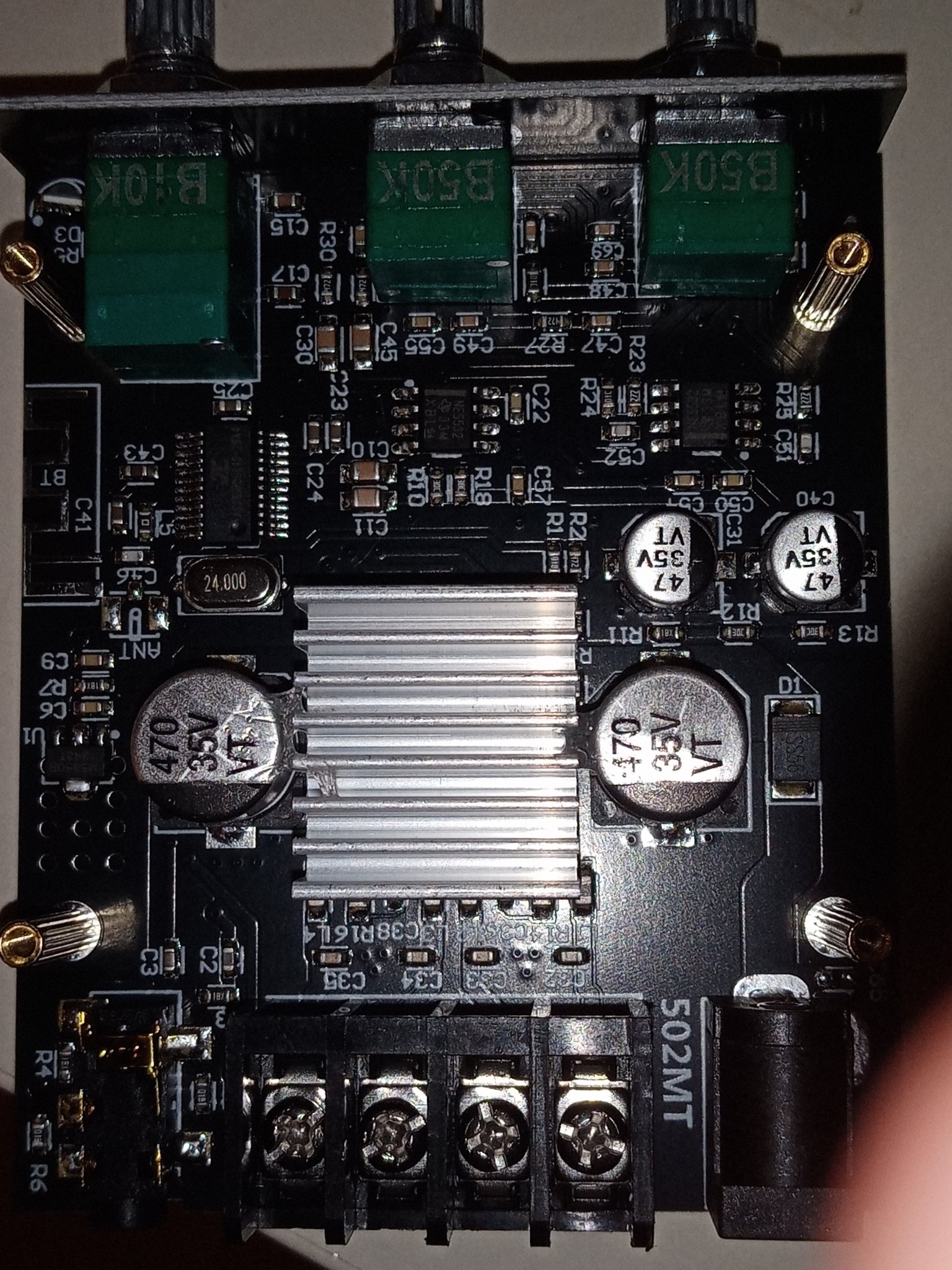

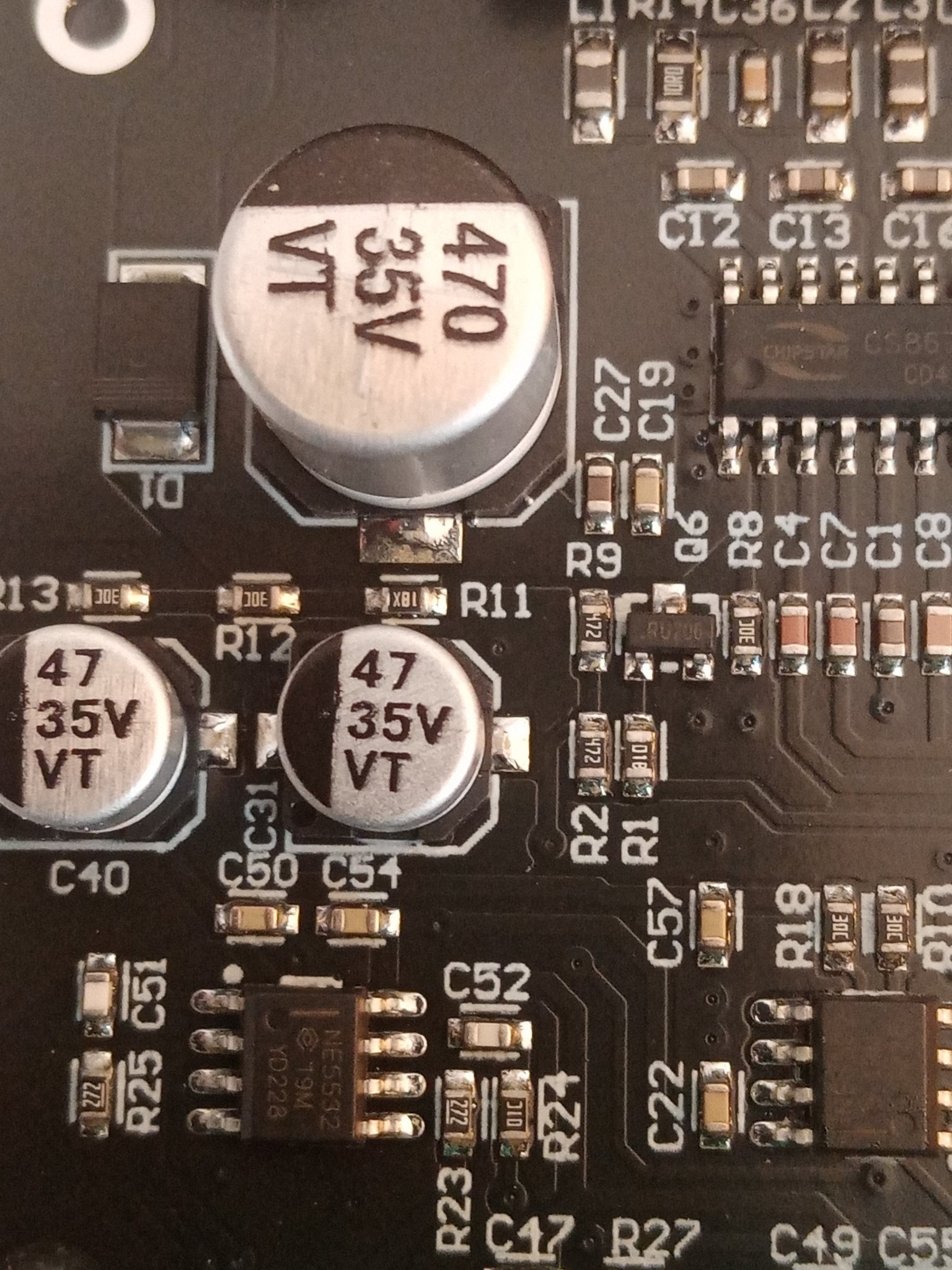

Heatsink fixed with some drops of glue attached at the 470uF electrolytics



[Freedom666]

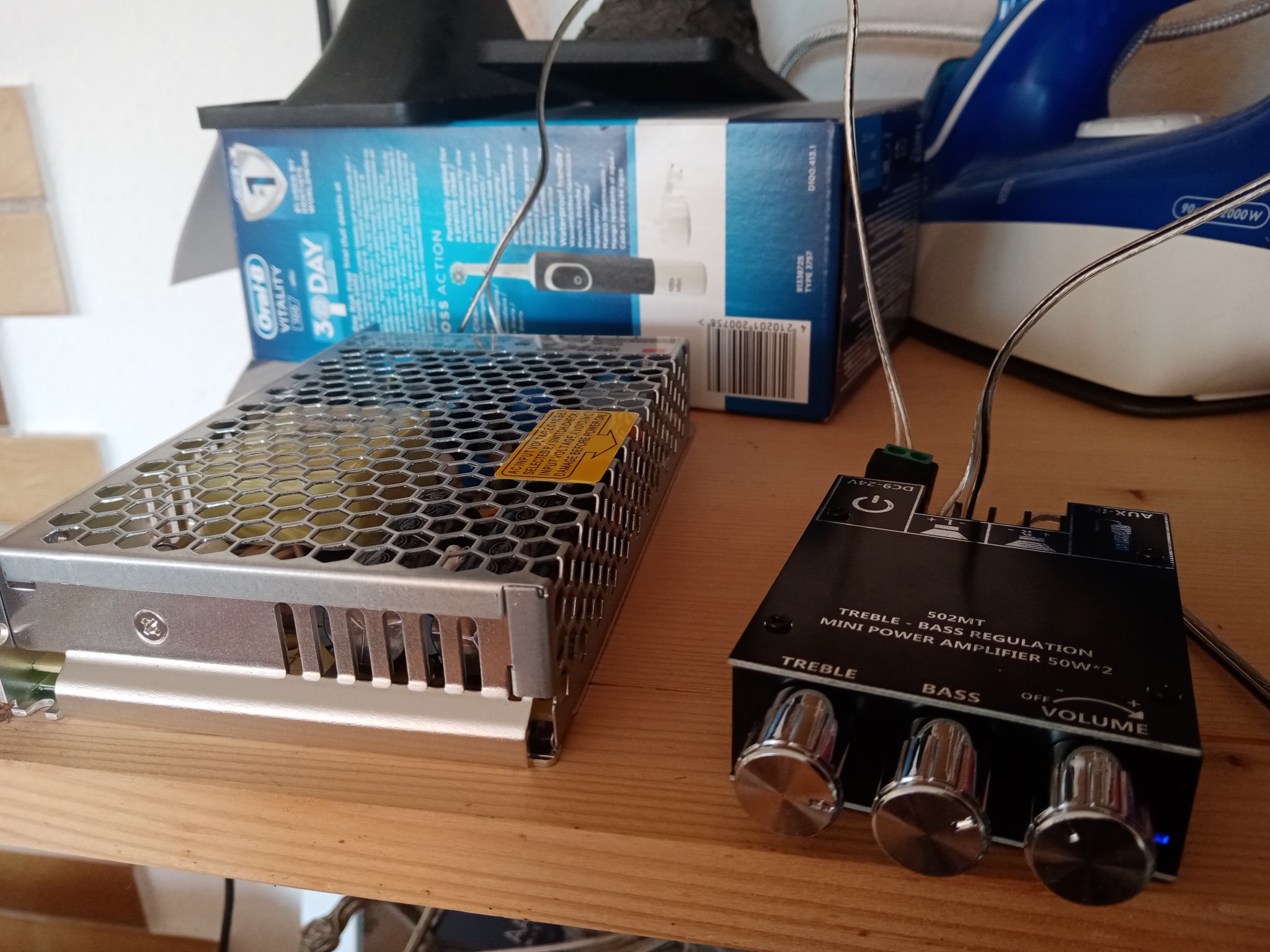

Now working with exactly 24v from the meanwell smps.

With an aluminized fullrange of 13cm

https://www.diyaudio.com/community/threads/how-to-make-a-loudspeaker-sandwich-cone.402917/
