Telefunken TR350 TR-350 FM Stereo Tuner + Integrated Amplifier Strip down + Repair

Jump to Latest
tiefbassuebertr

tiefbassuebertr

Member
Joined 2005
tiefbassuebertragung.de
#1

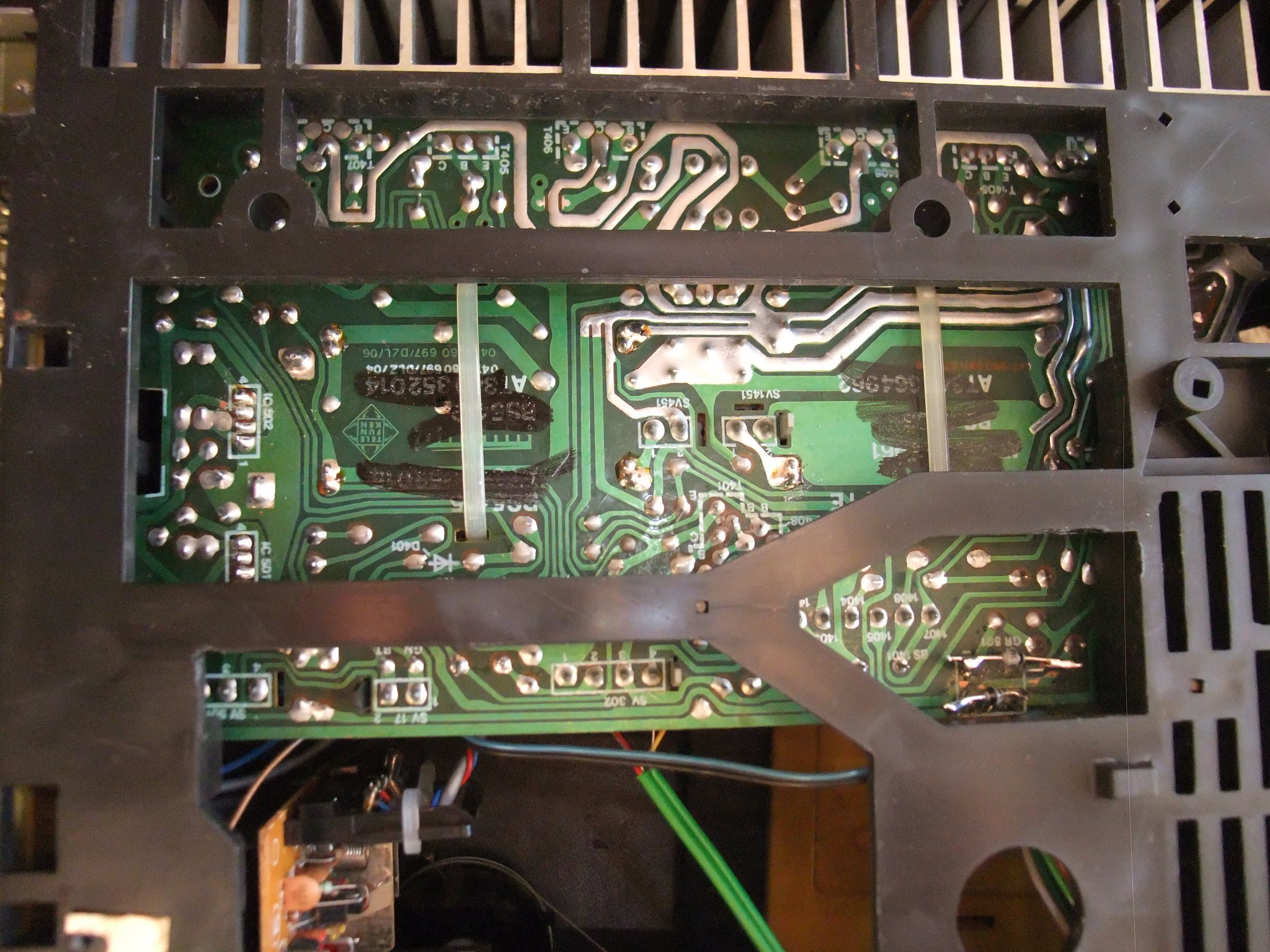

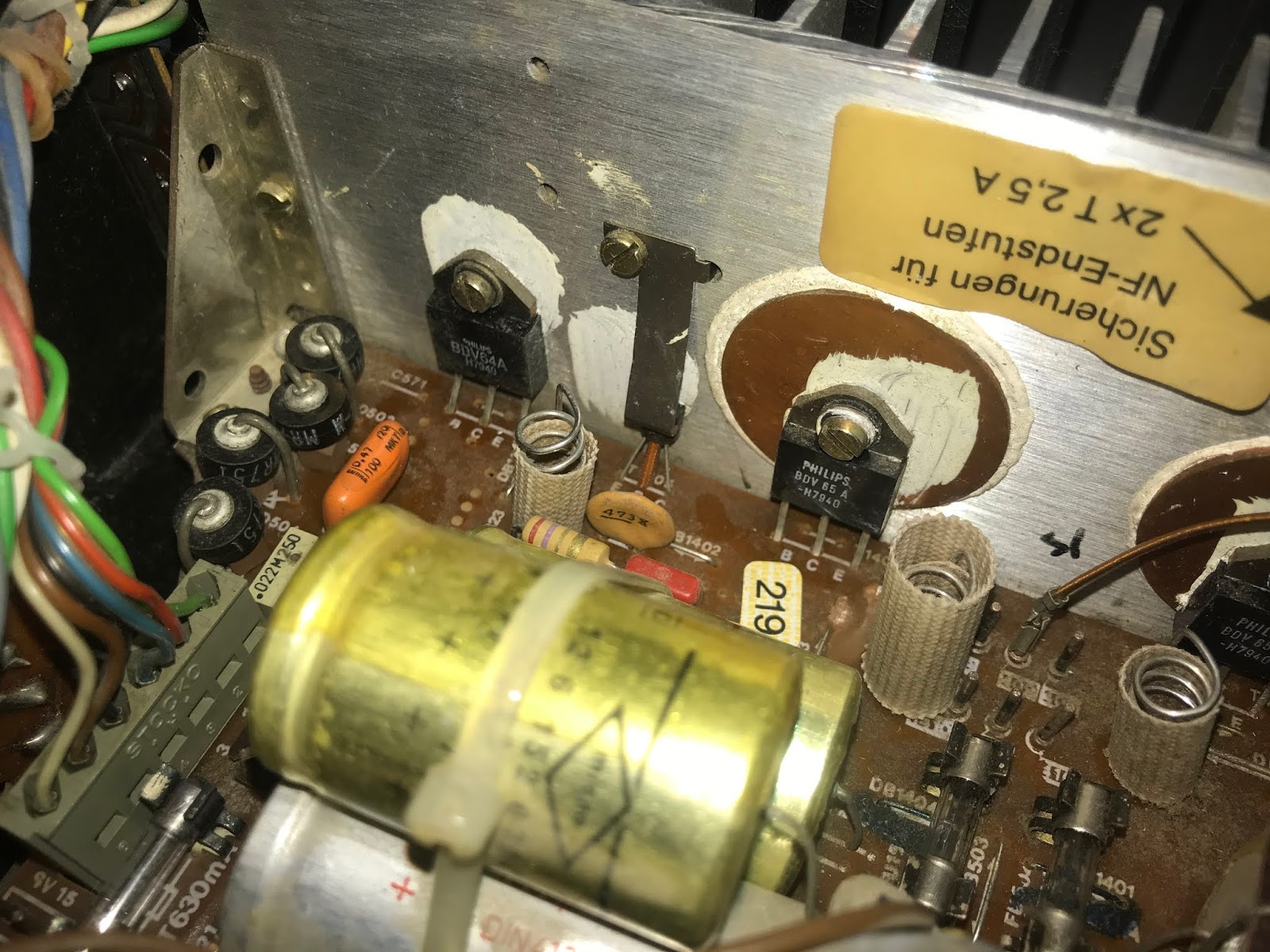

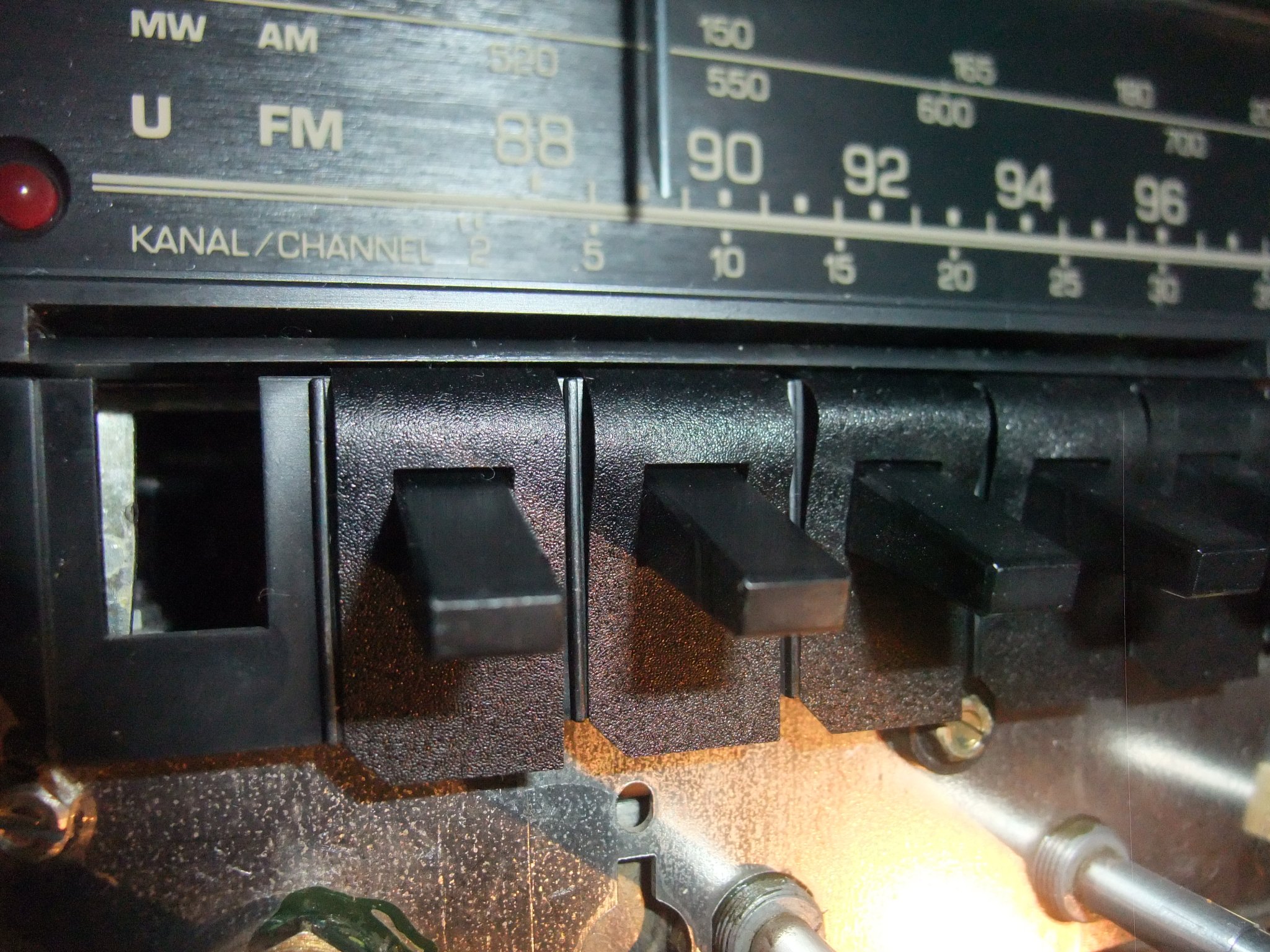

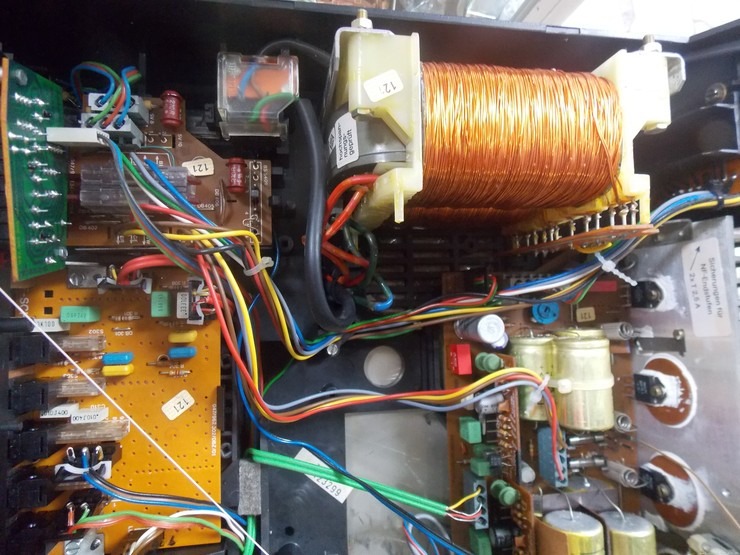

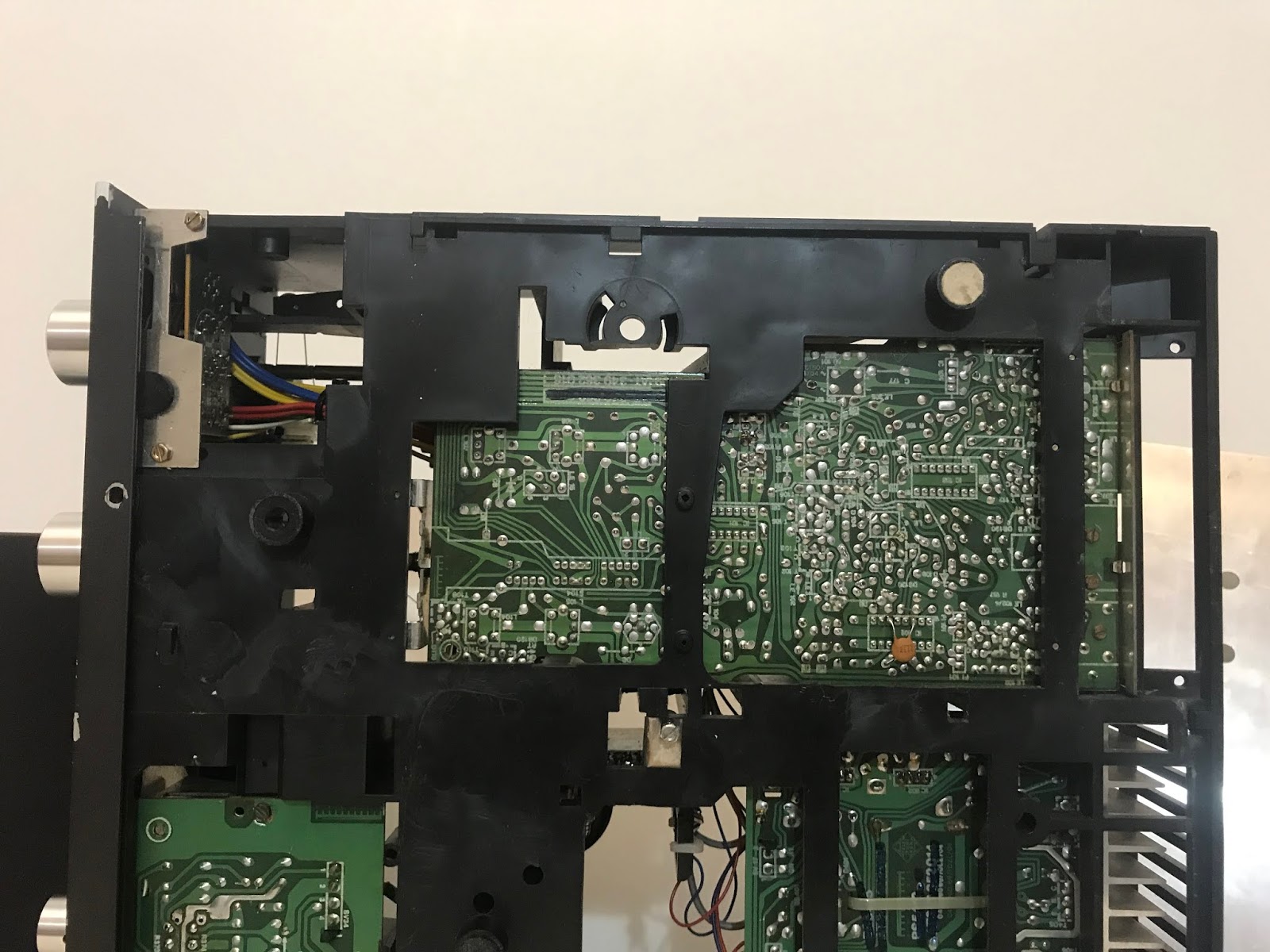

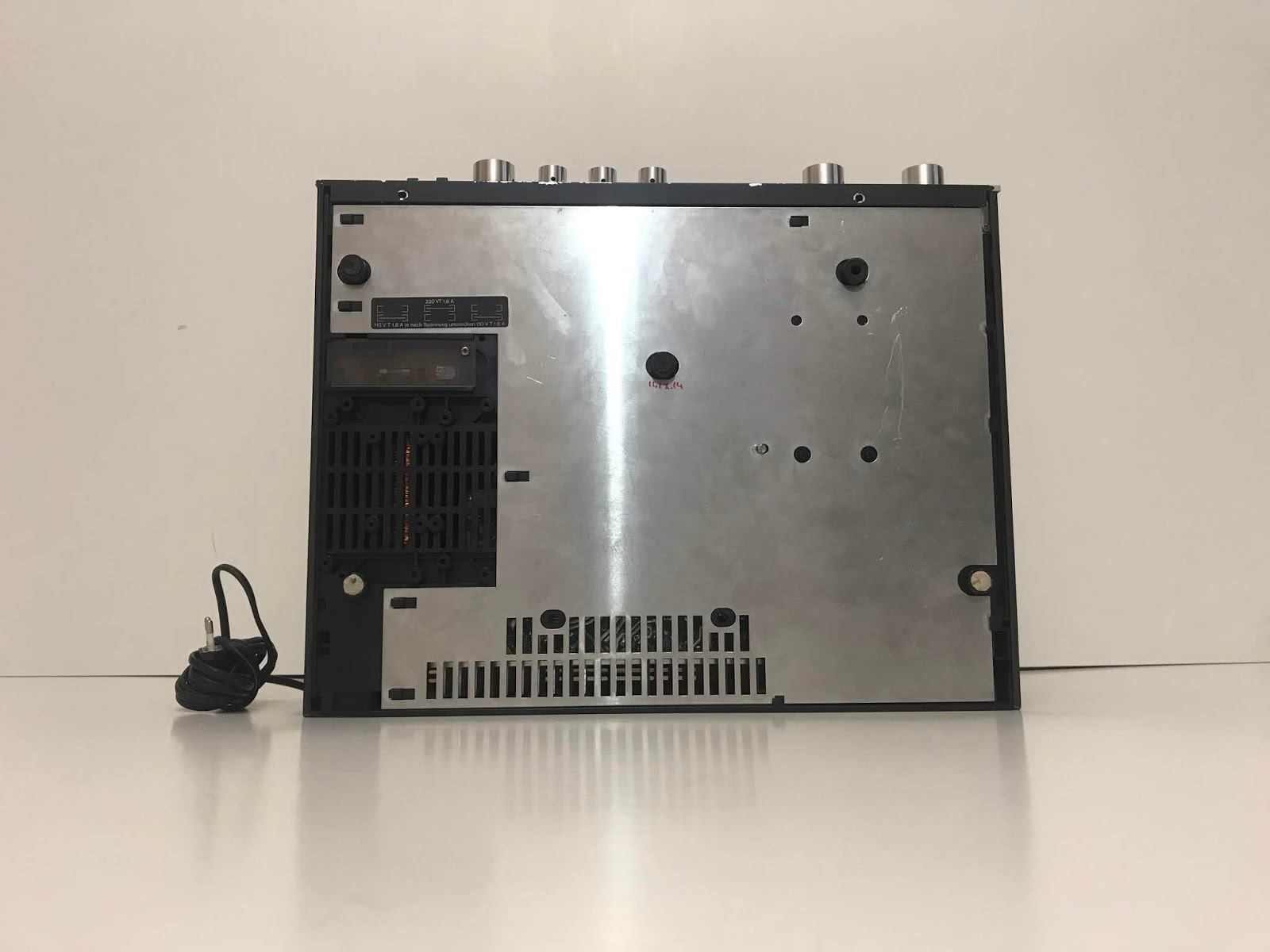

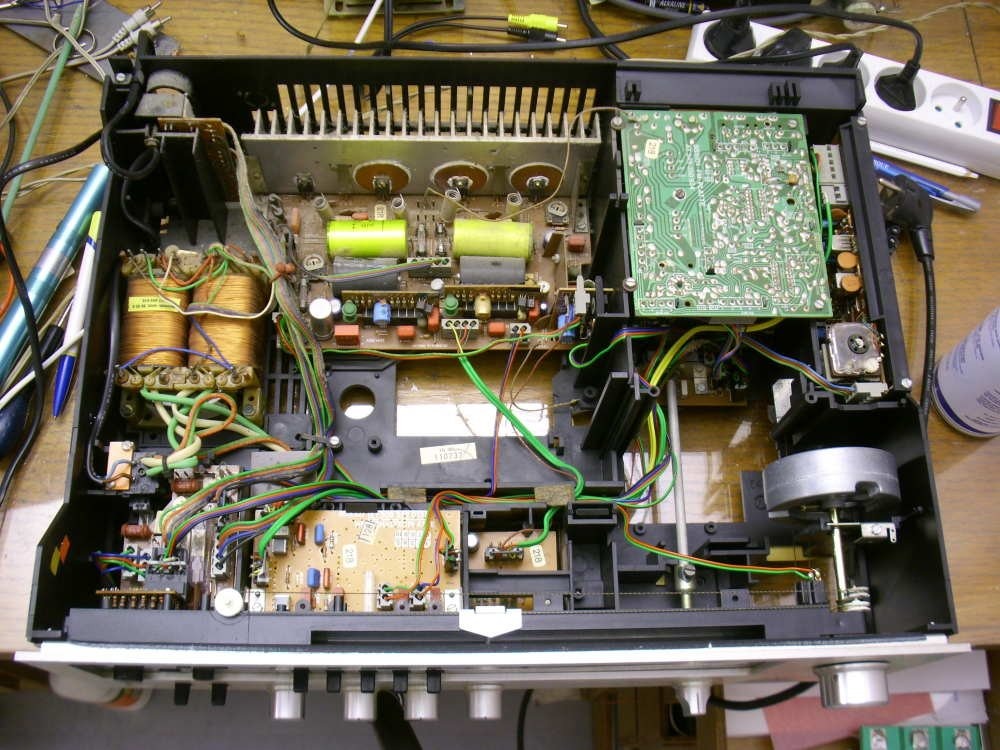

Outside image of this device are here:
https://www.audiovintage.fr/leforum/viewtopic.php?t=59293

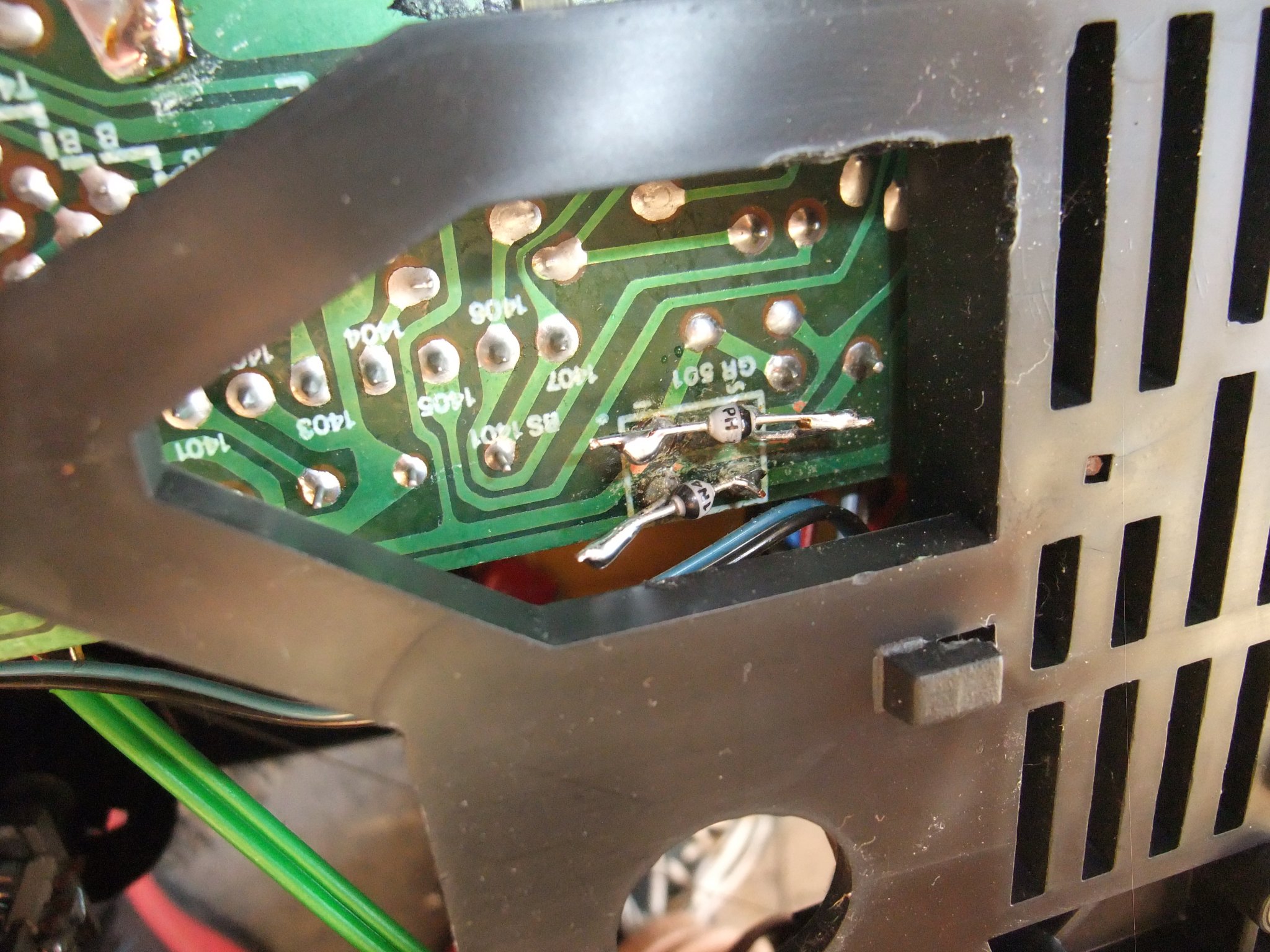

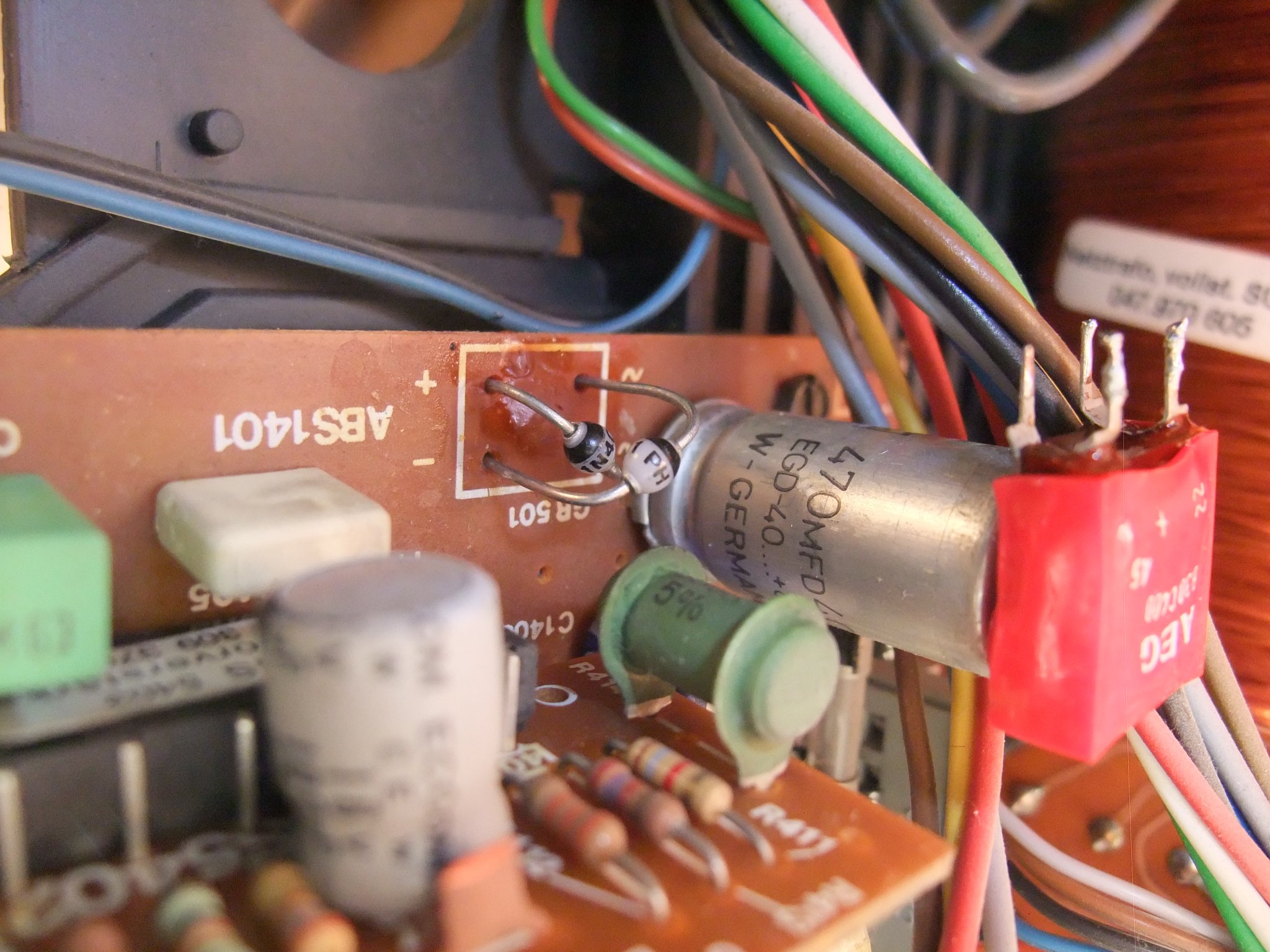

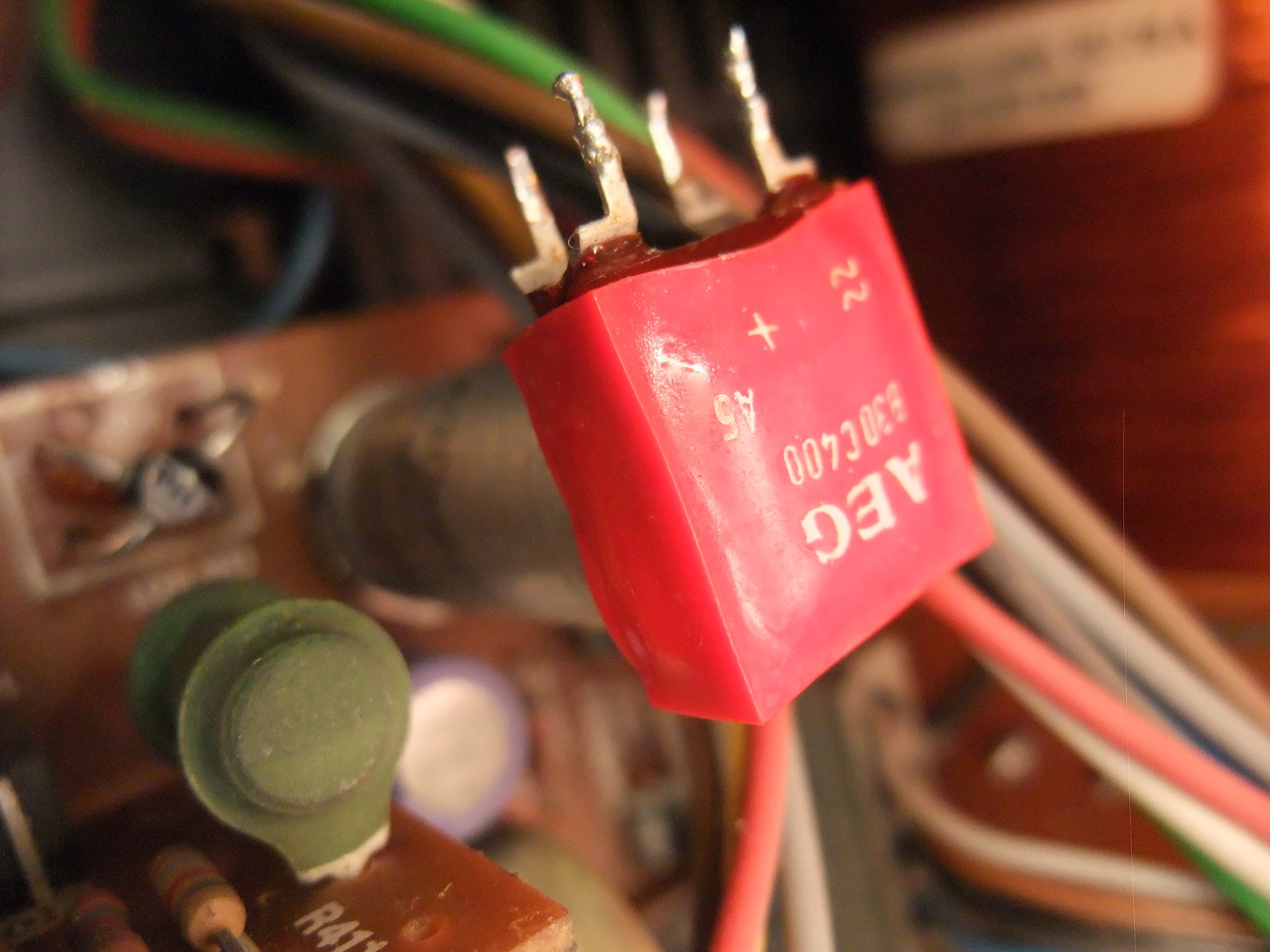

Replacing of the red AEG rectifier by single diodes is an easy task - most effort is the elimination of all contact resistances on the pots and switches so as the melting of numerous solder joints.

I am surprised by the good sound character and the reliability despite the age (no hot spots on PCB like to observe on various very expensive Mark Levinson amplifier devices) - thus highly recommended for used purchases.


Attachments

  • front_on.jpg
    278.7 KB · Views: 252
  • back.jpg
    289.4 KB · Views: 225
  • open_3.jpg
    411.3 KB · Views: 330
  • open_2.jpg
    352.6 KB · Views: 199
  • TFK-TR-350-innen_84324.jpg
    698.7 KB · Views: 316
  • 088.JPG
    152.8 KB · Views: 203
  • h.jpg
    162.1 KB · Views: 221
  • 2892501_dscn0687-copy-copy-copy.jpg
    93.9 KB · Views: 191
  • 2892505_dscn0691.jpg
    69.5 KB · Views: 169
  • IMG_5307.JPG
    121.5 KB · Views: 152
  • IMG_5307.JPG
    121.5 KB · Views: 161
  • IMG_5323.JPG
    322.1 KB · Views: 180
  • IMG_5324.JPG
    293.1 KB · Views: 147
  • IMG_5322.JPG
    273.7 KB · Views: 168
  • IMG_5319.JPG
    358.7 KB · Views: 178
  • IMG_5318.JPG
    376 KB · Views: 171
  • 2892511_dscn0707-copy-copy.jpg
    128.1 KB · Views: 177
  • 2892510_dscn0706-copy-copy.jpg
    109.6 KB · Views: 183
  • 2892508_dscn0703-copy-copy.jpg
    98.2 KB · Views: 170
  • 2892506_dscn0697.jpg
    134.8 KB · Views: 202
#2

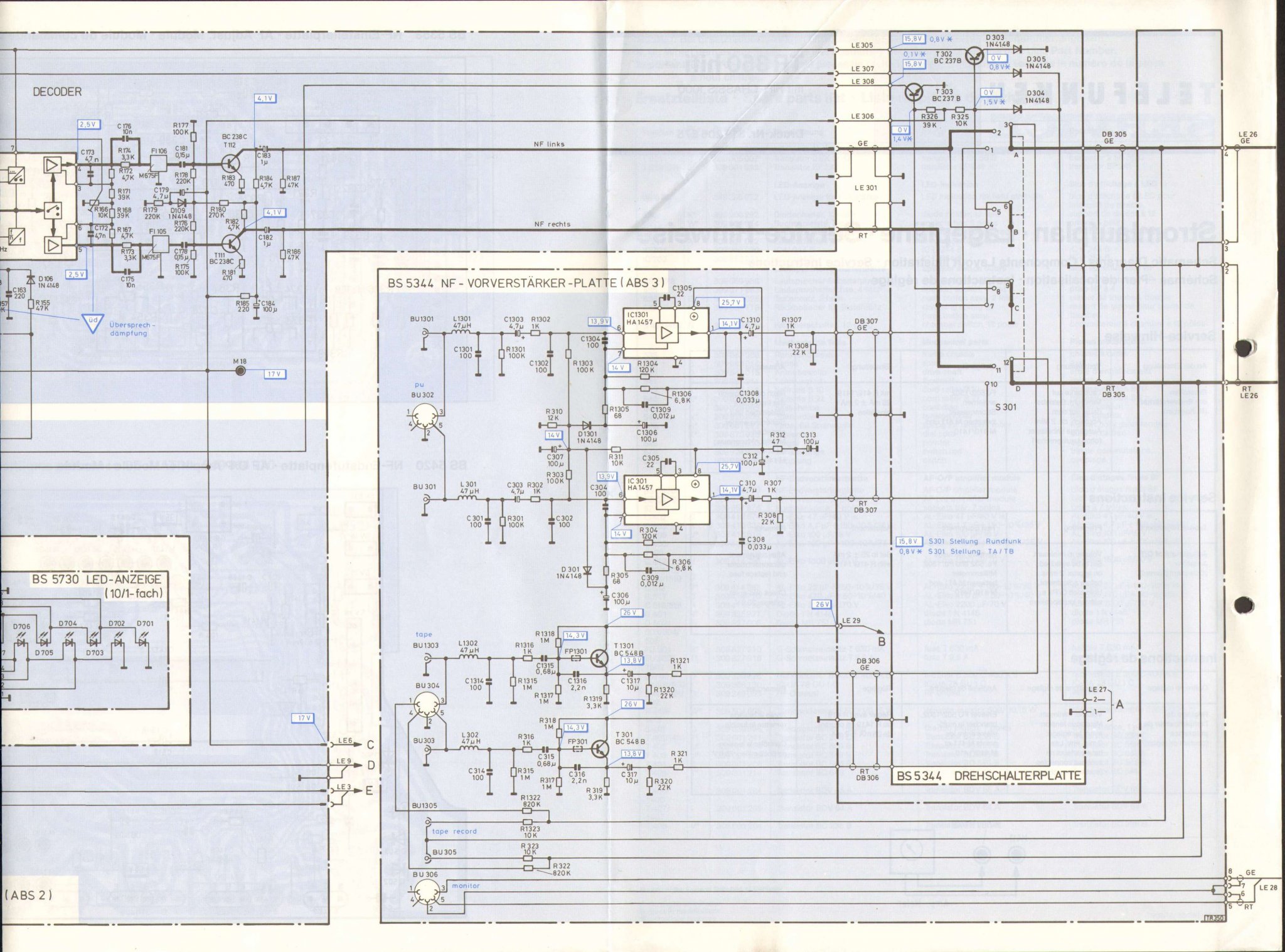

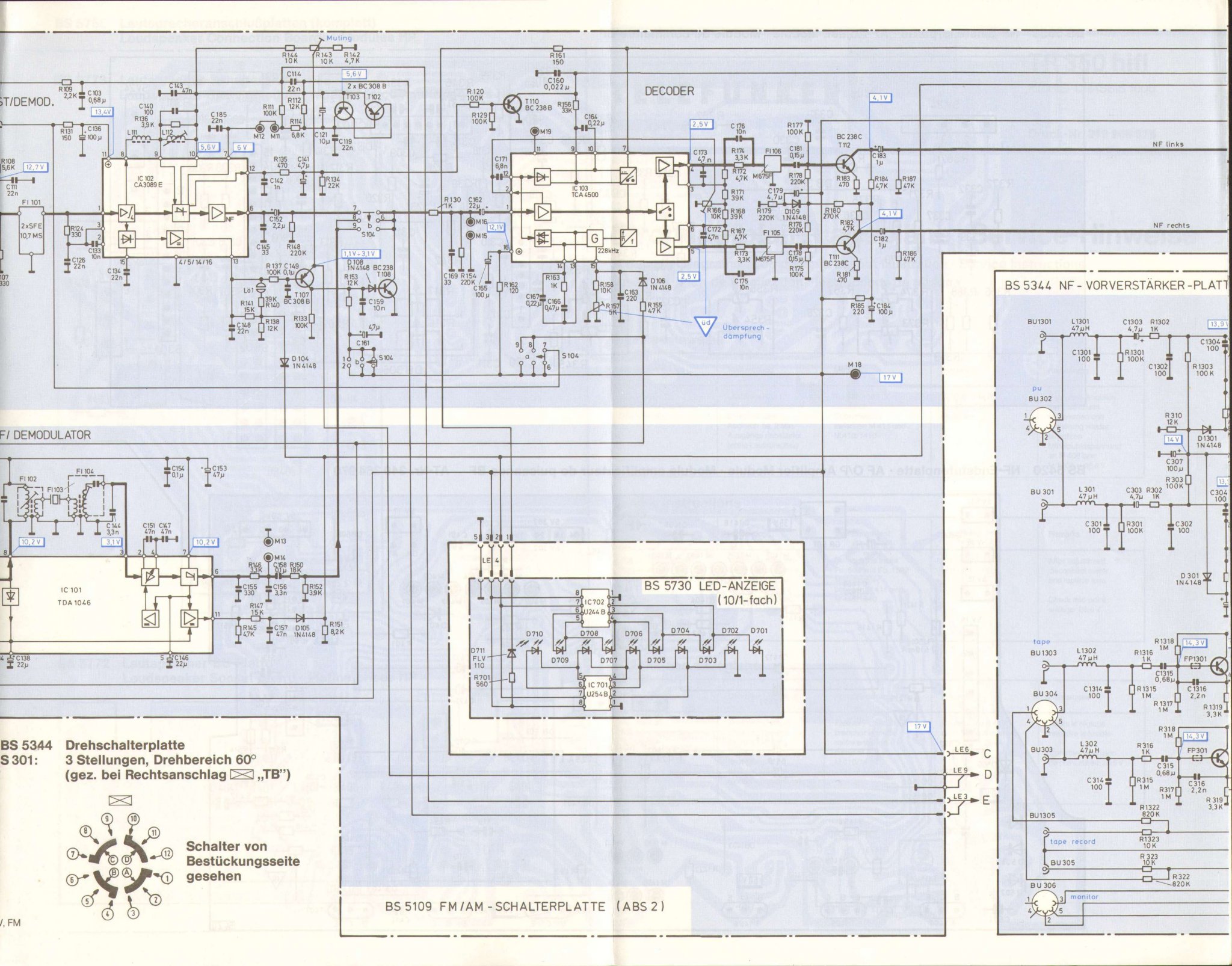

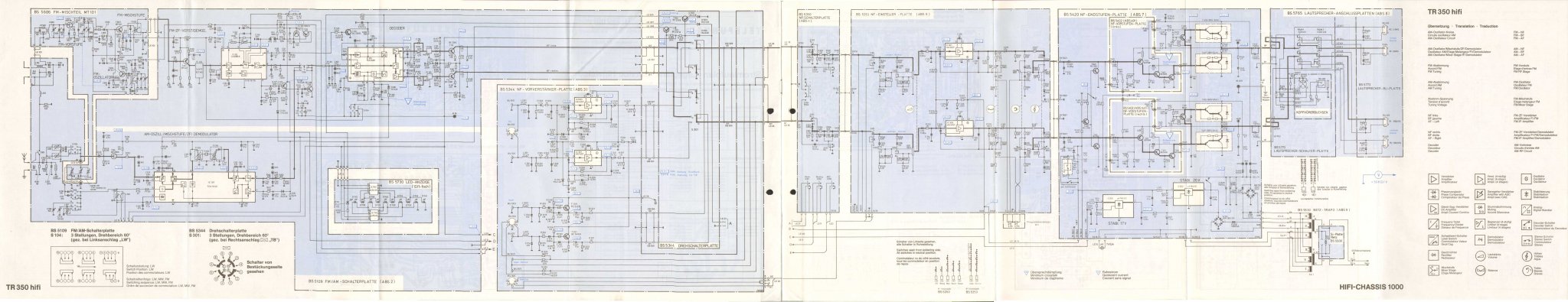

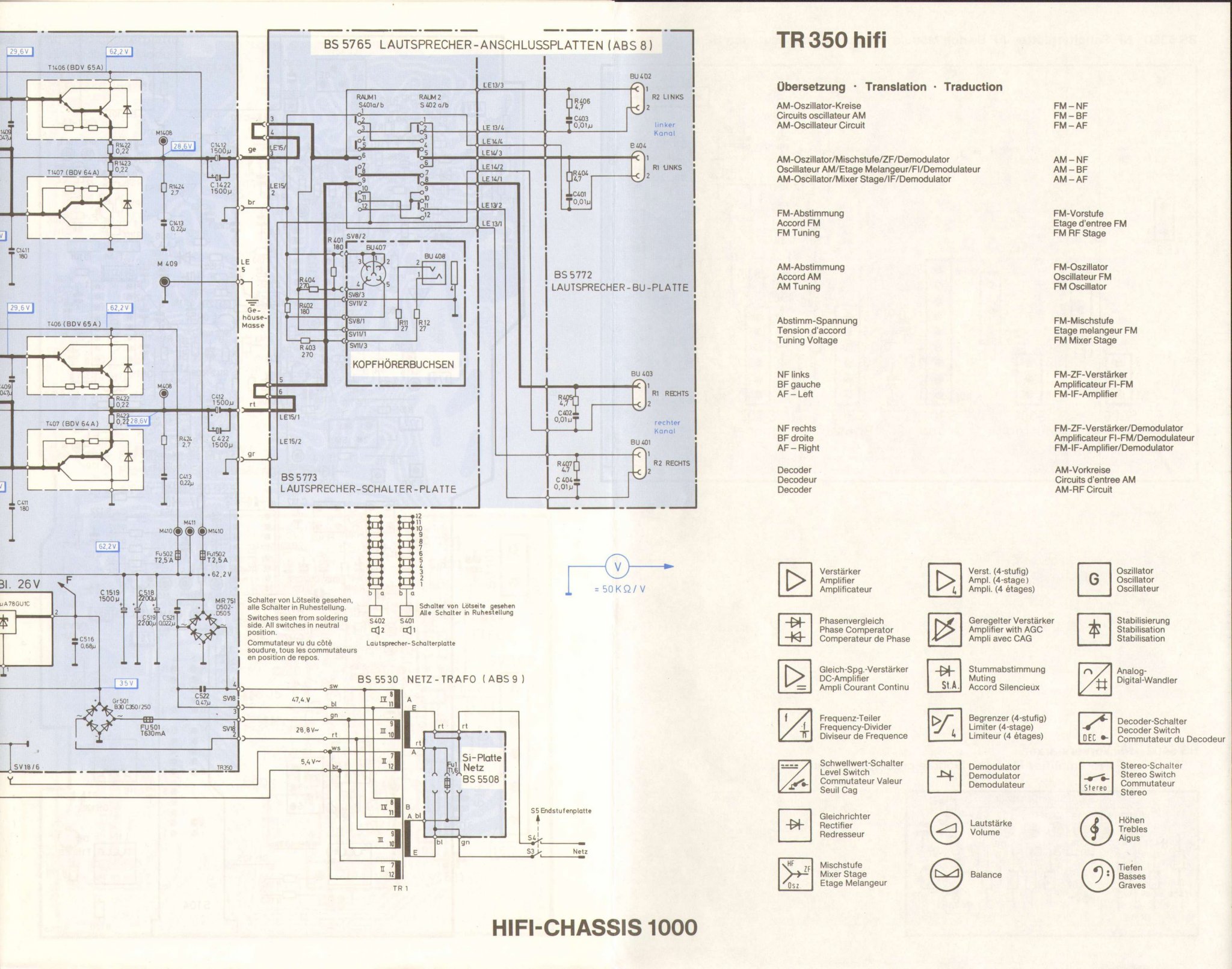

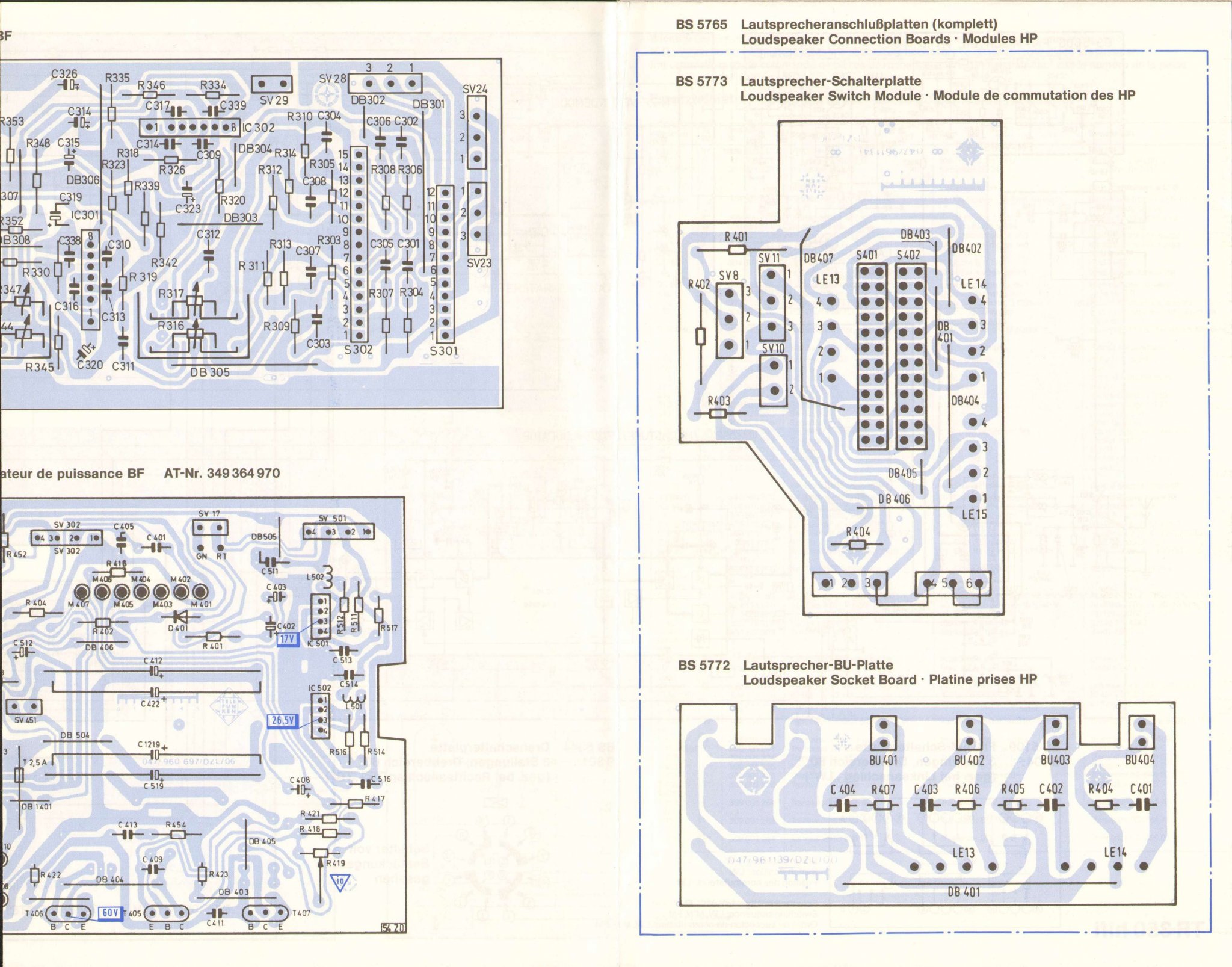

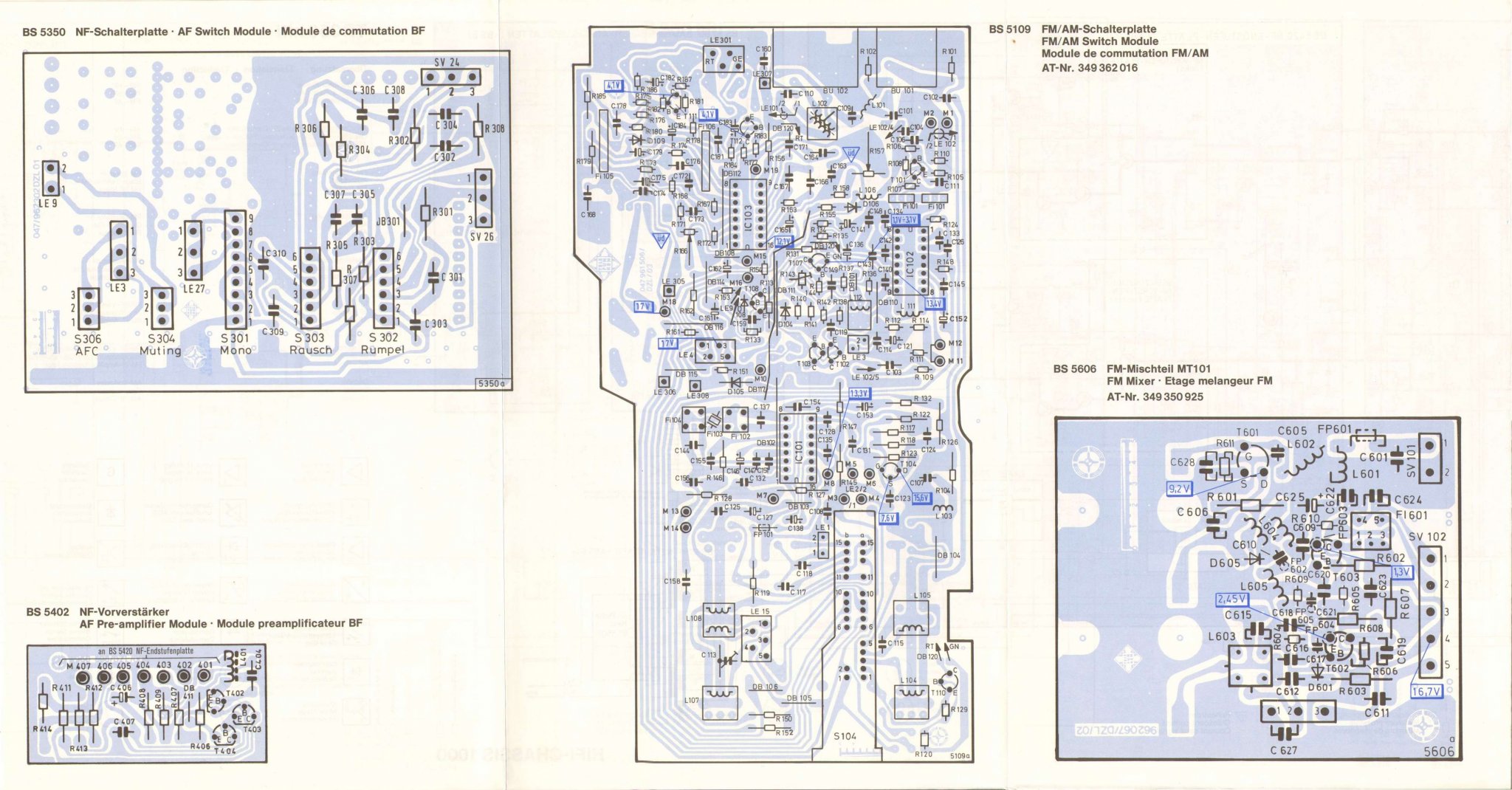

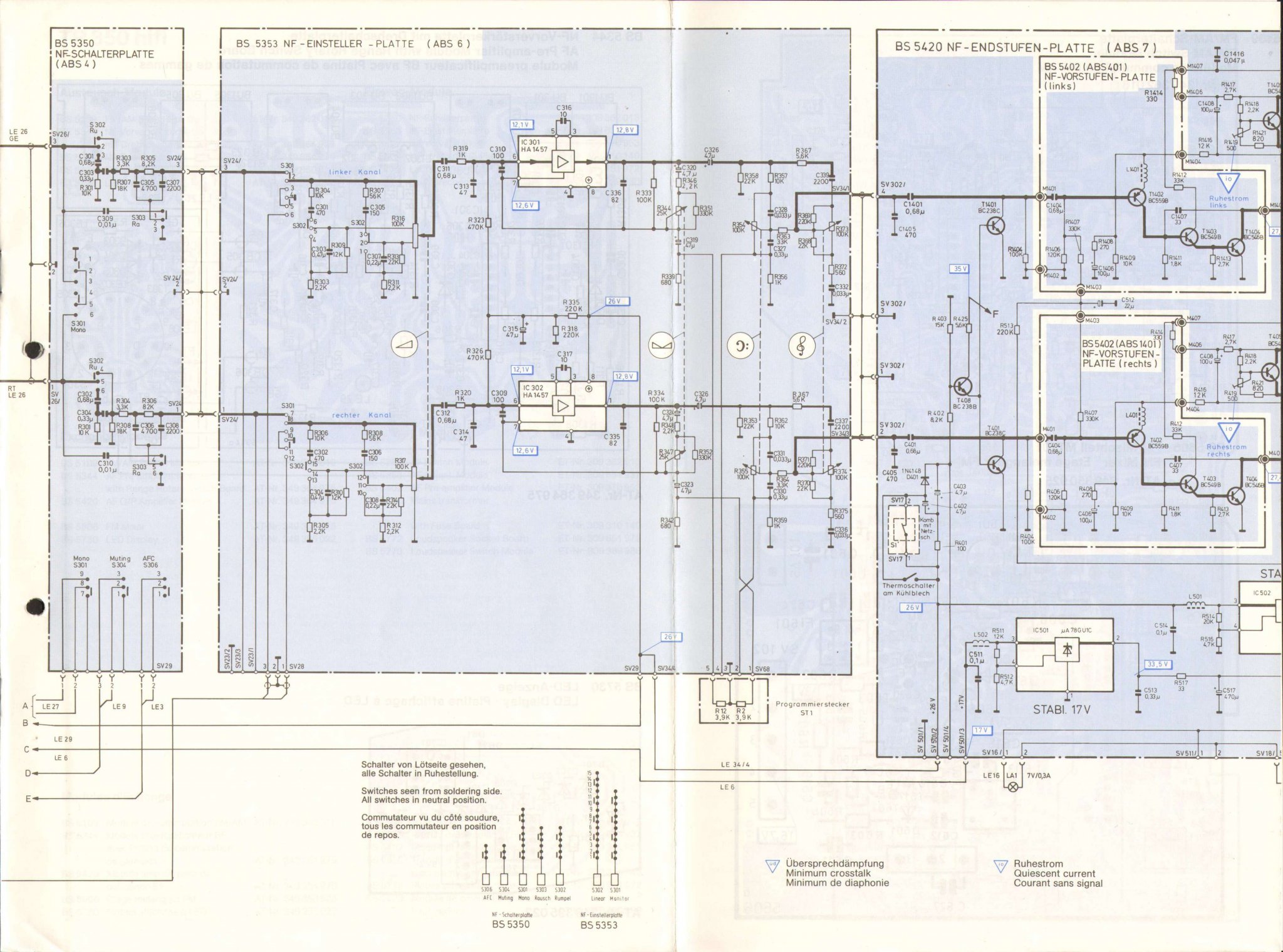

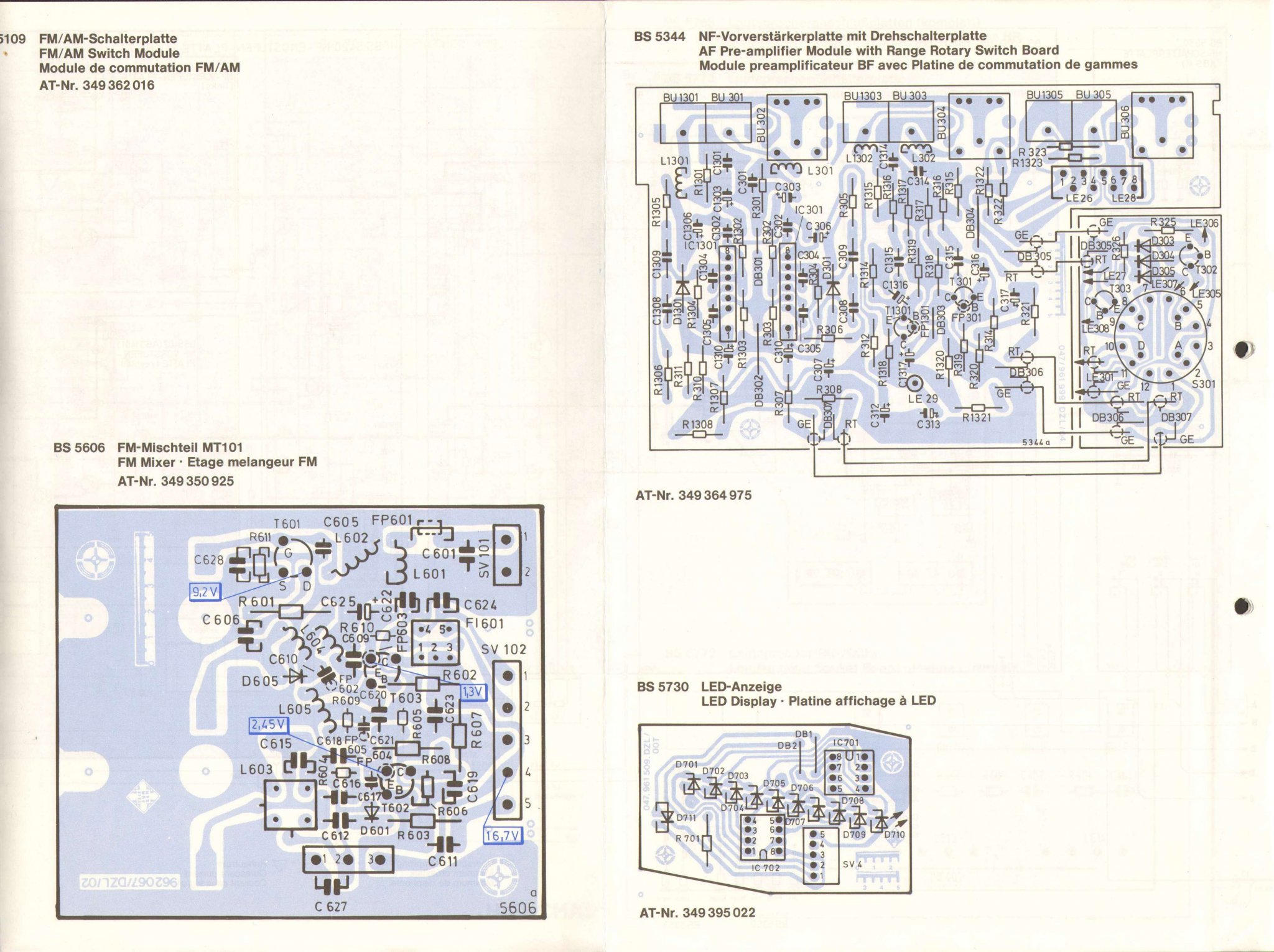

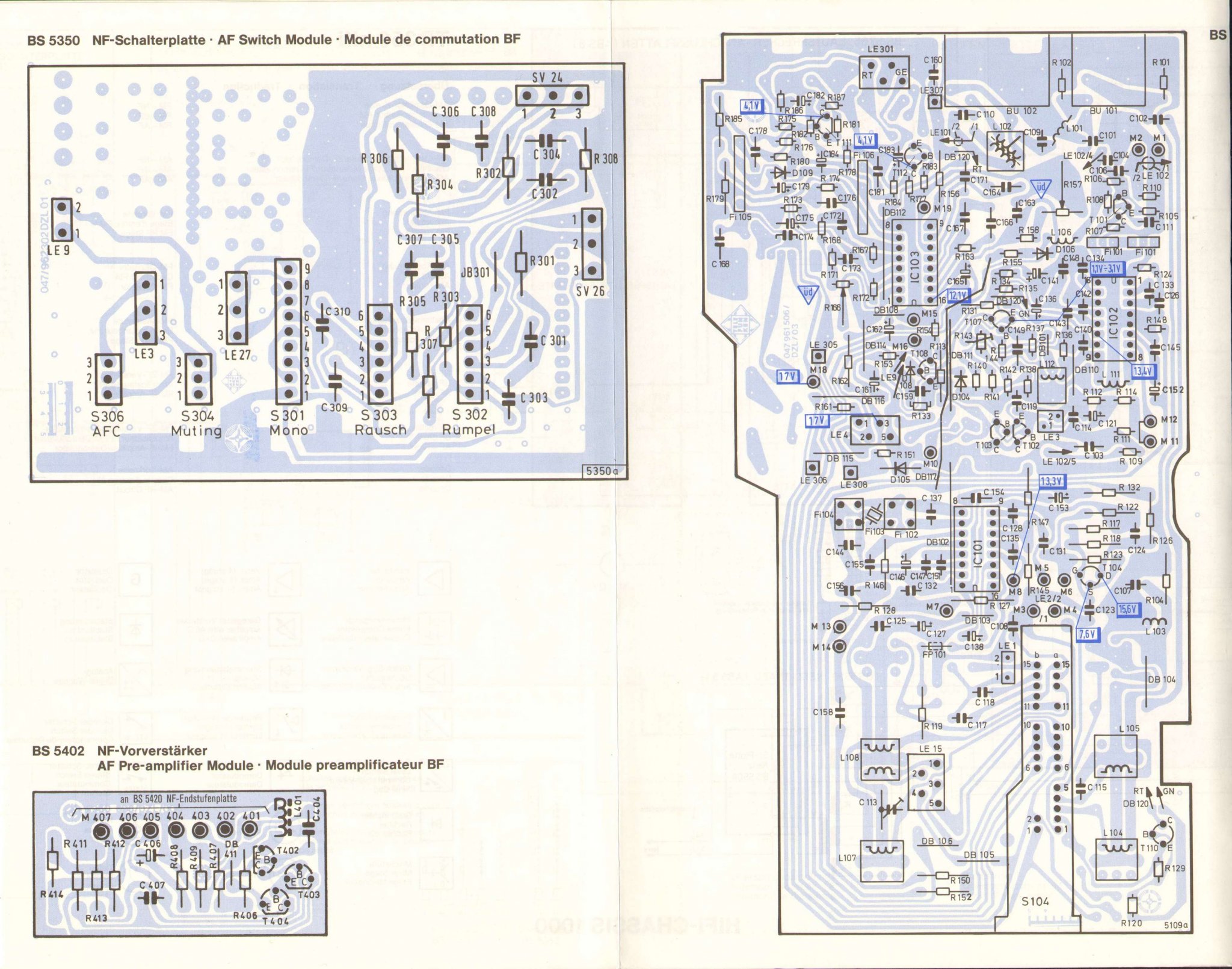

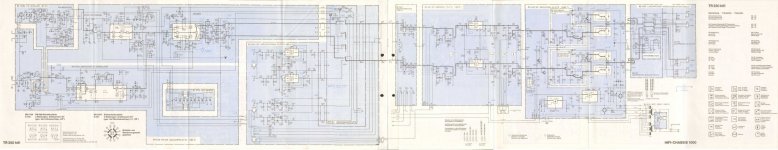

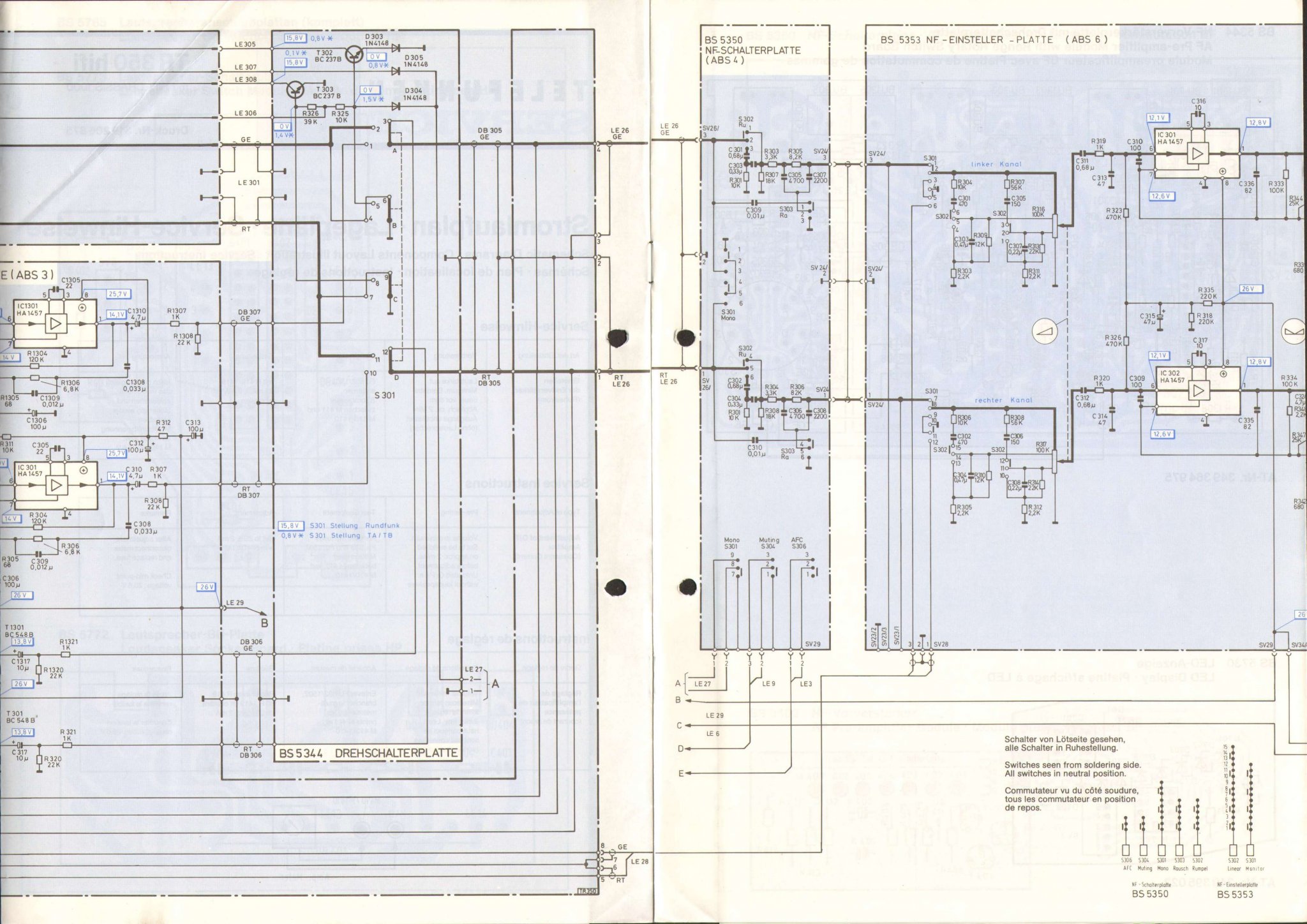

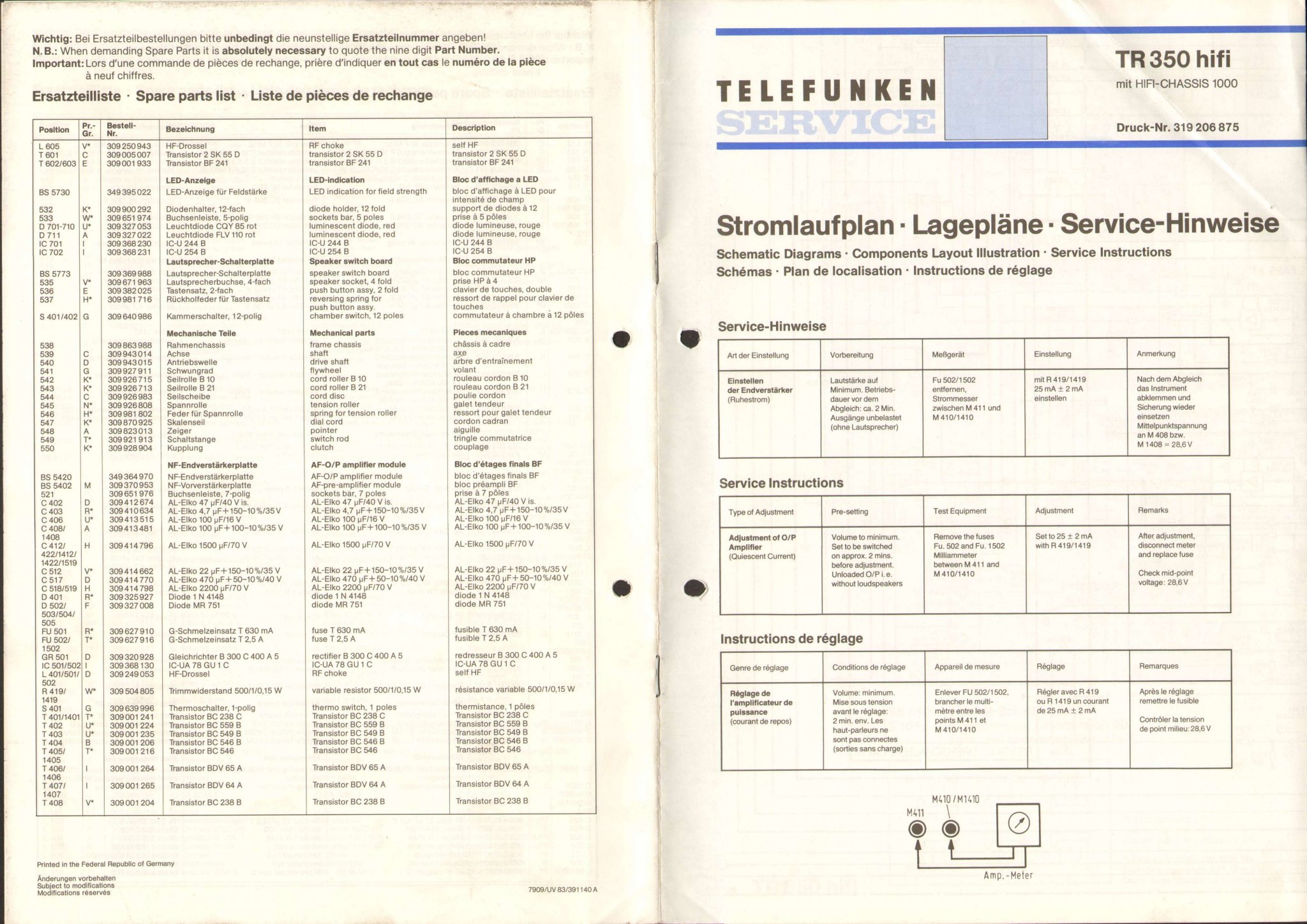

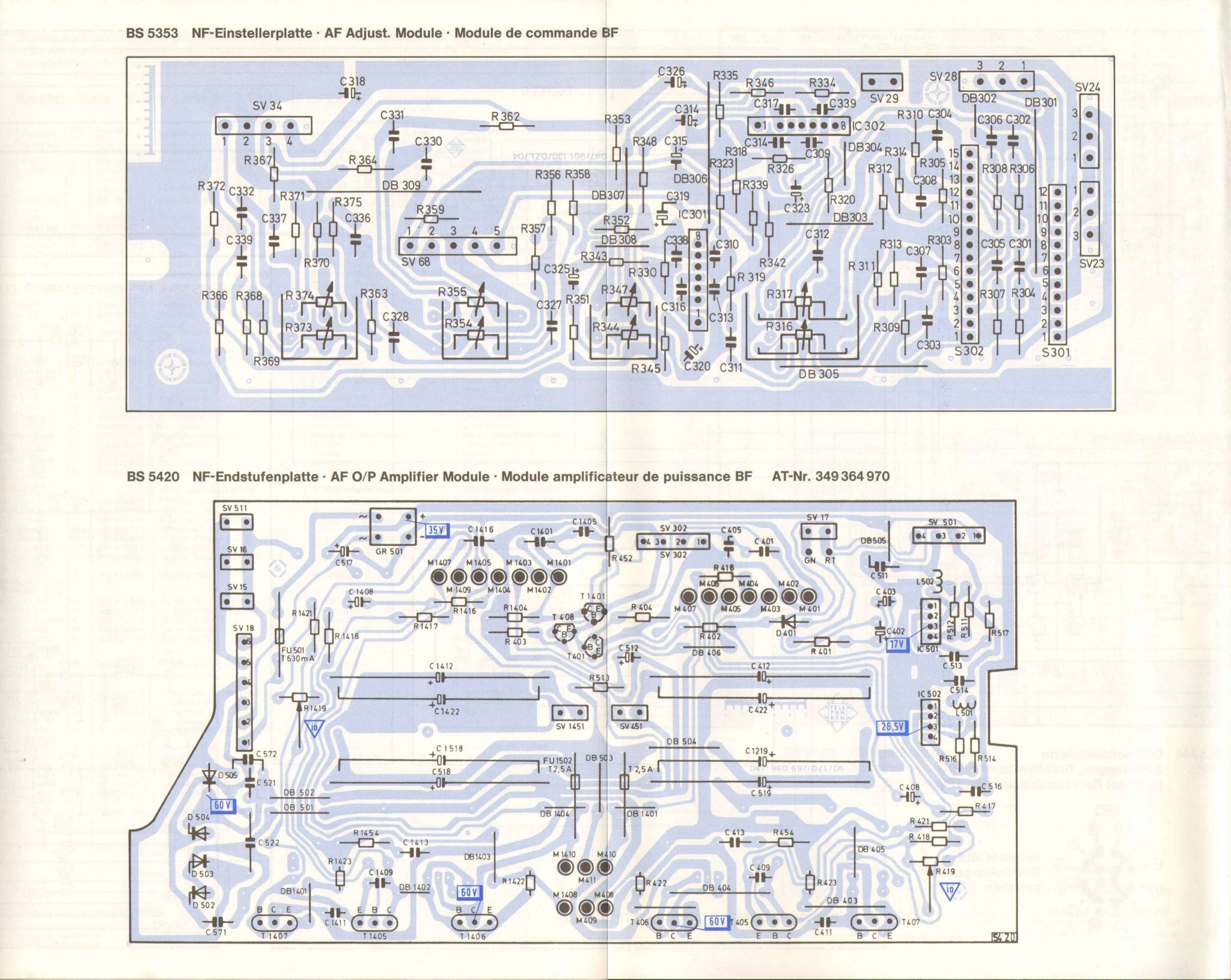

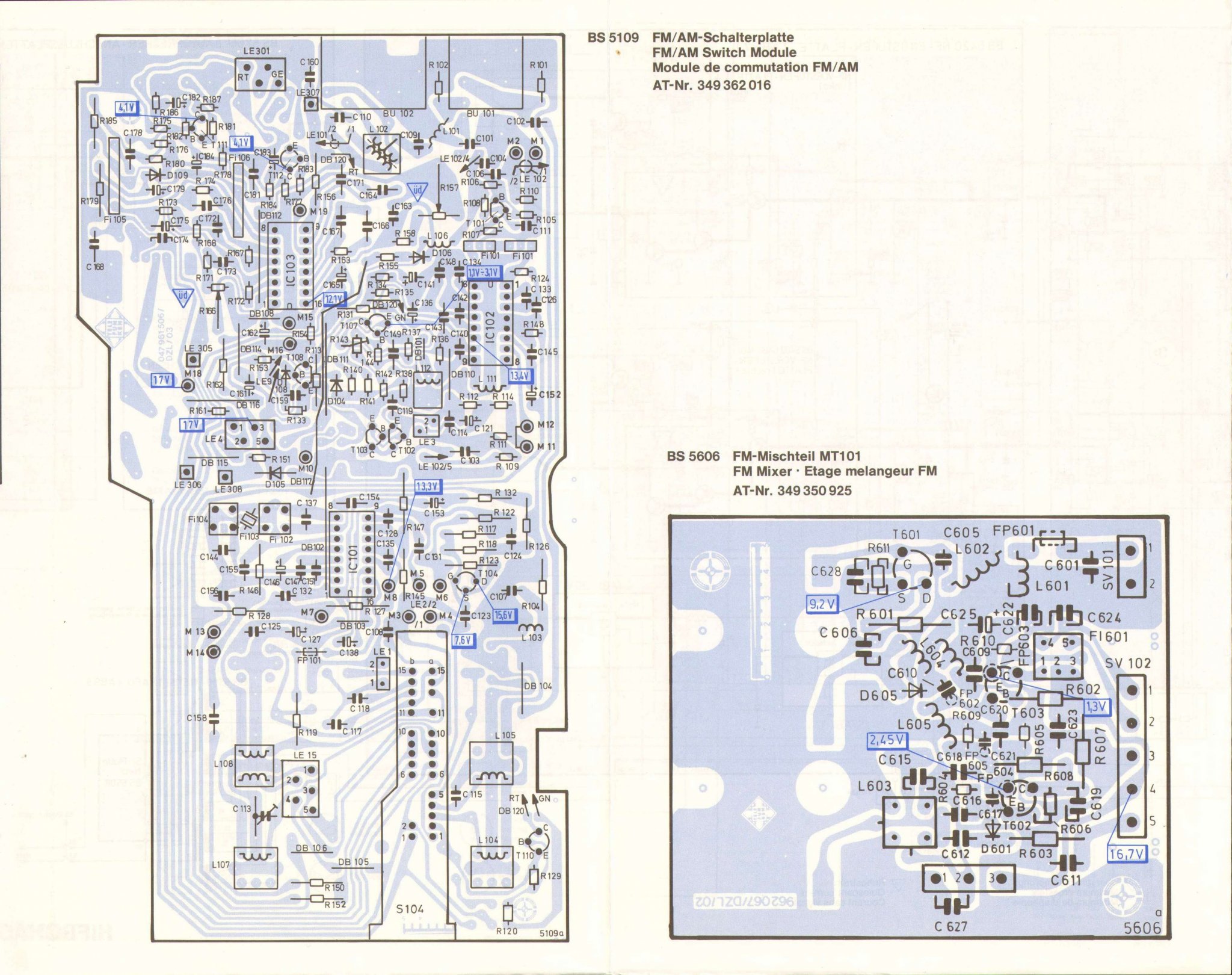

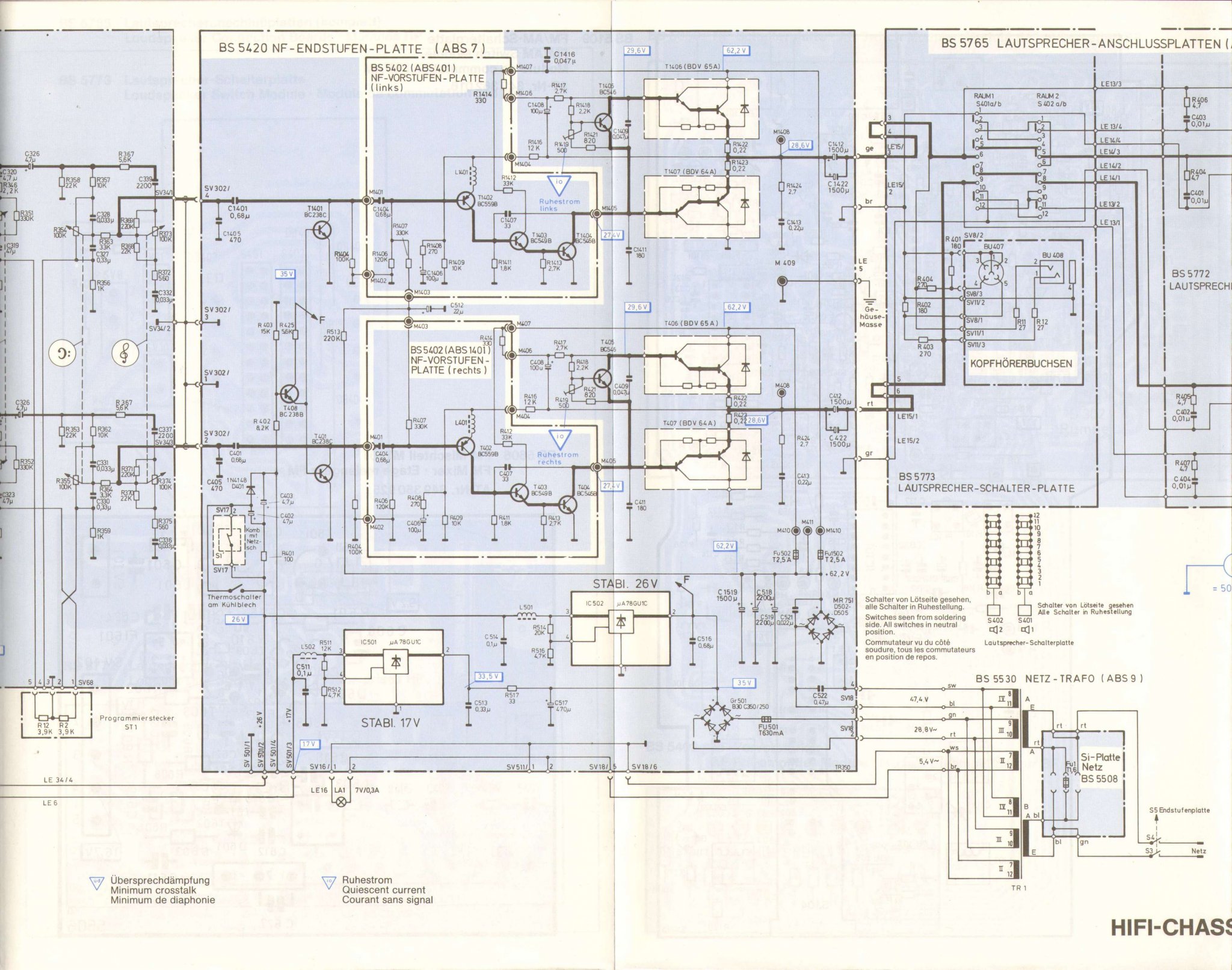

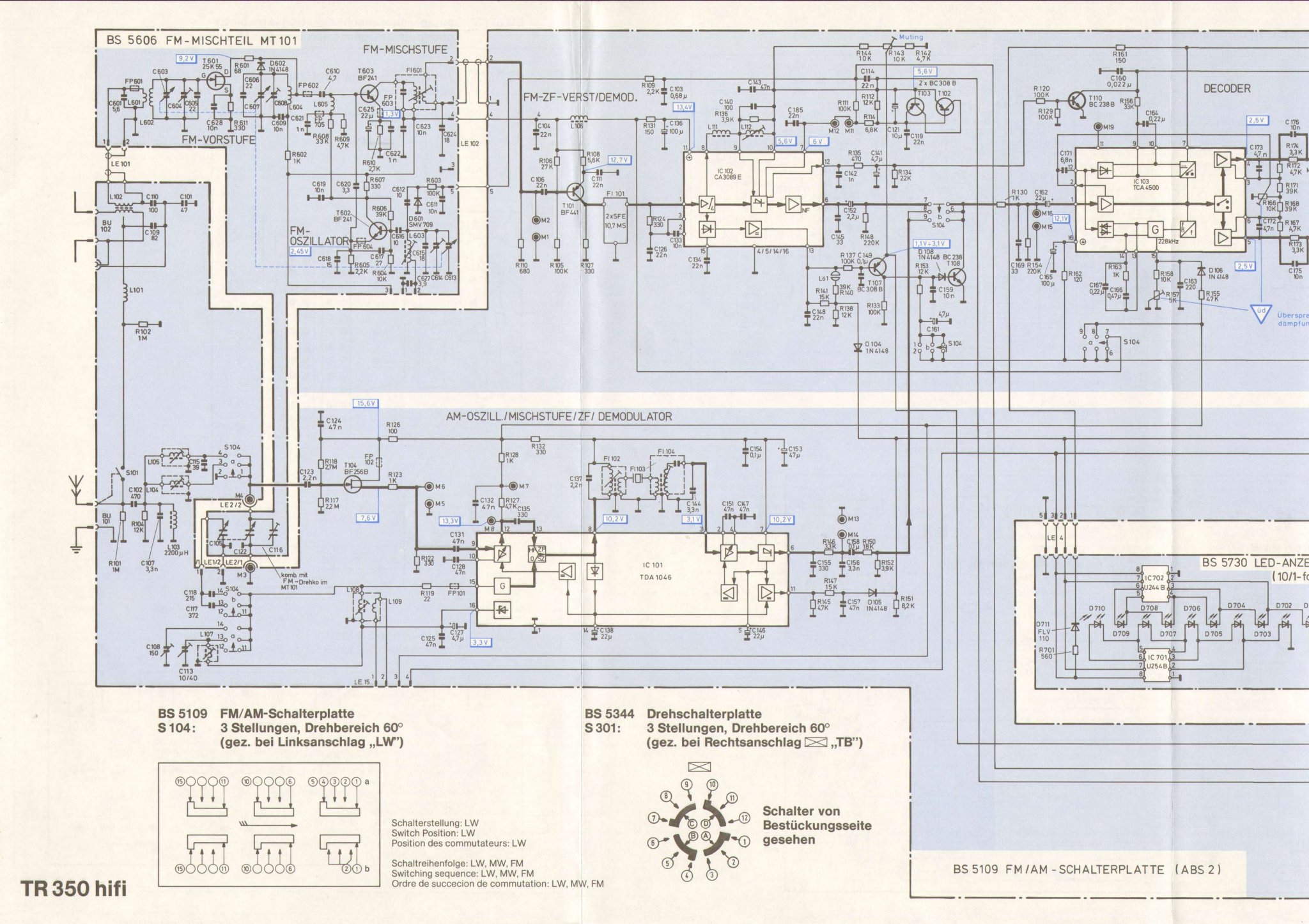

schematics - unfortunately only as jpg file


Attachments

  • Telefunken_TR350_Service_01.jpg
    472.8 KB · Views: 67
  • Telefunken_TR350_Service_02.jpg
    530.7 KB · Views: 71
  • Telefunken_TR350_Service_03.jpg
    478.6 KB · Views: 78
  • Telefunken_TR350_Service_05.jpg
    475.4 KB · Views: 76
  • Telefunken_TR350_Service_05L.jpg
    171.2 KB · Views: 76
  • Telefunken_TR350_Service_06.jpg
    506.6 KB · Views: 77
  • Telefunken_TR350_Service_07.jpg
    460.9 KB · Views: 71
  • Telefunken_TR350_Service_08.jpg
    417 KB · Views: 88
  • Telefunken_TR350_Service_09.jpg
    448.3 KB · Views: 73
  • Telefunken_TR350_Service_10.jpg
    505.1 KB · Views: 80
  • Telefunken_TR350_Service_11.jpg
    448.8 KB · Views: 80
  • Telefunken_TR350_Service_13.jpg
    517 KB · Views: 58
  • Telefunken_TR350_Service_13L.jpg
    353.3 KB · Views: 69
  • Telefunken_TR350_Service_14.jpg
    500.1 KB · Views: 67
  • Telefunken_TR350_Service_15.jpg
    423.2 KB · Views: 75
#3

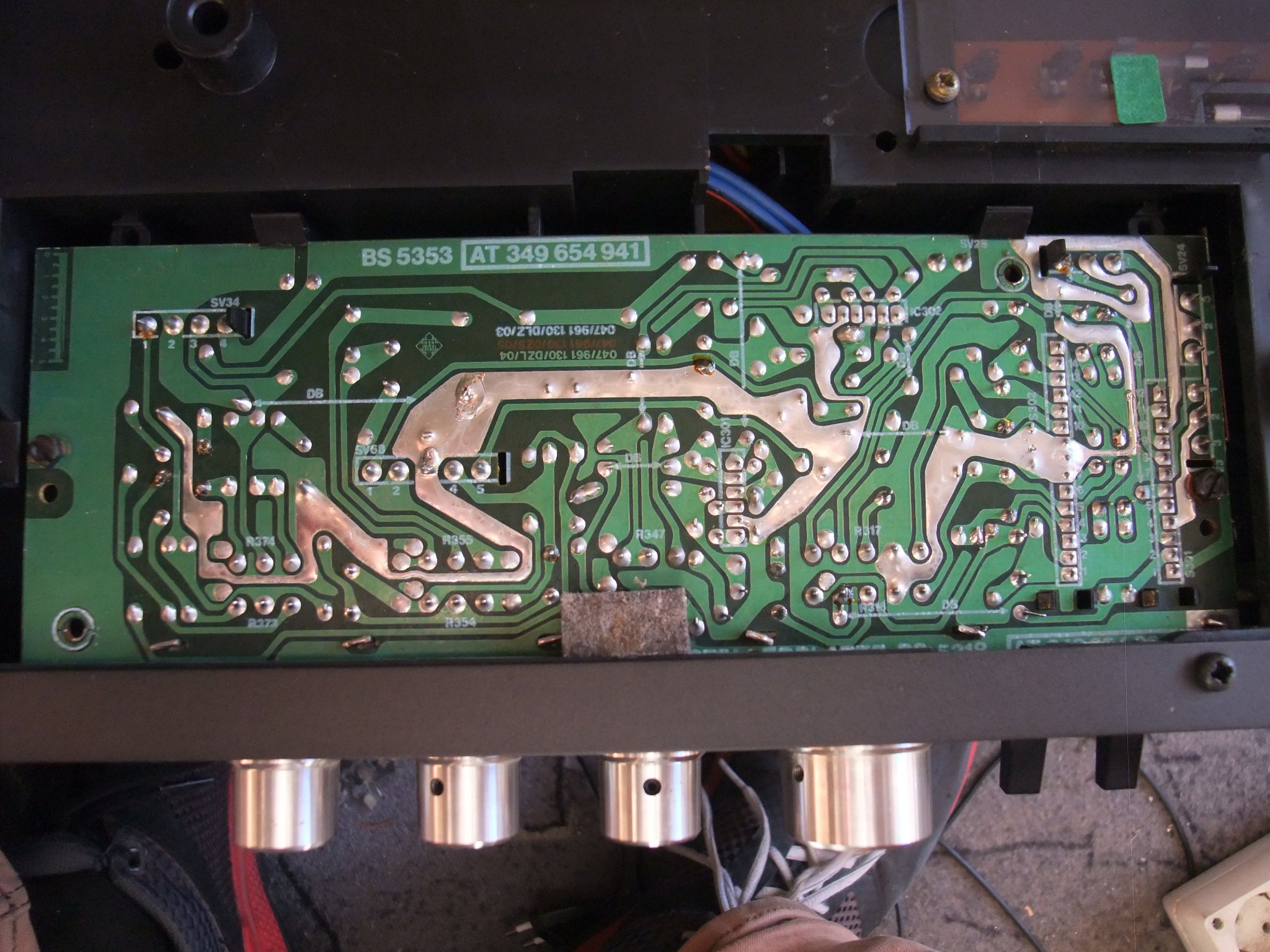

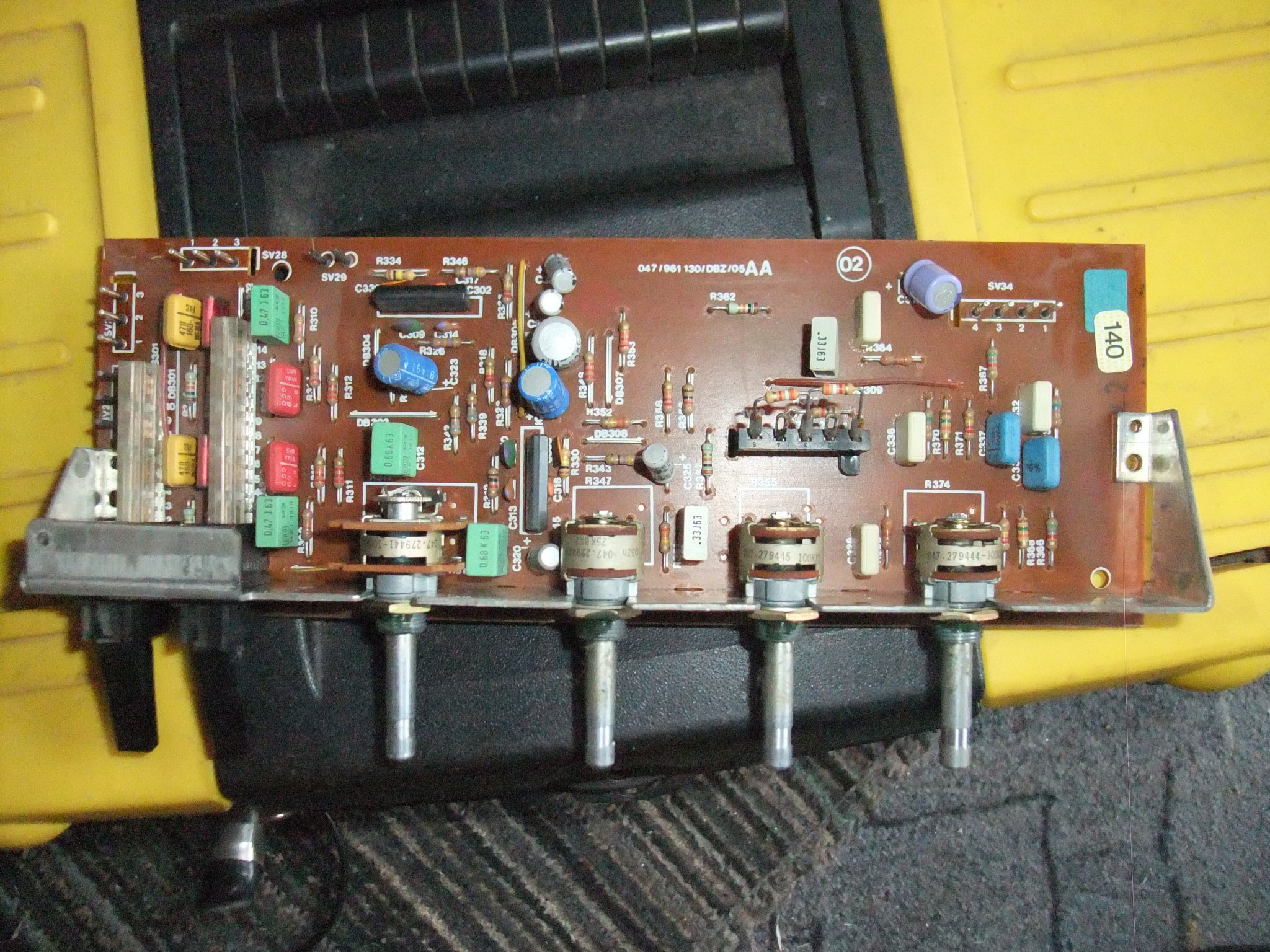

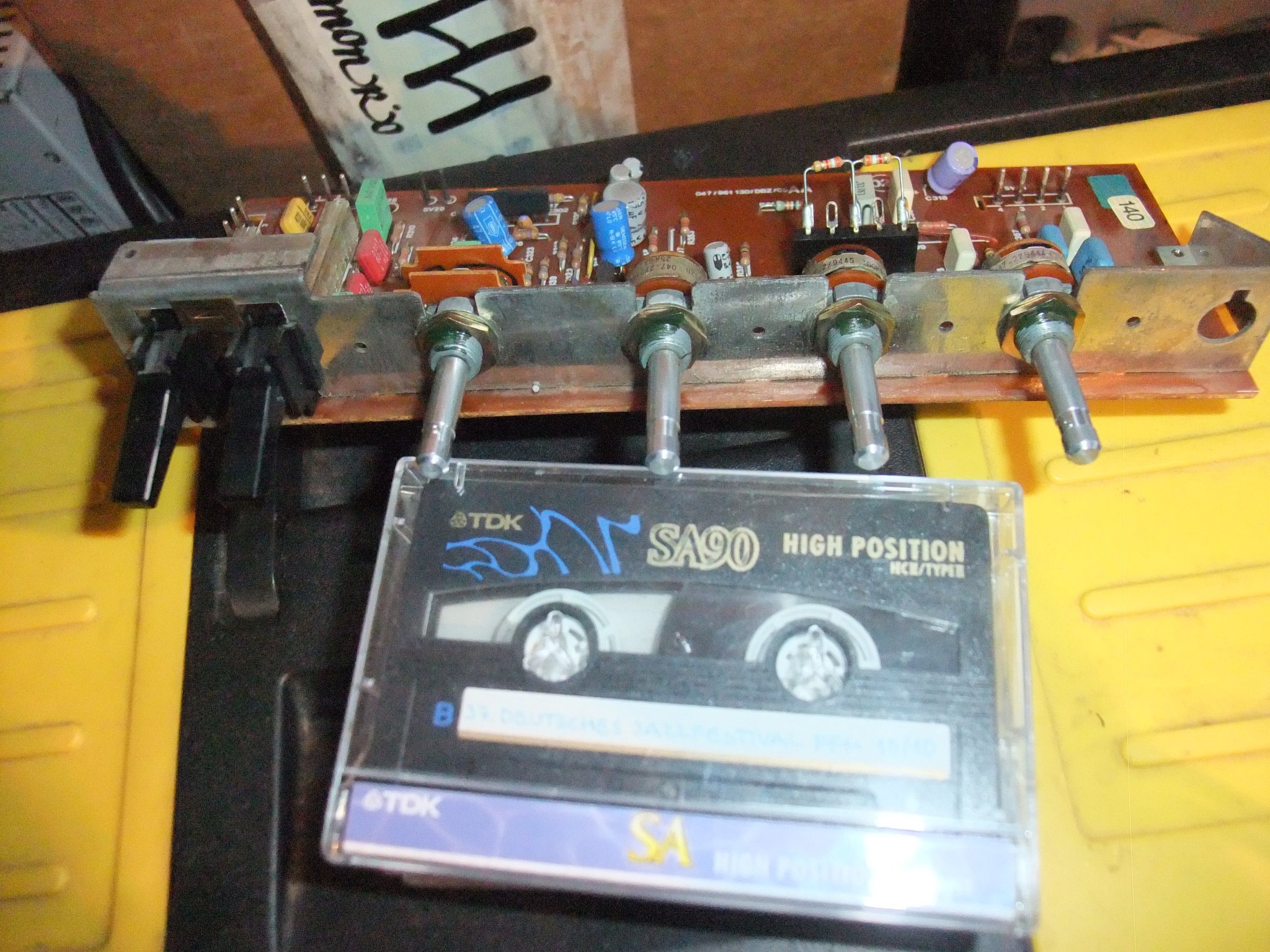

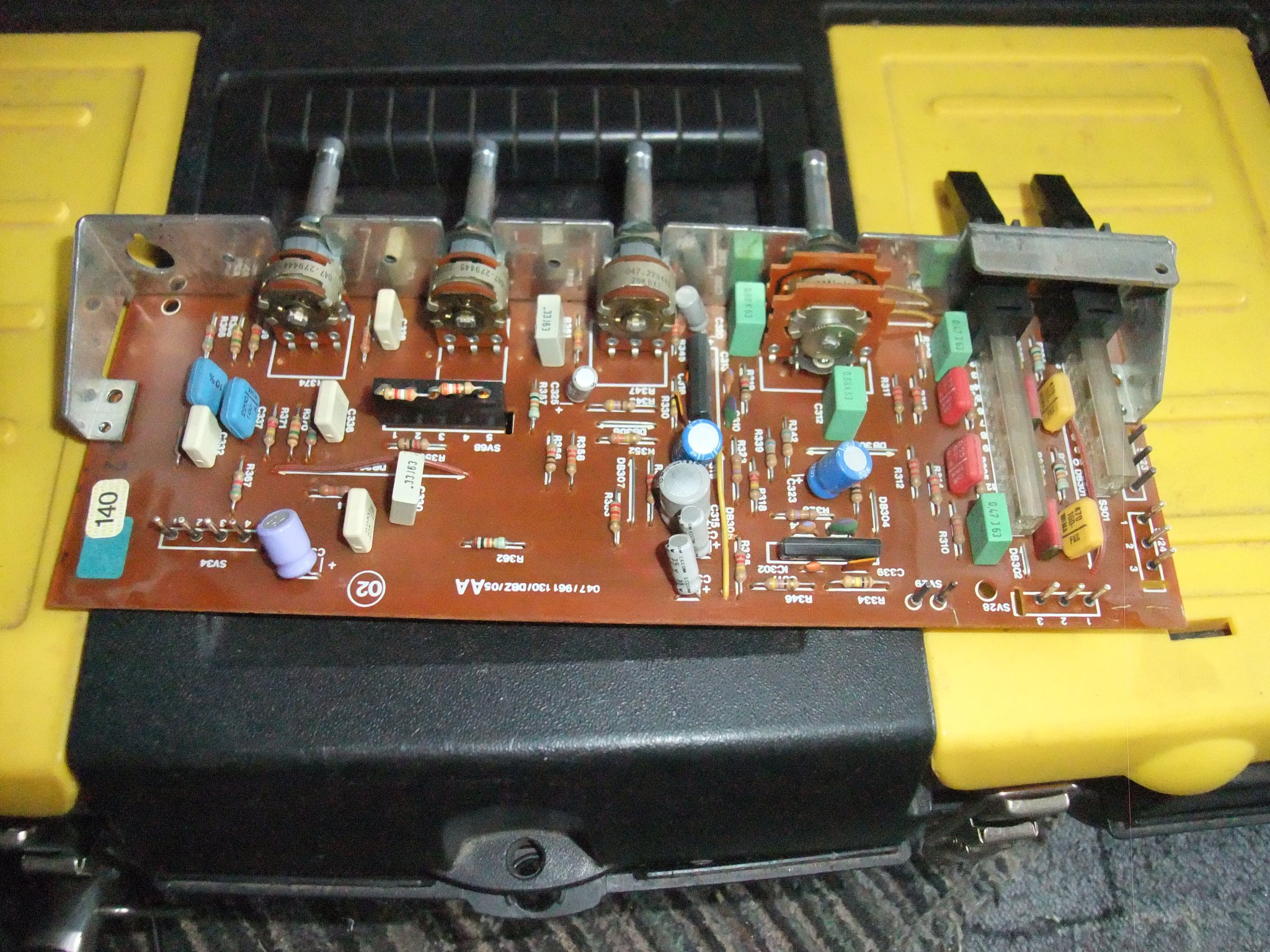

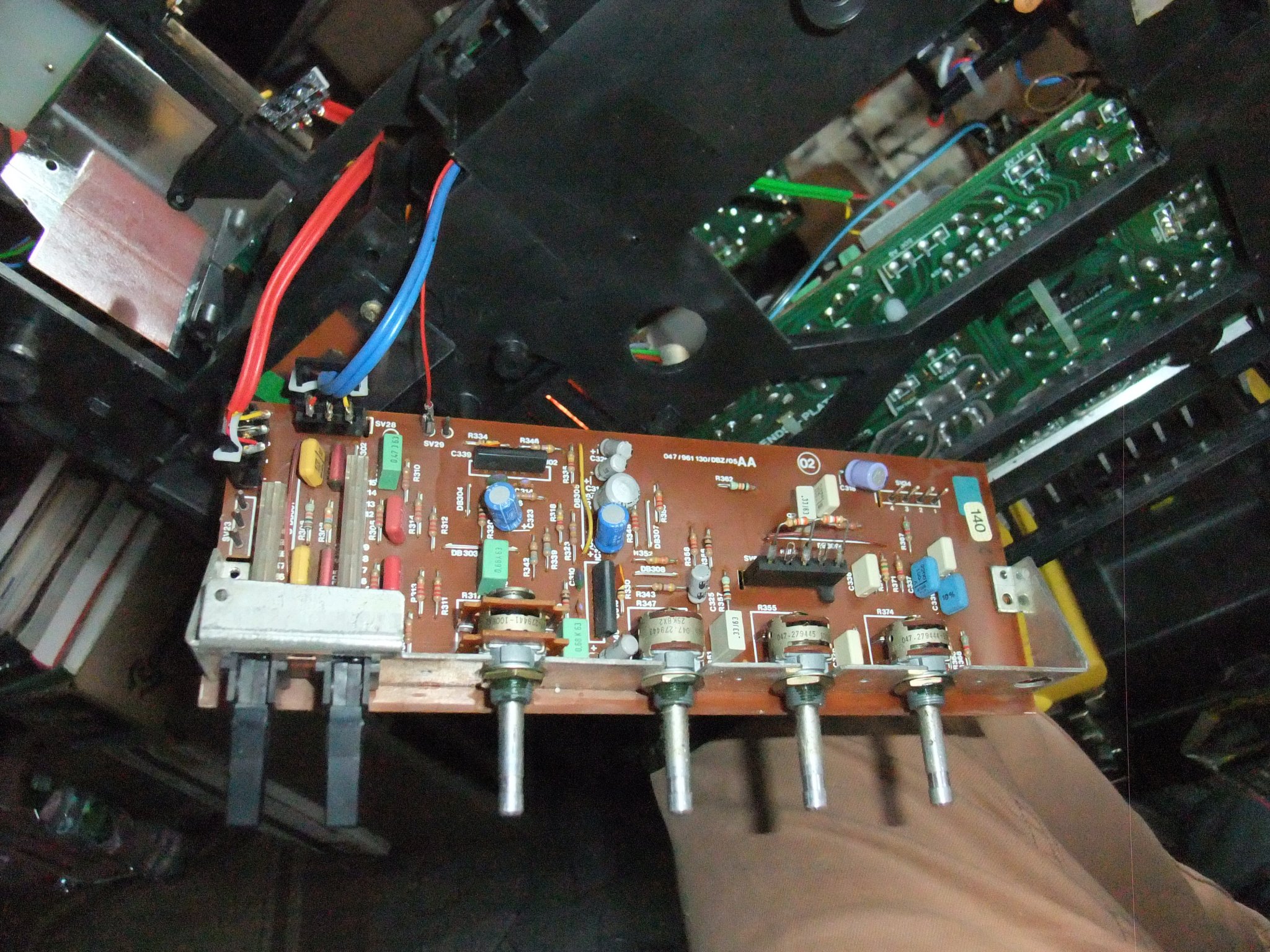

More images


Attachments

  • TFK-TR350-tonecontr-I.JPG
    483.8 KB · Views: 73
  • TFK-TR350 Tone Contr.-VI.JPG
    TFK-TR350 Tone Contr.-VI.JPG
    571.4 KB · Views: 62
  • TFK-TR350 Tone Contr.-V.JPG
    TFK-TR350 Tone Contr.-V.JPG
    682.6 KB · Views: 67
  • TFK-TR350 Tone Contr.-IV.JPG
    TFK-TR350 Tone Contr.-IV.JPG
    662.2 KB · Views: 67
  • TFK-TR350 Tone Contr.-III.JPG
    TFK-TR350 Tone Contr.-III.JPG
    673.1 KB · Views: 67
  • TFK-TR350 Tone Contr.-II.JPG
    TFK-TR350 Tone Contr.-II.JPG
    710.4 KB · Views: 76

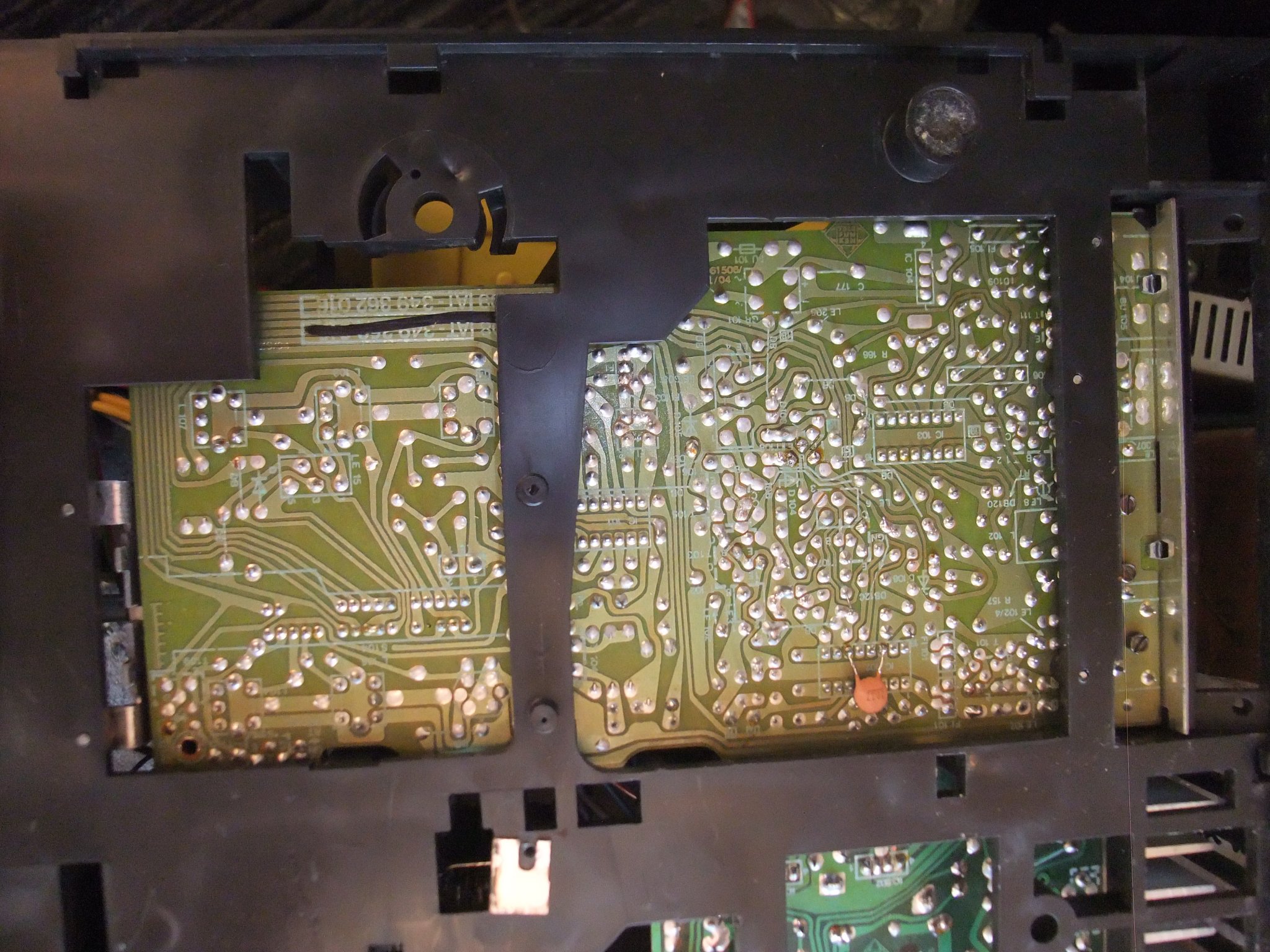

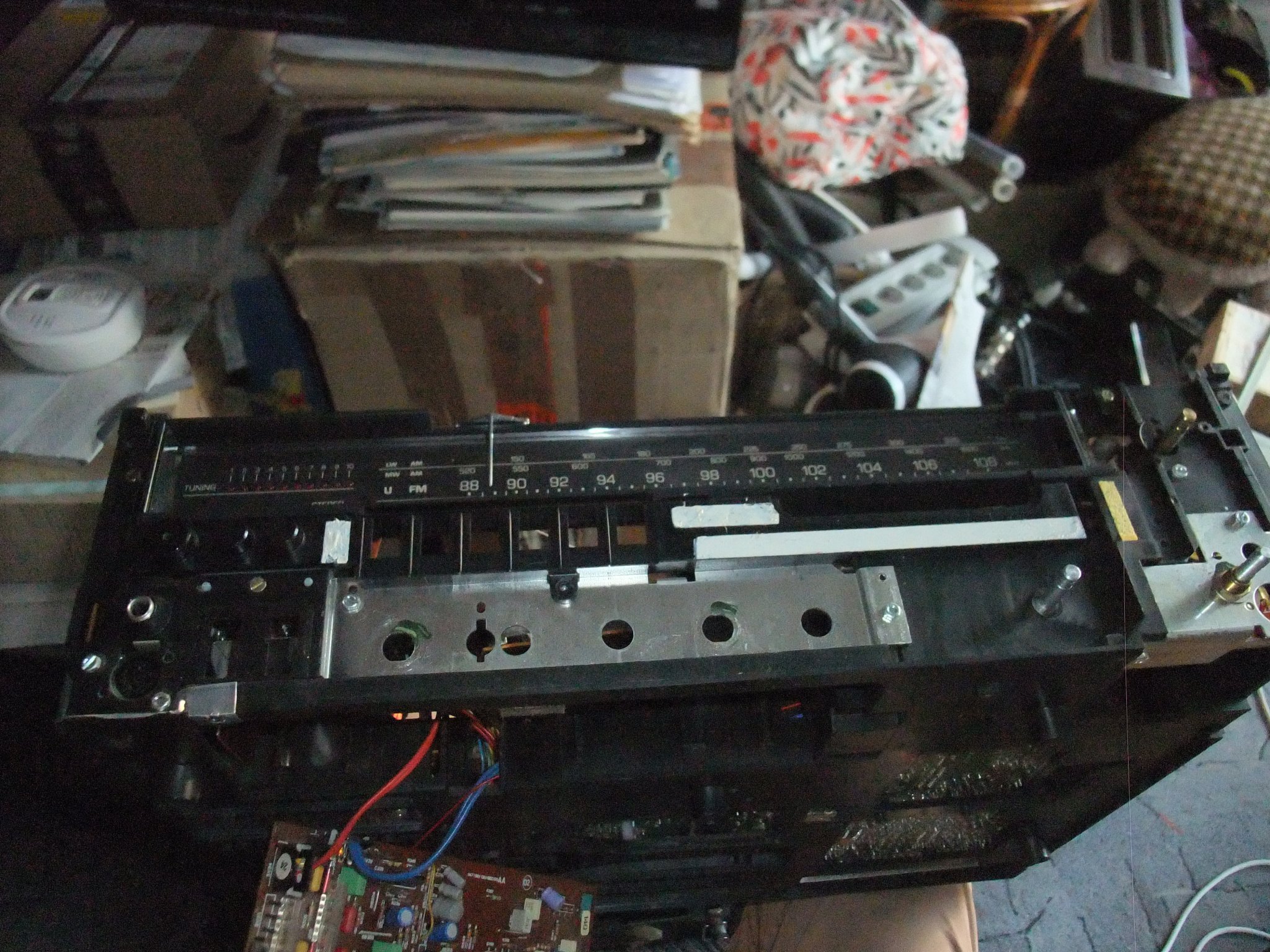

  • TFK-TR350 tear down-VIII.JPG
    TFK-TR350 tear down-VIII.JPG
    672.5 KB · Views: 70

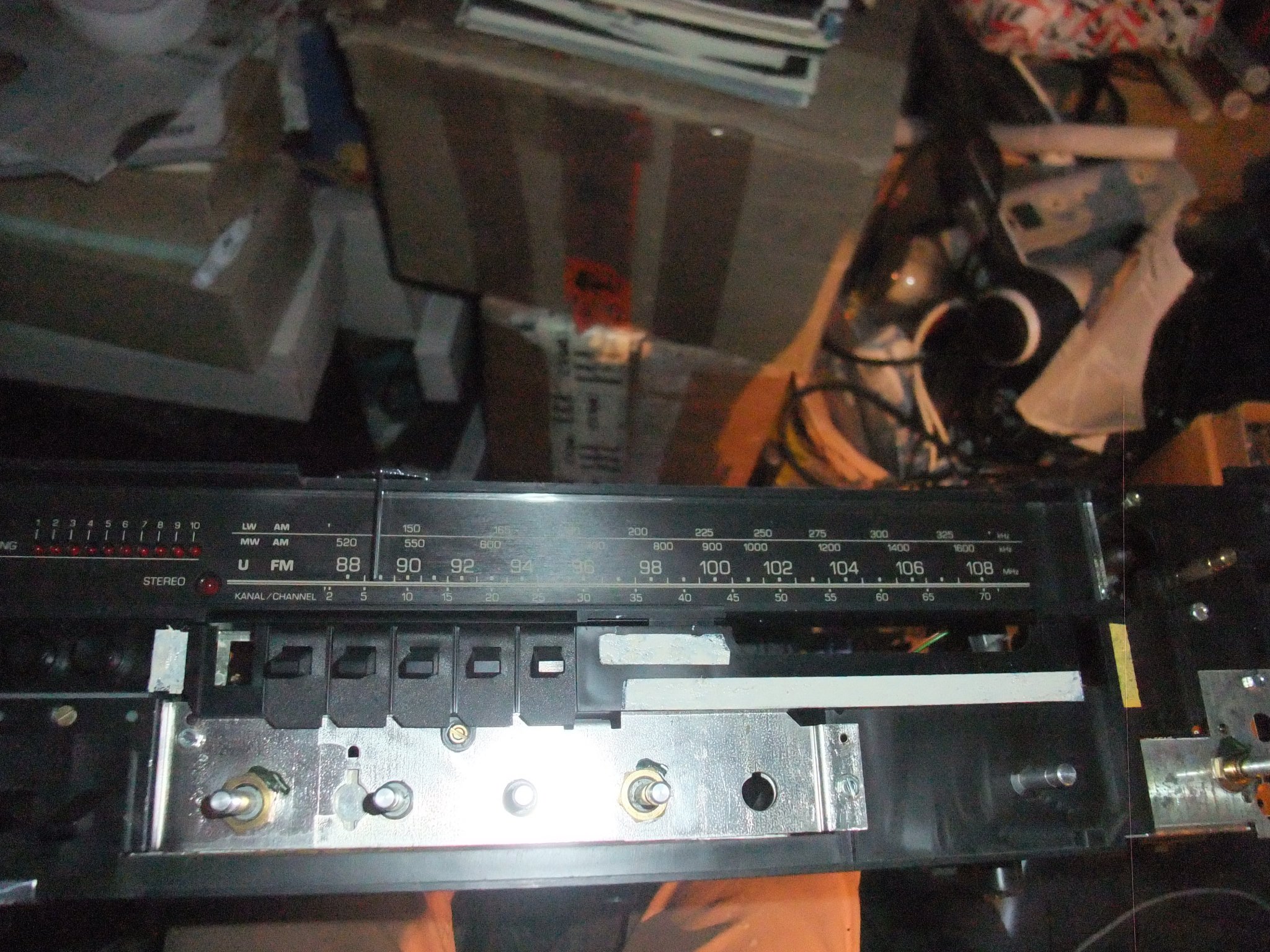

  • TFK-TR350 tear down-VII.JPG
    TFK-TR350 tear down-VII.JPG
    671.9 KB · Views: 67
  • TFK-TR350 tear down-VI.JPG
    TFK-TR350 tear down-VI.JPG
    590.4 KB · Views: 65

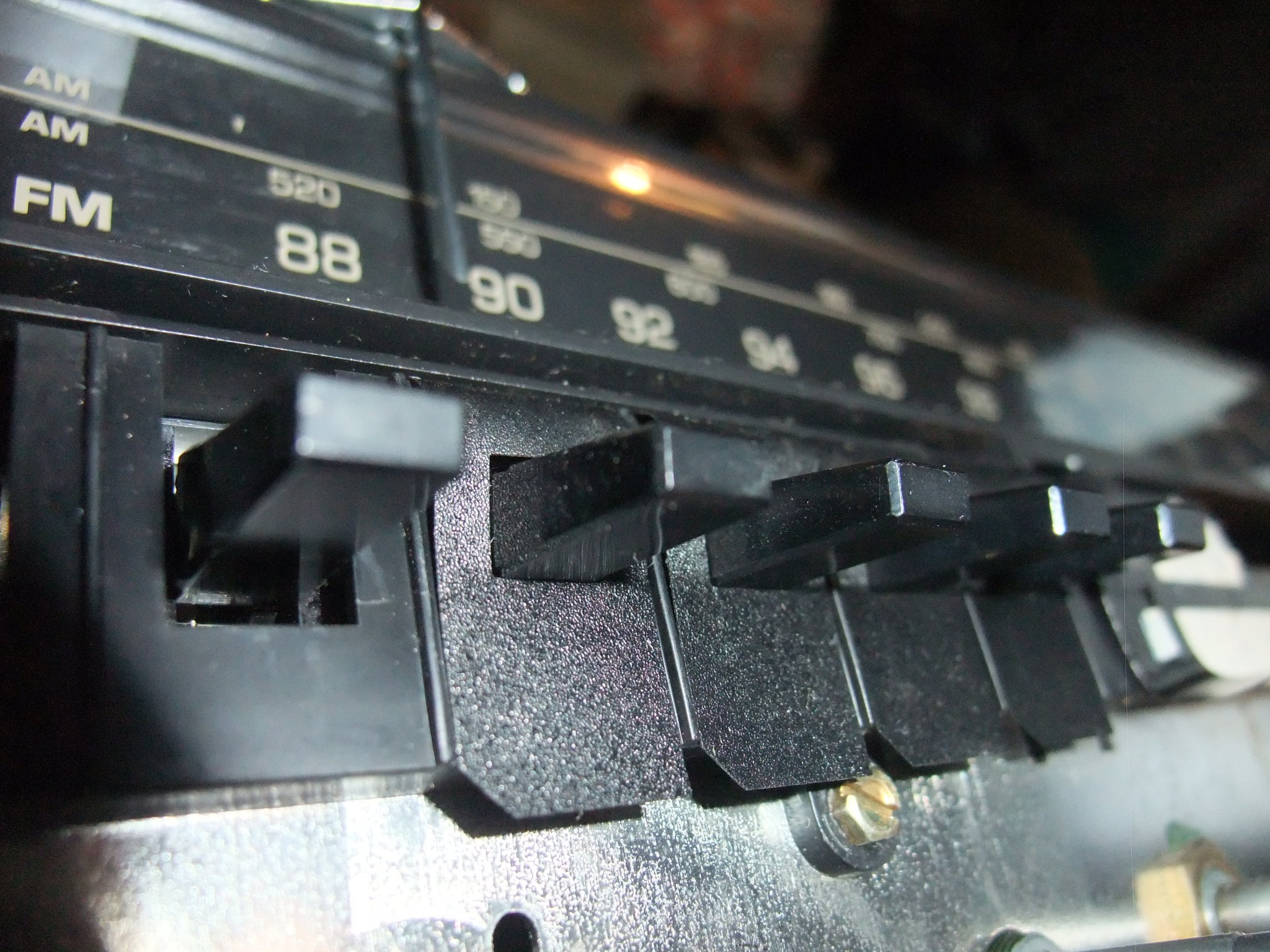

  • TFK-TR350 tear down-V.JPG
    TFK-TR350 tear down-V.JPG
    518.2 KB · Views: 65

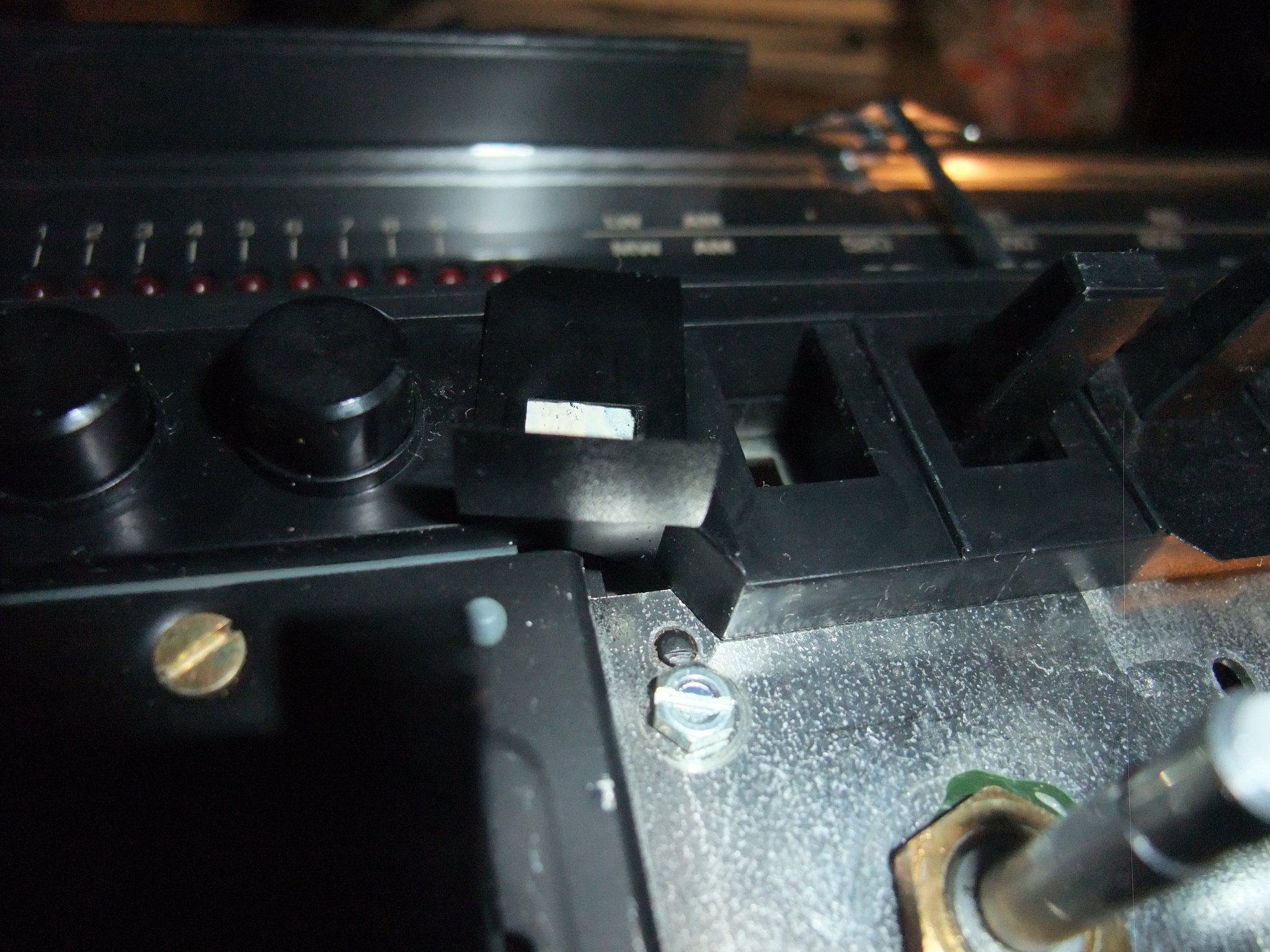

  • TFK-TR350 tear down-IV.JPG
    TFK-TR350 tear down-IV.JPG
    467.5 KB · Views: 64

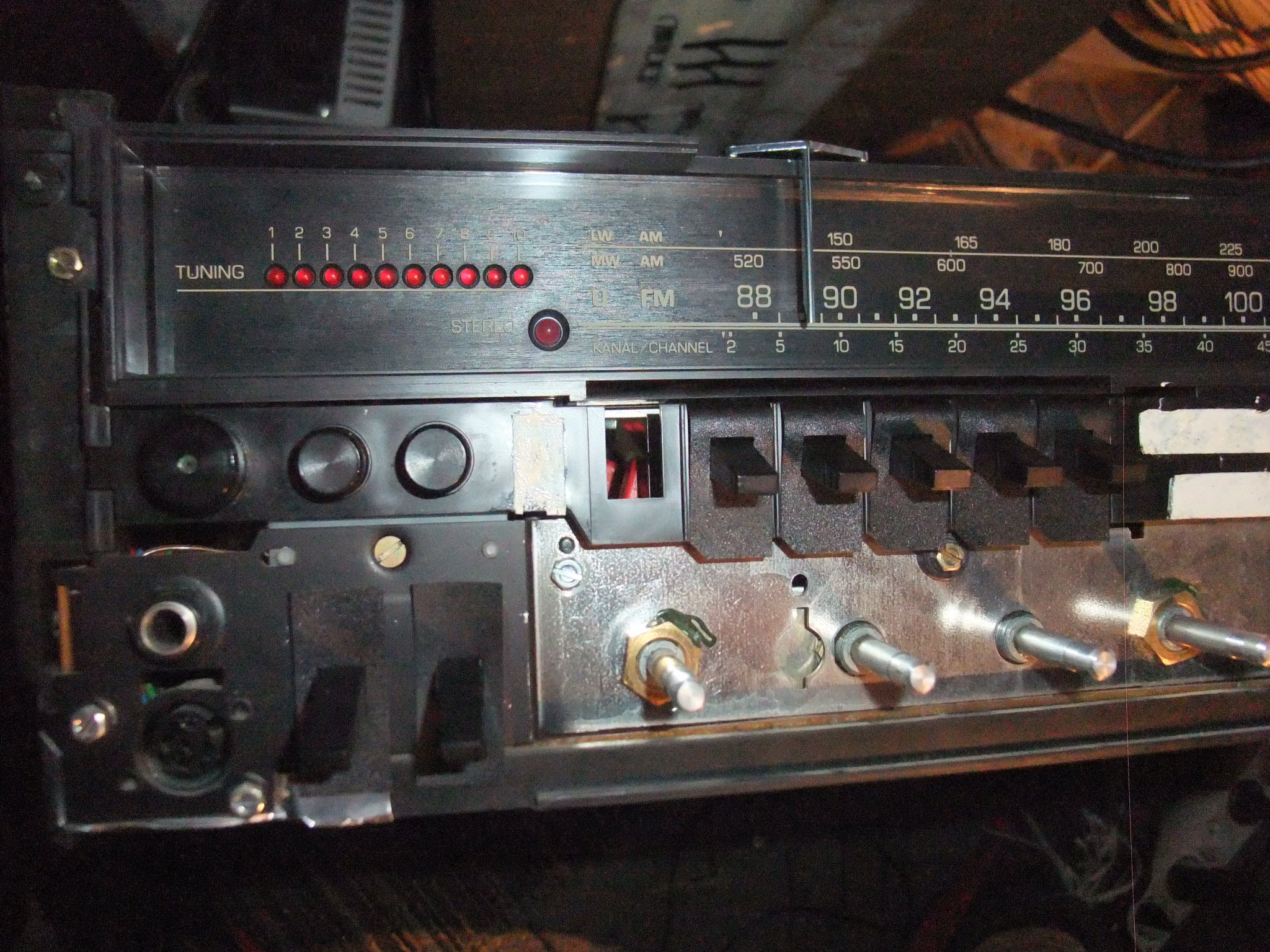

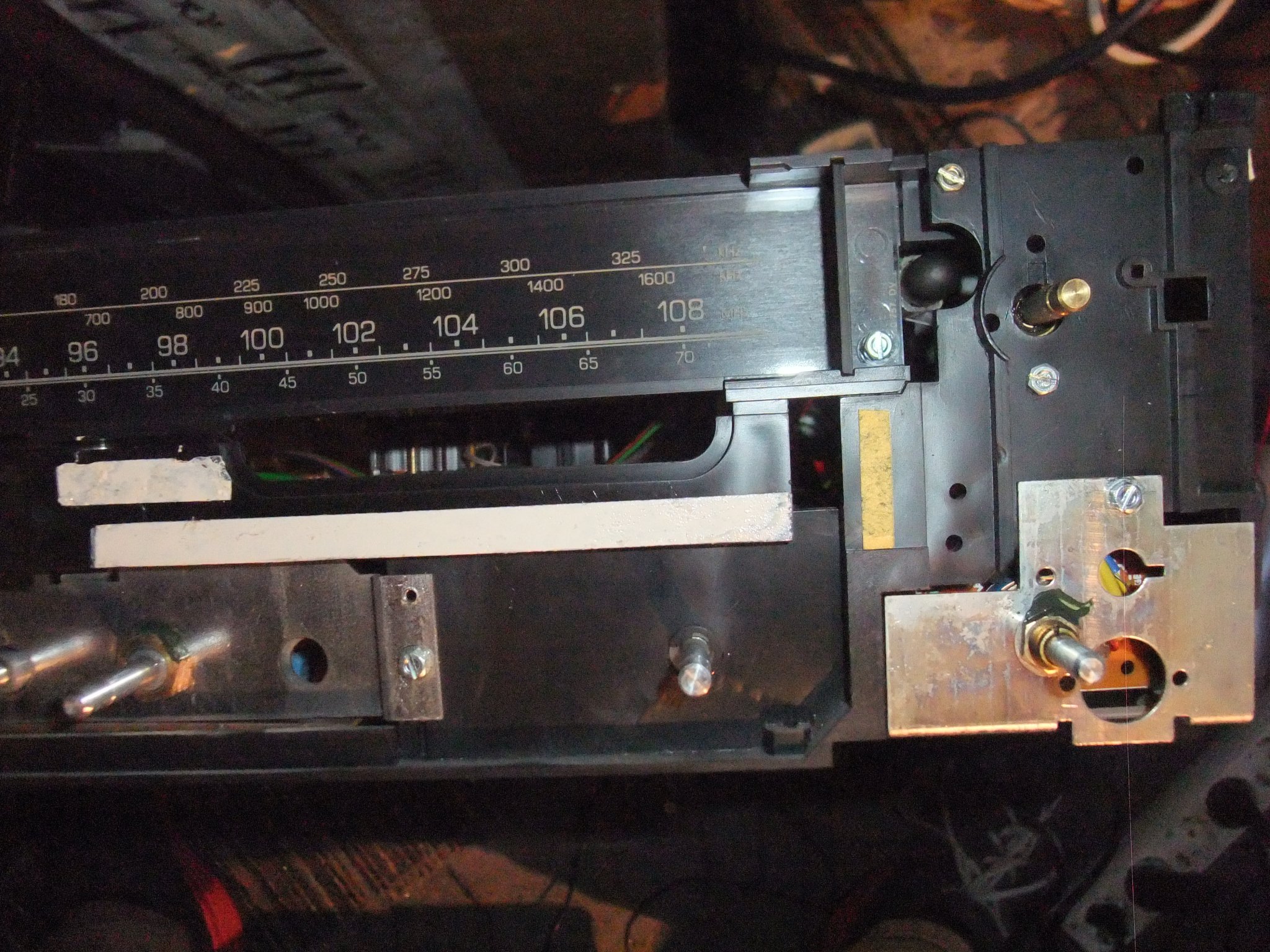

  • TFK-TR350 tear down-II.JPG
