Hello all. I just downloaded a circuit simulator from here:
http://www.newburytech.co.uk/Pages/download.html

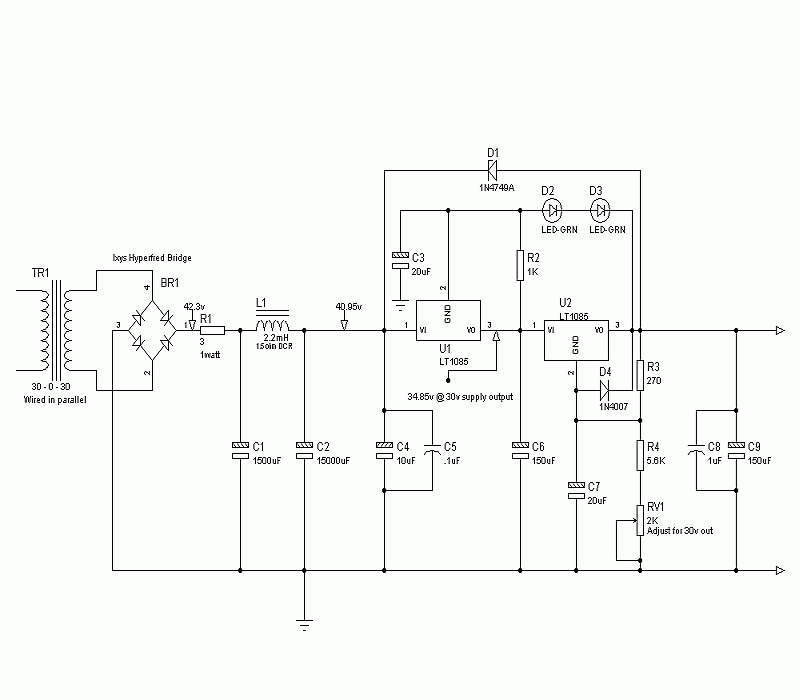

I would like to simulate the PSU below but I noticed that there is no spice model for an LED. Does anyone know where I could find one? Yes I have searched using google and have had no luck. I've never used a simulator before. Any advice is appreciated.
http://www.newburytech.co.uk/Pages/download.html
I would like to simulate the PSU below but I noticed that there is no spice model for an LED. Does anyone know where I could find one? Yes I have searched using google and have had no luck. I've never used a simulator before. Any advice is appreciated.
Attachments
spice model for an LED
I have never found one and I have hundreds of spice models.
I doubt you are going to find very decent models for the regulators either just go build thing. It should be fine.
Art

I doubt you are going to find very decent models for the regulators either just go build thing. It should be fine.
Art
This might be of some use ...
http://csserver.evansville.edu/~richardson/courses/Tutorials/Diode_Modeling_1.pdf
http://csserver.evansville.edu/~richardson/courses/Tutorials/Diode_Modeling_1.pdf
Depending on the color and manufacturer, you may end up with an equation that looks a bit like V= 1.97 + 0.08 log(I) + 20I. Good luck.
