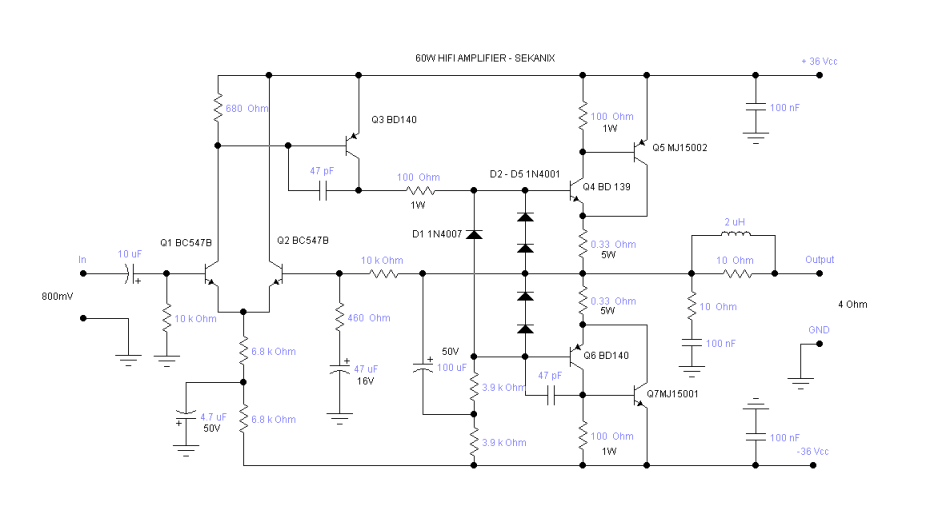

Simple and tested bipolar transistor amp

[sekanix]

Hi!!

Thanks a lot for your comment. The protection diodes will be removed and BIAS re-adjusted this week, some friend will give me a oscilloscope for some days 😀 Now I'm making a VUmeter + Phone amplifier PCB using LM3915 in DOT mode with "analogic-like" display...

Soon more updates!!!



[sekanix]

I mean the protection diodes.
You can remove them without any problem.

Anyway don't forget to install fuses in the supply rails.

Hi!

I already have fuses installed on the power supply.

I think if diodes remover I can change the PCB design and save some space...

😉
