SOLD
Disclaimer : This is not an official board from Teabag.

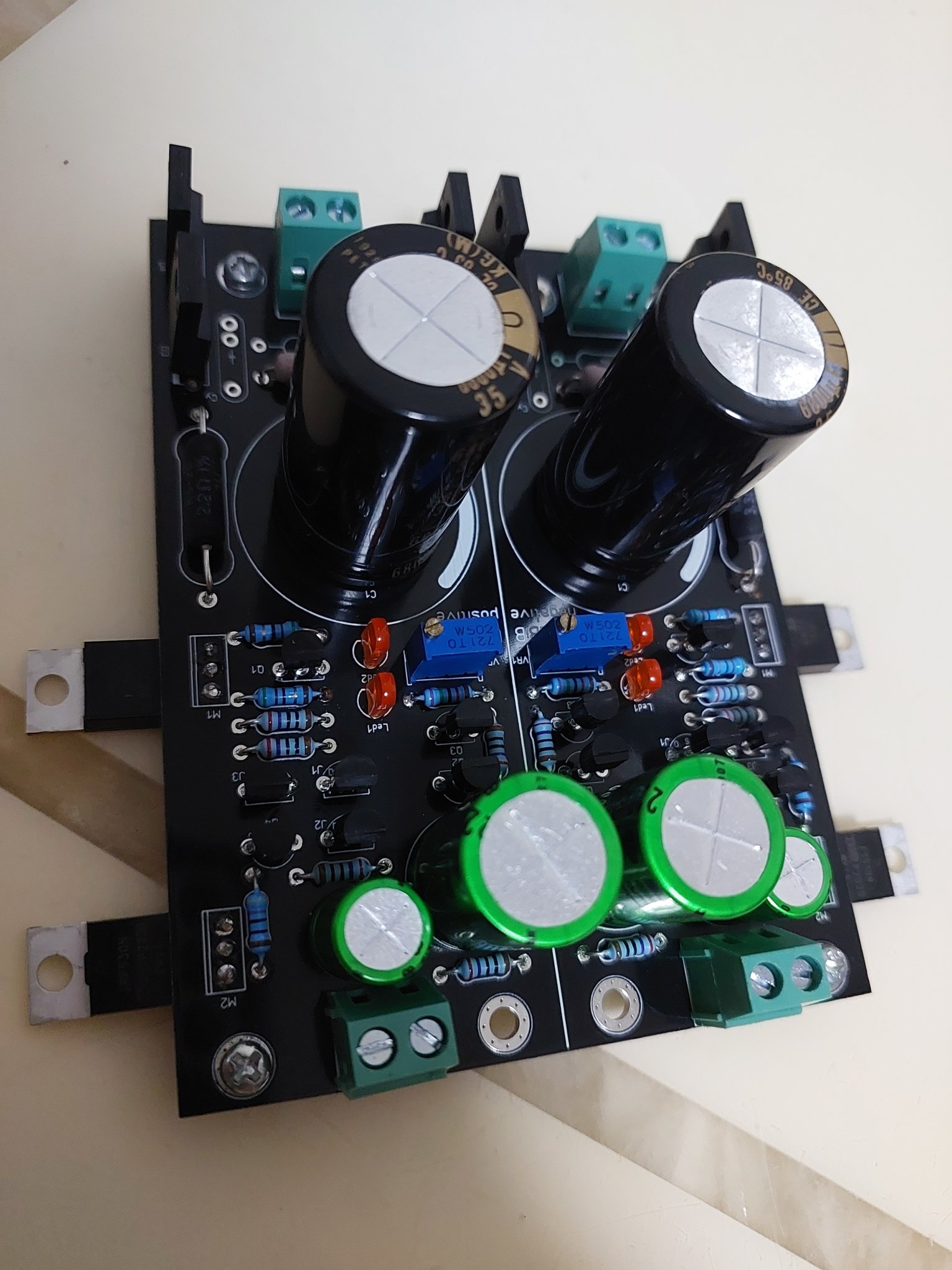

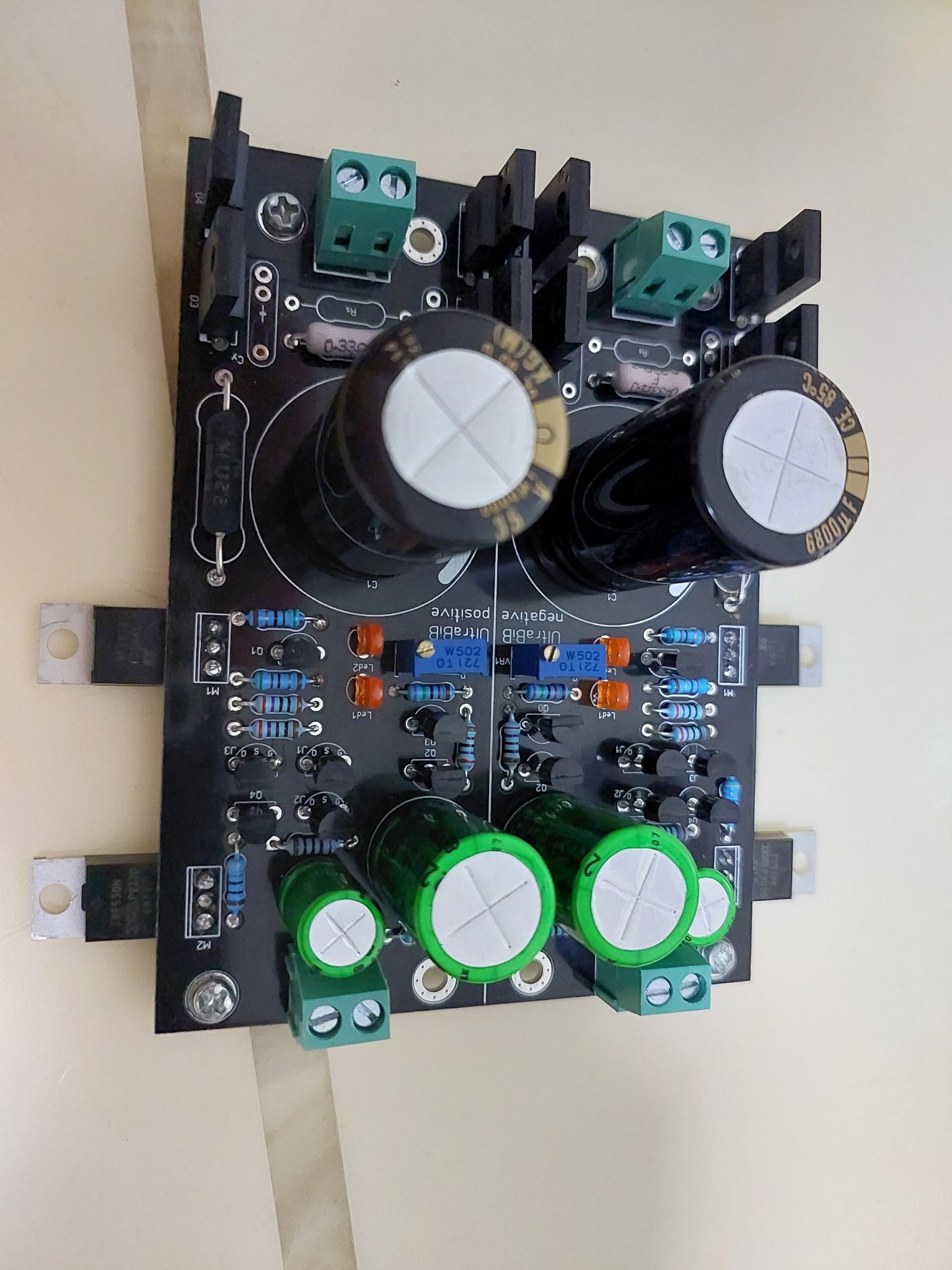

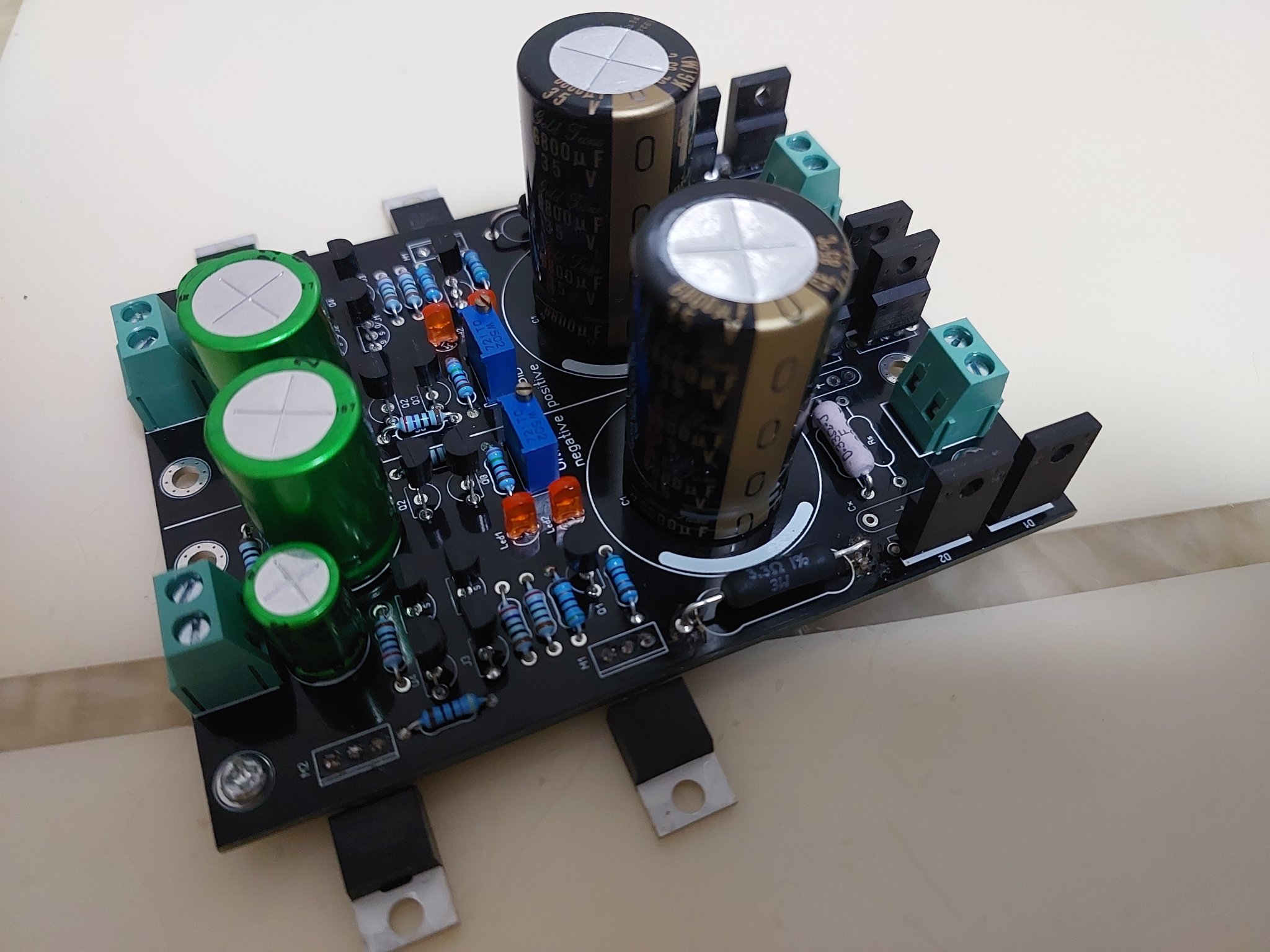

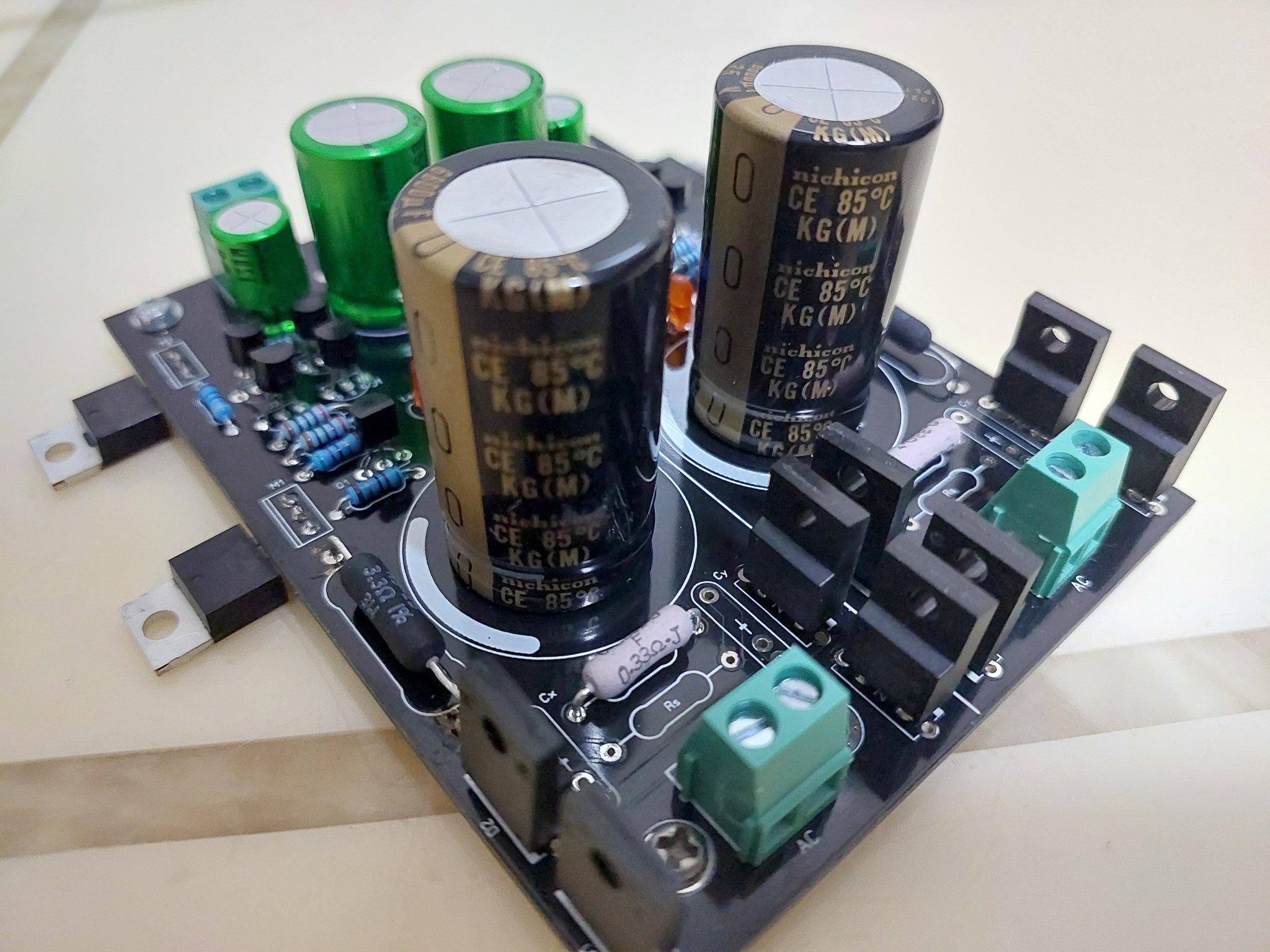

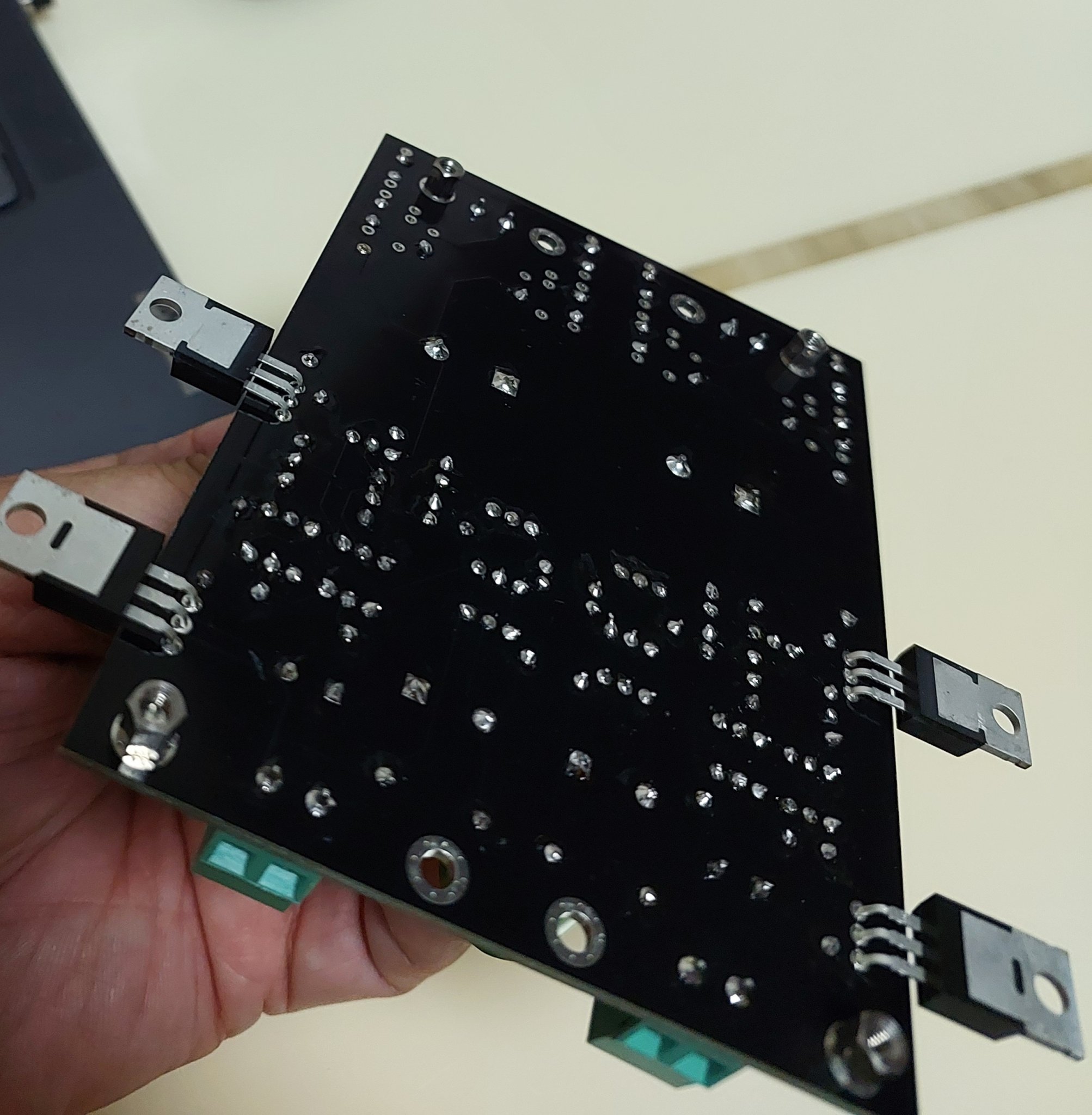

I have a spare set of completed and tested shunt regulator board based on Salas SSLV1.3 design.
It consists of a positive and a negative rail on a single board.
Boards (MOQ 5) are ordered from PCBWay under shared project, and quality is excellent.
https://www.pcbway.com/project/shareproject/Salas_UltraBiB_shunt_regulator_1ad5fff8.html
Output voltage is set to +/-10V and this can be easily adjusted using the trimmers on the board.
The overall current is set to 270mA now with R1 = 2.2R, and of course can be set to your desired current using the formula R1= 0.6V/ overall current.
I can provide some 2watts 5.2R, 3.3R and 2.2R resistors for you to set your desired current.
Asking for 100USD (shipping registered + tracking covered) by PAYPAL FF only please.
Disclaimer : This is not an official board from Teabag.
I have a spare set of completed and tested shunt regulator board based on Salas SSLV1.3 design.
It consists of a positive and a negative rail on a single board.
Boards (MOQ 5) are ordered from PCBWay under shared project, and quality is excellent.
https://www.pcbway.com/project/shareproject/Salas_UltraBiB_shunt_regulator_1ad5fff8.html
Output voltage is set to +/-10V and this can be easily adjusted using the trimmers on the board.
The overall current is set to 270mA now with R1 = 2.2R, and of course can be set to your desired current using the formula R1= 0.6V/ overall current.
I can provide some 2watts 5.2R, 3.3R and 2.2R resistors for you to set your desired current.
Asking for 100USD (shipping registered + tracking covered) by PAYPAL FF only please.
Last edited:
Another final spare set for sale. Same high quality components as the board above eg. CREE rectifier diodes, the recommended Nichicon KG and ES series caps, 50ppm resistors throughout , kingsbright LED etc etc.

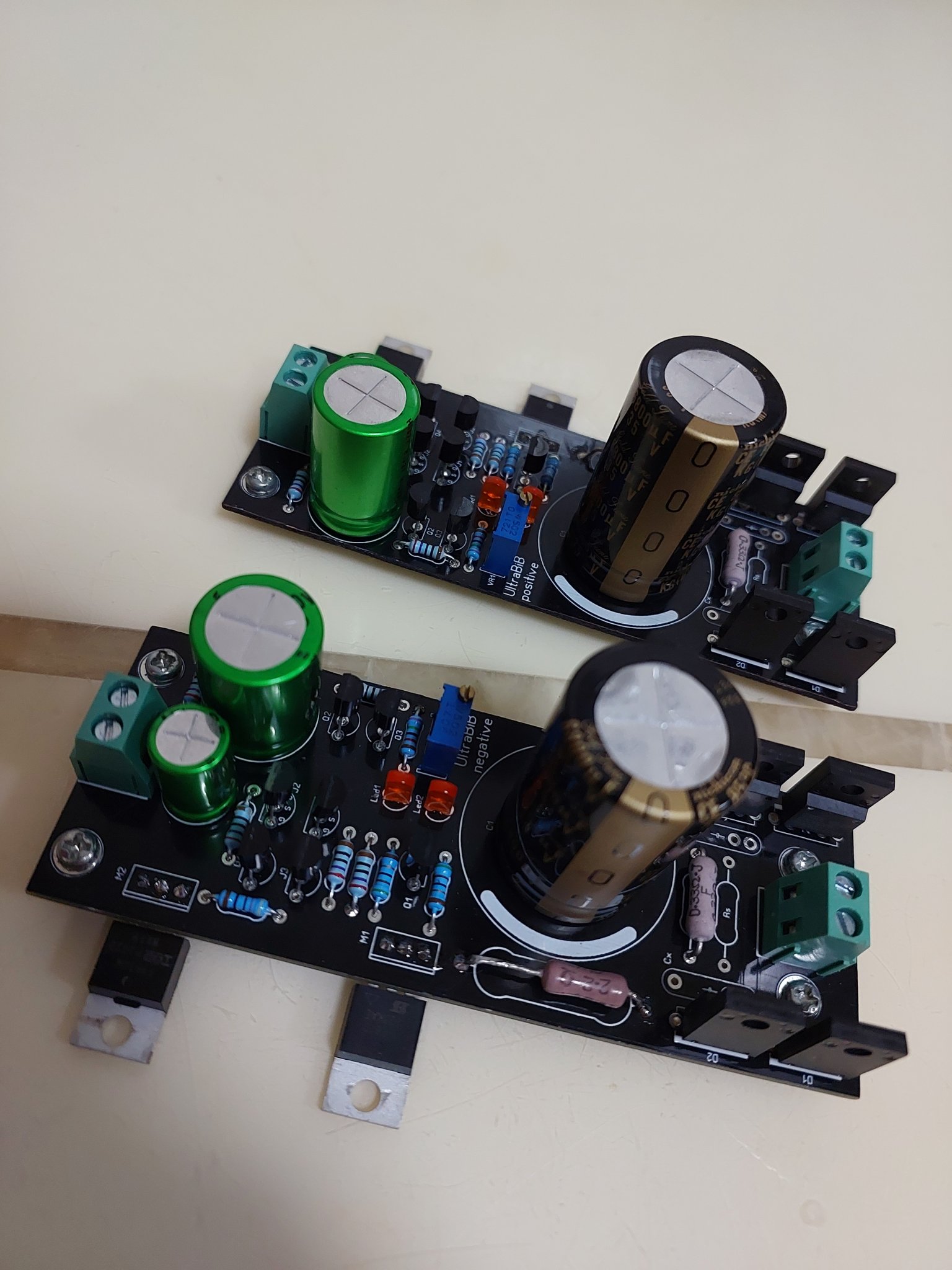

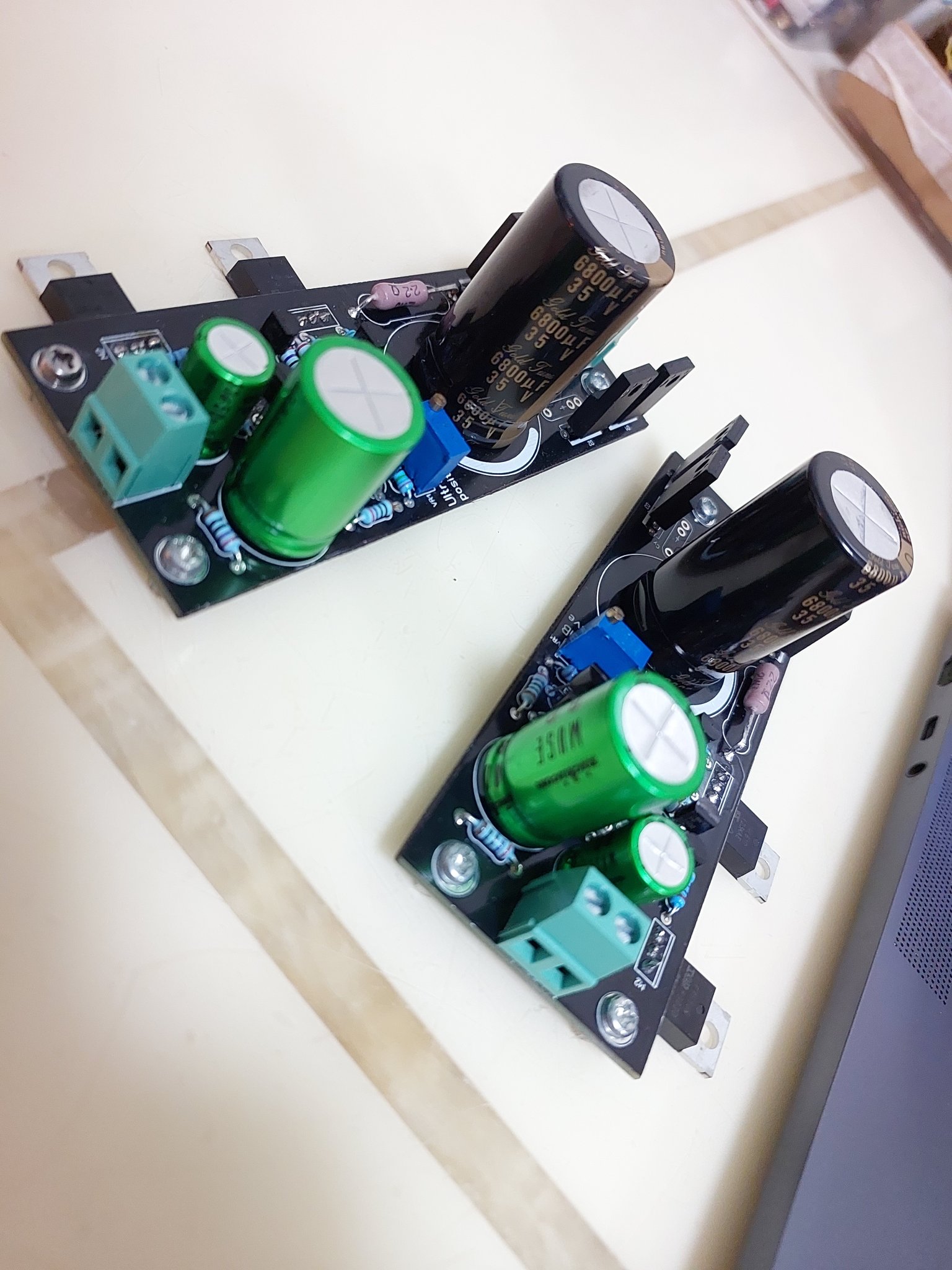

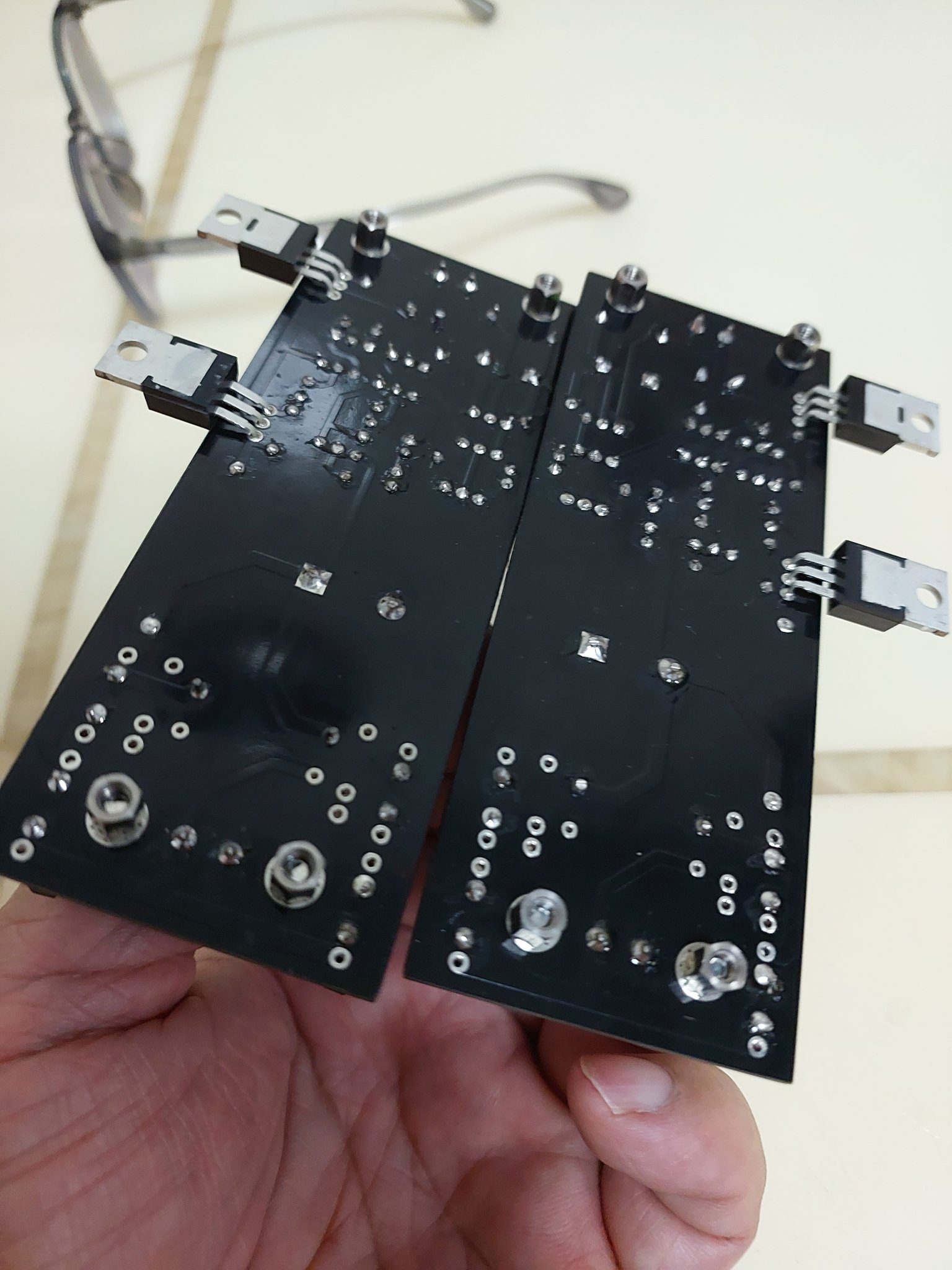

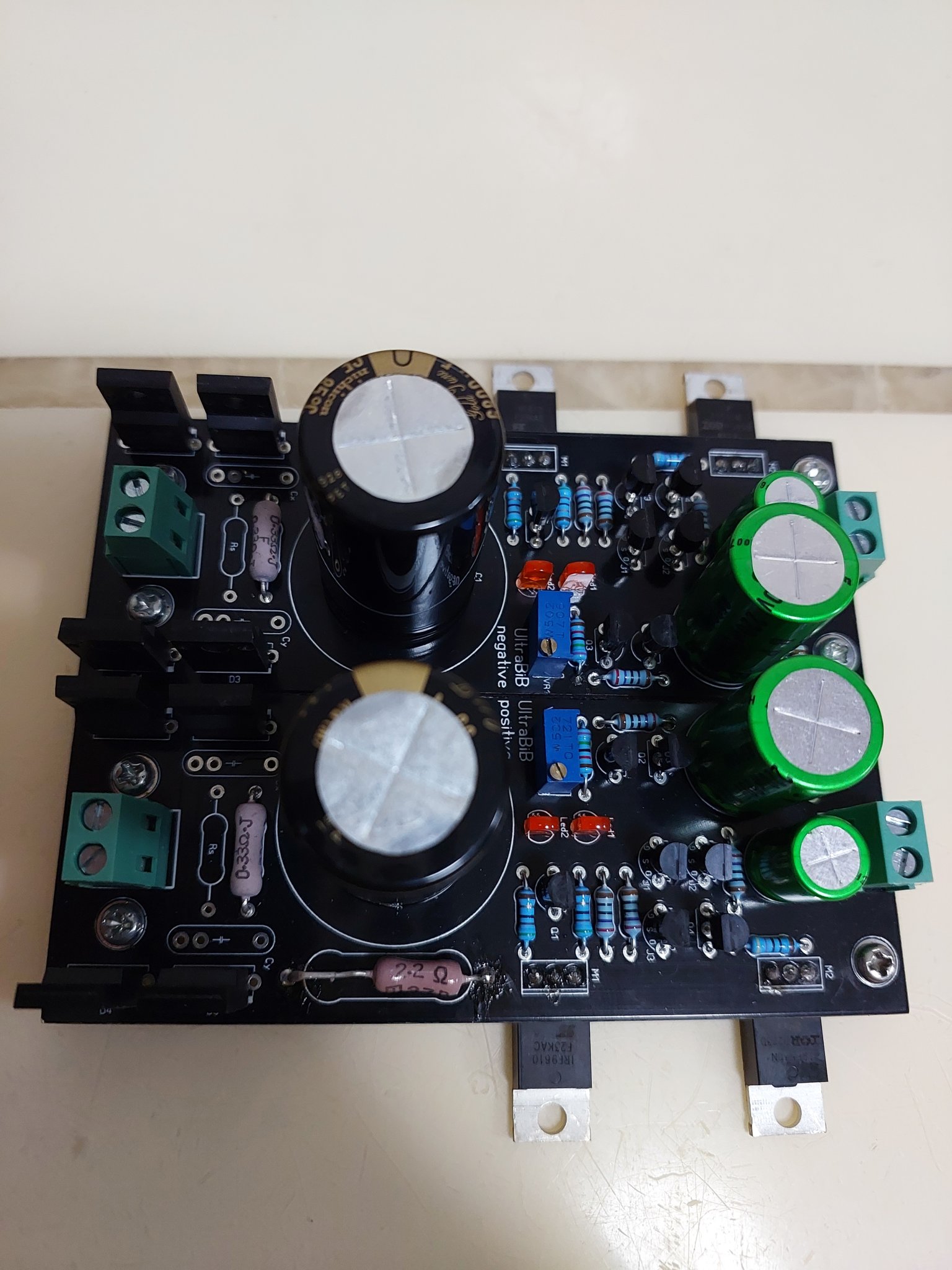

This set has the positive and negative rail board split by me carefully using an acrylic cutter. This allows easier placement in a chassis for the PSU to be as near as possible to the load. It is originally a single piece of board as shown in the pics of the first board i have sold over the weekend.
US$88 , shipping is covered. Paypal FF.
This set has the positive and negative rail board split by me carefully using an acrylic cutter. This allows easier placement in a chassis for the PSU to be as near as possible to the load. It is originally a single piece of board as shown in the pics of the first board i have sold over the weekend.
US$88 , shipping is covered. Paypal FF.
