Salas Simplistic NJFET Riaa Schematics

[merlin el mago]

Hi,

All schematics & psgr pdf file, my personal tribute to Salas our kind DiyAudio Moderator:

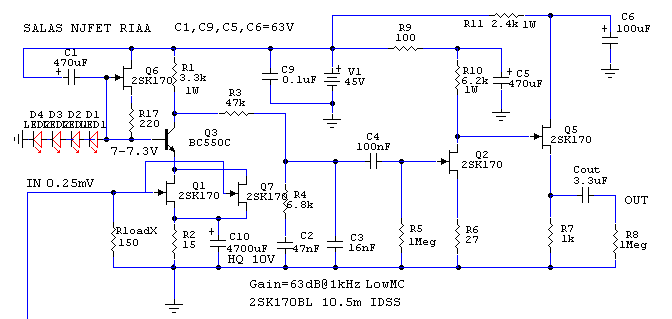

63db-Version 10,5mA IDSS Post 2795 output cart 0.25mV

60db-Version 8,2mA IDSS max. Post 3138 ouput cart 0.4mV

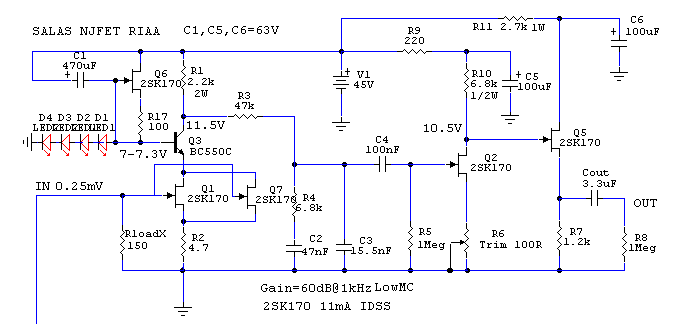

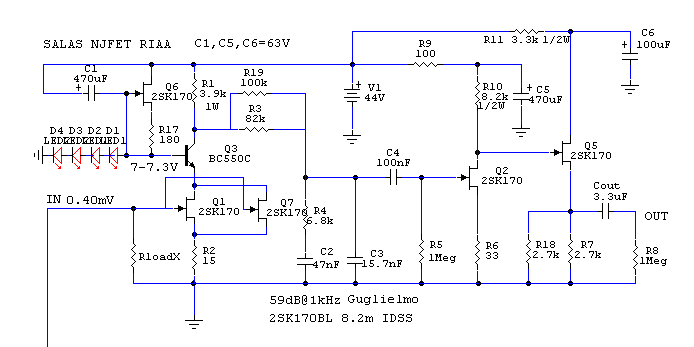

60db-Version 11.0mA IDSS for DL103 R Post 3767 ouput cart 0.25mV

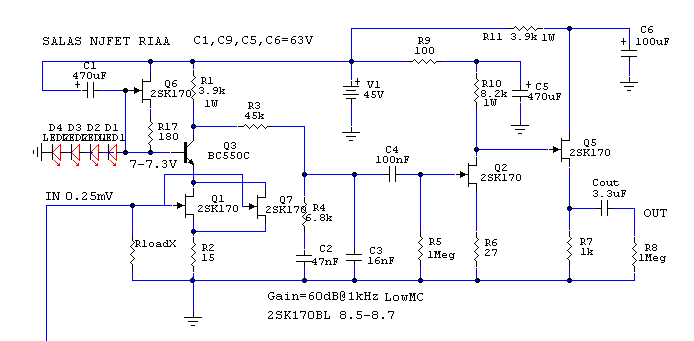

60db-Version 8,5-8,7mA IDSS Post 3069 output cart 0.25mV

56db-Version 8,0-9,0mA IDSS Post 1814 output cart 0.25mV-0.5mV

55db-Version 6,6mA IDSS for Lyra Dorian Post 4141 output cart 0.6mV

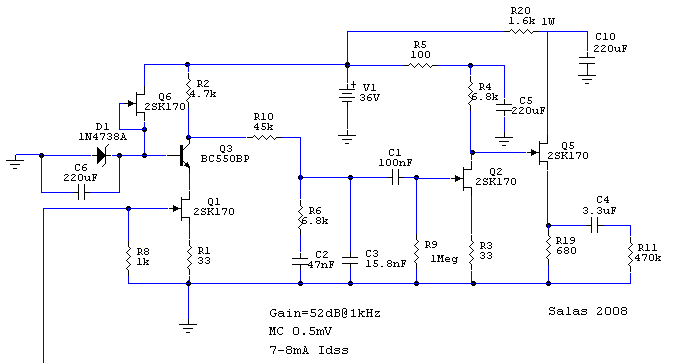

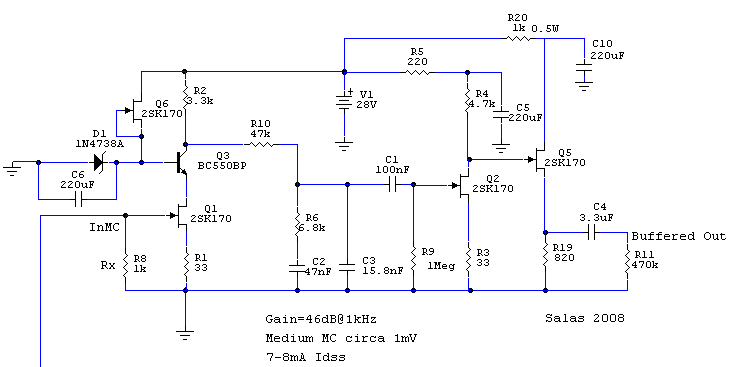

52db-Version 7-8mA IDSS for 0,5mV MCs Post 236

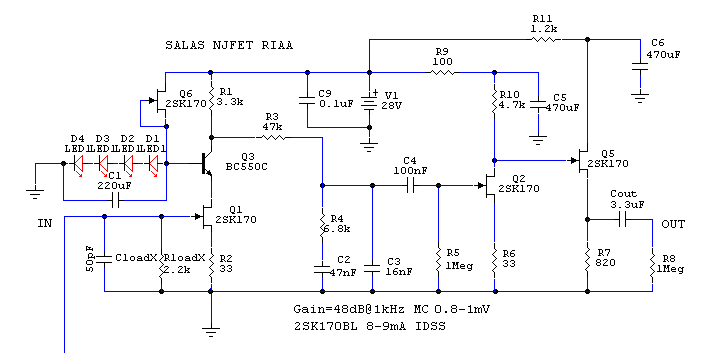

48db-Version 8,0-9,0mA IDSS Post 1813 output cart 0.8-1mV

46db-Version for Benz ACE Post 240 output cart 0.8mV

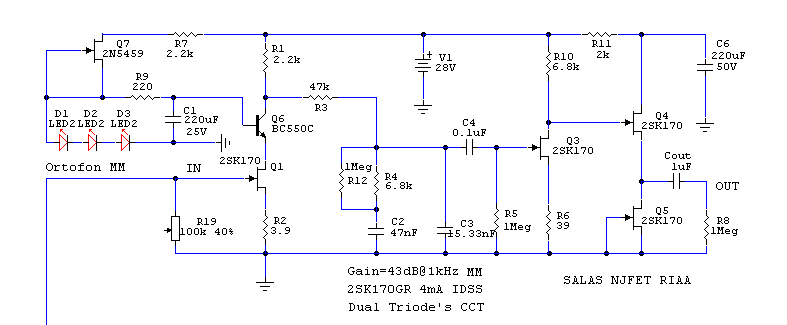

43db-Version 4,0mA IDSS Post 4600 MM output cart 4mV

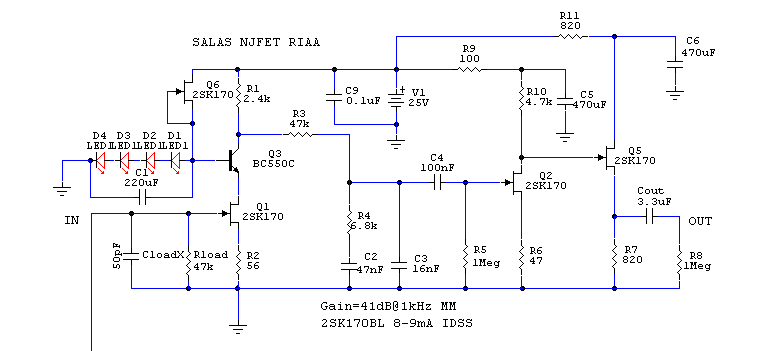

41db-Version 8,0-9,0 mA IDSS Post 1812 output cart 2-5mV

38db-Version 4,0 mA IDSS Post 5118 MM output 4mV

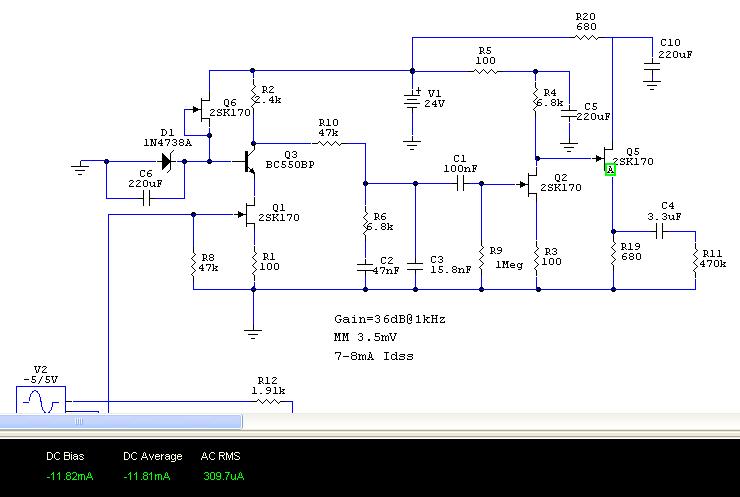

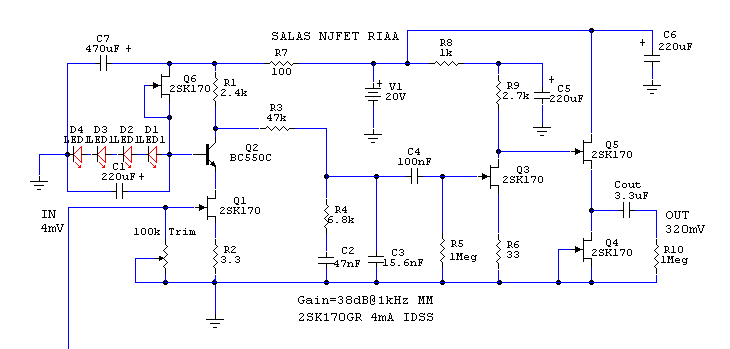

36db-version 7,0-8,0 mA IDSS Post 417 MM 3.5mV

psgr pdf Post 2706 (thanks to Ikoflexer) can be downloaded here:

http://www.cs.toronto.edu/~relu/audio/salas/Salas-Riaa-Package-V1.zip

Enjoy.

Cheers

Felipe
