Resistors in Metal Film Capacitor Clothing

[Bigred]

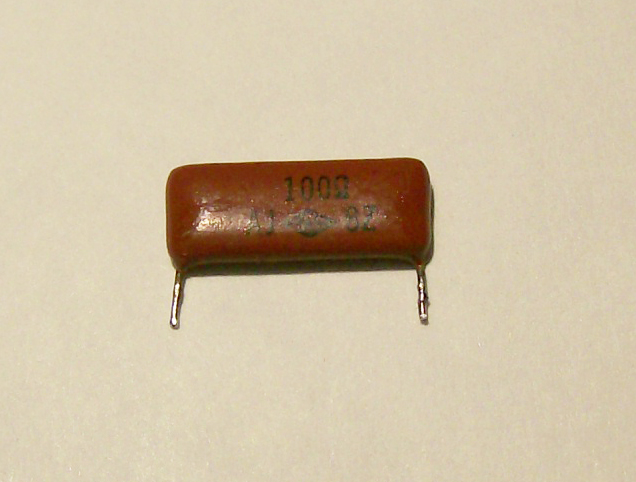

Has anyone ever come across resistors that you would swear are film caps? Have a look, and YES it is in fact a resistor.

Now begs the question, what type of material. Any info or educated guesses someone may be able to provide is always appreciated!



[Damon Hill]

I'd be checking it with an ohmmeter, just to be certain. Must be a special purpose design, or perhaps it is a RC snubber.



[Enzo]

Agree, check with ohm meter. A snubber or other similar little network is a good guess.

Plenty of guys are fooled the other direction, the little ceramic caps that look just like 1/4w resistors.



[Bigred]

It's not my first rodeo 🙂

As I said, it is in fact a resistor. It's hard to make out in the pic but it even says 100Ω on it.



[Soundhappy]

Now begs the question, what type of material.
Any info or educated guesses someone may be able to provide is always appreciated!

http://www.nikkohm.com/nikkohm_e_pdf/rp84rp44rp24rp14eb_e20160501.pdf

Interesting resistors for audio circuits



[Bigred]

Absolutely fantastic Soundhappy

Thank-You



[Soundhappy]

My pleasure Bigred

This is not the only one brand who make resistors in this " caps" style
some Vishay or Susumu are made as well :
http://www.susumu.co.jp/common/pdf/n_catalog_partition28_en.pdf?v=3



[Soundhappy]

I use them in my builds



[kevinkr]

They look just like what the doctor ordered for a project I am working on, now to see if I can find a source. Surprising what you find here reading random threads. 😀



[Soundhappy]

You can find them on the flea market

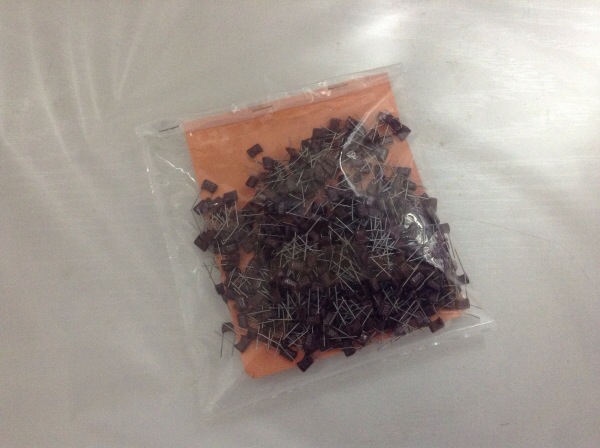

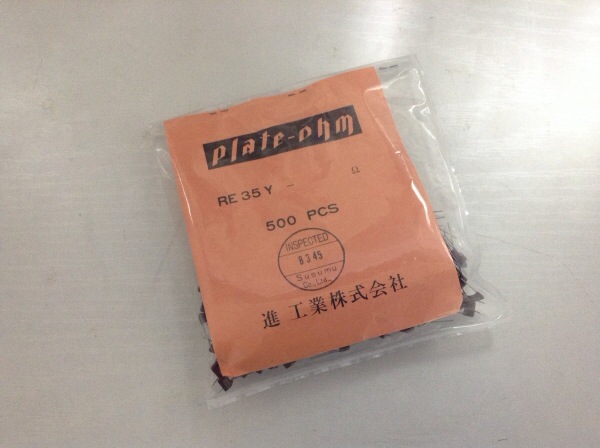

10PCs susumu RE-55 10K 1% 0.5W METAL FILM RESISTORS Audion 1/2W AMP DAC | eBay

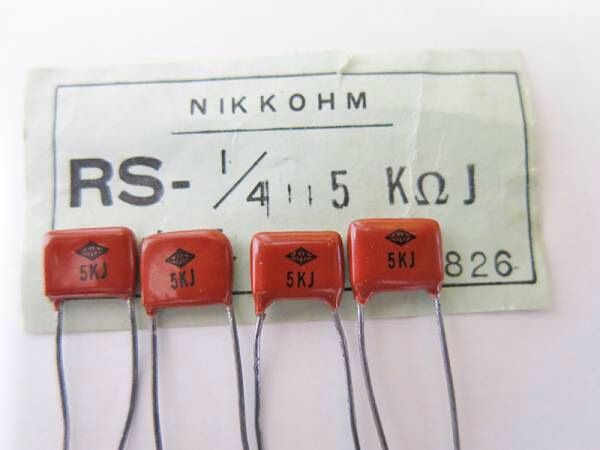

2PCs Nikkohm RP-44 3.3K 0.1% 0.25W METAL FILM RESISTORS Audion 1/4W AMP DAC 3k3 | eBay

thin film, non - inductive , non- magnetic have in theory
better noise specyfications if compare with thick technology resistors.
The very low temperature coefficient and 0,01 % tolerance cost much more no doubt.
Greetings 🙂



[kevinkr]

I'll have a look on eBay, and look for a local vendor. The application is not very price sensitive.



[Soundhappy]

Economic alternative if compare with Caddock or Z-foil TCC or Vishay resistors.
Ok they are different that interesting
