quad303 pcb for renovation

bigpanda

Member
2004-06-19 11:30 am
HKSAR

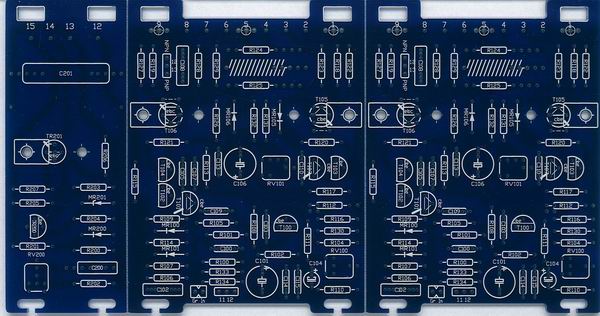

Attach is a photo :


Attachments

  • 0000001-12.jpg
    54.9 KB · Views: 263
a newer version

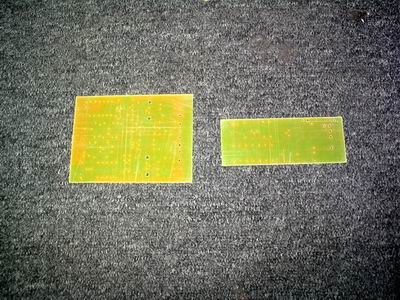

I had some new boards for Quad303 in which I have added :

1. some mounting holes for new system builders.
2. Traces modified to take MJL's PNP+NPN. If you find appropiate
output pairs, you can snug them in and give a try. They can be
soldered onto the board directly (ideal for new system builders)
3. Some components relocate to spread better among available
space


Attachments

  • resize of quad303-v2.jpg
    resize of quad303-v2.jpg
    69.5 KB · Views: 130
