QUAD 606 Mk 2 schematic and service manual sought

I’m looking for the service manual, or just the schematic, for the Quad 606 Mk 2. Is see 606 manuals and schematics on line, but nothing on the Mk2. Can anyone help?

Thanks in advance.

Last edited:
HI

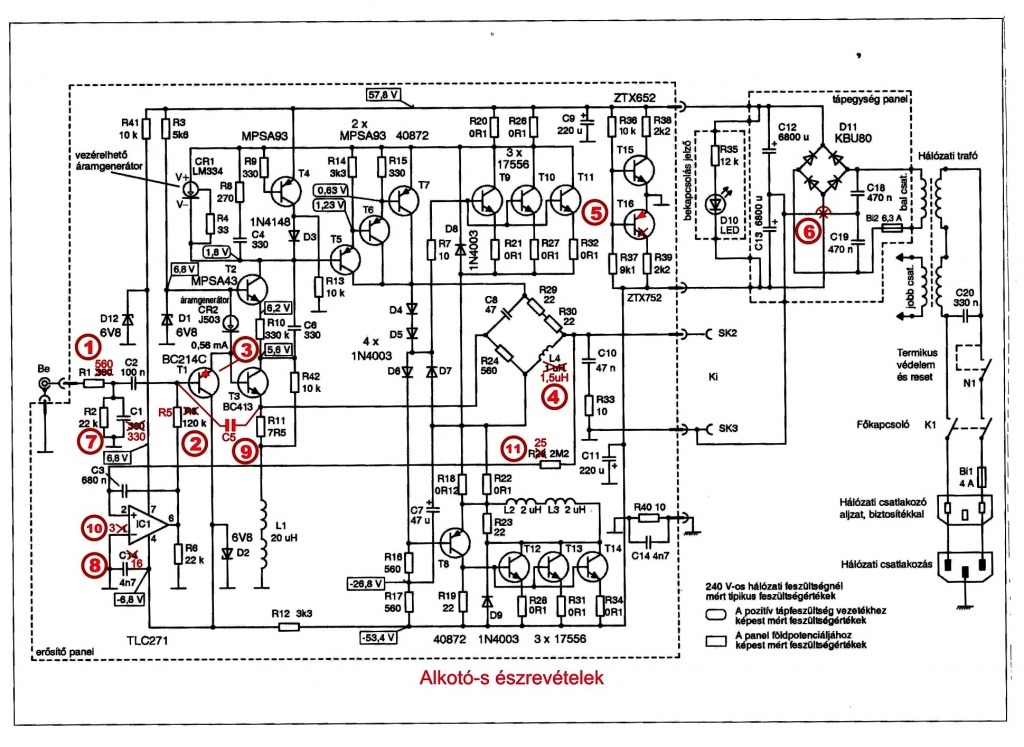

See if they are of interest


Attachments

  • RT-s kapcsolás javított.jpg
    RT-s kapcsolás javított.jpg
    203.6 KB · Views: 1,051
  • kapcsolás v1.2.pdf
    kapcsolás v1.2.pdf
    172.1 KB · Views: 269
  • Quad 606_HIFIDIY.NET.pdf
    Quad 606_HIFIDIY.NET.pdf
    41.6 KB · Views: 269

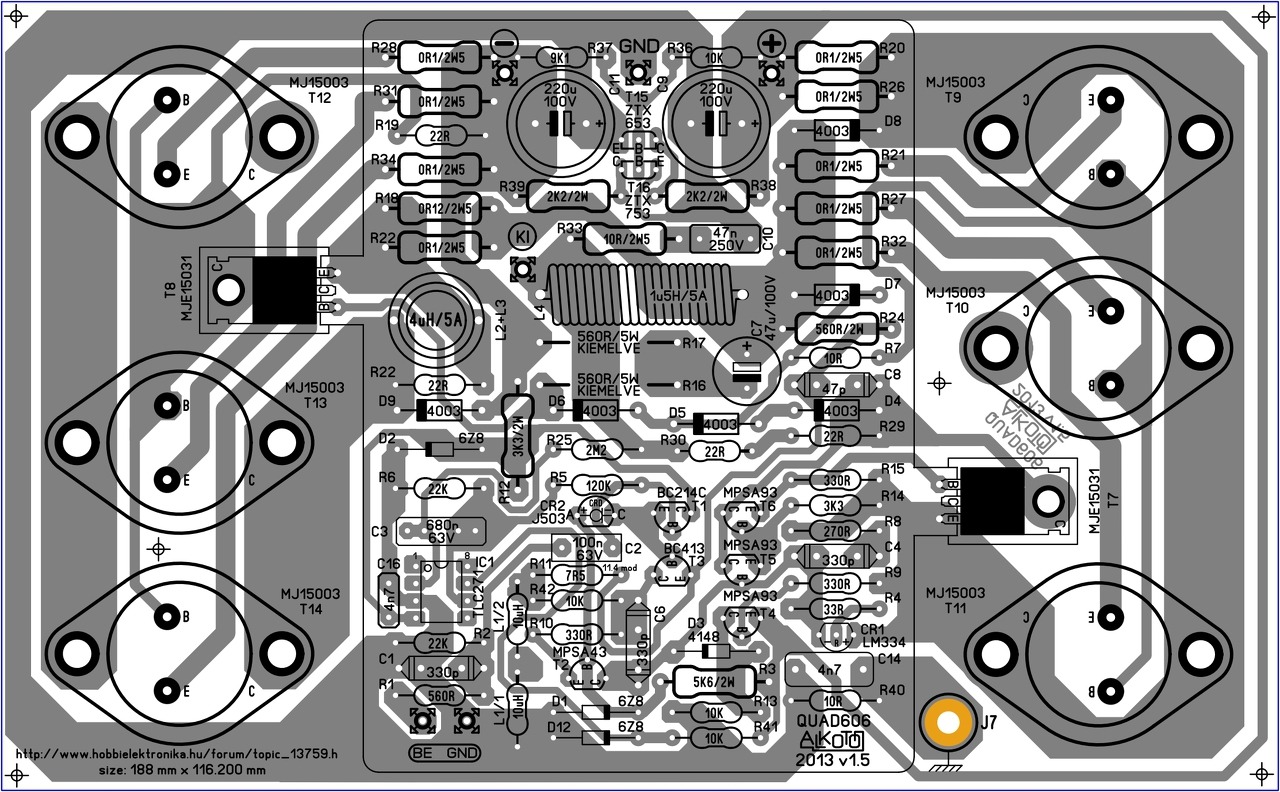

  • Quad 606 Juan.JPG
    Quad 606 Juan.JPG
    320.8 KB · Views: 960
  • quad_606_sch.pdf
    quad_606_sch.pdf
    127.7 KB · Views: 244
  • QUAD606 v1.3-Alkotó.pdf
    QUAD606 v1.3-Alkotó.pdf
    67.5 KB · Views: 242
  • Like
Reactions: huggygood
Thanks. 👍

I believe the 17556s were used in the Mk. 1. Is the Kapcsolas schematic an official Quad document, or is it a DIY upgrade?
Apologies for the delay in acknowledging your post, but for some reason I did not receive notification that a reply had been posted.
