Purifi PTT6.5 3D Models

[Haze Head]

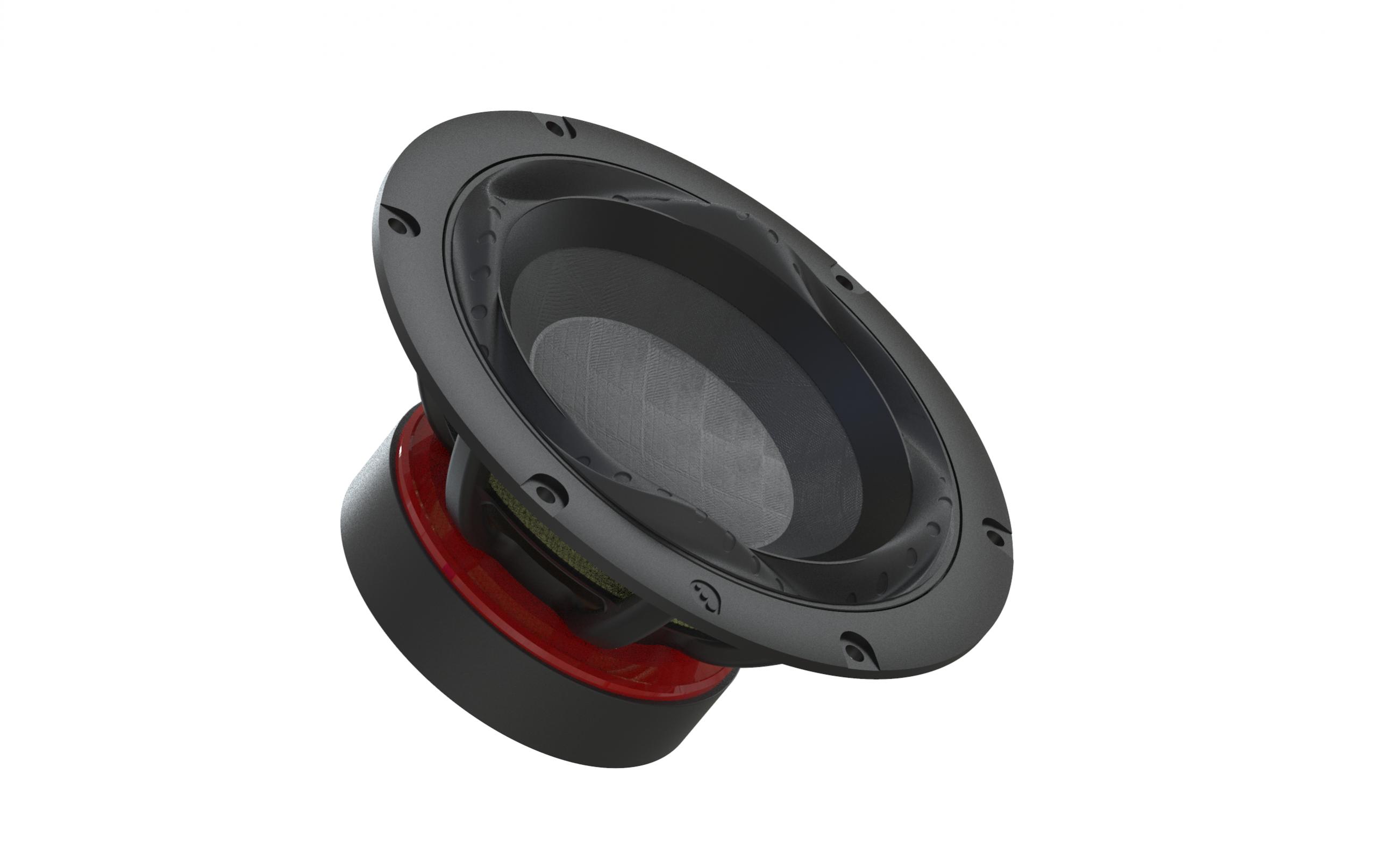

I modeled the PTT6.5 to better visualize some baffle designs.

It's mostly patched together because the organic suspension was a serious pain to do.

The mount plate, hole spacing, and most importantly the curve profile of the basket were carefully measured with a height gauge, so if you're experimenting with baffle integration, this is for you-



[xrk971]

Thanks for the model Haze Head! This is really a nice contribution - much appreciated.
-X



[Haze Head]

Least I could do!



[Haze Head]

An important detail:

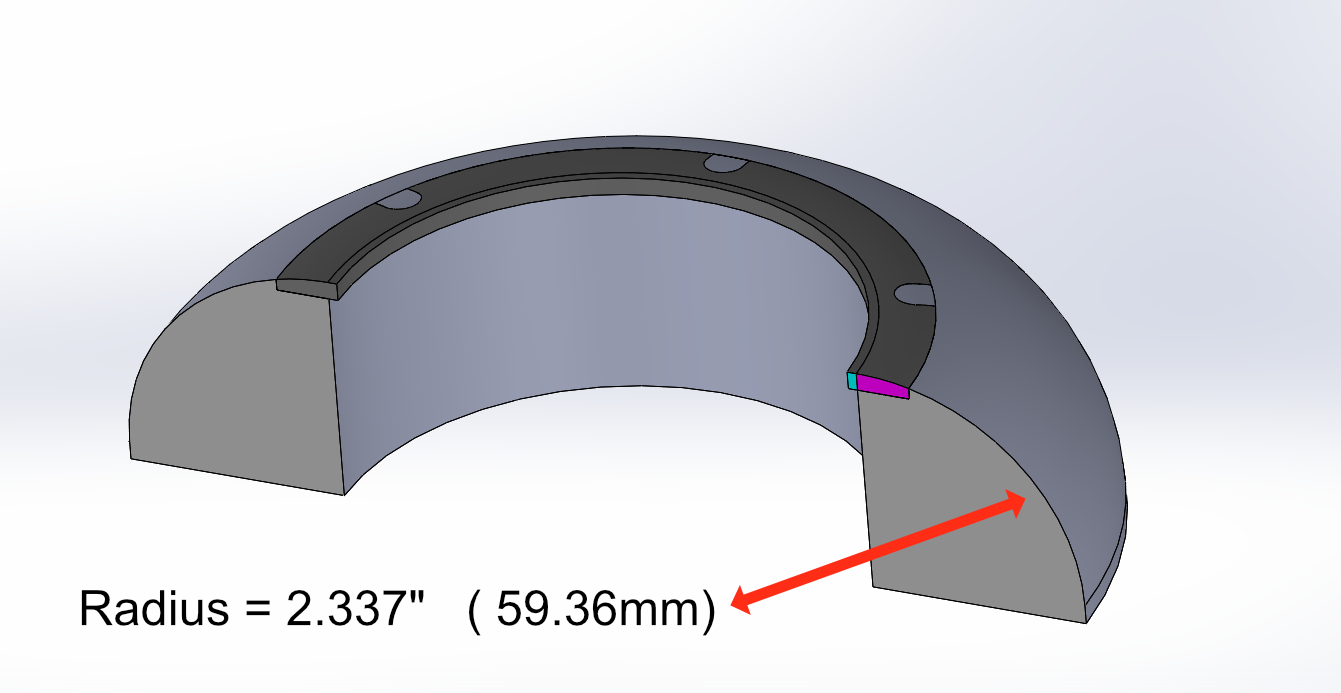

The frame mount surface curve is fairly parabolic. The frame edge has a tightening radius and that radius is approximately 2.3371" at the tangent point.
