Power Amp PSU Board (for e.g. LYNX Amp)

[peranders]

Mouser has the regular type

http://se.mouser.com/Search/ProductDetail.aspx?qs=YbgdthCBnKeTXvhWlXaS%2bg==

The footprint will take both this heavy duty type and the regular one.



[peranders]

Three different caps can fitted.

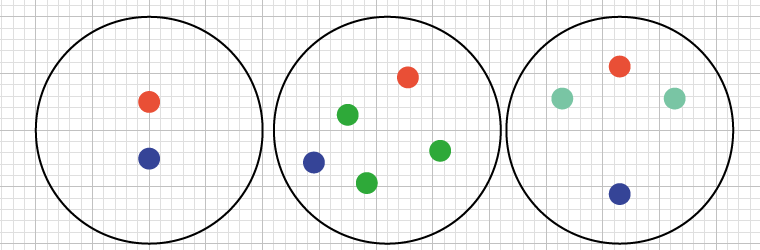

Left: Standard 10 mm pitch

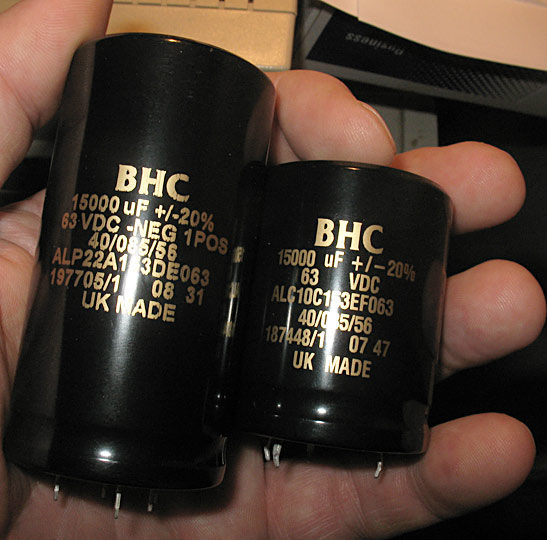

Middle: Heavy duty low impedance BHC -RIFA

Right: Heavy duty general purpose BHC - RIFA



[peranders]

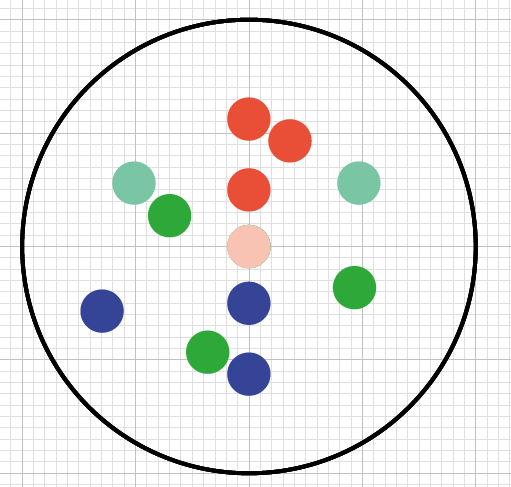

The physical footprint. In the pcb I have labels for all holes so you don't will be in doubt which one is which. Since the low impedance model is twisted I have also added a second minus mark.



[Frank Colak]

Added four more to the wiki.
Sent you an e-mail P-A.

Frank



[peranders]

I'm checking the price for the deluxe Phoenix connector so please sign up if your are interested, regardless of the price.



[MadFinn]

So if i want connectors them was it 16 for each board ???



[peranders]

You can download the pcb layout here ... and it seems that I have calculated wrong. It should be 24 poles per board. I'll change the wiki.



[peranders]

50% of the pcb layout is done. It's rather complicated to do most of the routing with copper planes.



[peranders]

BHC caps seems to be nice.

BHC has split foil caps, I wonder if Hypex has taken their caps from BHC?



[peranders]

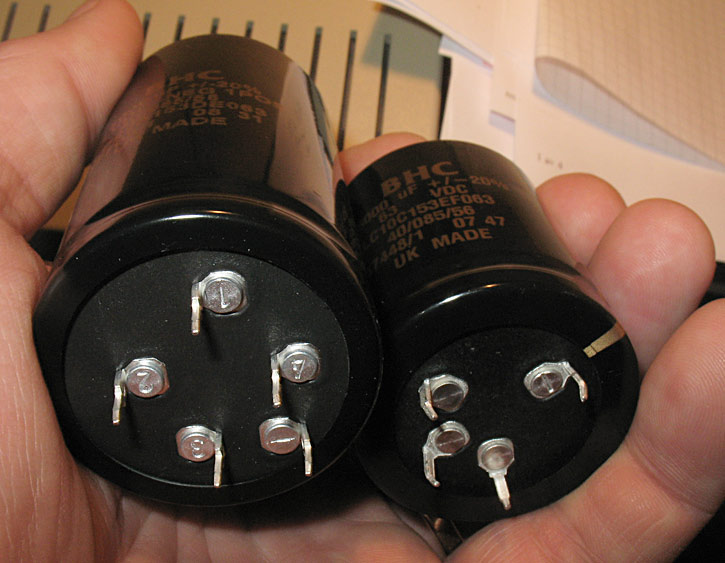

Check out the pinning. You'll understand the comlexity of the ultra universal footprint that I have made? See the drawing a couple of posts up.



[UrSv]

BHC has split foil caps, I wonder if Hypex has taken their caps from BHC?

Yes, Hypex use BHC caps. Or at least they have on occasion as things change...



[samoloko]

where the final schematic can be viewed
does the pcb work with one cnannel or can be used for a stereo
are the phoenix conectors same type - 1 pole or they are different types



[peranders]

The schematic now is very much alike the one you can download.

You can use it for stereo also.

The Phoenix connectors, see the pictures. Those will fit and also regular one and spade connectors.

You can build any pole number with the Phoenix connectors in mind but observe that you have "odd" and "even". Check out the pins.



[peranders]

The pcb layout is ready

The pcb layout is ready. Please note that the layout is "fit to page". Real size is 220 (8.675") x 180 (7.1").

Schematics here
Layout here



[peranders]

If you don't have anything to add I'm going to order prototype boards.



[gary s]

Hi P-A

I am happy with what you have done so far.

Do you have any prices on the Phoenix connectors at this stage.

Cheers

Gary..



[peranders]

Hopefully I'll get it on Friday.



[HenrikS]

Hi Per-Anders

I want 2 PCBs!

I can't email you due to low posts.



[peranders]

You can go to my homepage and email from there



[peranders]

The wiki is updated with the price for the connectors. Please update your interest. The price is based on 600 poles.

Very soon I will announce the exact price for the pcb also.
