Please Help With Wiring My Ballast Kit

[jazzbee]

I have eventually decided to retrofit my OHP as the image was too dull 🙁

I have now recieved the parts I need to retrofit but have not got a clue how to wire it up... it's so confusing for a noob 😛

Could someone please advise me as to where the wires should be connected.

I have attached a picture of the ballast and ignitor with the appropriate markings.

Thanks.



[dave123]

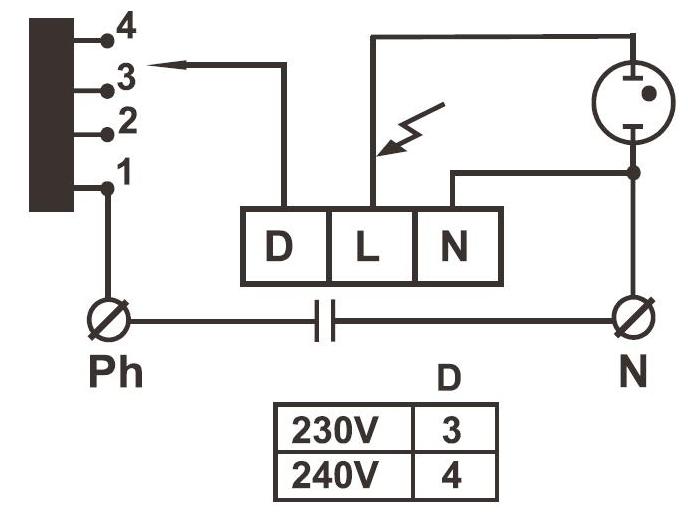

Here you go



[jazzbee]

Thanks Dave 🙂

That makes more sense than just a few lines now 😛

Where do I insert the postive & negative from the main power into the ballast (from the on/off power switch on the OHP).

One more question...

Thanks for numbering the diagram too, but What is the number two used for?


Jazz



[jazzbee]

LOL

I've been tryin to wire this daft thing up all evening and have blown about 5 or 6 fuses already 🙁

I just cant seem to get the wiring combination correct.

Could it be that I need a 15 amp fuse???

I have blown 5 amp and 13 amp fuses. The recommended fuse on the manual says 15 amps...hmm

I almost give up 😛



[dave123]

use a surge protector - dont waste your fuses I'm at work so it hard to post anything sorry
