You can use a resistor or capacitor. The resistor could be a 1k. The capacitor a 0.1uF to 0.1uF.
The cap would be connected gate to source. The resistor would be gate to source then gate to drain.
For this test, I generally use a 0.047uF capacitor on a header so I can drop it into each location and test all drive circuits up to the FET.
The cap would be connected gate to source. The resistor would be gate to source then gate to drain.
For this test, I generally use a 0.047uF capacitor on a header so I can drop it into each location and test all drive circuits up to the FET.
From the information I have (generic) that diode that read shorted isn't significant since there is no internal connection to one leg. The short may be a trace.
How is the drive being loaded?
17.8k is lower than I'd expect it to be.
How is the drive being loaded?
17.8k is lower than I'd expect it to be.
17.8 is really the lowest i've ever seen.
There is no loading to the drive, tomorrow i'll try with caps. Can I use 10uf or that is way too much of capacitance ?!
There is no loading to the drive, tomorrow i'll try with caps. Can I use 10uf or that is way too much of capacitance ?!
That's far too much. There isd a big difference between 0.047uf and 0.1uf. If you're like most people who repair electronics, I'm sure that you have a small film cap in a junk board.
Perry You are the man 😀
Loaded the drive circuit with 0.047uf film caps...
One of the bank is straight DC, the other one has some gate drive, not exactly perfect...
So the drive transistors are dead ? If i'm being correct TL494-->driver/buffer transistors --> gate resistors --> PS mosfets...
So i doubt it's the TL494, I've never seen even one failed...
Loaded the drive circuit with 0.047uf film caps...
One of the bank is straight DC, the other one has some gate drive, not exactly perfect...
So the drive transistors are dead ? If i'm being correct TL494-->driver/buffer transistors --> gate resistors --> PS mosfets...
So i doubt it's the TL494, I've never seen even one failed...

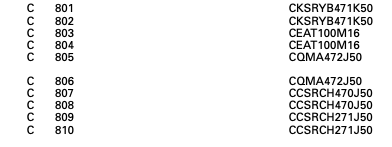

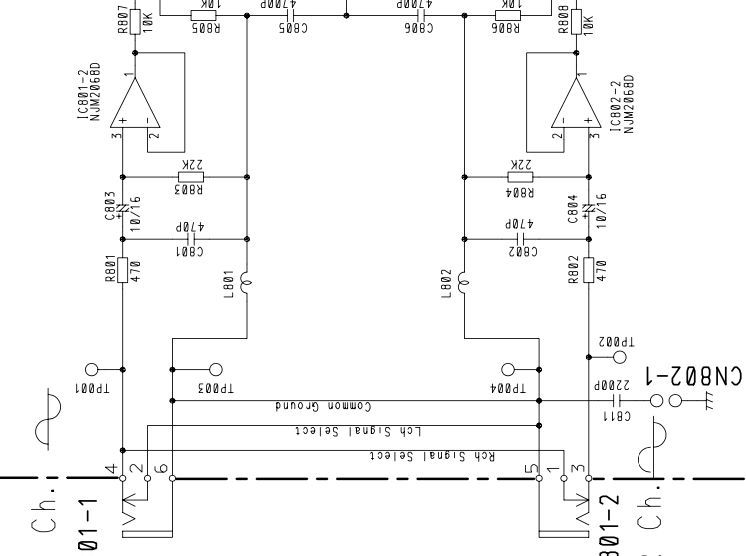

Attachments
The 494s sometimes fail but it's not always a catastrophic failure. In some instances, the regulators go out of tolerance or they won't oscillate at the right frequency.
You can load like you did but you don't need to take that much time. If you just check each location by inserting the cap and looking for a change from the perfect square wave, it's quicker (less than a minute). I solder the cap to a header which makes it a bit easier than the tiny leads.
The image below is what you can expect from a loaded drive circuit beyond the gate resistors.
One of your drive circuits is likely OK. The one with excessive DC likely has a defective PNP driver (assuming it uses transistors, I don't have the diagram). The NPN drivers generally survive but should be checked, at the very least.
You can load like you did but you don't need to take that much time. If you just check each location by inserting the cap and looking for a change from the perfect square wave, it's quicker (less than a minute). I solder the cap to a header which makes it a bit easier than the tiny leads.
The image below is what you can expect from a loaded drive circuit beyond the gate resistors.
One of your drive circuits is likely OK. The one with excessive DC likely has a defective PNP driver (assuming it uses transistors, I don't have the diagram). The NPN drivers generally survive but should be checked, at the very least.
Attachments
Changed the small SMD driver transistors to the PS FETS - now works like a charm.
So much thanks to You Perry !
So much thanks to You Perry !
