Pamook well done very unusual enclosure but really pay off, can you share also the schematic? ......enjoy the music,,,,,,all the best

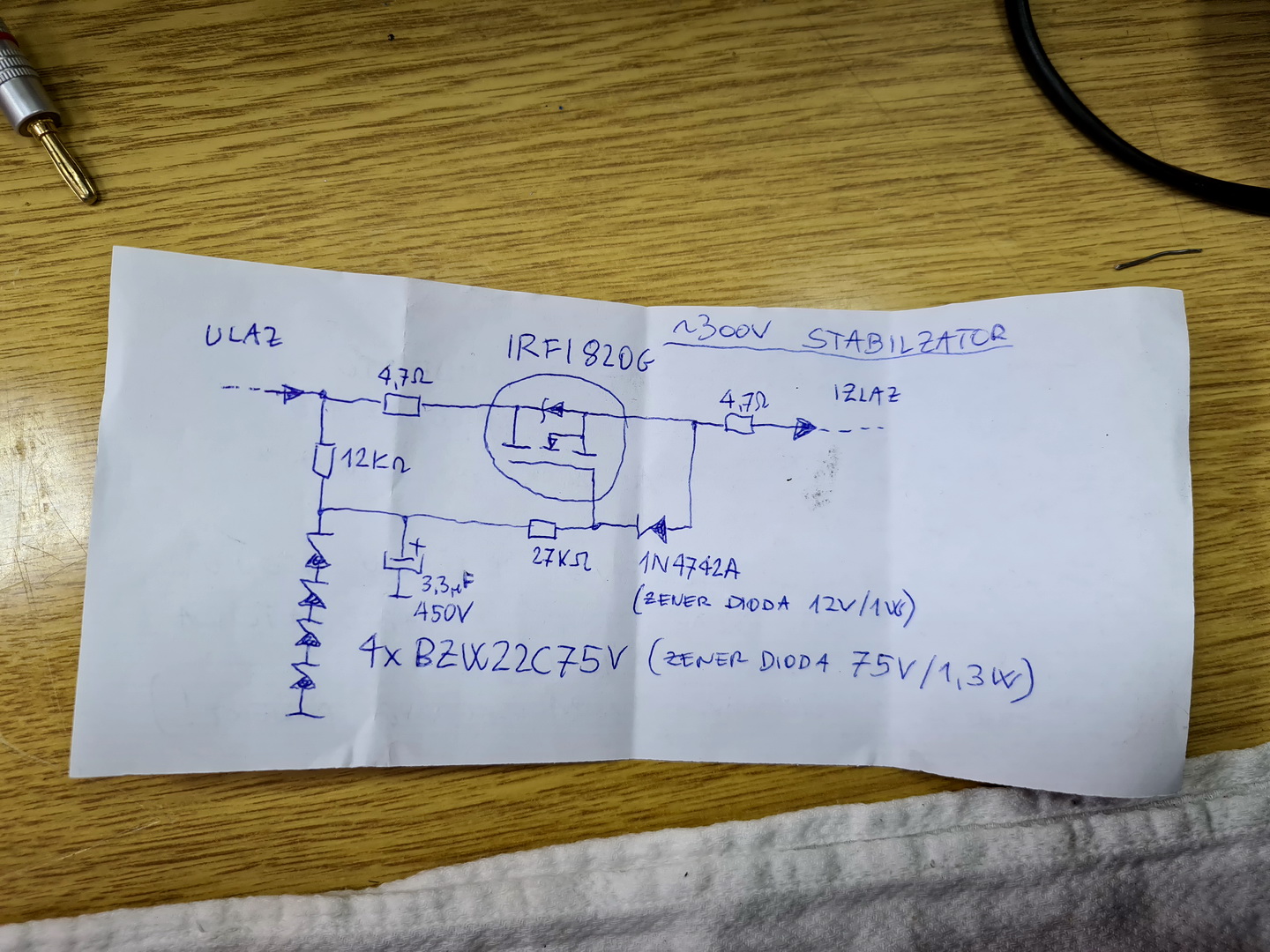

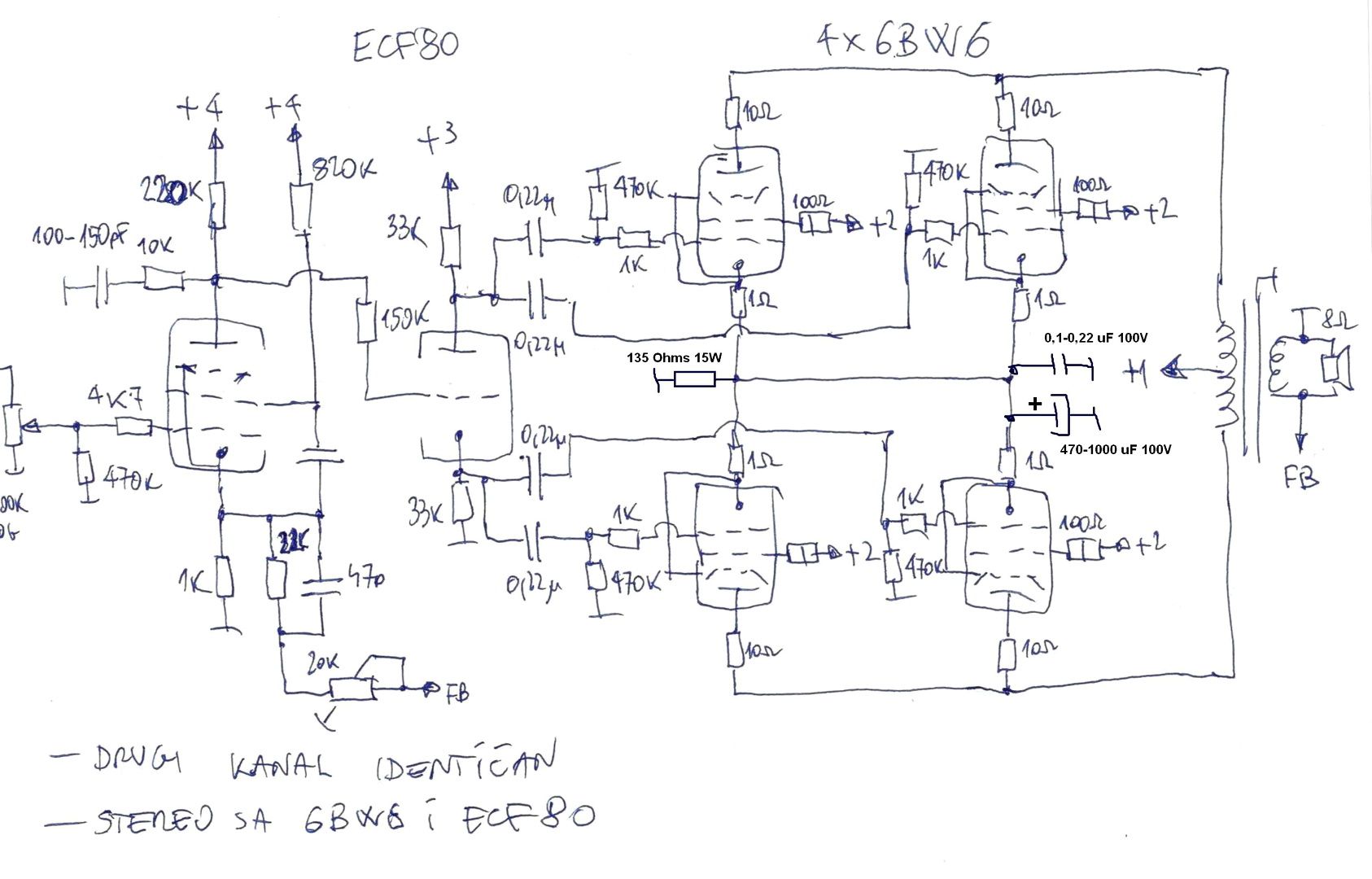

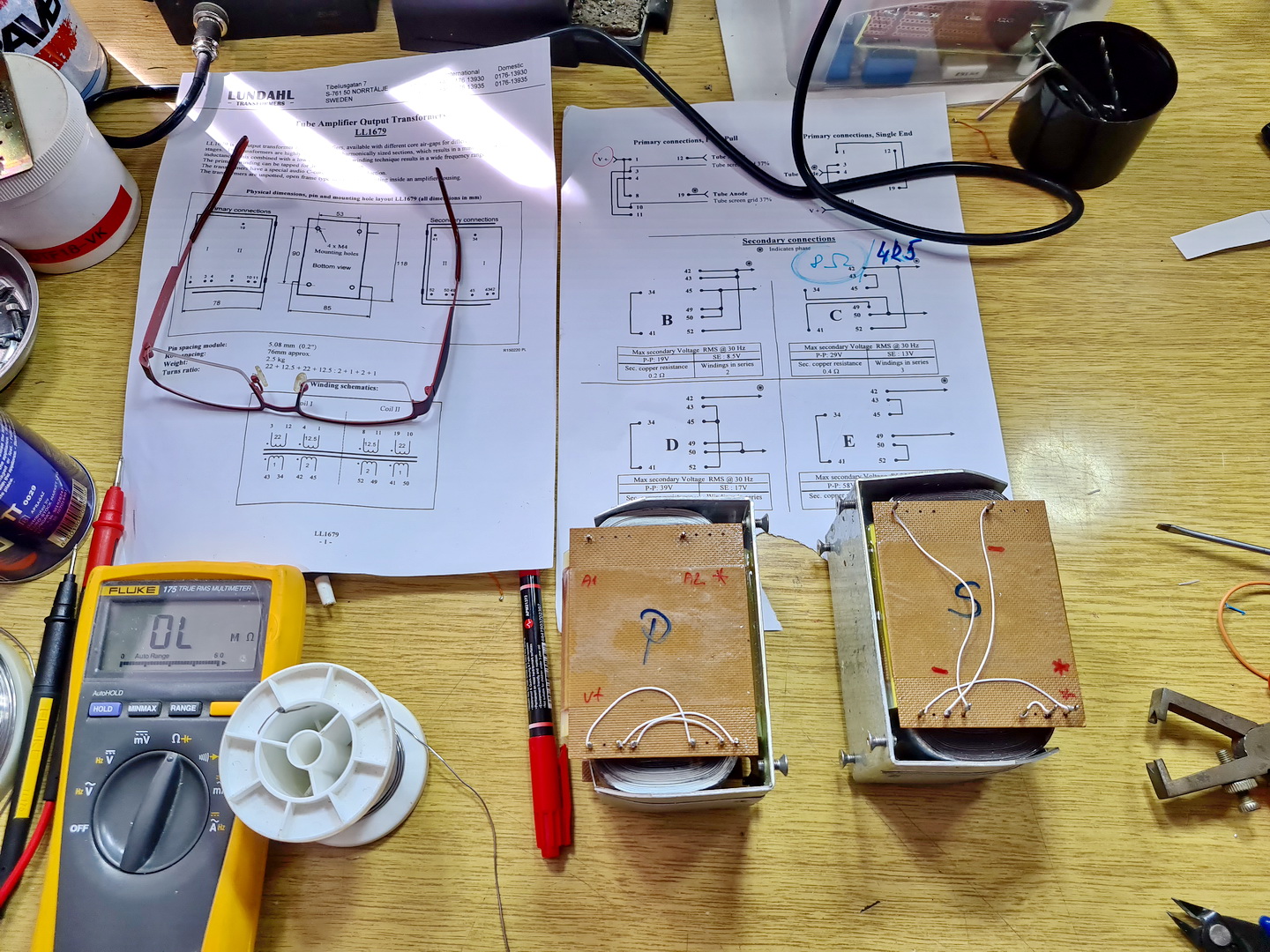

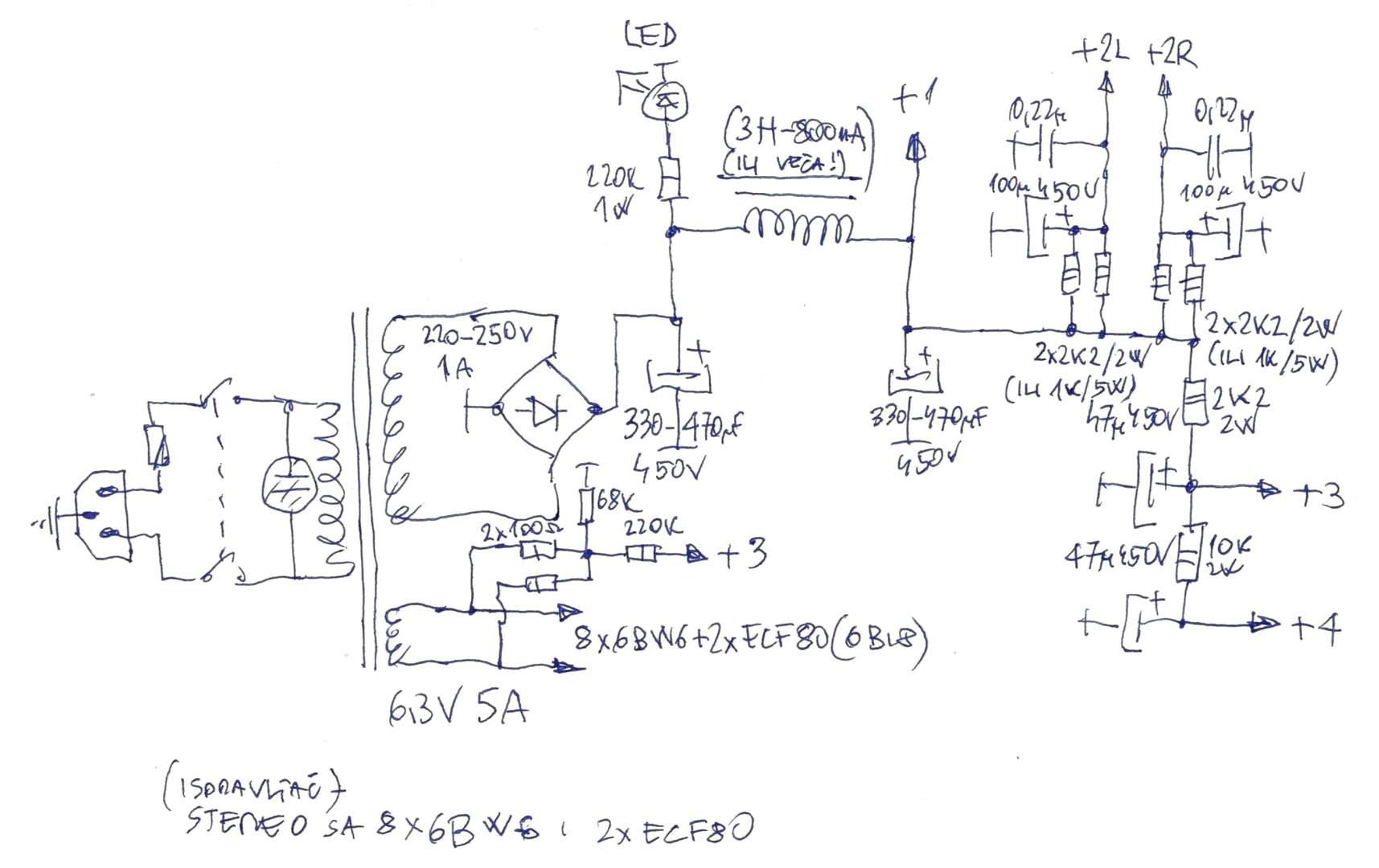

Thank you 🙂.... here is a schematic, in the finish the power supply got a regulator for each channel for G2 voltage, instead of two 2x1k resistors in parallel... the Lundahls are configured for 4k5:8R... measured (with my pretty much limited knowledge and hardware, got cca 25Wpc before "visible" clipping on the 1kHz sine wave (1Vrms input)...
/edit - the schematics are completely done by member Davorin, I was just makeing it the way I saw it should look like... sounds pretty well, plenty of power, need to break in...
/edit - the schematics are completely done by member Davorin, I was just makeing it the way I saw it should look like... sounds pretty well, plenty of power, need to break in...
Attachments
Last edited:
I have a pair of ECF80s lying in front of me and want to try them out with 6L6s. Good you reminded that I must hurry up with that project.
...yup, 3U chasis (cca 13cm height) and 28cm in depth... a bit small for what I crammed in it, sometimes it was like assembling a 4D puzzle
😱

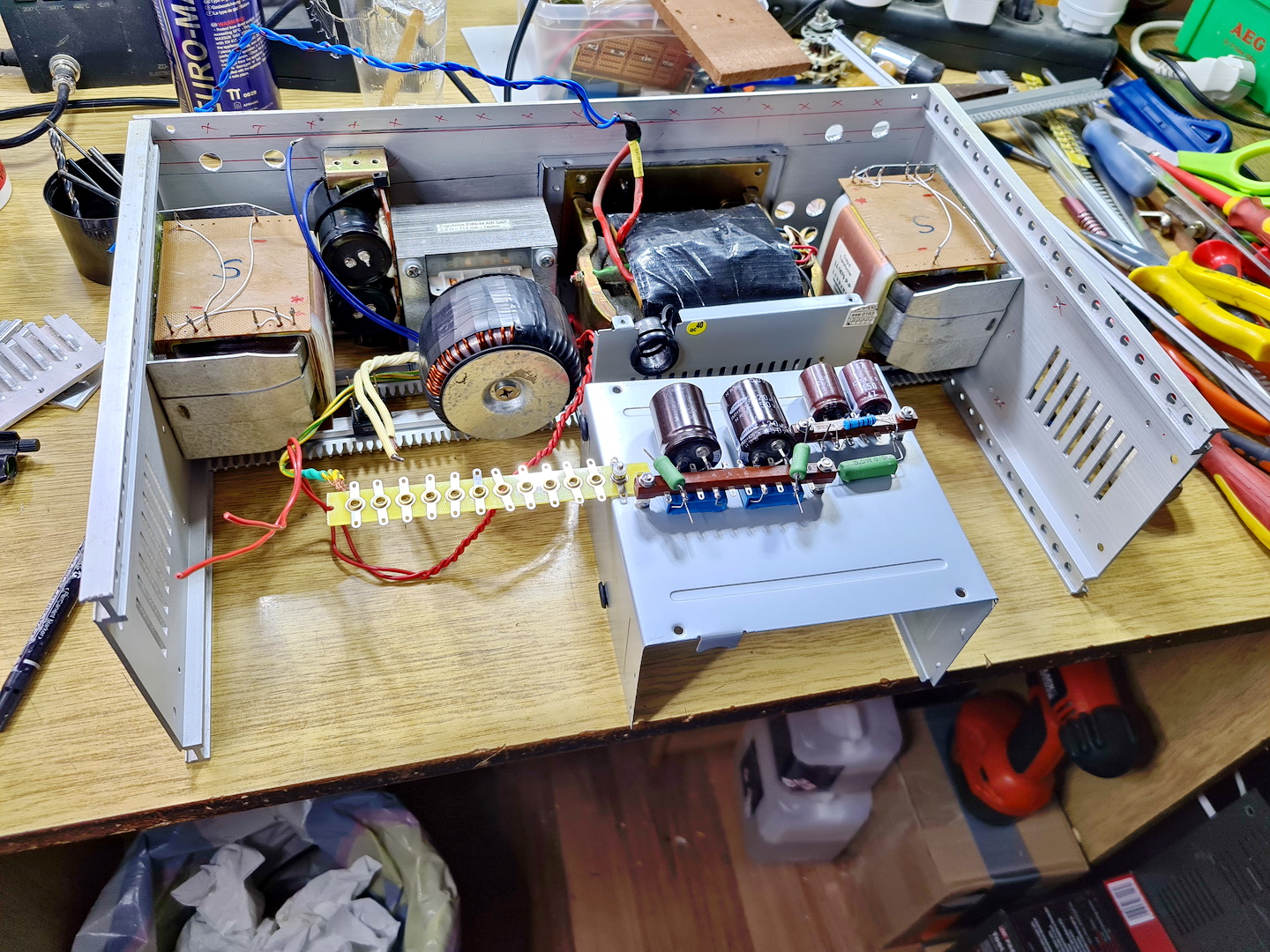

I had to find place for 2 OPTs, one mains transformer (without a filament winding), pretty big choke and a toroidal transformer for filament... but in the end, its a healthy 19kg amp 😀
😱I had to find place for 2 OPTs, one mains transformer (without a filament winding), pretty big choke and a toroidal transformer for filament... but in the end, its a healthy 19kg amp 😀
Attachments
Looks and sounds great. You captured better sound on YouTube than most show reviews of mega $ systems. Congrats.
Last edited by a moderator:
Brook12A clones. 2A3 in push-pull. Sounds great with Altecs. SUNil
Which Altecs do you use? I have a7's and I think 818 two 515's,
I built a 2a3 similar to the 12a, but mostly use a 811a amp with little feed back to get better bass the 515 is so over damped, In another JBL horn use a speaker with QTS .7 wonderful bass. needs to be packed with lotsoffluffy stuff. in another a7 use chinese speaker with the same data as the JBL e-145
Which Altecs do you use? I have a7's and I think 818 two 515's,
I built a 2a3 similar to the 12a, but mostly use a 811a amp with little feed back to get better bass the 515 is so over damped, In another JBL horn use a speaker with QTS .7 wonderful bass. needs to be packed with lotsoffluffy stuff. in another a7 use chinese speaker with the same data as the JBL e-145
The 811 is a BIG tube. I have the ATS25 but can't decide, the voltages are scary.
I have two systems - 802 /414 (3Cu.ft) with Z19 crossover and a 604e in 8Cu.Ft.
The 604e needs help from the 414 for rock, otherwise sounds fantastic with just about anything else.
I have two systems - 802 /414 (3Cu.ft) with Z19 crossover and a 604e in 8Cu.Ft.
The 604e needs help from the 414 for rock, otherwise sounds fantastic with just about anything else.
811Amp
sunilI
I have built lots 811a amps using the design for record cutting amps using the same voltages as KT88/6550 you can use from 500 811 to 600 volts 811A has 40 watts class A, I have also built the same circuit 809 amps only about 400 volts.
The out put transformer is from 1.5k to 2K
sunilI
I have built lots 811a amps using the design for record cutting amps using the same voltages as KT88/6550 you can use from 500 811 to 600 volts 811A has 40 watts class A, I have also built the same circuit 809 amps only about 400 volts.
The out put transformer is from 1.5k to 2K
Attachments
I was looking at the 811 tube once but I just recall the various versions A, B, C, -10, -XXXX and not to mention the near-equivalents SV572.
What to use in a REASONABLE amp?
What to use in a REASONABLE amp?
Last edited by a moderator:
Interesting I didn't know you could run the 811A in anything but class B. What voltage are you biasing the grid? I've used the 811A in A2 before.
I was looking at the 811 tube once but I just recall the various versions A, B, C, -10, -XXXX and not to mention the near-equivalents SV572.
What to use in a REASONABLE amp?

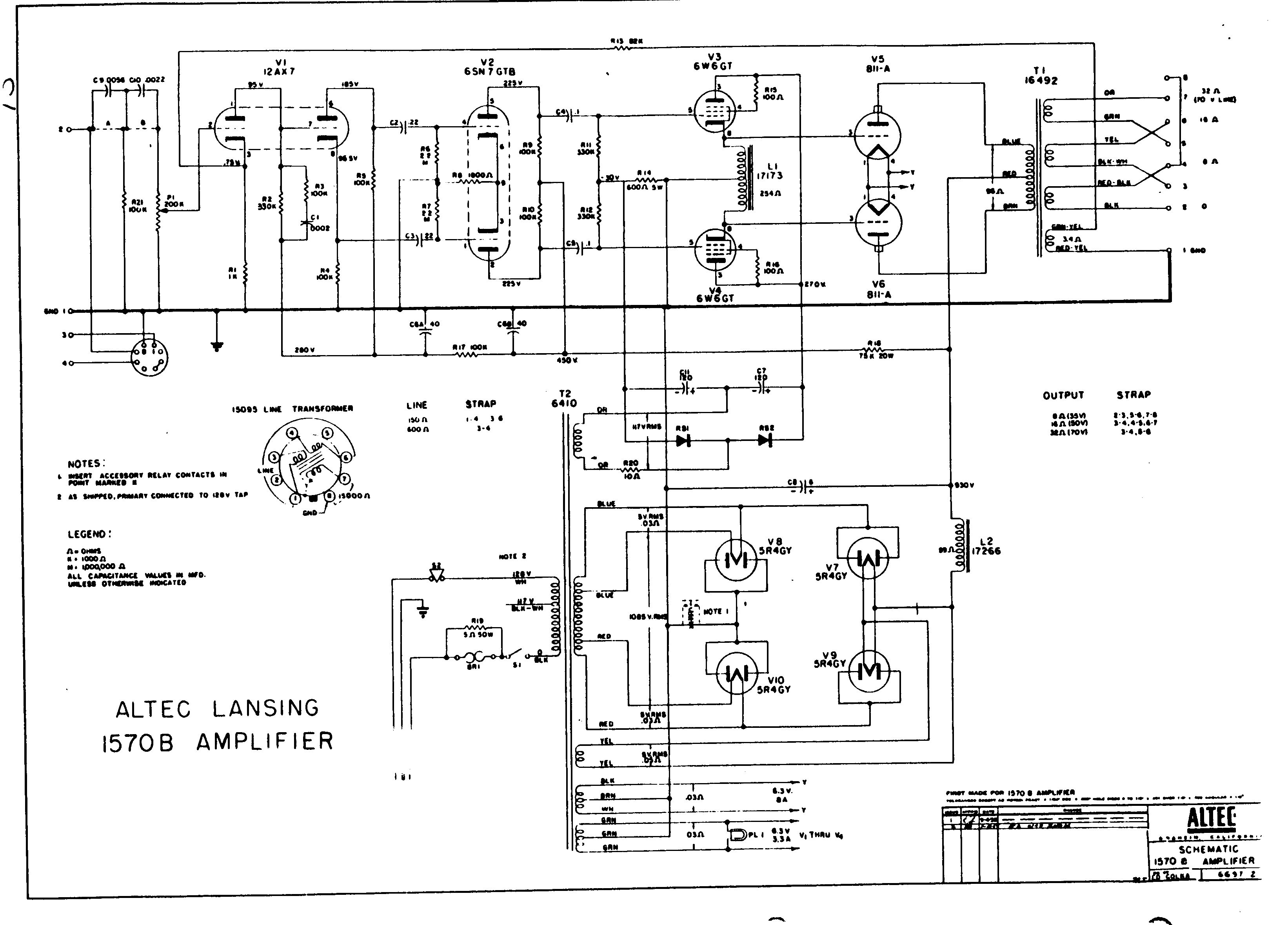

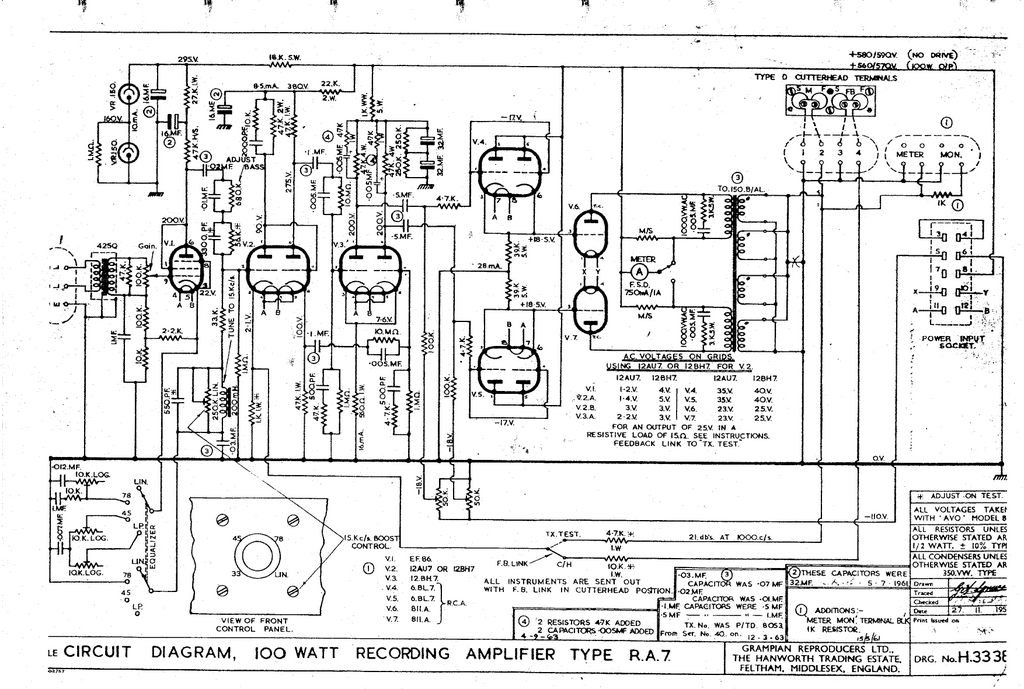

Sorry I sent the wrong circuit.
The Russia built the various version one is similar to the 845, they came out with a mu of 3-10-30 and the 572 180 similar to the 811a and American 572 -180, are very costly now as the Russians stopped production, the Chinese also have 811a and 572. The best tubes to use are Russian 811a’ and the USA 811a and 572. But they are becoming hard to get. One amp I built for friend the Russian 811a he used for 20 years, still measured Good, my friend decided he liked the sound of the Chinese 572, first lot lasted 18 month, but recent version have so far latest 4 years.
THe amp is biased about +18 volts depends on tubes
What to use in a REASONABLE amp?
Sorry I sent the wrong circuit.
The Russia built the various version one is similar to the 845, they came out with a mu of 3-10-30 and the 572 180 similar to the 811a and American 572 -180, are very costly now as the Russians stopped production, the Chinese also have 811a and 572. The best tubes to use are Russian 811a’ and the USA 811a and 572. But they are becoming hard to get. One amp I built for friend the Russian 811a he used for 20 years, still measured Good, my friend decided he liked the sound of the Chinese 572, first lot lasted 18 month, but recent version have so far latest 4 years.
THe amp is biased about +18 volts depends on tubes
