Phase plug design for high-directivity horn

Hi everyone,

I'm looking for hints and tips on designing a horn/plug combination for a cone driver (5 inch). It should have high bandwidth (no need for a tweeter or a separate midrange, 500Hz - 15kHz would be perfect) and high directivity (angles less than 50°).

It is possible, the Funktion One Resolution 1 shows that, but I can't find any information on designing a horn/plug combo as they did. I only know that the plug is connected to the pole plate and the compression chamber is as small as possible.

Does anyone have more information on designing plugs like these?

Bye,

Bastian


stewin

Member
2007-07-07 2:10 pm

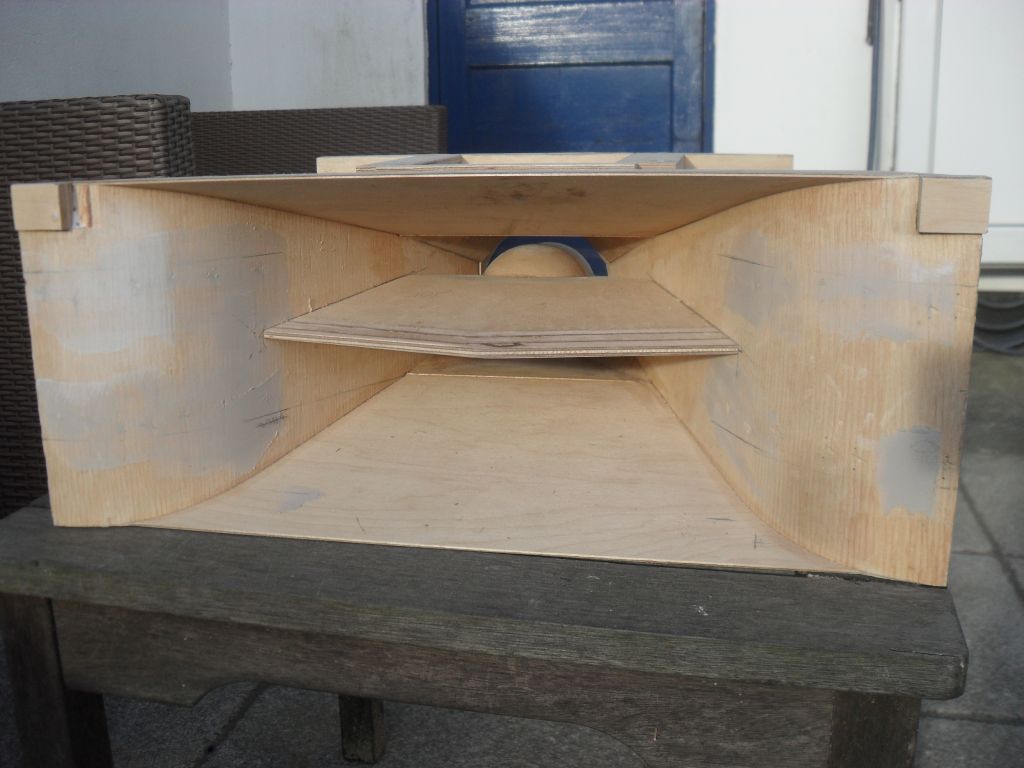

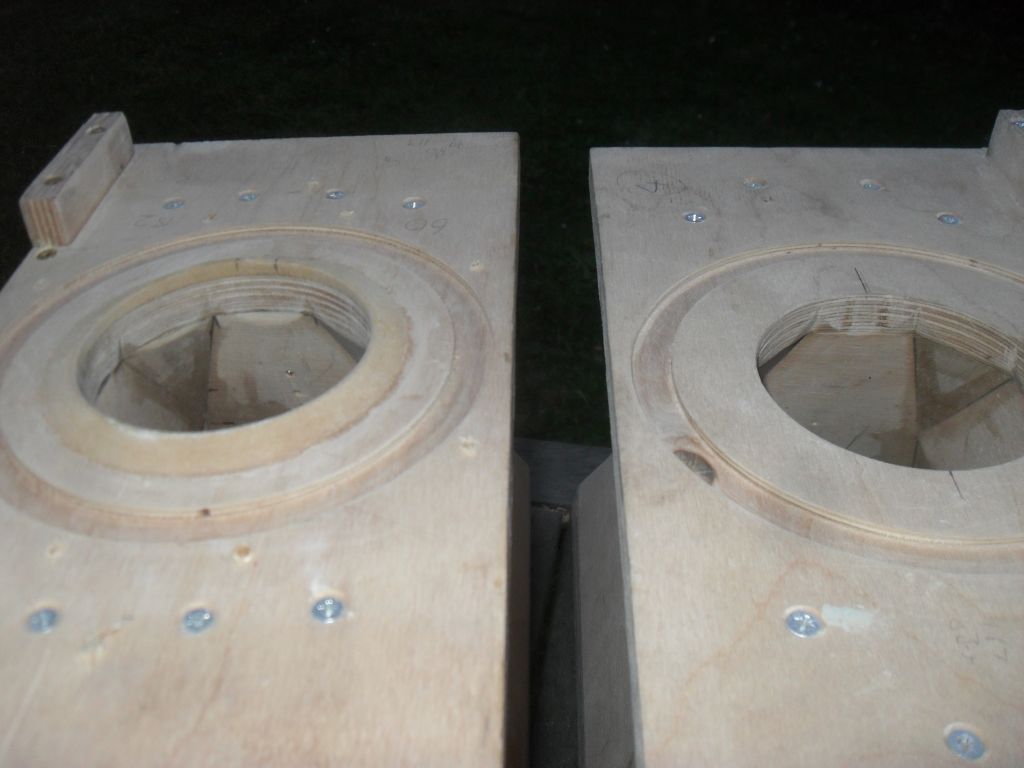

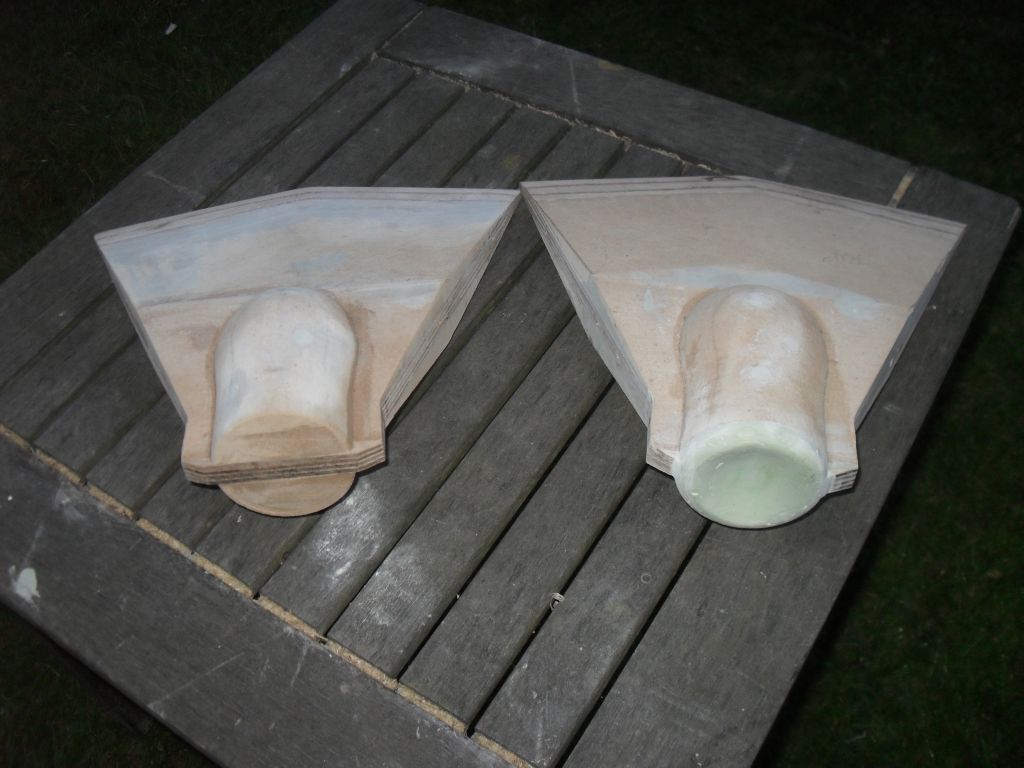

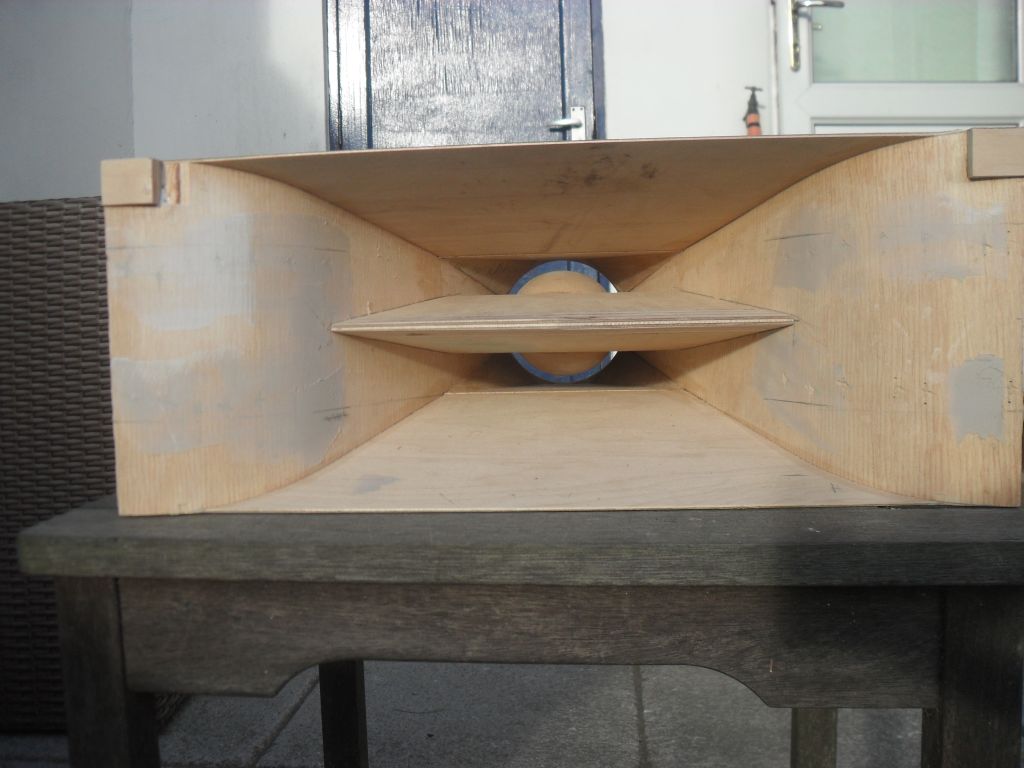

try this method


Attachments

  • sdc13296.jpg
    81.1 KB · Views: 100
  • sdc13297.jpg
    81.8 KB · Views: 94
  • sdc13302.jpg
    64 KB · Views: 98
  • sdc13300y.jpg
    86.4 KB · Views: 98
