HI,
THIS WAS THE THREAD I STARTED BOUT A PROB IN my amp.it has pcb as well as scheme(worked good but burned out a month back taking my Rs5000 pioneer woofer along with it).
your choice,use it(maybe i was at fault in using the amp properly).
HI,
THIS WAS THE THREAD I STARTED BOUT A PROB IN my amp.it has pcb as well as scheme(worked good but burned out a month back taking my Rs5000 pioneer woofer along with it).
your choice,use it(maybe i was at fault in using the amp properly).
The PCB -It will not be readily available.
U will have to make one for urself.
If u can laser print on a glossy photo paper then read here.
http://www.fullnet.com/u/tomg/gooteepc.htm
Other method is the good old one.
Draw the artwork using enamel paint on the copper and itch using ferric chloride. In this case go for 3886 as it's easy.
Want pcb layout, there will be hundreds in DIYAUDiO. I have one single sided design here.
Make urself one of this or make more and we will buy if it's good.
Gajanan Phadte
U will have to make one for urself.
If u can laser print on a glossy photo paper then read here.
http://www.fullnet.com/u/tomg/gooteepc.htm
Other method is the good old one.
Draw the artwork using enamel paint on the copper and itch using ferric chloride. In this case go for 3886 as it's easy.
Want pcb layout, there will be hundreds in DIYAUDiO. I have one single sided design here.
Make urself one of this or make more and we will buy if it's good.
Gajanan Phadte
r u loking for pre fab pcb??
tell me also if u get one.(i would get different ones constructed)
for using toner transfer method(IN INDIA),u must take a look here:http://www.diyaudio.com/forums/showthread.php?s=&threadid=64970&perpage=10&highlight=&pagenumber=2
tell me also if u get one.(i would get different ones constructed)
for using toner transfer method(IN INDIA),u must take a look here:http://www.diyaudio.com/forums/showthread.php?s=&threadid=64970&perpage=10&highlight=&pagenumber=2
Ya , i m from chennai, email id is kuldeep1@gmail.com

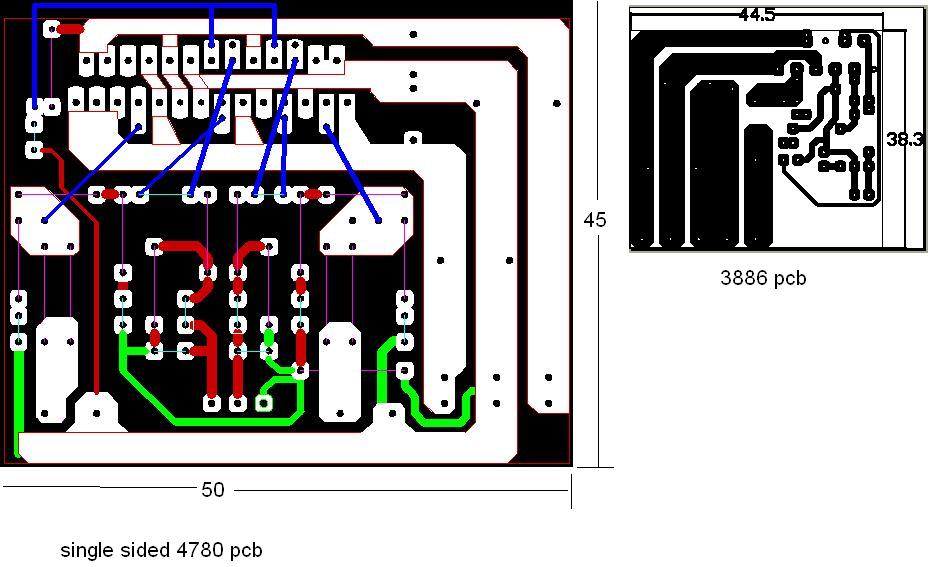

i have made 5 + 5 pcbs for my 4780 and 3886, made by laser toner transfer method. all are working excellent. If u wish i can mail u the pcb layout in pdf format so u can urself see. and i'll be charging Rs 200 for 4780 and Rs 100 for 3886 each PCB in case u are interested to buy it.
i have made 5 + 5 pcbs for my 4780 and 3886, made by laser toner transfer method. all are working excellent. If u wish i can mail u the pcb layout in pdf format so u can urself see. and i'll be charging Rs 200 for 4780 and Rs 100 for 3886 each PCB in case u are interested to buy it.
LM3886 & LM4780 in india
visit http://www.diyaudio.com/forums/showthread.php?s=&threadid=99176
I have made a couple of LM4780 and LM3886 PCBs by normal laser toner transfer method (at home) and i offer them for sale in india.
http://www.geocities.com/cool_mechi/lm4780.htm
and
http://www.geocities.com/cool_mechi/lm3886.htm
I will charge 350 Rs per LM4780 PCb and 250 Rs per LM3886 PCB.
Since PCB are home made, it will be in very native form (i.e only PCB with copper tracks, no component layout, numbering etc).
Interested persons may contact me.
visit http://www.diyaudio.com/forums/showthread.php?s=&threadid=99176
I have made a couple of LM4780 and LM3886 PCBs by normal laser toner transfer method (at home) and i offer them for sale in india.
http://www.geocities.com/cool_mechi/lm4780.htm
and
http://www.geocities.com/cool_mechi/lm3886.htm
I will charge 350 Rs per LM4780 PCb and 250 Rs per LM3886 PCB.
Since PCB are home made, it will be in very native form (i.e only PCB with copper tracks, no component layout, numbering etc).
Interested persons may contact me.
Attachments
LM3886 PCB for sale.

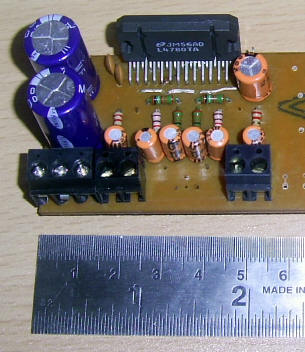

I am also willing to fabricate and sell LM3886 PCB in small numbers. The PCB will be glass epoxy type, Home made using toner transfer method .I have constructed a couple of amps using this design and it sounds exceptionally clean, no hum etc.
.The design is 100% star ground based. PCB size is roughly 85mm x 60mm .Shall Take a few photos and post when i get time. I will be charging 350 per PCB. If interested contact me at i_am_007@rediffmail.com
I am also willing to fabricate and sell LM3886 PCB in small numbers. The PCB will be glass epoxy type, Home made using toner transfer method .I have constructed a couple of amps using this design and it sounds exceptionally clean, no hum etc.
.The design is 100% star ground based. PCB size is roughly 85mm x 60mm .Shall Take a few photos and post when i get time. I will be charging 350 per PCB. If interested contact me at i_am_007@rediffmail.comvikas456 said:
Can you give some information about where do I get it for Rs.40.
Sometime back Suraj from OM electronics told me that they are making it, is the one you are referring to.
Oh Man,
It would have saved me lot of pain and many many hours if knew it was available at 40 Rs earlier.Is it still available?😕
Thanks,
Gitesh
It would have saved me lot of pain and many many hours if knew it was available at 40 Rs earlier.Is it still available?😕
Thanks,
Gitesh
Yes, its OM electronics, SP Road Bangalore, Guy at the counter told me that he was suppose to get consignment by first week of May,... but I am worried about the quality of the product and hence thought of buying PCB from one of you.
oh okay, actually for reason unknown it is kept on getting delayed. I spoke to him 2 months back and when I checked last week, it was not ready.
If someone in Bangalore interested, we can get it done new compact design and fabrication. Its not very expensive. I am planning to do it but somehow time has been a factor.
I last week made subwoofer using chipamp and I am so encouraged with results that I plan to built few more amps.
If someone in Bangalore interested, we can get it done new compact design and fabrication. Its not very expensive. I am planning to do it but somehow time has been a factor.
I last week made subwoofer using chipamp and I am so encouraged with results that I plan to built few more amps.
PCB fabricators in Bangalore
Thought i shall post some details of PCB fabricators in Bangalore.
1) Prototech: 7 days delivery , 3 PCB min Accepts gerbers via mail. Phone no:08023570296
2) P.C process: 10 days delivery ,Accepts gerbers via mail. Phone no:08028362596
Both the above companies are trust worthy, have done many PCB's with them. Call them and ask them to mail you the standard pricing.
Hope this info will be useful.
Thanks.
Thought i shall post some details of PCB fabricators in Bangalore.
1) Prototech: 7 days delivery , 3 PCB min Accepts gerbers via mail. Phone no:08023570296
2) P.C process: 10 days delivery ,Accepts gerbers via mail. Phone no:08028362596
Both the above companies are trust worthy, have done many PCB's with them. Call them and ask them to mail you the standard pricing.
Hope this info will be useful.
Thanks.
