Have you checked if PC USB Oscilloscopes, Spectrum Analyzers, Signal Generators, Audio and Acoustic Analyzers, Data Acquistion | Virtins Technology offers something that meets your requirement
VT DSO-2A20E: PC based USB 10~16Bit 200MSPS 80MHz Oscilloscope, Spectrum Analyzer, 12-bit 200MSPS 60MHz AWG Signal Generator | Virtins Technology
Also their software suit appears good. There is a demo version as well.

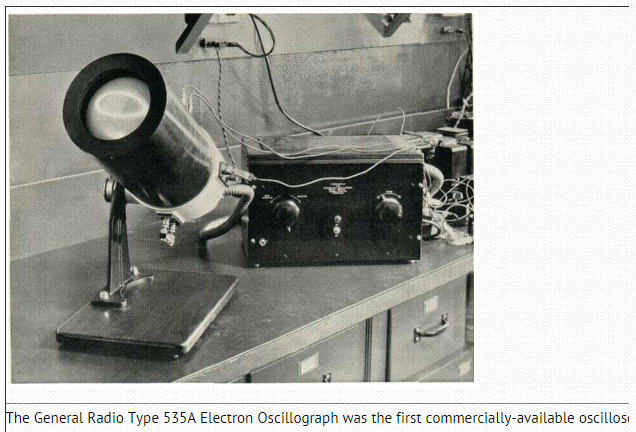

What century was it made in? 😀 I haven't seen a piece of test equipment that couldn't handle automated testing in more than 20 years. If it's newer it'll have a USB or ethernet port, and if it's older it'll have GPIB. Either way, you can integrate it (and all your other gear) into an automated testing system.
When I do this professionally I usually use modern equipment, at home I have a 3 century old Tek 7704 scope, so no it does not have GPIB. My HP function generator, LDO, do not have it, and my meters do not have it.
Centuries in tech cycles but 3 decades in earth cycles. Still the fastest way to troubleshoot most problems. I use a 7854 that has a digitizer. Otherwise very similar. More flexibilty than any new scope with its plugins.
Sent from my LG-H811 using Tapatalk
Sent from my LG-H811 using Tapatalk
Thanks jcx,
I watched the review, looks pretty good.
He got about .1% distortion in loop back at 1 MHz but he was not careful
to use all the bits.
The FR from the waveform gen looped back was plus about .1 dB at 100KHz
and -3dB at 10MHz. Don't like the bump but at least it is 5X 20 KHz.
Attachments
I think the analog discovery stuff looks really interesting. The non-standard interface and adapter stuff makes it less useful as an everyday tool. But being able to do Bode plots is quite valuable. Lots cheaper than an Omicron Bode 100. https://www.omicron-lab.com/bode-100/product-description.html
They offer a dual BNC in and out adapter for $20.
The main issue is that there is only high and low gain in hardware,
but that is something one could DIY.
The rated 5 MHz bandwidth is at .1dB and there is a youtube video
showing a measured -3dB input bandwidth of just over 30 MHz.
There are not many samples at that frequency so the scope image
is not very good but 30 is impressive at this price point.
The main issue is that there is only high and low gain in hardware,
but that is something one could DIY.
The rated 5 MHz bandwidth is at .1dB and there is a youtube video
showing a measured -3dB input bandwidth of just over 30 MHz.
There are not many samples at that frequency so the scope image
is not very good but 30 is impressive at this price point.
