Pass D1 I/V Stage PCB

[zei]

Hi.

All PCB,s are spoken for already, However if someone don,t want there PCB,s it is your of course.

I,ll keep you updated.

/JZ



[DVBjunky]

Hi,

i have one question:

As I recall the Pass I/V Stage was made to work with the specific TI/BB DAC in the PASS DAC.

Did we have to adjust the PASS I/V Stage for other DAC Chips like PCM 1704/1794/1798 and others?

They have all different Output Signal values....or so...excuse my poor english.

regards

Alan


Addition: I found this thread which has a similar topic: http://www.diyaudio.com/forums/showthread.php?threadid=129097



[hansherbert]

Please two for me

Hi zei,

i missed this thread! If You have 2 boards left I would like to buy them. Best regards Thomas



[DVBjunky]

Hi,
is there a BOM list (Bill of materials aka Parts list) available for your Version of the D1 IV Stage?

Can post your parts list here?

Thanks and regards

Alan



[zei]

Shure can do 🙂

Here ya go 🙂

BTW, PCB are on there way to me now. 😎

/JZ



[DVBjunky]

D1 PSU Schematics

Hello,

I found on my Harddisc these schematics for the D1 PSU - but I am not able to say who the original poster was. So, they are not mine....just as idea for a PSU PCB.

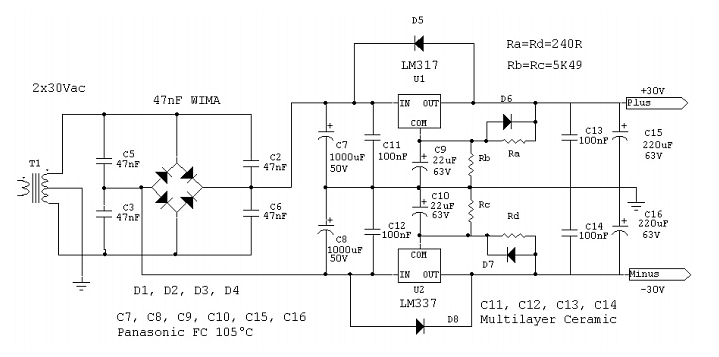

D1 PSU Schematics as JPEG:



[DVBjunky]

D1 PSU Part list / BOM

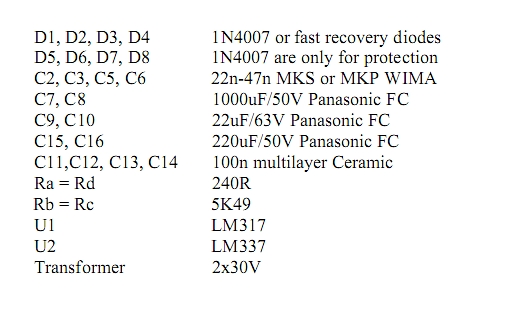

And here the D1 PSU parts list as JPEG:



[DVBjunky]

Here some suggestions for the parts from ZEI´s BOM List for the D1 IV Stage PCB:

C1, C1A, C1B, C2 = Wima MKP
C2A, C2B = Silver MICA
C3A, C3B = MKP-QS Audyn Cap
C4, C4A, C4B = Panasonic FC

or you take the Parts suggested in his EAGLE BOM.

regards

Alan



[zei]

Thanx for the PSU scematic.

That is something similar that i,m going to use to start with. 🙂

As i wrote earlier in this thread, (it think) when i made the layout i was thinking of using output caps "offboard"

I have got some nice russian Paper in oil caps i,m going to use. 🙂


The PCB,s should arrive to me any day now 🙂


/JZ



[DVBjunky]

Oh, I forgot your comment about the Off-board Caps 🙂 But good to know that a PSU Board is also on your "to-Do-List".

regards

Alan



[AR2]

I am interested in two boards please if you still have some available.

Thanks



[zei]

They are here!
😎

They look pretty good i think.

Some pics to show the size..

An externally hosted image should be here but it was not working when we last tested it.

One more..

An externally hosted image should be here but it was not working when we last tested it.

/JZ



[DVBjunky]

Nice work! Pretty! 🙂



[Joschl]

Great, this will fit in the old Sony 228 ESD. I'm just working on a small PS and searching for a transformer. Maybe I have to renew the whole PS of the 228.
Do you have a final price for the boards?

Best regards
Josch



[Yunick]

Lovely work as always Zei 🙂


I'm looking forward to get started on this project.



[Pars]

I would be interested in one of these as well.

Chris



[hc167]

I would like to have one broad too. Is it too late for me to join now?



[zei]

Gentlemen.

All boards are spoken for already. I,ll however put you on the "waiting list". 🙂

I,ll keep you informed on the progress.

/JZ



[steenoe]

Small, cute, and working

😎



[Zen Mod]

Small, cute, and working

😎

so - you can tell me exact current draw ( so there is no need that I bangmy head about that ........... I'm sorta obliged to draw symmetric Shiny for one DiyA 😉 )

please 😉

?
