Parafeed L & C calculations wrt Z?

Status
Not open for further replies.
Jump to Latest
#21

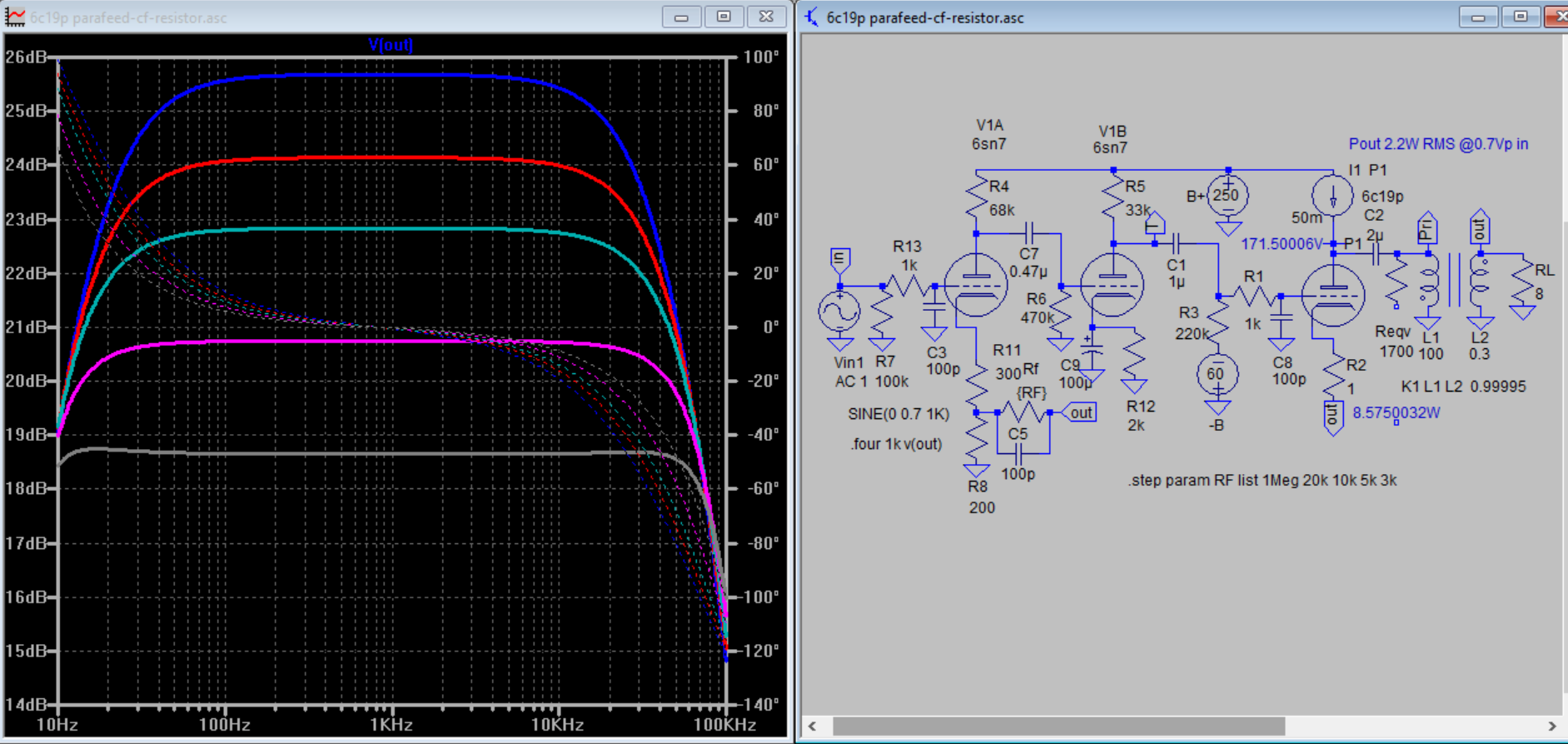

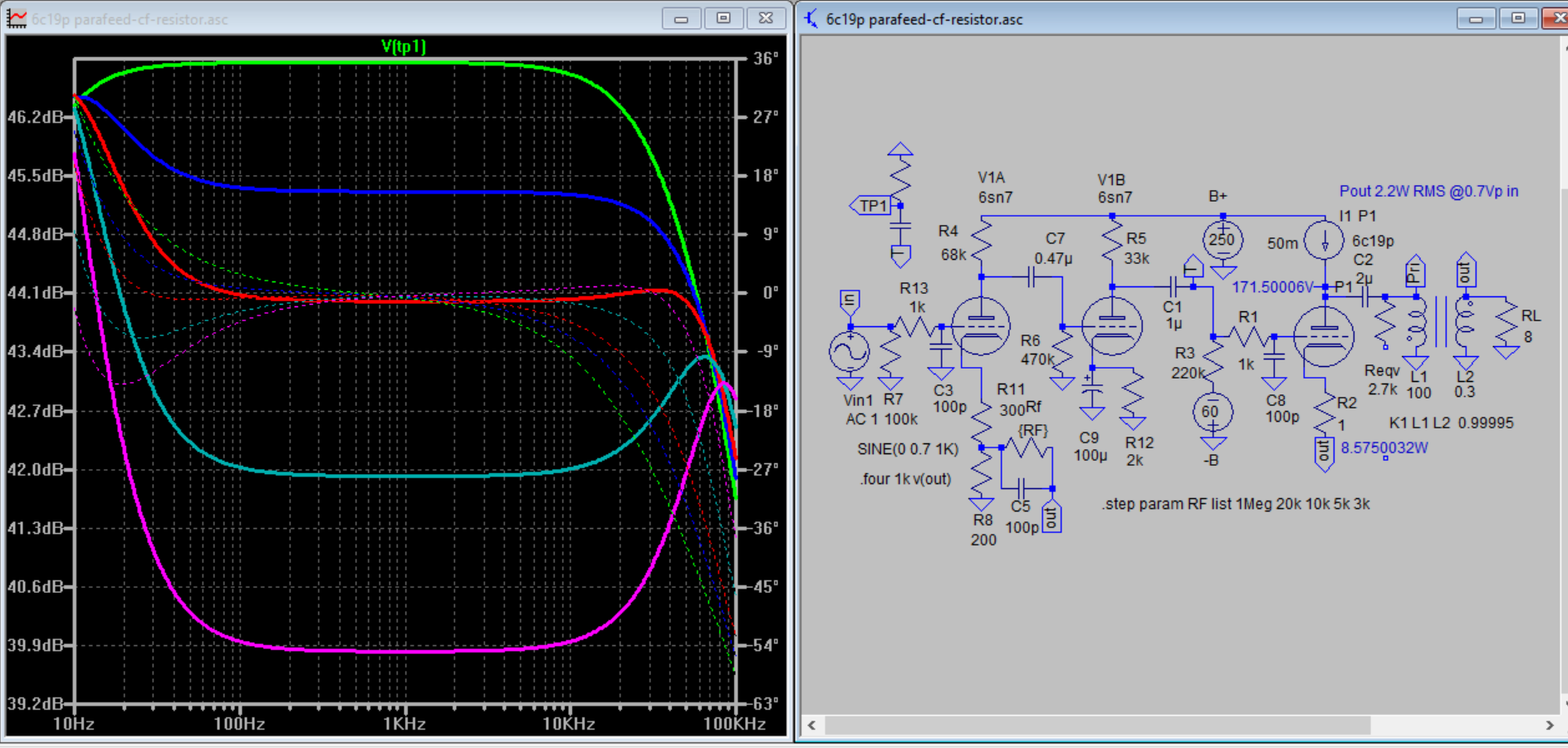

This sim shows the effect of gNFB to coupling cap. gNFB increases the gain of bottom end or flatten the bandwidth and thus reduced the size of coupling cap of RC constant, I think. Damping factor is increased.


Attachments

  • Parafeed cap calculation-2.png
    Parafeed cap calculation-2.png
    247 KB · Views: 135
  • Parafeed cap calculation-3.png
    Parafeed cap calculation-3.png
    299.4 KB · Views: 139
