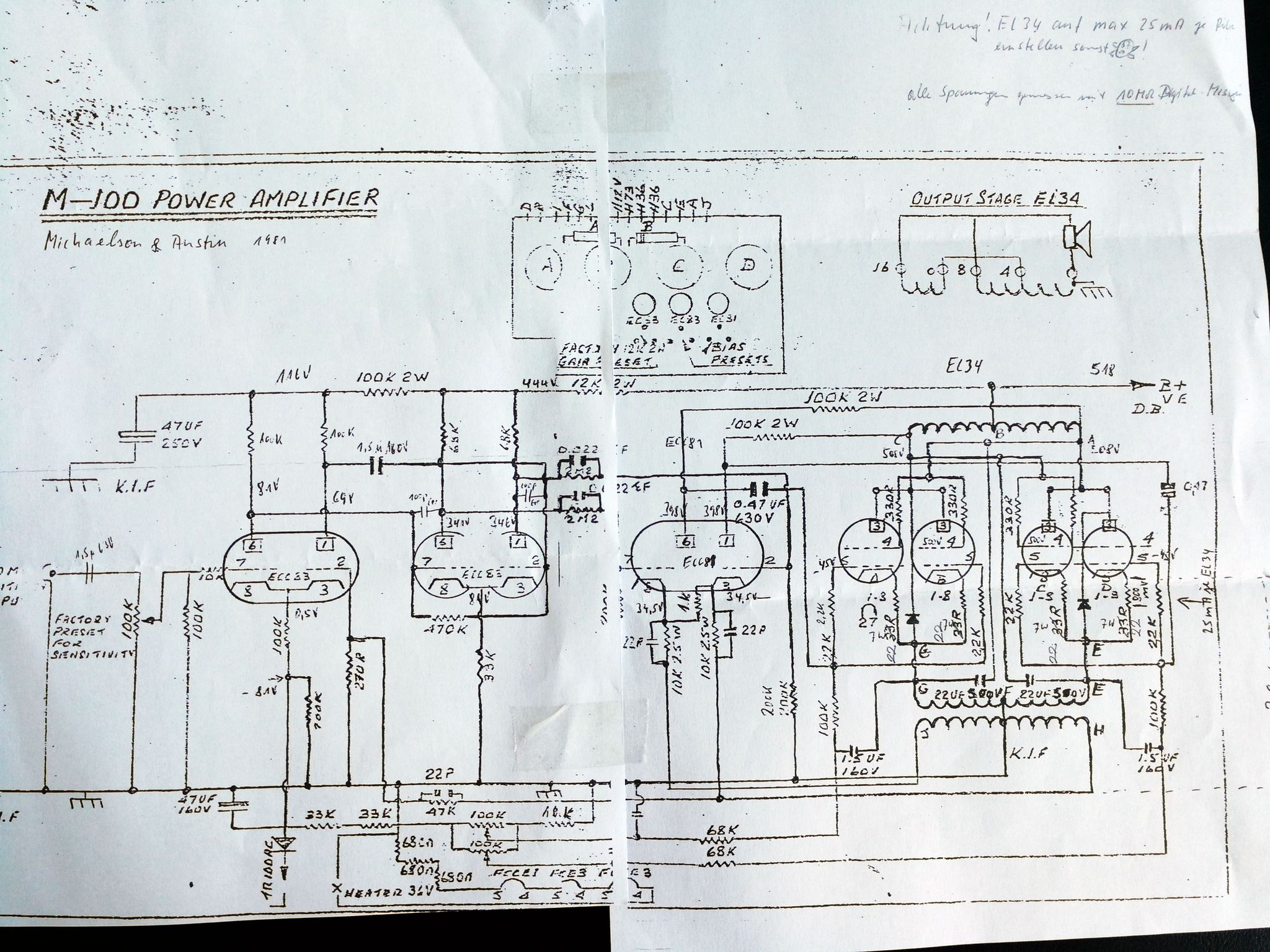

Papworth (Mentmore / M&A) M200 bias setting / schematic

[RM]

Hard to say without seeing PC pattern, but is diode nr 2 from fuse holder correct oriented?

R



[as_audio]

Enlighten us which picture or schematic you refer to ..



[RM]

How many picture(s) can you see?

R



[as_audio]

Again, assuming you are not drunk, if you mention a "diode nr 2 from fuse holder"
which picture or schematic do you refer to ?

To answer your question, I do not see any picture.



[RM]

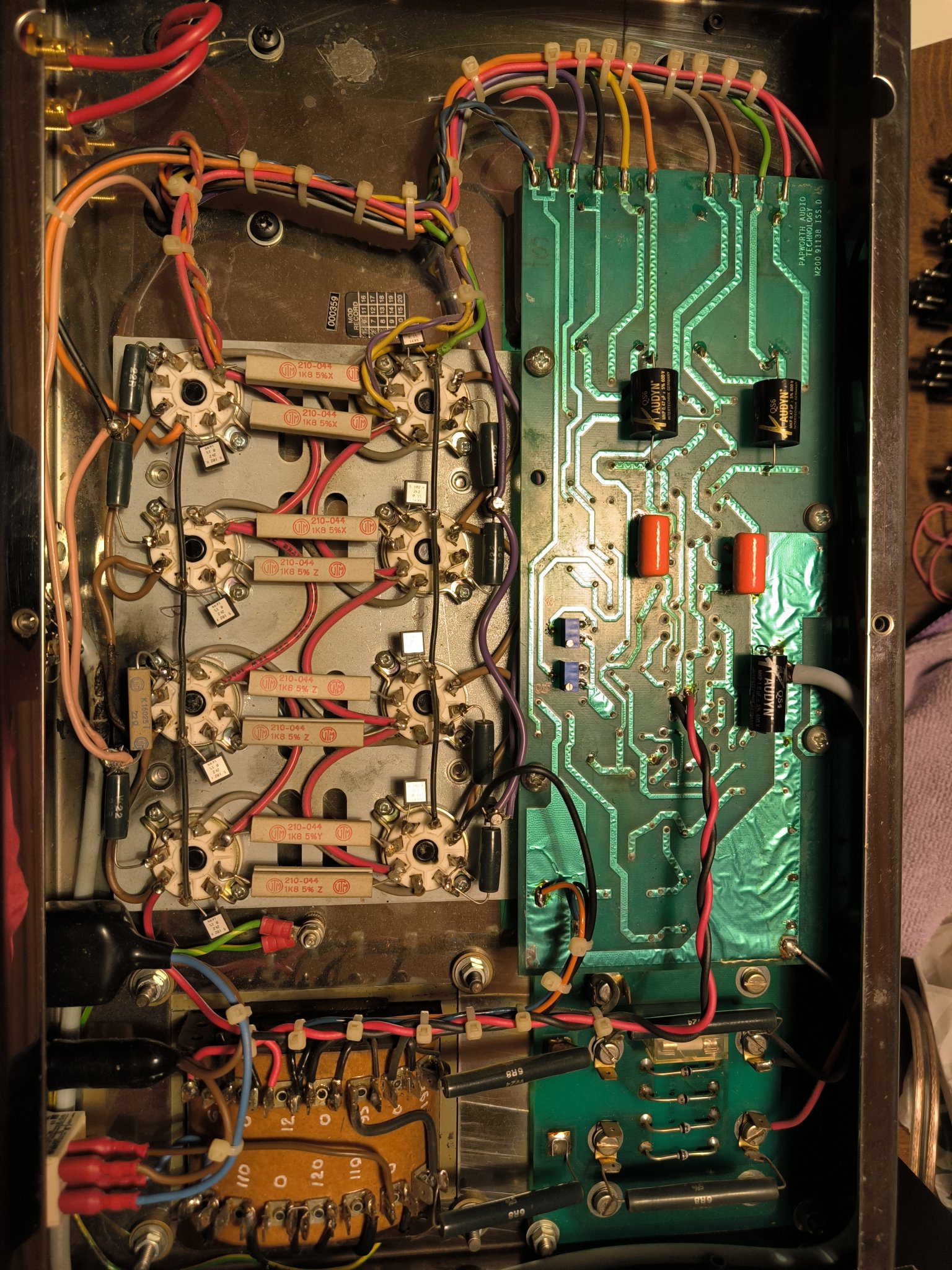

There’s only one picture in this thread. The fuseholder can be quite clearly seen. Nr two diode FROM the fuseholder is also quite easy to spot. However, after blowing up this portion of the picture I can see that both the two diodes close to said fuseholder are oriented same direction.

Thus making my question moot.

Attached copy of post 11, the picture, and blown up copy of mentioned parts.

Maybe you can see the picture now.

R



[as_audio]

There is also a picture in post 20. Although originally made in a sheltered
workshop I think they are able to build a supply with bridge rectifier.
