Sorry for a silly question but I really don’t have glue how to set up an output transformer in SIMetrix Spice simulation.
Has anybody simulated tube circuits or other circuits with OPT s with SIMetrix?
Please, please help the 😕 dumbuser out!
Argo
Has anybody simulated tube circuits or other circuits with OPT s with SIMetrix?
Please, please help the 😕 dumbuser out!
Argo
I actually have no idea how to use simulators like SPICE, but why not try a simple equivalent circuit of the primary inductance in parallel with the load?
Googled around on the topic some more but still confused.
There must not be so much difference with SIMetrix and other Spice simulators when defining a transformer?
This is what it looks in SIMetrics when transformer parameters should be entered in:

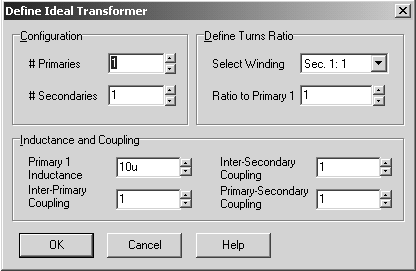

an ideal transformer:
My big Q is what and where to enter. Whatever I try it seems like the primary just acts as bare conductor and secondary as short or huge resistance (output only couple of uV) at best.
Argo
There must not be so much difference with SIMetrix and other Spice simulators when defining a transformer?

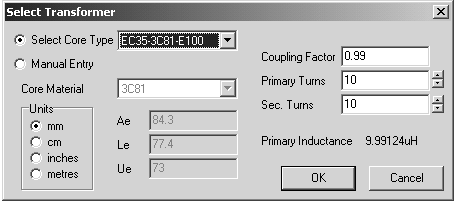

This is what it looks in SIMetrics when transformer parameters should be entered in:
an ideal transformer:
My big Q is what and where to enter. Whatever I try it seems like the primary just acts as bare conductor and secondary as short or huge resistance (output only couple of uV) at best.
Argo
