NP F1 Clone Boards

[suds]

Hi Pass.

I have clone PCB for F1 ready, (vertical mount MOSFET)

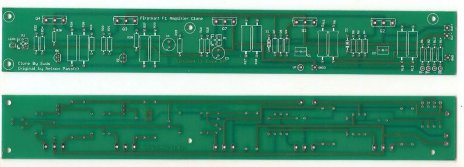

I am posting PCB pictures for your kind approval for GB.

Set of Stereo PCB would be priced at $24 pet set plus shipping.

I will donate $1 for each set to DIY.

PCB FR4 - 1.6MM 60 MICRONS COPPER
Dimension: 30L cms X 4W cms

Regards
suds



[Guiness]

Suds,

You have to turn your email on......



[suds]

Yep .. did it.. !

Costing as follows:

1 Stereo Set F1 Clone PCB : $24 USD

Individual PCB's : $ 9 USD each

Shipping charges $27 Onwards depending on weight and destination.

( $1 from each order goes to forum)

my e-mail sudhirmt@gmail.com


Regards
suds



[cfcubed]

Just wanted to say I used suds' previous ver of F1 + PS boards & they worked perfectly & were of nice quality (inc silkscreen)... W/shipping costs to US ordering > 1 set makes more sense.

Very nice that he took steps to satisfy IP reqs & bring these out.

BTW, I've tried quite a few amps now w/my HSHs (w/FE126Es) & nothing has beat the F1 design with them (w/tube pre).



[MrMajestic]

I'm in for a set 🙂



[tgrauss]

Hello,

You are saying that it is 24 USD for a set of F1 stereo PCBs.
Is the 9 USD individual board the PSU ?

I am interrested for 3 stereo sets of F1 and 3 PSU boards if possible. This is for my homecinema amps I am building to accompany my future homecinema UGS.

Thank you in advance.

Regards



[suds]

You are saying that it is 24 USD for a set of F1 stereo PCBs. Is the 9 USD individual board the PSU ?

F1 Stereo Board set consists - set of Two F1 Amp boards and One PS Board for $24 USD , plus shipping.

Pricing each Set F1 - $24USD
2 Set - @24 X 2 - $48USD


Eg: Shipping charges :
Upto 2 Sets - $28
3 - 4 Sets - $29
5 - 6 Sets - $30

Who wants single boards (any of Amp or PS) $9USD each
Single Board Shipping - $25 upto two boards.


Pricing for 3 F1 Sets and Shipping:

F1 Sets 3 X $24 - $72 USD
Shpping Sets: $29
Total: -----------
$101 USD
Payment - Paypal



[MrMajestic]

Do you have any photos of the psu and perhaps a completed amp as well?



[suds]

Hi,

The prototype of same PCB was assembled and tested.

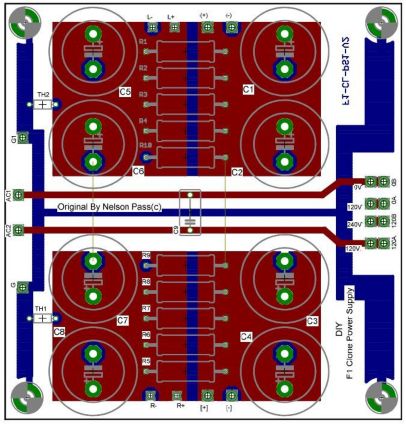

Here is image of PS Clone PCB.



[woody]

Why is the shipping so high?



[suds]

Revised Shipping EMS

Shipping prices are weight based, slab rates EMS Speed post,
(also depend on USD conversion rates.)

Upto 500Grams, its $23, above 500grams, upto 750 its $28 one PCB packing comes to 700grams with double cover and air bubble cover packing, wit foam board.
EMS Post with tracking, reach in 10 to 12 working days

I can also send through Registered post, where cost will be less by 50% but it will take around 20working days, no tracking

I spoke to courier guys, here is revised pricing.

REVISED SHIPPING EMS Speed Post:
With tracking- reach in 10 - 12 days

F1 PCB - 1 Set or individual PCB upto 2 Nos : $ 23 USD
2 to 3 Sets $25 USD
4 to 5 Sets $26 USD
5 to 7 sets $28 USD

Registered post Cost:
reach in 20 - 25 Days, cannot be tracked.

individual PCB upto 2 Nos : $ 23 USD
F1 PCB Set :
1 - 3 Sets - $12 USD
4 - 5 Sets- $18 USD

I will get PCB's tomorrow, I can ship payed orders in 3 to 4 days.
do mail me with Shipping address, for total pricing, and paypal details.



[suds]

Wiki Page

Here is Wiki Page for this GB


http://www.diyaudio.com/wiki/index.php?action=save&page=F1CloneGB



[suds]

wiki page

Sorry..!

this is the page.


http://www.diyaudio.com/wiki/index.php?page=F1CloneGB



[suds]

F1 Clone GB

Guiness , and MrMajestic ! did not hear from you guys !!

F1's I have assembled proto and checked myself.

I checked with Mr Pass regarding F1 Clone boards . he is ok with Boards ! No IP Isses.


will scan proto board and post them by next Wednesday.



[MrMajestic]

Re: F1 Clone GB

Guiness , and MrMajestic ! did not hear from you guys !!

F1's I have assembled proto and checked myself.

I checked with Mr Pass regarding F1 Clone boards . he is ok with Boards ! No IP Isses.


will scan proto board and post them by next Wednesday.

Oops, must have added myself by mistake. Sorry about that.



[suds]

There was typo error , corrected them

SHIPPING EMS Speed Post:
With tracking- reach in 10 - 12 days

F1 PCB - 1 Set or individual PCB upto 2 Nos : $ 23 USD
2 to 3 Sets $25 USD
4 to 5 Sets $26 USD
6 to 7 sets $28 USD

Registered post Cost:
Reach in 20 - 25 Days, cannot be tracked.
F1 PCB Set :
1 - 2 Sets - $10 USD
3 - 4 Sets- $12 USD
5 - 6 Sets - $15 USD


PCB Set for confirmed orders has been shipped.

Thanks



[suds]

I am making F1 and F3 clone Stereo Boards, instead of using same PCB for both, there will be individual mirrored boards.

will take few days to complete. ! 🙂

PCB Spec: FR-4 , 1.5mm board, PTH, with 75micron Copper.
With bigger for all components, bigger resistor foot prints.

Any one is interested in Lead (Pb) Free Silver Plated PCB ?



[suds]

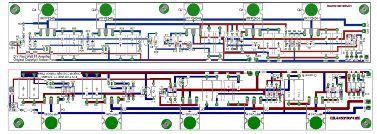

Image of Layouts of F1 Stereo Amps.



[SoundsGreat]

Hi,

Suds Am from Bangalore as well 😉 ! Am interested in some stuff !

What else apart from these you have ??? do you have any LM3886 or such one's ??? also is there possibility of me meeting you personally and discussing things ??

Let me know ! Alternatively you can also mail me here handsome1.blr@gmail.com

Looking forward to hearing from you !!

Regards.



[suds]

Sure...

I am working on F3 and F5, and I do make custom boards as per requirements.
