noble stereo pot

[mantisory]

Hi all,
I am just wondering if anyone has a pin diagram for this Noble 50K 30 stepped stereo attenuator? I suppose I could hook it up to a meter...

Thanks
Mantisory



[cfitzger]

Not sure if this is yours exactly but might help..

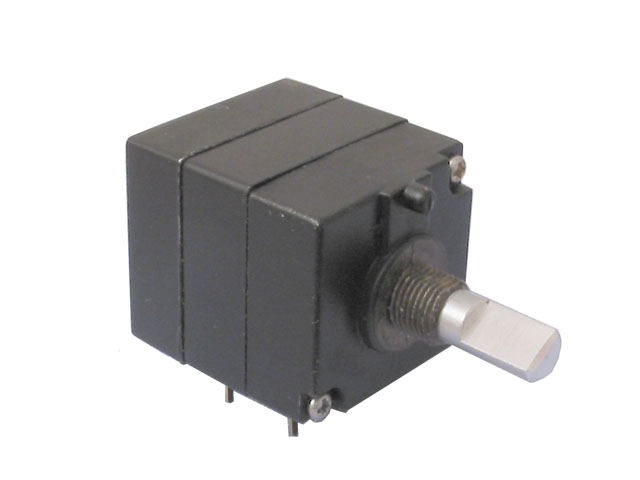

NOBLE



[mantisory]

no, that one's quite a bit different...although the pin configuration may be the same...
thanks!



[dqswim]

If you have the attenuator I would just hook it up to a meter, much easier that finding the pinout and you know you dont have to fool with orientation. I just did it recently for the noble 25k pot.



[mantisory]

yeah, i kinda thought that'd probably be the easiest - just got my MM yesterday!
🙂
thanks
Mantisory



[motherone]

I have a few of these, too... Did you find them from that seller on Ebay? Anyhow, they have the same pinout as the Alps pots. However, there is an additional pin that is next to the 3 pins in the center for a loudness tap on mine, which I just cut off.

Mike
