Muses 72323 Buffer Board

[Nikon1975]

Dear All,

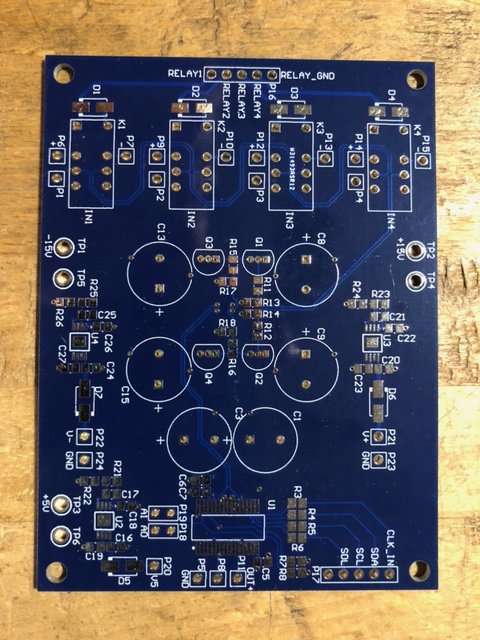

I produced few Muses72323 Input selector Buffer and volume control boards for my pre-ampifier. The board has four inputs, a DCB1 buffer and the Muses72323 volume control. One board has two channels. Low noise regulators on board.

I have an Arduino code to control the Chip.

Note: The boards have two little mistakes that can be easily fix when assembling them.

THIS IS NOT A BEGINNER PROJECT.

Price per board is 20 euros plus shipment. I have 8 leftover board.



[Berny]

Nice project, but please explain... why the buffer to drive the Muses and not to buffer the Muses output, which is far more important for this kind of attenuators I believe?



[Nikon1975]

The buffer is in front of the volume control because in my preamp there is a gain stage after the volume control. I wanted the input impedance of the pre to be as high as possible and the output to be as low as possible.

D.



[Algar_emi]

Hi. Interested in one PCB, send me an email. Thanks
SB



[Nikon1975]

Hi. Interested in one PCB, send me an email. Thanks
SB

I am travelling now. I will reply to everyone after 7/1.

Happy New Year,

D



[Nikon1975]

Added the full BOM with Mouser codes in post 1.


D.



[Real_Macgyver]

Any boards left for sale?



[Nikon1975]

Yes, I can ship it next week.

D



[Real_Macgyver]

It has been a while since I have been here. How is the payment done?



[Nikon1975]

It has been a while since I have been here. How is the payment done?

Paypal



[Real_Macgyver]

I sent a message to you.



[Nikon1975]

Bump



[MagnusT]

What are the best libraries or examples to check out to write code to control the 72323?



[Nikon1975]

I can send you my libraries for Arduino. Not sure they are the best, but they work.

D



[bmdduck]

Do you have any boards left for sale ?



[MagnusT]

I can send you my libraries for Arduino. Not sure they are the best, but they work.

That would be very nice! You haven't put them on github?



[Nikon1975]

There are no more boards available, but I left the Arduino code in the first post, if you need to make your own.

Regards,

D.



[Nick Sukhov]

my 72323 control both with Arduino and ESP32 https://www.patreon.com/posts/2-varianta-nano-85783422
