Hi all,
This is my first post on this forum so hopefully I'm posting in the right place.
I recently bought a Muse M20 TA-2020 class-T amplifier board from Aliexpress (not sure if it's genuine) that I want to fit into a classic radio casing. For this, I needed to 'move' the on-board volume-control potentiometer from the amp itself to the radio casing.
I finally succeeded in desoldering the on-board potentiometer so I'm now looking for the best way to reconnect the pot again, at a small distance from the amp. Of course I could just connect 7 wires from the holes on the board to the corresponding pins, but I'm a newbie in soldering and can't imagine that all 7 pins are needed for just the single volume control. Also, I would just like to know what all pins are for. 🙂
Does anyone know the pinout or specifications of the on-board 7 pin pot? All tips are welcome.

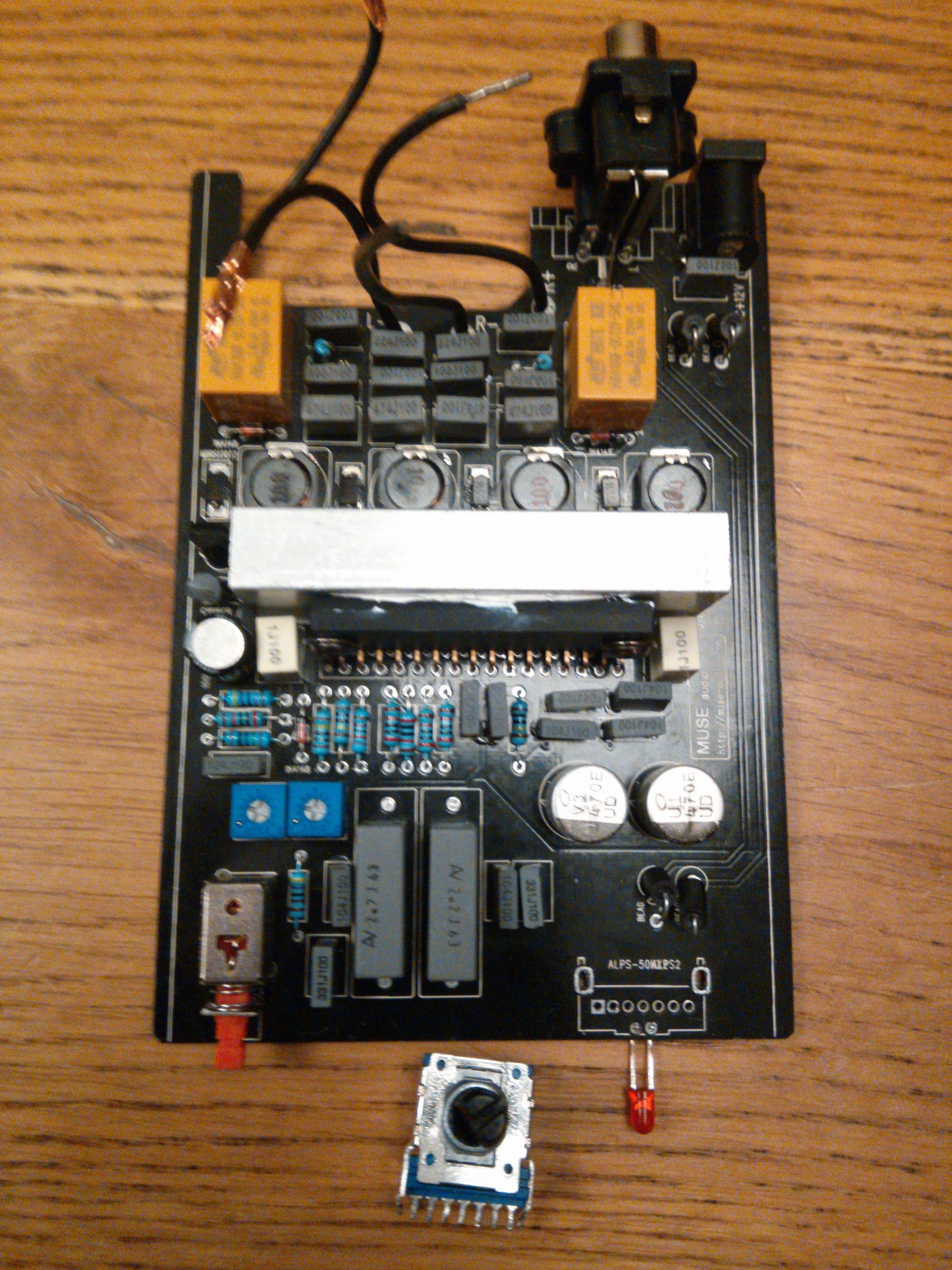

See attached picture, the 7 pins are on the bottom-right.
Thanks in advance!
This is my first post on this forum so hopefully I'm posting in the right place.
I recently bought a Muse M20 TA-2020 class-T amplifier board from Aliexpress (not sure if it's genuine) that I want to fit into a classic radio casing. For this, I needed to 'move' the on-board volume-control potentiometer from the amp itself to the radio casing.
I finally succeeded in desoldering the on-board potentiometer so I'm now looking for the best way to reconnect the pot again, at a small distance from the amp. Of course I could just connect 7 wires from the holes on the board to the corresponding pins, but I'm a newbie in soldering and can't imagine that all 7 pins are needed for just the single volume control. Also, I would just like to know what all pins are for. 🙂
Does anyone know the pinout or specifications of the on-board 7 pin pot? All tips are welcome.
See attached picture, the 7 pins are on the bottom-right.
Thanks in advance!
Attachments
Congrats OR condolences Hopefully you only paid a V few $$.
Without question of a Doubt virtually EVERY part on that is Fake. Run it for a few days To see whether it will 'expire' all on it's own.. (these usually do)
Before going to the trouble of fitting it into something of Value.
AS for removing without making notes or a diagram before hand ...Geez!
Best alternate is to google up the Tripath ta 2020 Datasheet circuit and try to see how much or how little the thing differs.
Without question of a Doubt virtually EVERY part on that is Fake. Run it for a few days To see whether it will 'expire' all on it's own.. (these usually do)
Before going to the trouble of fitting it into something of Value.
AS for removing without making notes or a diagram before hand ...Geez!
Best alternate is to google up the Tripath ta 2020 Datasheet circuit and try to see how much or how little the thing differs.
