MTX THUNDER 6304

[bene13]

Pin 1: 4.8
Pin 2: 4.8
Pin 3: 11.60
Pin 4: 5.0
Pin 5: 6.95
Pin 6: 3.6
Pin 7: 5,0
Pin 8: 0.85
Pin 9: 3.4
Pin 10: 4.8
Pin 11: 3.4
Pin 12: 0
Pin 13 :4.9
Pin 14: 4.8



[bene13]

IS IT DIFFICULT TO HAVE THE SCHEMATIC OF THIS MTX 6304?



[Perry Babin]

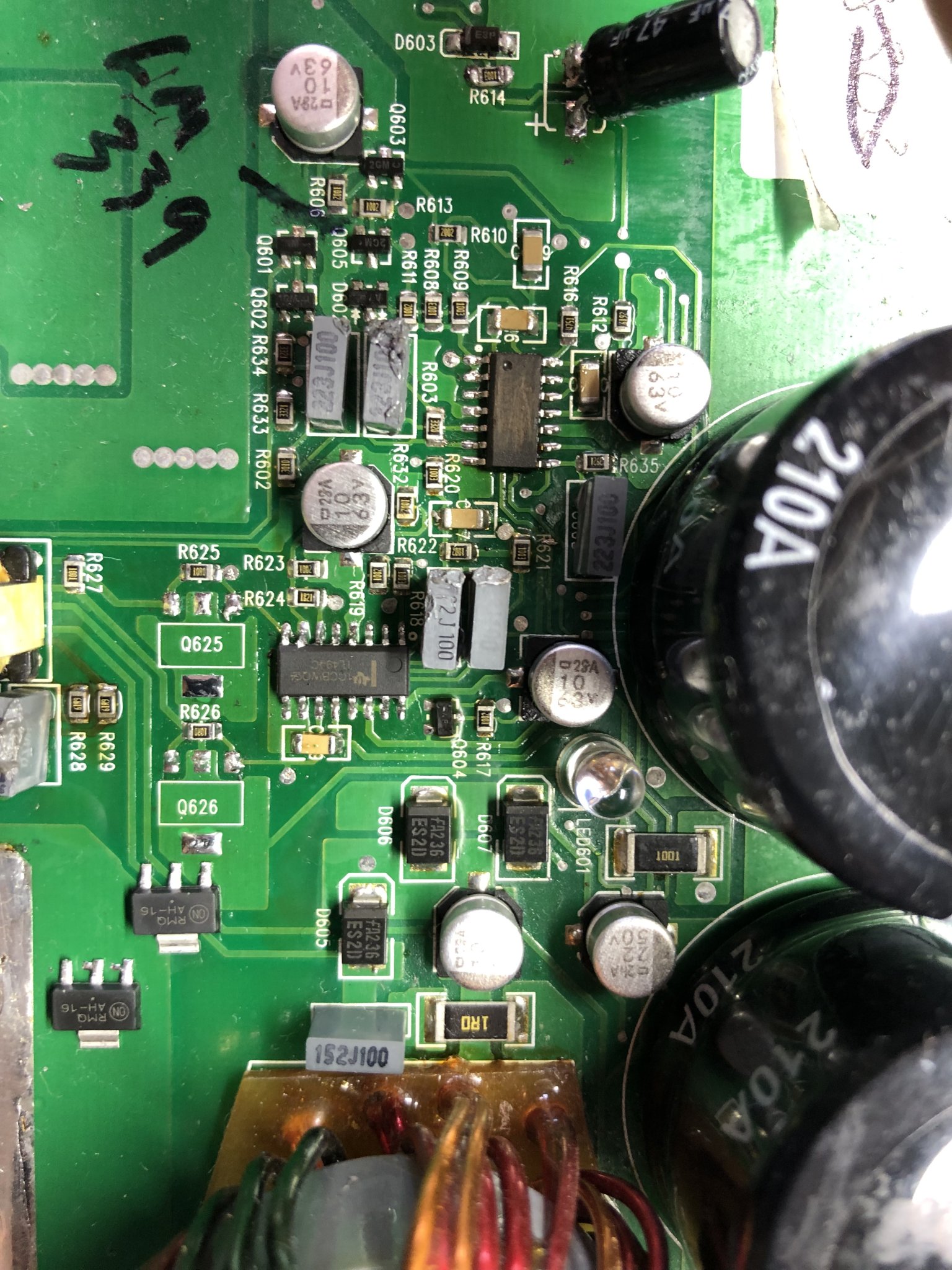

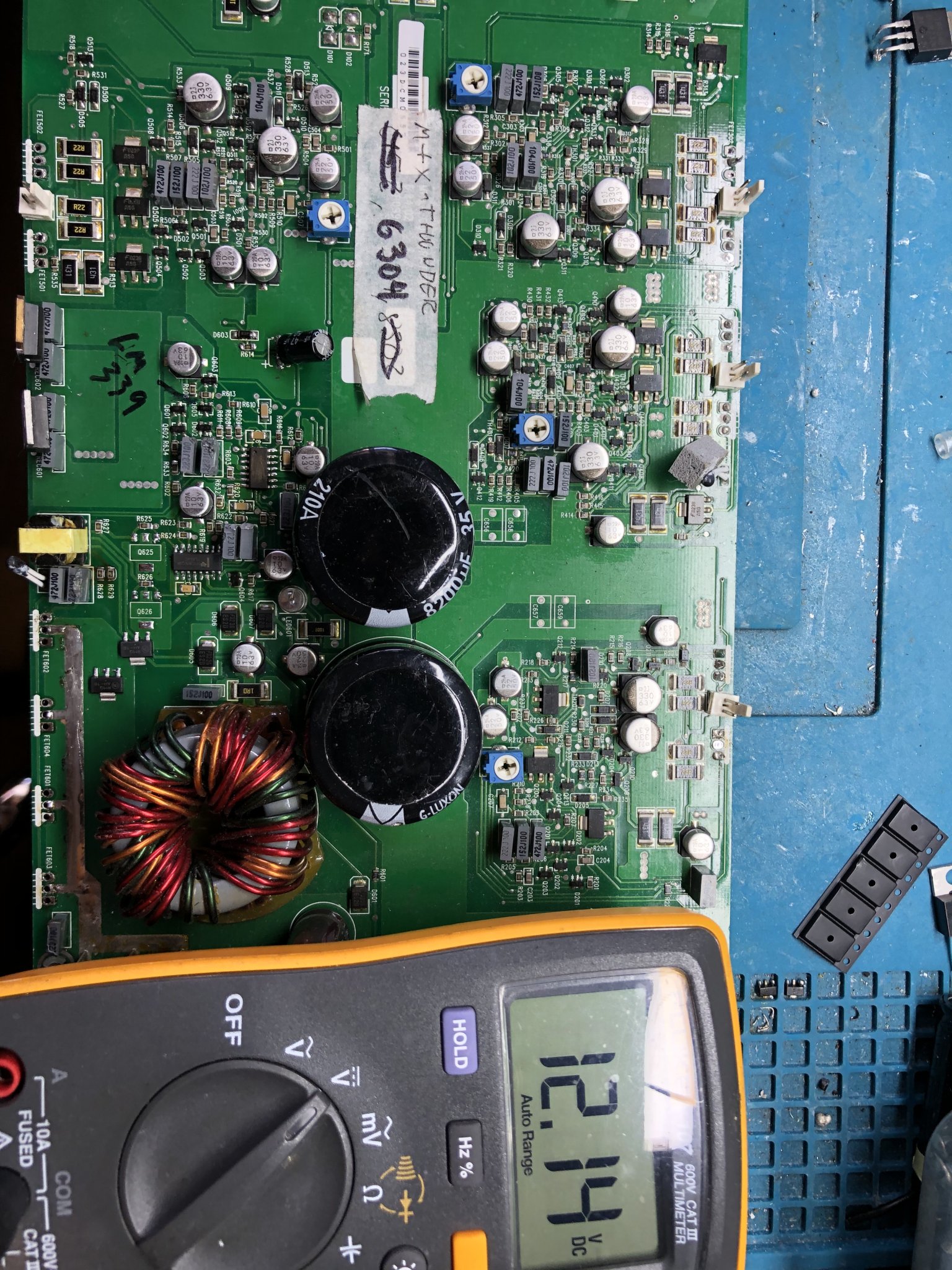

I don't have a diagram for it. That's why I needed photos. The attached seems to be similar.

Is this with the 339 in the circuit?



[bene13]

OK THANKS PERRY, I STILL HAVE 1 MORE THUNDER TO FIX MTX4001D, 4000W ALSO BURNED I WILL KEEP IT UNTIL SOMEONE WITH A DIAGRAM COMES UP, I SAW THAT IN THE VIDEOS barevids, HE HAS THE DIAGRAM FOR THIS 4000W, OK
