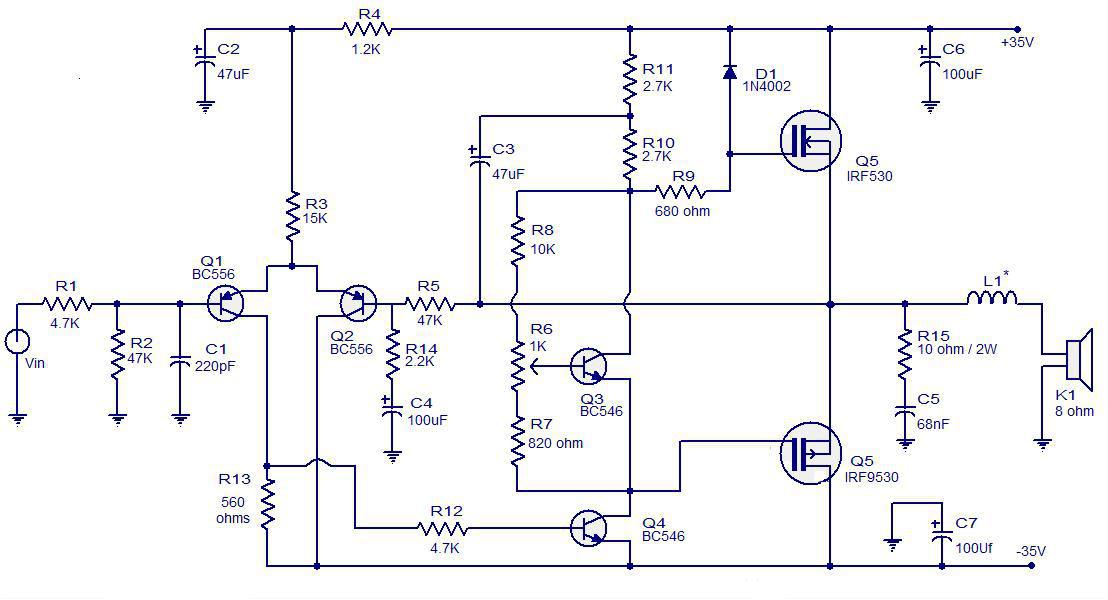

N NWS Member Joined 2016 2017-11-27 4:16 am #1 2017-11-27 4:16 am #1 Hi all I like to make this Amplifier what is your opinion about this schematic? Attachments photo_2017-11-27_07-46-05.jpg 72 KB · Views: 372 2 picoDumbs Member Joined 2013 2017-11-27 4:32 am #2 2017-11-27 4:32 am #2 Looks ok. Check out Papa's BA2, I would choose that one. Attachments art_ba2.pdf art_ba2.pdf 368.8 KB · Views: 175 Attila I Member Joined 2009 2017-11-27 10:11 am #3 2017-11-27 10:11 am #3 read the mosfet citation 12 artice @ firstwatt and the according postings here have fun! A. Mooly Moderator Joined 2007 Paid Member 2017-11-27 10:17 am #4 2017-11-27 10:17 am #4 NWS said: Hi all I like to make this Amplifier what is your opinion about this schematic? Click to expand... That looks like the old IR (International Rectifier) application note AN-948 example. If you read the note you will see it is a fully worked example. N NWS Member Joined 2016 2017-11-27 7:27 pm #5 2017-11-27 7:27 pm #5 i have tested mos amp but in new PCB of my Board i have Little space For Amp. Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link
2 picoDumbs Member Joined 2013 2017-11-27 4:32 am #2 2017-11-27 4:32 am #2 Looks ok. Check out Papa's BA2, I would choose that one. Attachments art_ba2.pdf art_ba2.pdf 368.8 KB · Views: 175 Attila I Member Joined 2009 2017-11-27 10:11 am #3 2017-11-27 10:11 am #3 read the mosfet citation 12 artice @ firstwatt and the according postings here have fun! A. Mooly Moderator Joined 2007 Paid Member 2017-11-27 10:17 am #4 2017-11-27 10:17 am #4 NWS said: Hi all I like to make this Amplifier what is your opinion about this schematic? Click to expand... That looks like the old IR (International Rectifier) application note AN-948 example. If you read the note you will see it is a fully worked example. N NWS Member Joined 2016 2017-11-27 7:27 pm #5 2017-11-27 7:27 pm #5 i have tested mos amp but in new PCB of my Board i have Little space For Amp. Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link
Attila I Member Joined 2009 2017-11-27 10:11 am #3 2017-11-27 10:11 am #3 read the mosfet citation 12 artice @ firstwatt and the according postings here have fun! A. Mooly Moderator Joined 2007 Paid Member 2017-11-27 10:17 am #4 2017-11-27 10:17 am #4 NWS said: Hi all I like to make this Amplifier what is your opinion about this schematic? Click to expand... That looks like the old IR (International Rectifier) application note AN-948 example. If you read the note you will see it is a fully worked example. N NWS Member Joined 2016 2017-11-27 7:27 pm #5 2017-11-27 7:27 pm #5 i have tested mos amp but in new PCB of my Board i have Little space For Amp. Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link
Mooly Moderator Joined 2007 Paid Member 2017-11-27 10:17 am #4 2017-11-27 10:17 am #4 NWS said: Hi all I like to make this Amplifier what is your opinion about this schematic? Click to expand... That looks like the old IR (International Rectifier) application note AN-948 example. If you read the note you will see it is a fully worked example. N NWS Member Joined 2016 2017-11-27 7:27 pm #5 2017-11-27 7:27 pm #5 i have tested mos amp but in new PCB of my Board i have Little space For Amp. Status Not open for further replies.
NWS said: Hi all I like to make this Amplifier what is your opinion about this schematic? Click to expand... That looks like the old IR (International Rectifier) application note AN-948 example. If you read the note you will see it is a fully worked example.
N NWS Member Joined 2016 2017-11-27 7:27 pm #5 2017-11-27 7:27 pm #5 i have tested mos amp but in new PCB of my Board i have Little space For Amp.
