Mini TDA7294 Stereo Amplifier Project

Jump to Latest
PowerBoomer

PowerBoomer

Member
Joined 2024
#1

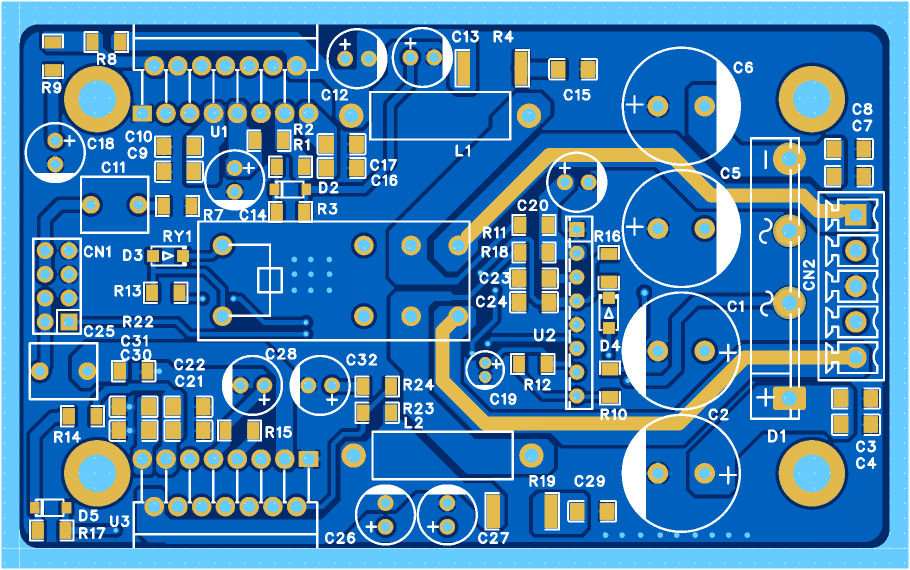

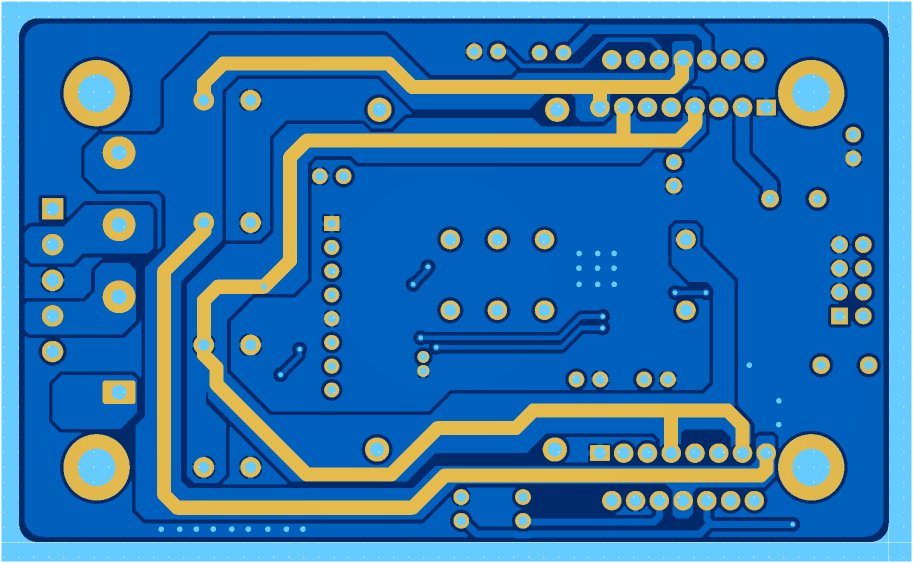

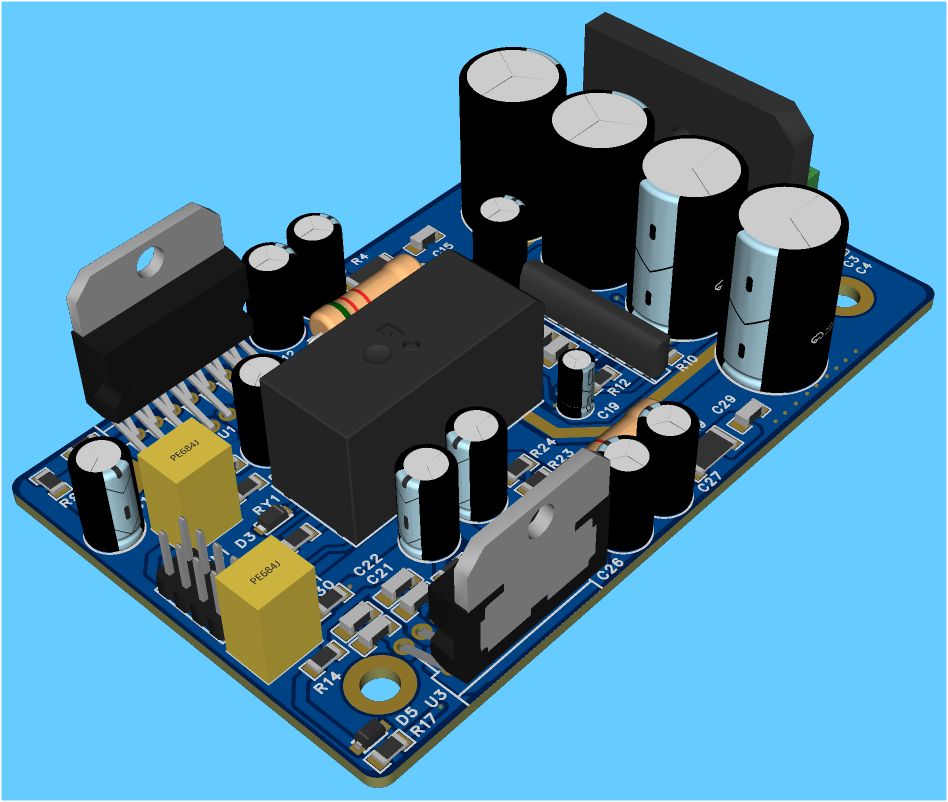

Here's my on-going Mini TDA7294 Stereo Project. using SMT 1206 for easy DIY assembly and reduced PCB size.
The design includes, Power Supply rectifier and Speaker Protection. Preamp and Bluetooth will be added later.


Attachments

  • Mini TDA7294 Stereo Top.png
    Mini TDA7294 Stereo Top.png
    127.8 KB · Views: 127
  • Mini TDA7294 Stereo Bottom.png
    Mini TDA7294 Stereo Bottom.png
    77.2 KB · Views: 119
  • Mini TDA7294 Stereo 3D.png
    Mini TDA7294 Stereo 3D.png
    181.8 KB · Views: 120
  • TDA7294STEREO_MINI.pdf
    TDA7294STEREO_MINI.pdf
    176.5 KB · Views: 117
