Luxkit A501 (Monarchy Engineering unit)
I have two A501 Fuji Tech A501 amps originally sold by Monarchy Engineering in the USA... I had these things for more than 10 years, but both of these units failed within days of each other.
I have attempted to try and find wiring diagram or the owners manuals to no avail; I know that Luxman sold these units in Japan and elsewhere as kits. Does anyone have a wiring schematic for it so I can repair my units or know where I can get one? I would be willing to pay a reasonable fee for it. Thanks in advance, Dennis
I have two A501 Fuji Tech A501 amps originally sold by Monarchy Engineering in the USA... I had these things for more than 10 years, but both of these units failed within days of each other.
I have attempted to try and find wiring diagram or the owners manuals to no avail; I know that Luxman sold these units in Japan and elsewhere as kits. Does anyone have a wiring schematic for it so I can repair my units or know where I can get one? I would be willing to pay a reasonable fee for it. Thanks in advance, Dennis

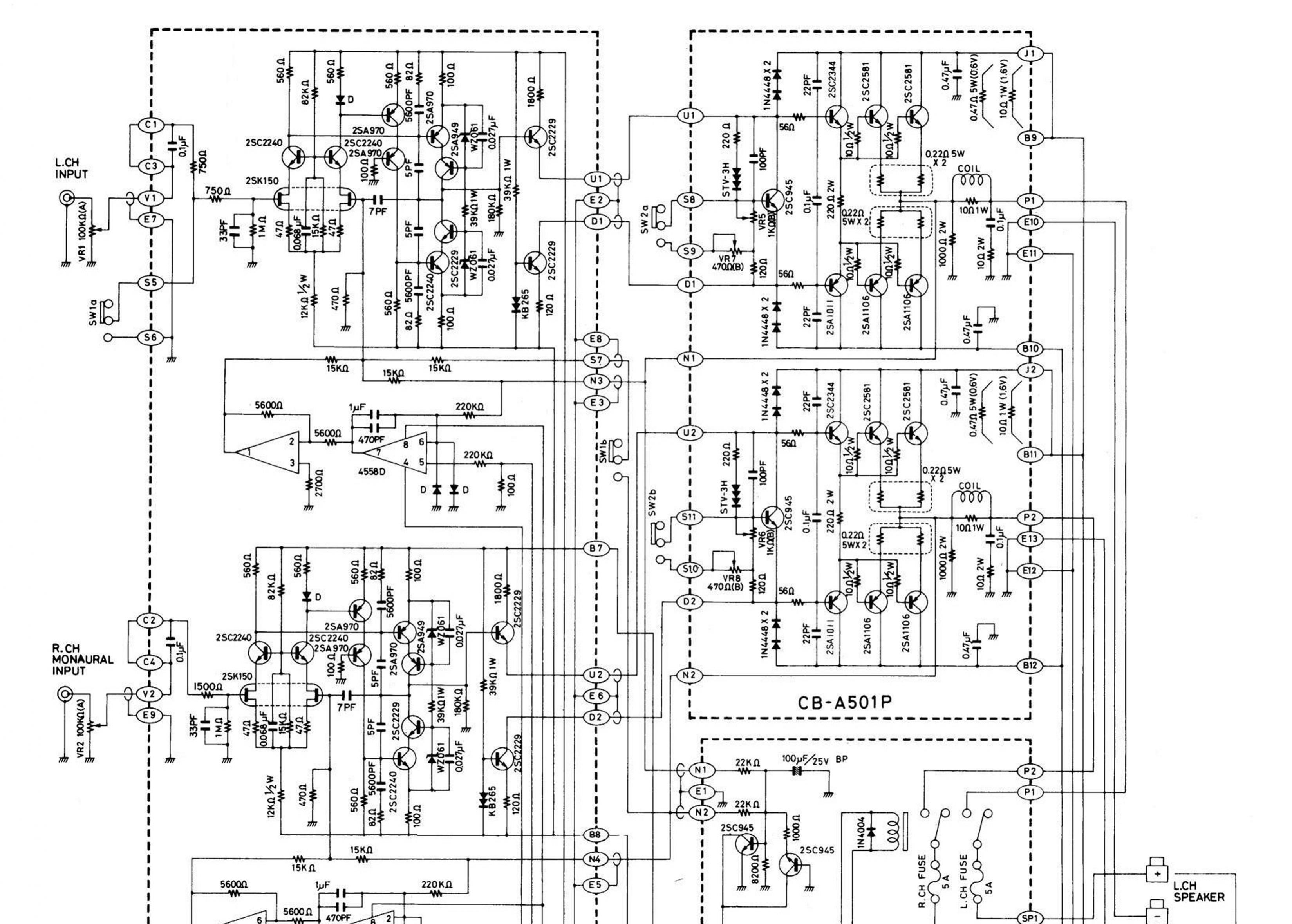

A501 Schematics
Hi Denisjhs,
I have the complete circuit diagram and kit manuals including adjustment data. Unfortunately they are in Japanese only. I believe it is still readable for our electronic forks as all required info is prepresented in our common electrical notations.
If you are interested please let me know.
Matt
Hi Denisjhs,
I have the complete circuit diagram and kit manuals including adjustment data. Unfortunately they are in Japanese only. I believe it is still readable for our electronic forks as all required info is prepresented in our common electrical notations.
If you are interested please let me know.
Matt
Hi Matt,
I'm interested. These are only rumors around this side of the world. I think it's cool someone actually has a pair.
We didn't even know they existed in the warranty service network. Not imported here.
-Chris
I'm interested. These are only rumors around this side of the world. I think it's cool someone actually has a pair.
We didn't even know they existed in the warranty service network. Not imported here.
-Chris
Luxkit A501
Dear Matt63:
I tried to send you an email yesterday; because I'm a new member it wouldn't let me send one. Please write to me at denisjhs@hotmail.com so I can get the luxkit A501 diagram from you. I appreciate your patience and understanding, Dennis
Dear Matt63:
I tried to send you an email yesterday; because I'm a new member it wouldn't let me send one. Please write to me at denisjhs@hotmail.com so I can get the luxkit A501 diagram from you. I appreciate your patience and understanding, Dennis
Lux kit a 501
Well, although I was not able to reach Matt63, I was able to get both amps repaired and for the first time in several years both my A501's work just fine, thank you. It's nice to run these amps in class a mode, the sound is very sweet, its too bad they don't make these anymore....
Well, although I was not able to reach Matt63, I was able to get both amps repaired and for the first time in several years both my A501's work just fine, thank you. It's nice to run these amps in class a mode, the sound is very sweet, its too bad they don't make these anymore....
Hello good people
I'm still (sorta desperately) looking for schematics and other info. I see there are several people here who have what I'm looking for. I'm not yet allowed to send emails, so if anyone would be so kind to send them to me, I will be eternally greatfull 😉
I can also host them for future requests
You can reach me at : mailxsismofyt.net (replace x with @)
I'm still (sorta desperately) looking for schematics and other info. I see there are several people here who have what I'm looking for. I'm not yet allowed to send emails, so if anyone would be so kind to send them to me, I will be eternally greatfull 😉
I can also host them for future requests
You can reach me at : mailxsismofyt.net (replace x with @)
no need to lecture EVA!!
David, your narrative has had me doubled over in laughter - you should doing 'technical comedy'. Great read.
Good luck with the repair job bud.
David, your narrative has had me doubled over in laughter - you should doing 'technical comedy'. Great read.
Good luck with the repair job bud.
Bonsai - I realised I just bumped a 2 year old thread.
I hope these people got their Luxmans working
I hope these people got their Luxmans working
Does anyone have a schematic for the A501 (or Z501, depending on market), or know where it can be downloaded from? The 501 is the small brother of the 504. I received the printed assembly manual (in Japanese), but the schematic is missing.
thanks in advance
thanks in advance
I can help you
Hi,
I built two A501's and an A502 years ago. They still sound great and trash whatever speakers I connect them to. They are quite nice for transistor amps.
I still have all the literature and actually have it all scanned.
zlrig at yahoo.com
send me an email and I can get them to you.
They are quite large files though...
Zlrig
Hi,
I built two A501's and an A502 years ago. They still sound great and trash whatever speakers I connect them to. They are quite nice for transistor amps.
I still have all the literature and actually have it all scanned.
zlrig at yahoo.com
send me an email and I can get them to you.
They are quite large files though...
Zlrig
This is only somewhat relevant, but looking over some pictures of the internals of this A504 amp, I noticed it was dangerously similar to the Luxman M-120A.
So I compared the schematics, and what do you know - these amps appear to share almost the same circuit, although I'm certainly no expert in that field. Looks quite similar, though!
Links to schematics:
Luxman Avance Z504 | Owners Manual, Service Manual, Schematics, Free Download | HiFi Engine
Luxman M-120A | Owners Manual, Service Manual, Schematics, Free Download | HiFi Engine
So I compared the schematics, and what do you know - these amps appear to share almost the same circuit, although I'm certainly no expert in that field. Looks quite similar, though!
Links to schematics:
Luxman Avance Z504 | Owners Manual, Service Manual, Schematics, Free Download | HiFi Engine
Luxman M-120A | Owners Manual, Service Manual, Schematics, Free Download | HiFi Engine
