lm4780

[karma]

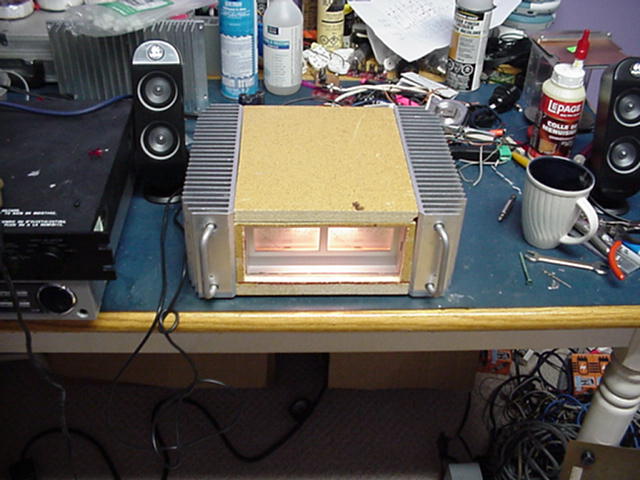

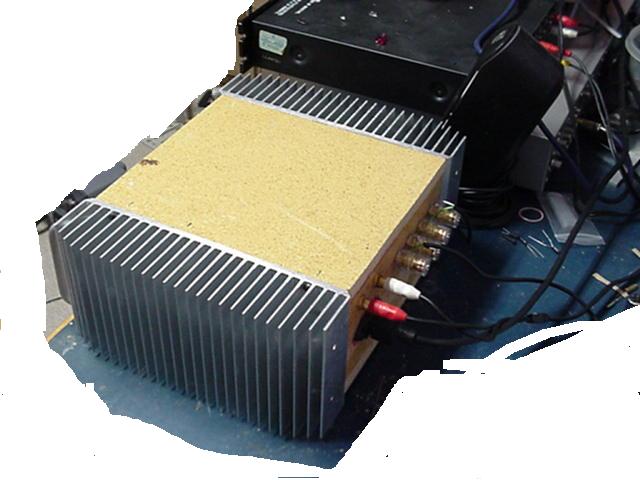

heres a finished amp. could use a little paint or laminate😀


cheers



[karma]

.

.



[karma]

.

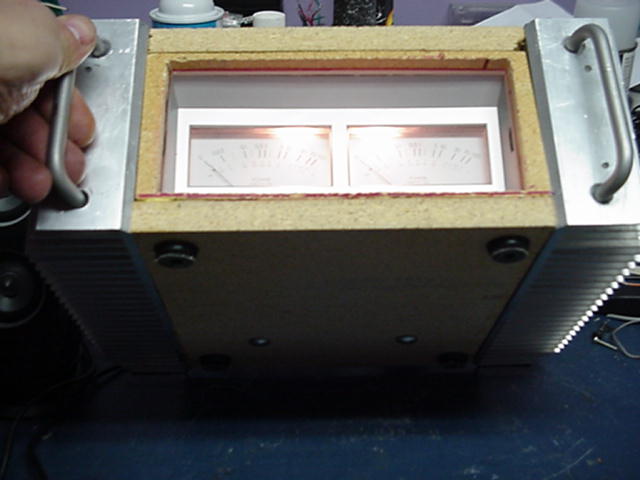

last one

ahh cheap is king😀



[enzedone]

Very Nice

Your VU meters, i like them. I was thinking about doing that, where do they go, i mean where in the circuit did you put them. Is it difficult to mate them into a LM3875?



[Nordic]

Please karma, yeah, give us the circuit you used for those VU's... I have 2 begging to be used



[karma]

give me a day and ill have somthing for ya.



[metal]

Hi

Nice work, thnx for posting 🙂



[karma]

this is the one i have used in the past. with good results.


http://sound.westhost.com/project55.htm

now that i think of it i have used this meter in other projects
hopfully this is its final resting place.



[carlosfm]

now that i think of it i have used this meter in other projects
hopfully this is its final resting place.

Karma, are those VUs from a Technics power amp?
Btw, the amp looks cool.



[enzedone]

Please get back to us

They are hard to come by nowadays , nice big ones like those. I'm going to have look around for some old second hand tape decks from the late seventies or earlie eighties....



[karma]

from what i remember it was from a jvc amplifier from the earlie eighties.

founds some


http://cgi.ebay.ca/JVC-JA-S22-INTEG...5831047749QQcategoryZ3280QQrdZ1QQcmdZViewItem



http://cgi.ebay.ca/JVC-Integrated-S...832284074QQcategoryZ39786QQrdZ1QQcmdZViewItem


thay look good but sound Terrible. so i scraped it
