LM4702 meets the Pioneer SX-838

The SX838 has been dormant for a few years. Time to take it out again.

Refreshing this, here's a simulation of the original preamp section without the tone controls.


Attachments

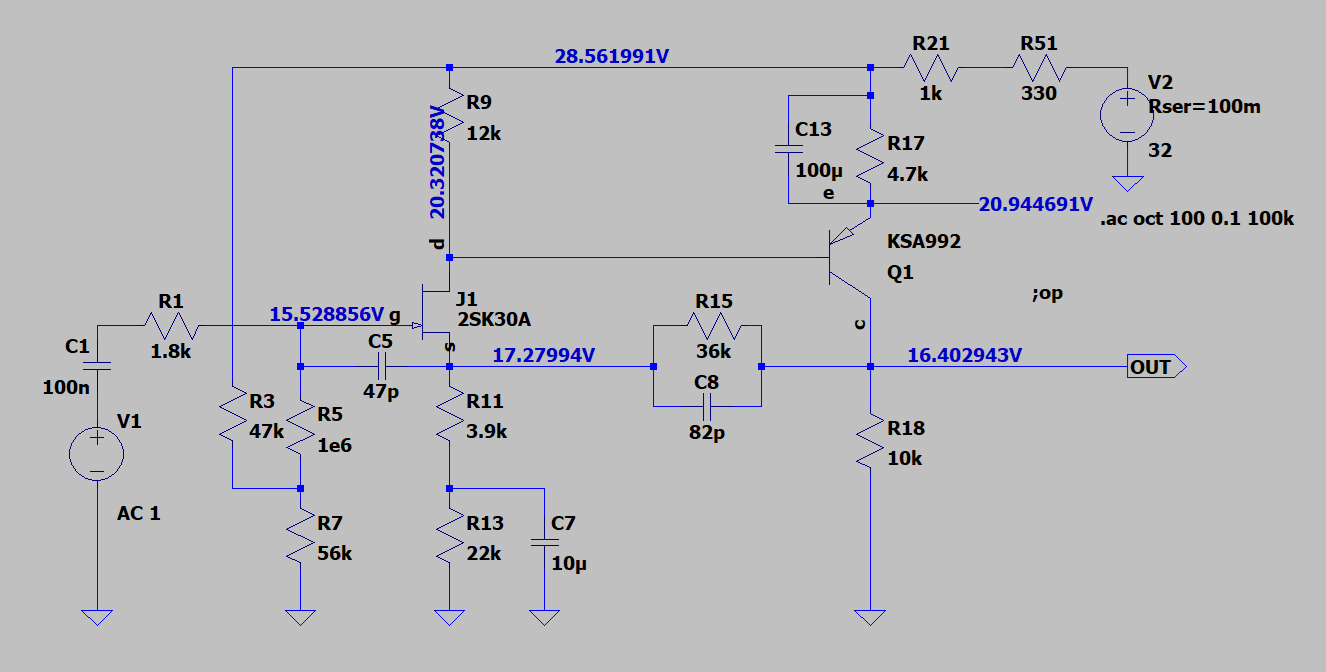

  • Pioneer SX838 Pre  Sch.png
    Pioneer SX838 Pre Sch.png
    44.5 KB · Views: 71

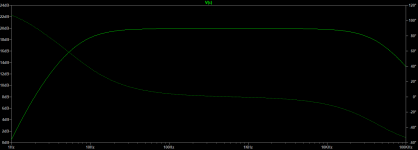

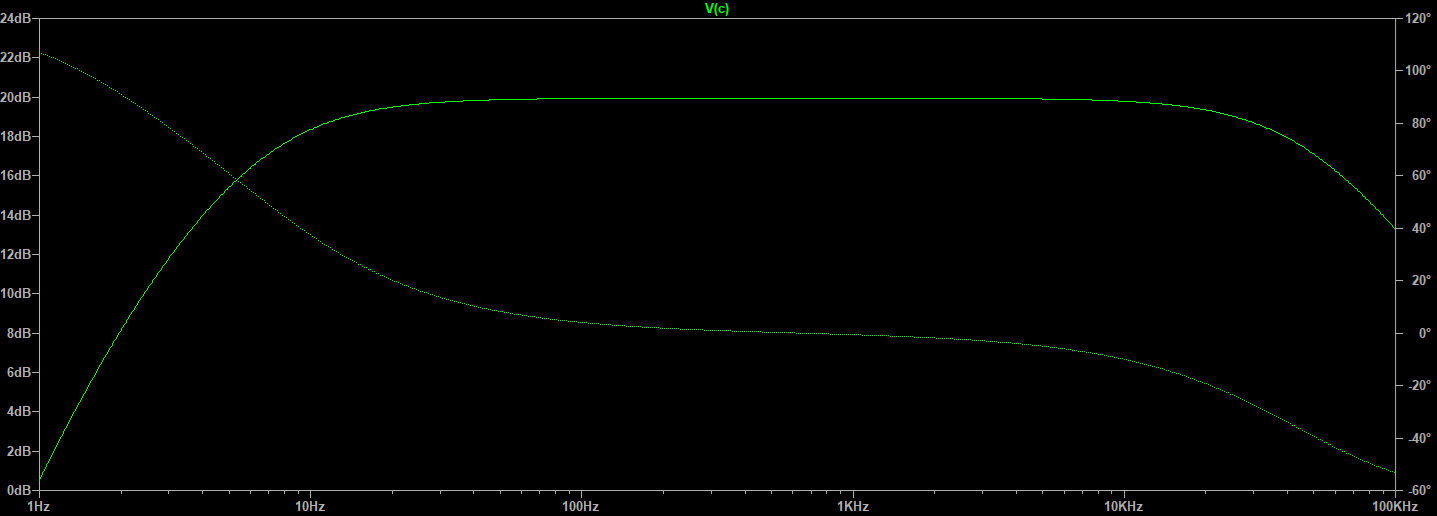

  • Pioneer SX838 Pre Graph.png
    Pioneer SX838 Pre Graph.png
    18.6 KB · Views: 60
