ajst2duk said:
An externally hosted image should be here but it was not working when we last tested it.

I assumed that the middle C is mis labelled as 10uf - looks to be where something bigger would go as it sits across the output. I've chucked a 220uf - also the SMD 120ohm - would a 1/10W resistor be enough here?
Click to expand...

Yes, that middle cap should be 100uF-150uF (220uF is also good) and not 10uF as it is marked on the board.
SMD resistor can be low power here as it is only used to set voltage.

BR,
Ales

#34
The boards are again available, now in two variants single and dual. There is no electrical difference between the two just physical. Basically is just two boards sticking together. The faulty marking is also corrected.

Also there is a new price for the PCB.
Single PCB 2.5€ per piece
Dual PCB 5€ per piece.

BR,
Ales


Attachments

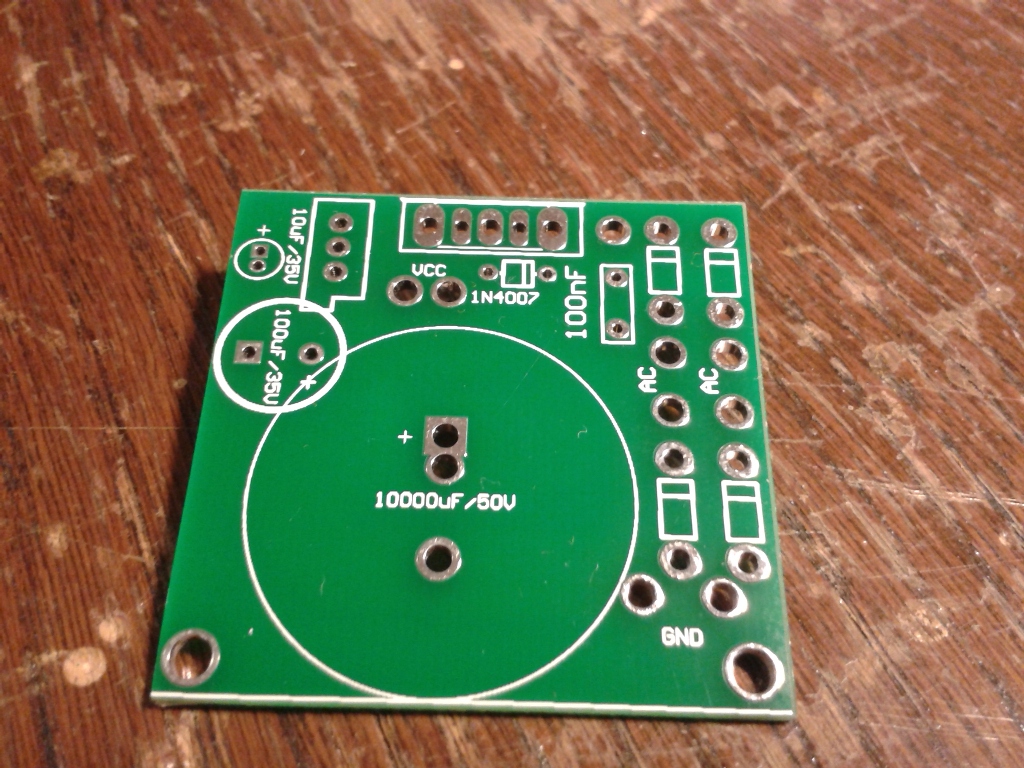

  • reg_pcb.jpg
    433.8 KB · Views: 403

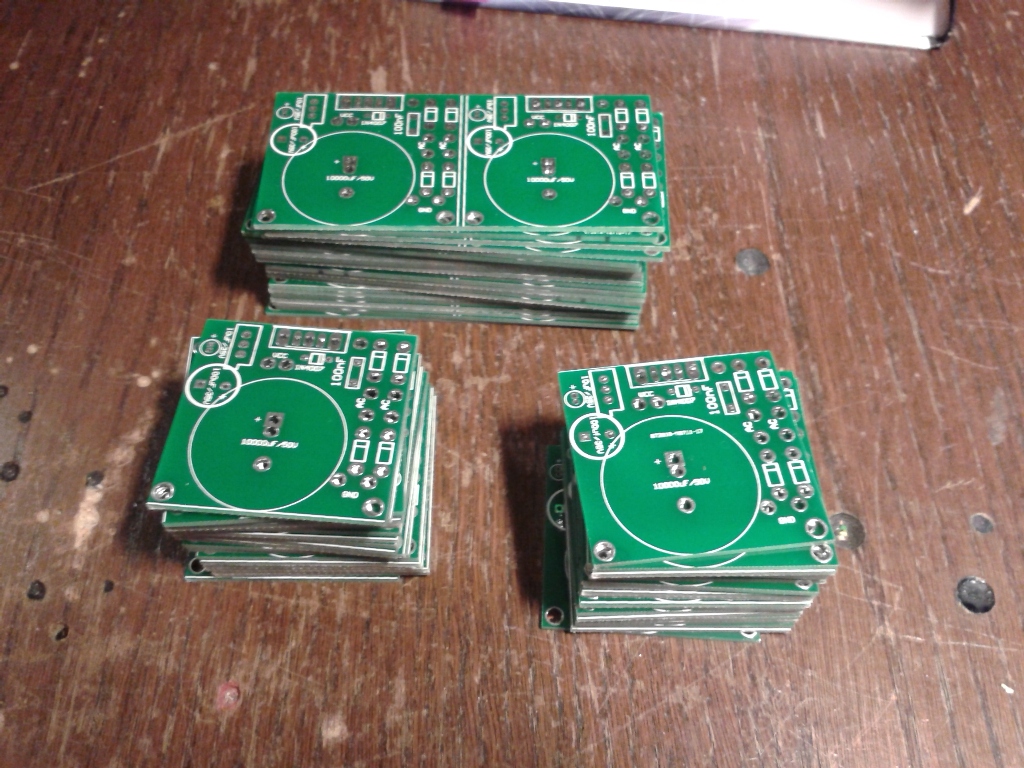

  • reg_pcb_one.jpg
