Juma's LSK Preamp - through hole version

[prasimix]

prasimix:

Can you confirm that the BOM has not changed since your version 2.5 (2014-01-19)? I need to identify the corresponding part numbers for Mouser or Digikey and don't want to generate a bad list.

In fact, to make things a little easier, could you post the Excel spreadsheet as opposed to a .pdf? That would simplify adding entries and prices.

Regards,
Scott

The latest BOM is 2.7 please find it in attachment.



[Ginum]

Could you please add me to the list. I'm interested in two dual channel PCB. Location is Lithuania.

Thanks.



[soundchaser]

Is there still time? I'd like the 2 channel PCB with the PSU (120mm X 143mm)

It's for shipping to Canada

Thanks
Matt



[jameshillj]

Thanks for the PM - money sent - thanks very much for all the work & effort.



[leadfinger]

Hello prasimix,

Please add me to the list for 2 dual channel boards. Shipping to USA.

Thanks, Dave



[BigE]

My two mono preamp boards ( no PS ) should go to Toronto, Canada.

Thanks!



[JimT]

If not too late, please add me to the list. I would like two single channel boards to be shipped to Canada.

Thanks
Jim



[tome]

My country is Macedonia
Pls let me know when to make payment.
Pozdrav
Tome



[prasimix]

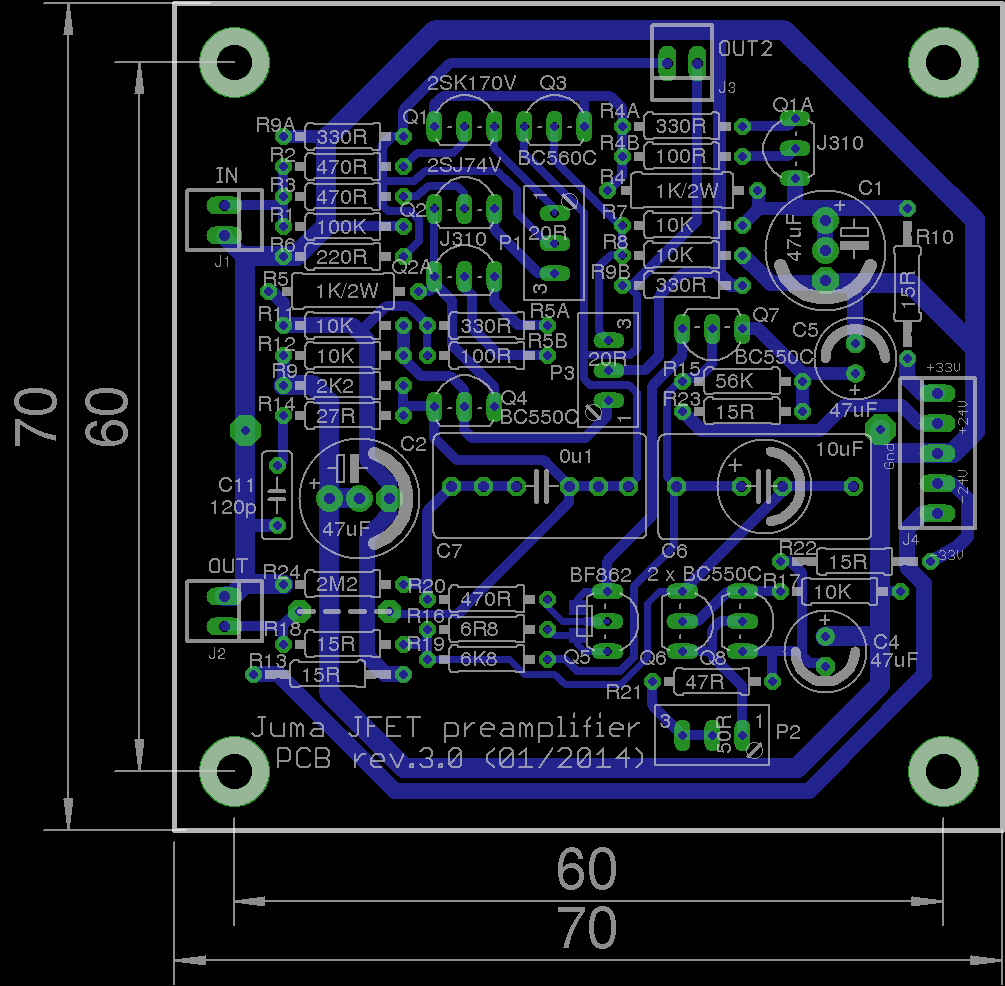

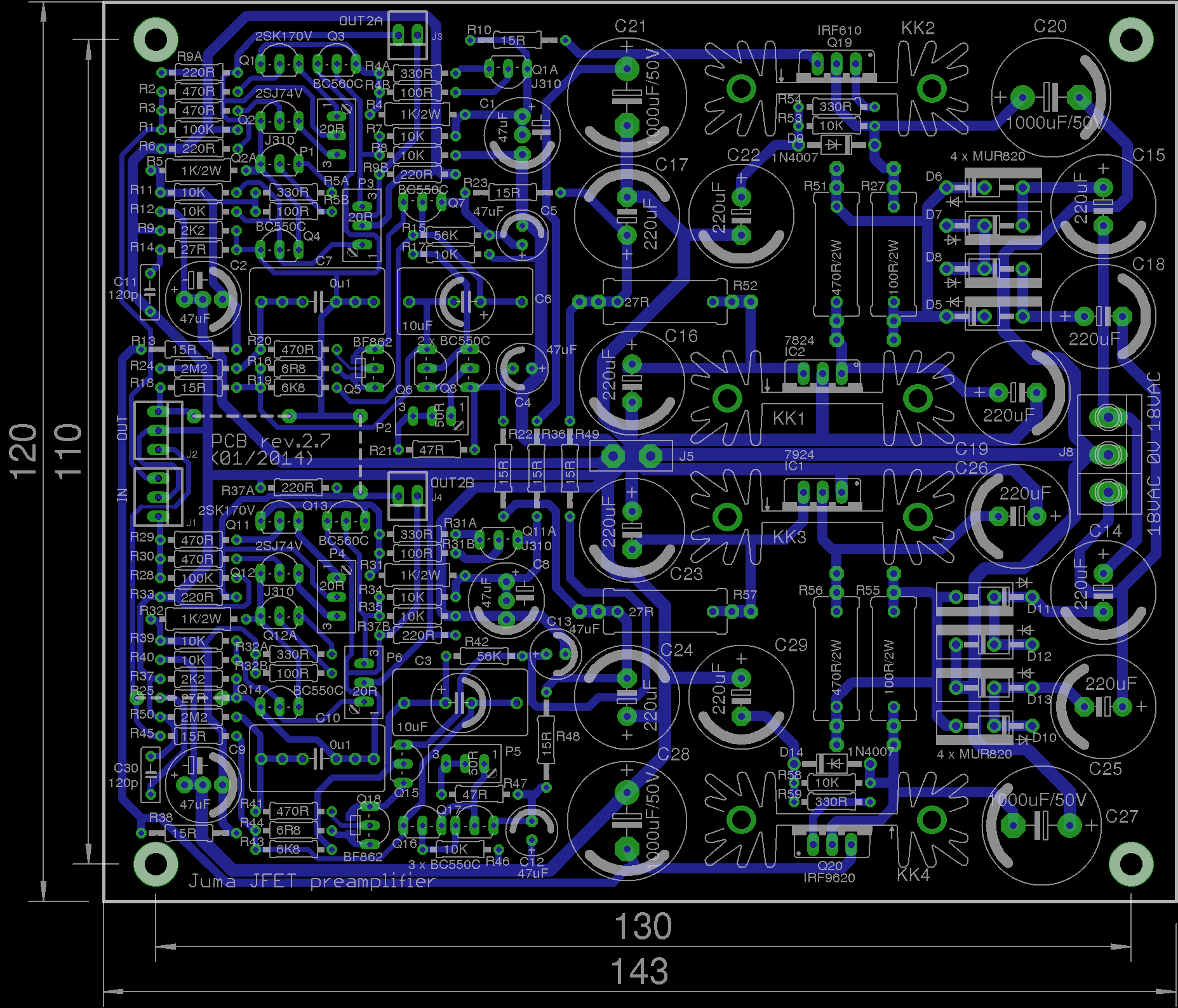

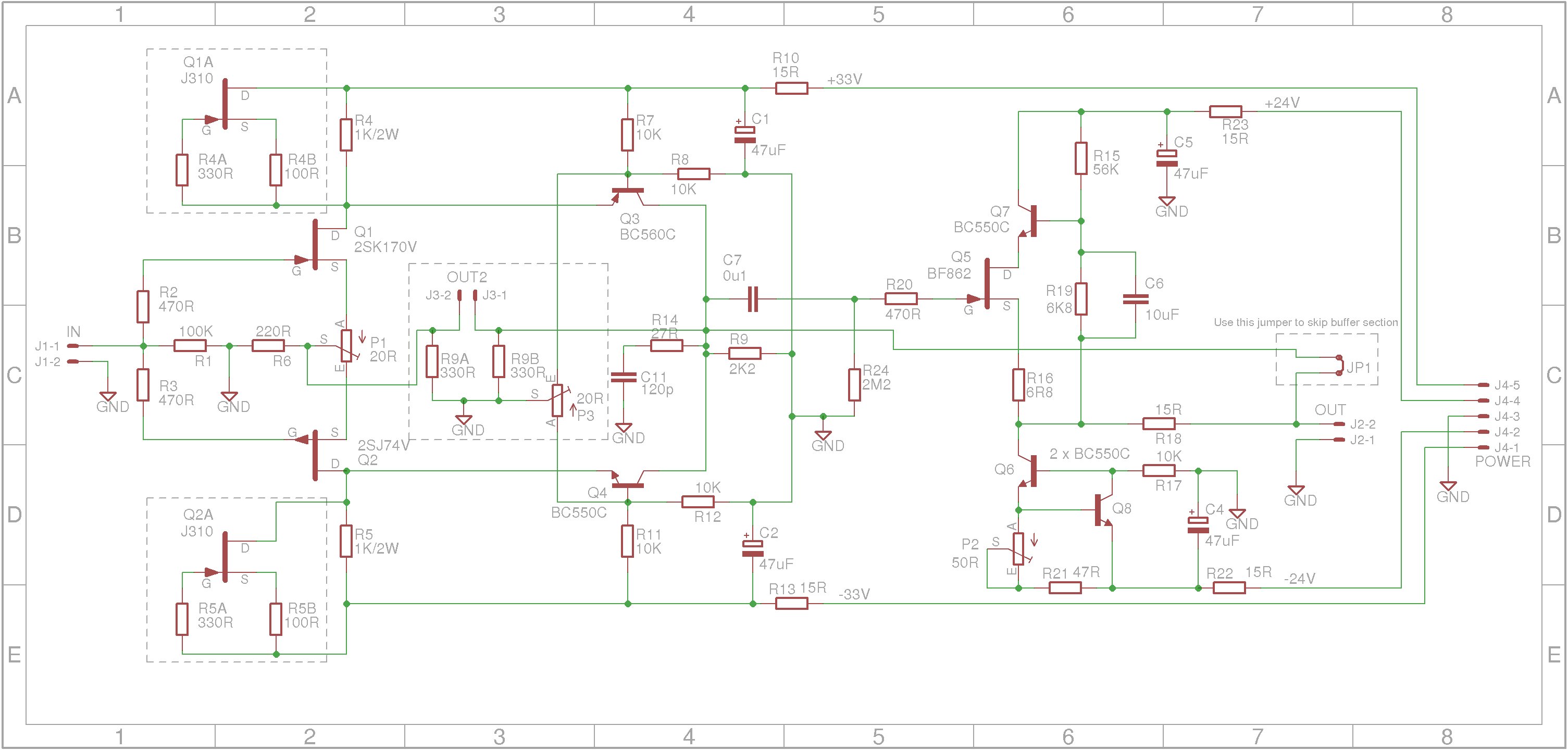

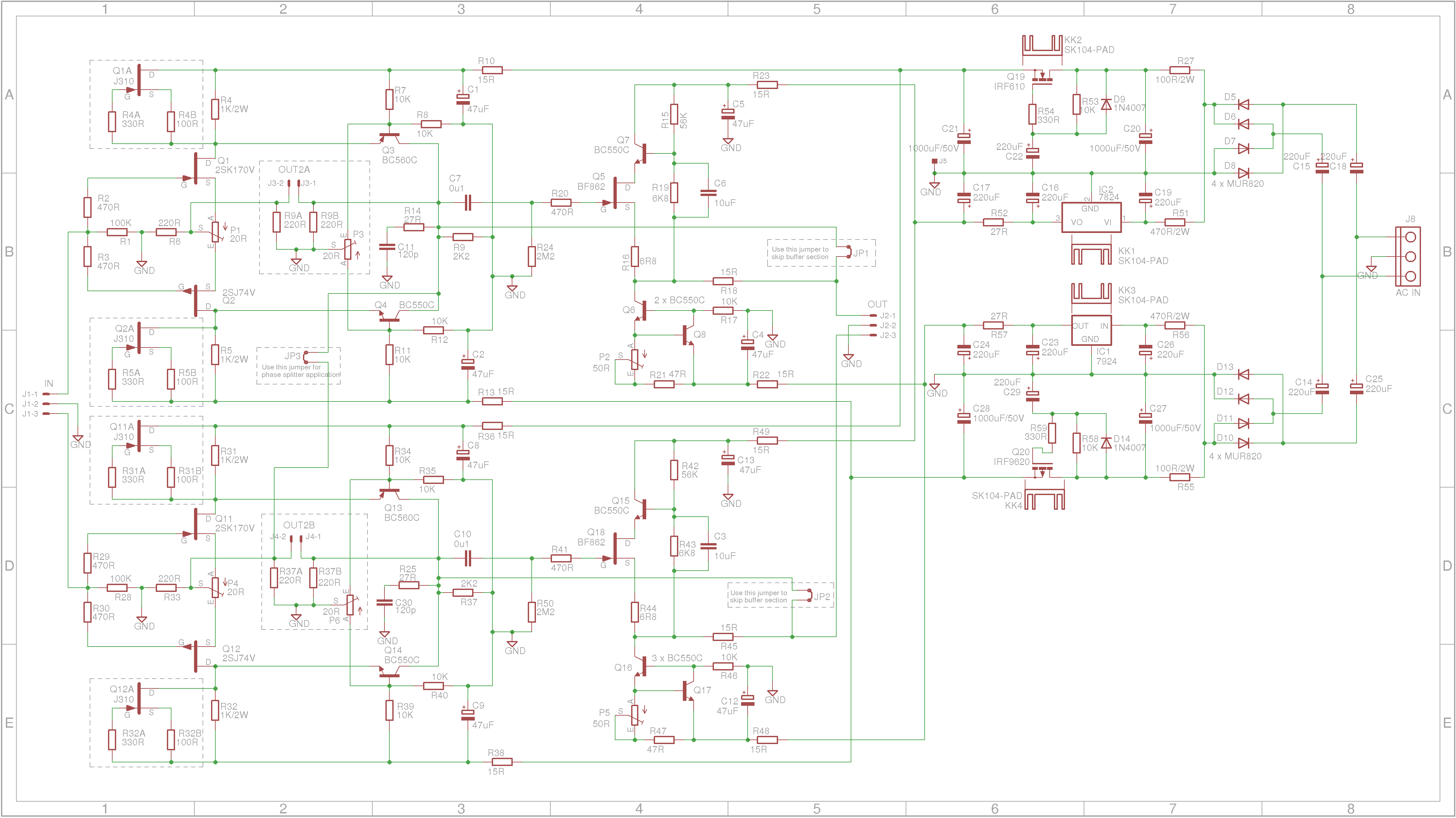

Please find latest revision that include few small changes in accordance with Juma's suggestion for Phase splitter for Koja and others that wants to use PCB for such purpose (PS for single channel boards is not changed, so the latest revision can be found in post #103).

In Monday I'm going to production. Thanks everyone for payment and hope that I didn't missed anyone who already paid when filled out column 'Confirmed' in Zoho sheet.



[presbel]

Payment sent. Thanks for this GB.



[CeeVee]

Hi,
If i'm still on time i would like 2 double PCBs.
Shipped to Lisboa, Portugal



[prasimix]

Just to inform you that PCBs are now in production. I'll keep you informed about progress.



[SRMcGee]

Folks:

I've started the process of adding Mouser and Digikey part numbers to V2.7 of the BOM for prasimix' through hole version of Juma's LSK preamp, but your help would be appreciated. In those instances where the part listed in the Farnell column is also available from Mouser or Digikey, the spreadsheet has been updated. Mouser and Digikey don't offer Welwyn brand resistors and I wasn't sure what would be a good alternative (PRP from PartsConnexion or SonicCraft, or something else that Mouser or Digikey has in stock?). Also, I couldn't tell if the Hammond transformers offered by Mouser and Digikey were in fact drop-in replacements for the ones mentioned in the spreadsheet or decide which capacitors were good alternative solutions.

In any event, would someone be kind enough to pick up where I've left off?

Regards,
Scott



[prasimix]

Small update, PCBs should arrive to me next Monday (Feb, 10th).



[prasimix]

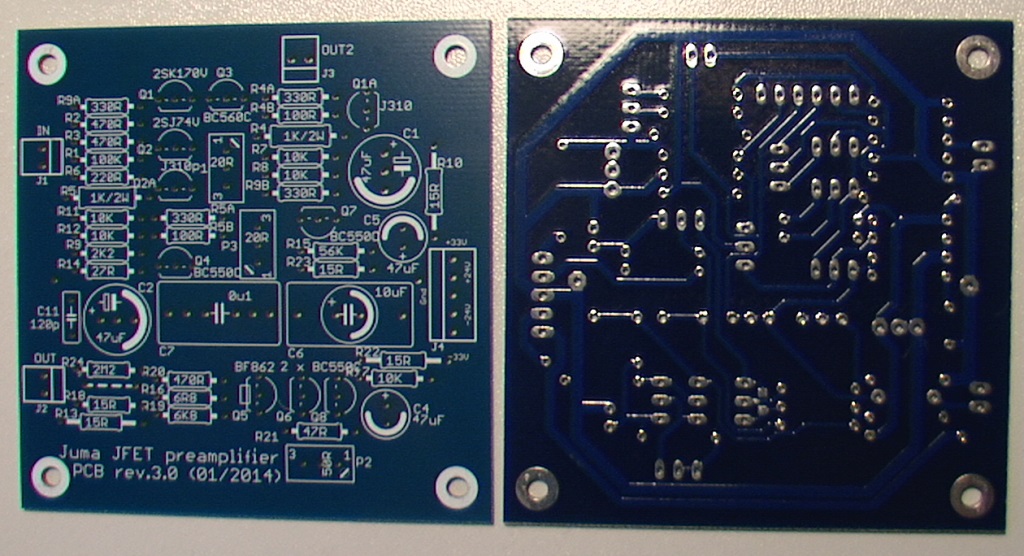

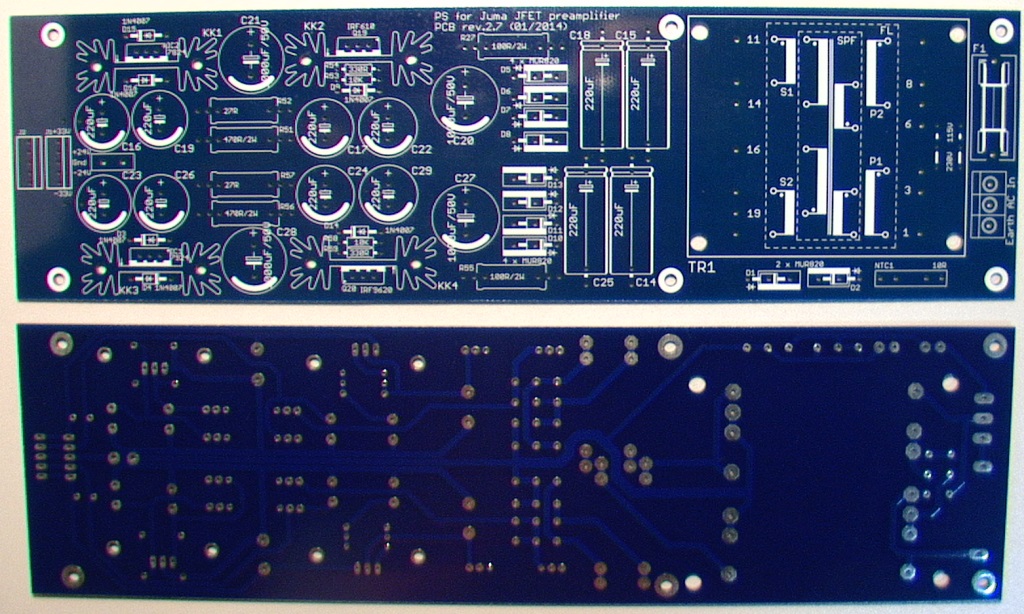

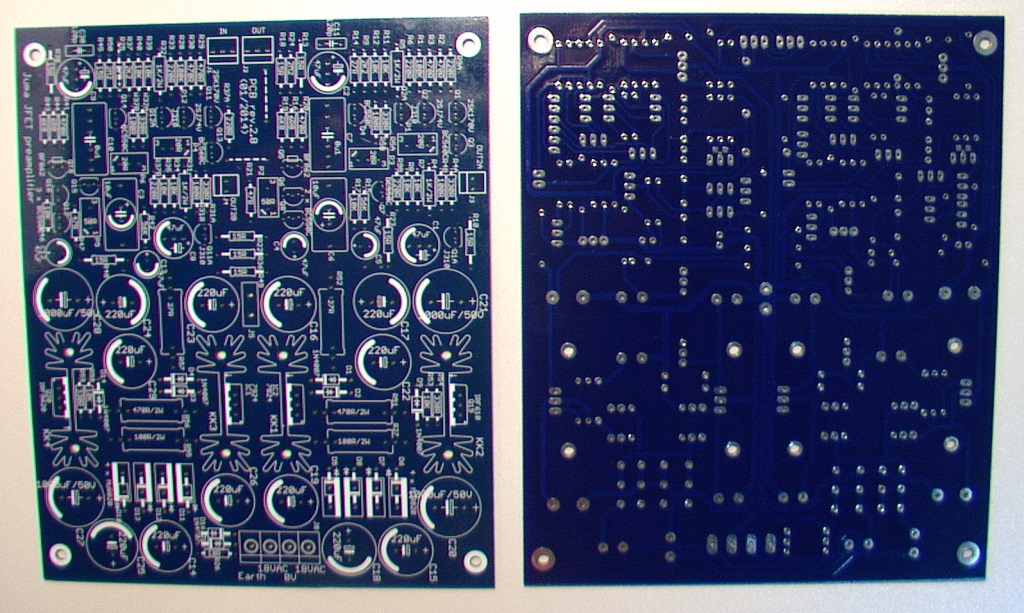

PCBs arrived as scheduled. I tried to make some pictures of them just that you got some idea how they look like.

I'll try to organize shipment in following days and inform you about progress.

Please note that I succeed in adding ground loop breaker on dual PCB in the last minute (as suggested jameshillj in post #106).



[mrsavage]

Four each for all three PCB's

I like to obtain four each, of the three PCB 's. They look great.



[Ryssen]

The 2.7 BOM says V grades for the FETs,I have BL grades can they be used?



[prasimix]

I sent this morning with registered mail PCBs to all of you who made a payment. Thanks for support and if you find that appropriate please let me know when they arrive to you.



[soundchaser]

Thanks

Will let you know when it arrives.

Matt



[SRMcGee]

prasimix:

Fantastic! Any chance you could provide some advice (or a build guide) for adjusting the multiturn resistors?

Regards,
Scott
