For Sale JohnAudioTech JAT501 Class AB Amplifier PCB pair -- LAST ONE

[spippy71]

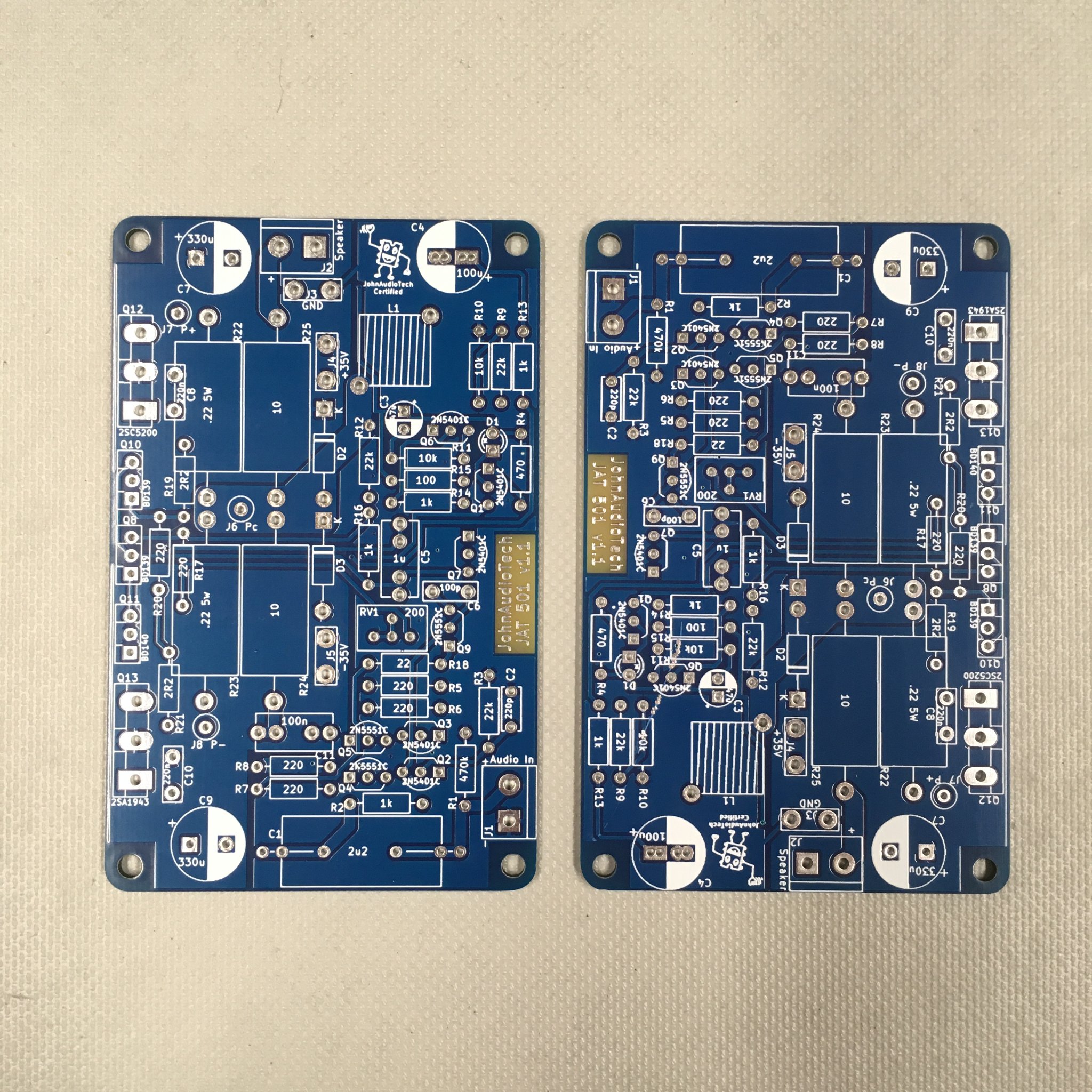

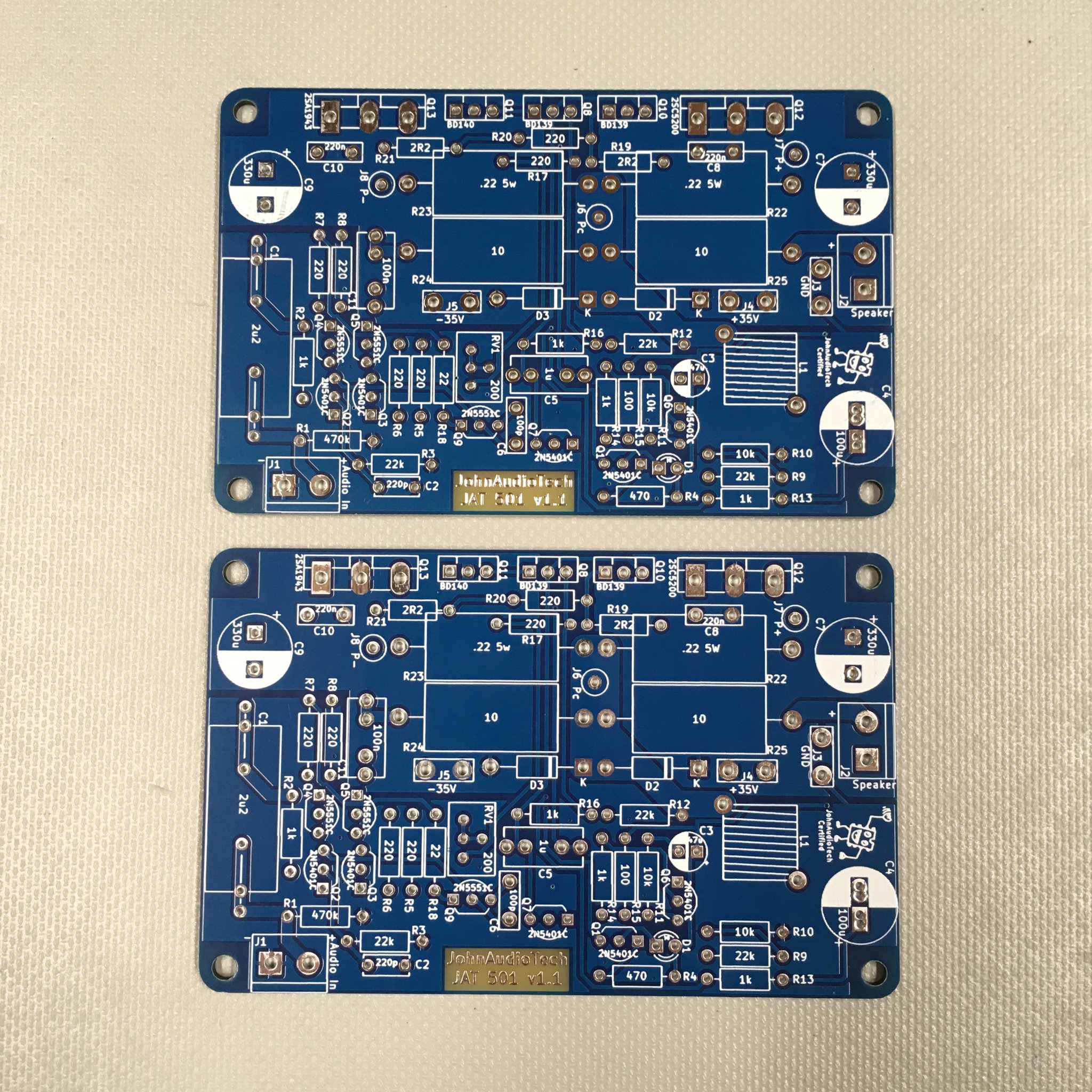

JohnAudioTech JAT501 Class AB Amplifier PCBs from JLCPCB

4 of 5 pairs sold. Last final set remaining.

$10 Canadian plus shipping.

Made from JohnAudioTech's publicly available JAT501 gerber files.
No modifications to John's design were made.

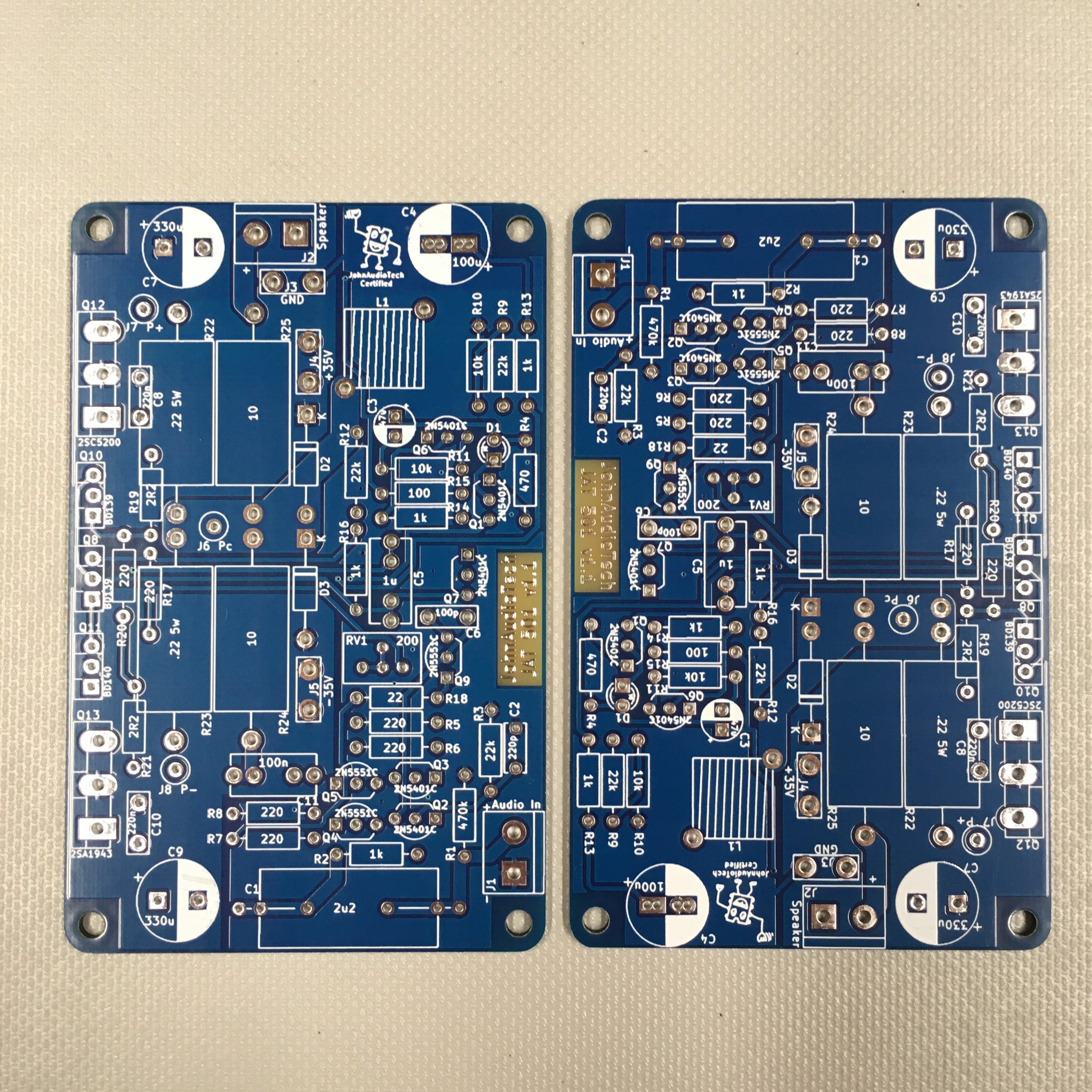

Inline layout, board revision 1.1

High quality PCBs. Standard 1.6 mm thickness, and completely flat.
Two layer, double sided, blue solder mask.

This sale is not for profit. It is being offered as a service to the community. And to help promote John's channel.

These are just the bare PCB boards. You have to source your own components, assemble, and test.

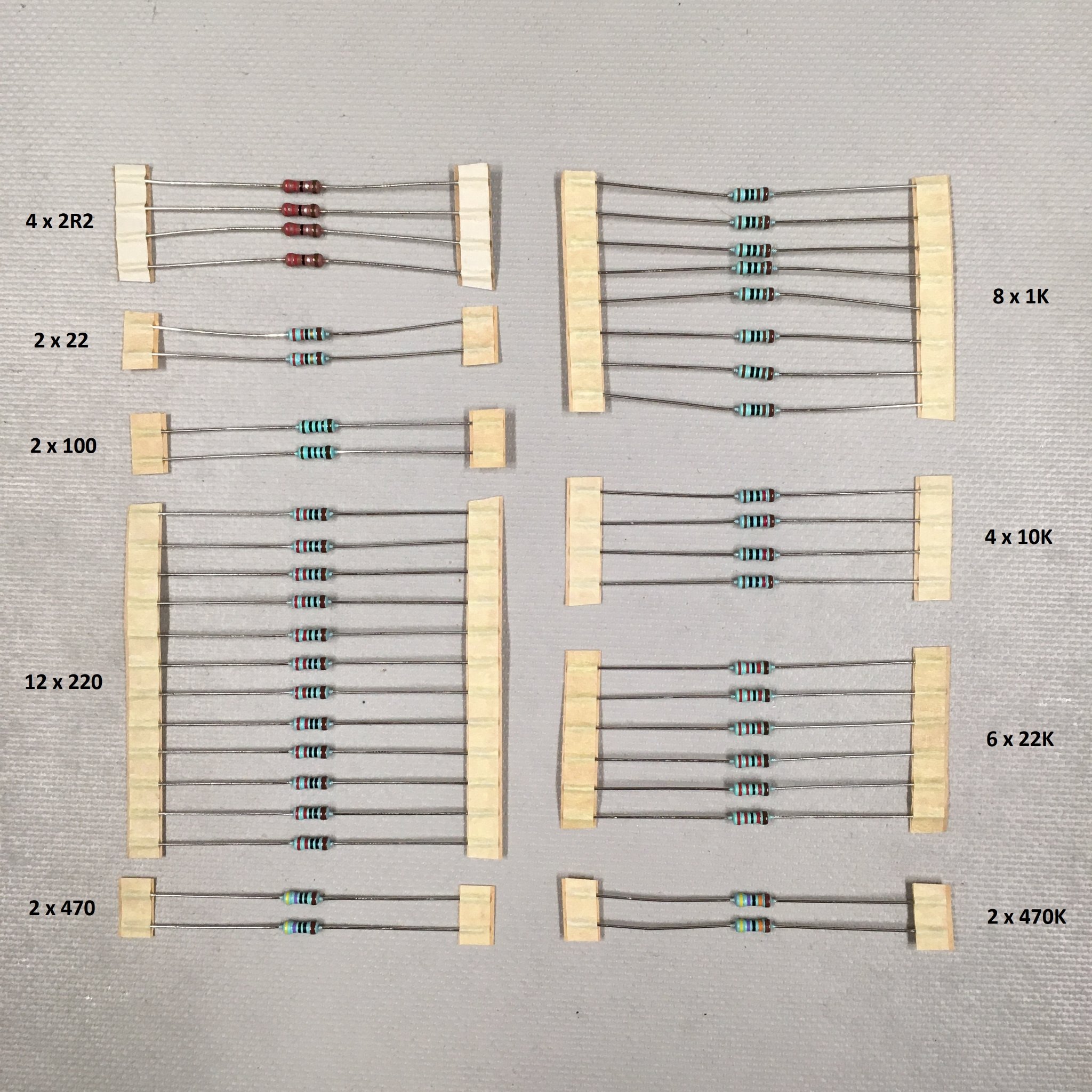

Bill of Materials (BOM) including part numbers is also provided.

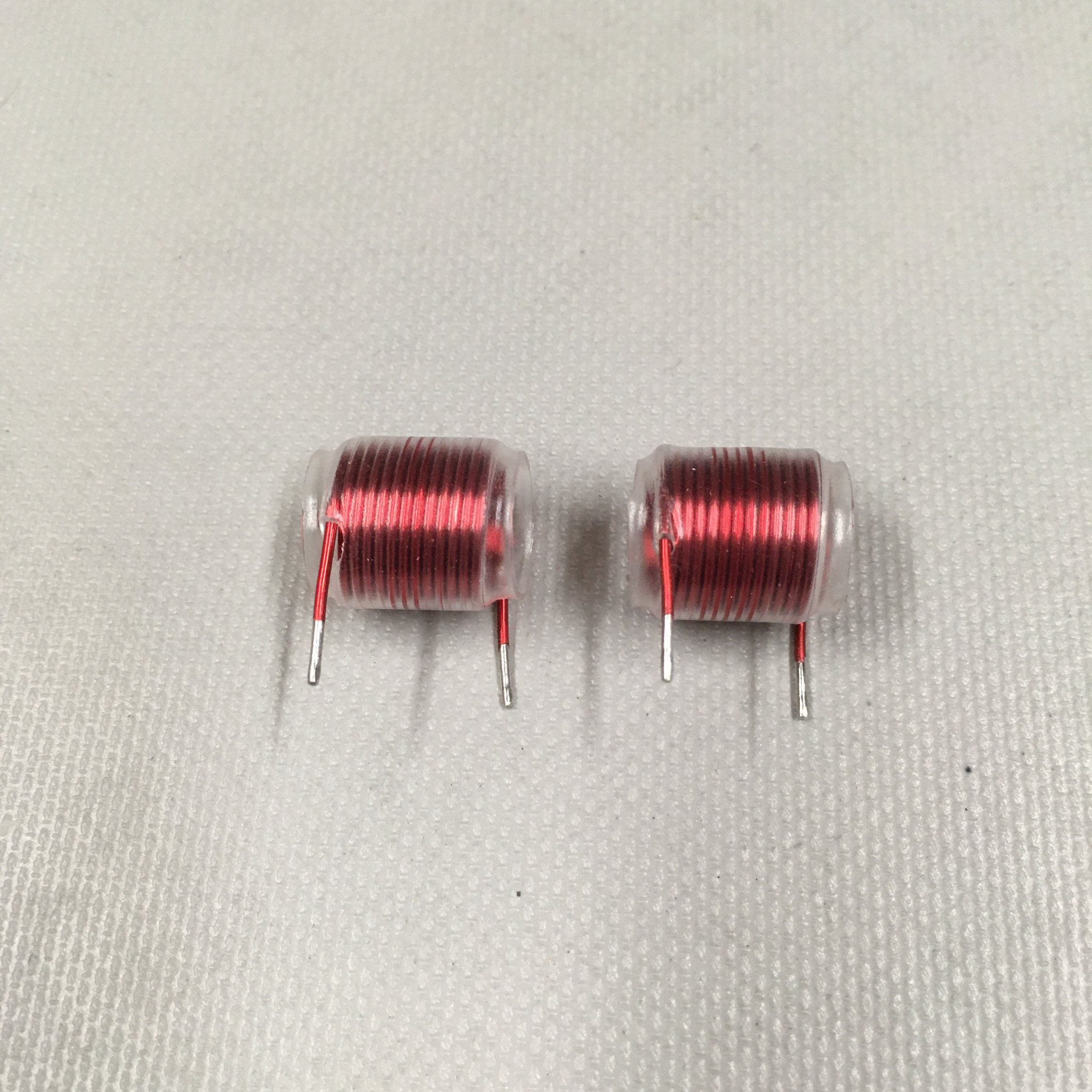

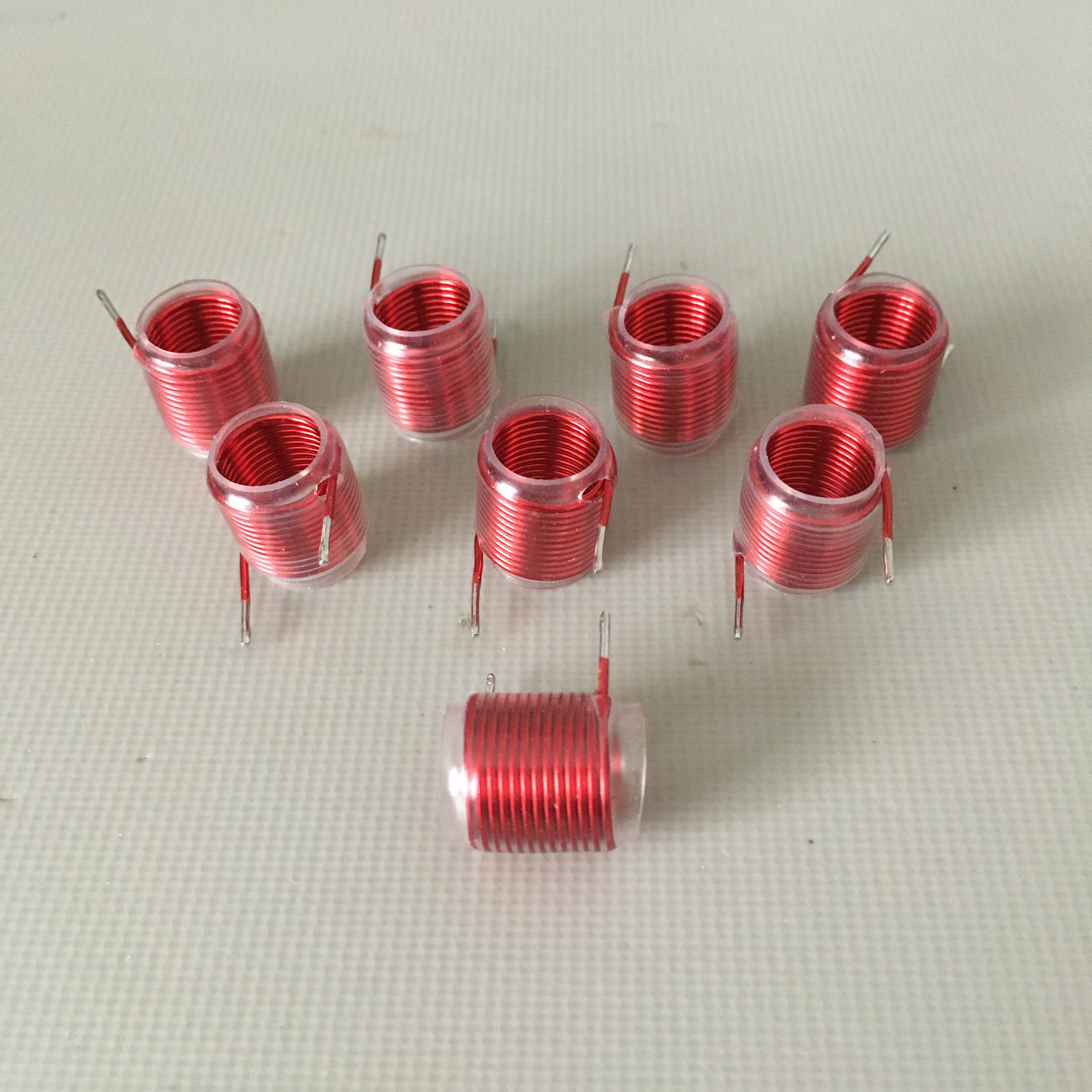

Includes two hand made and tested Thiele network coils (labeled L1)

Shipping within Canada is $3.00 using Canada Post oversized letter mail (sorry no tracking).

Shipping to USA is $10.00 using Canada Post Tracked Packet - USA. Includes a tracking number.

Known issue, the board stencil has some typos.
Transistors labeled 2N5551C should read 2N5551.
Transistors labeled 2N5401C should read 2N5401.

The "C" variant has a different pinout.
2N5551 / 2N5401 (1. Emitter 2. Base 3. Collector)
2N5551C / 2N5401C (1. Emitter 2. Collector 3. Base)

One board has scratched solder mask that happened at the factory. The exposed copper was tinned. The traces are ok. See attached photos.



[spippy71]

See the following diyAudio thread for more information on the JAT501 build.
JohnAudioTech JAT501 Build Thread



[turion64]

Did you handmade the coils or buy them?

Thanks



[spippy71]

I made the coils myself. See the build thread link above. I document the process of making the coils and test them to verify they work.



[spippy71]

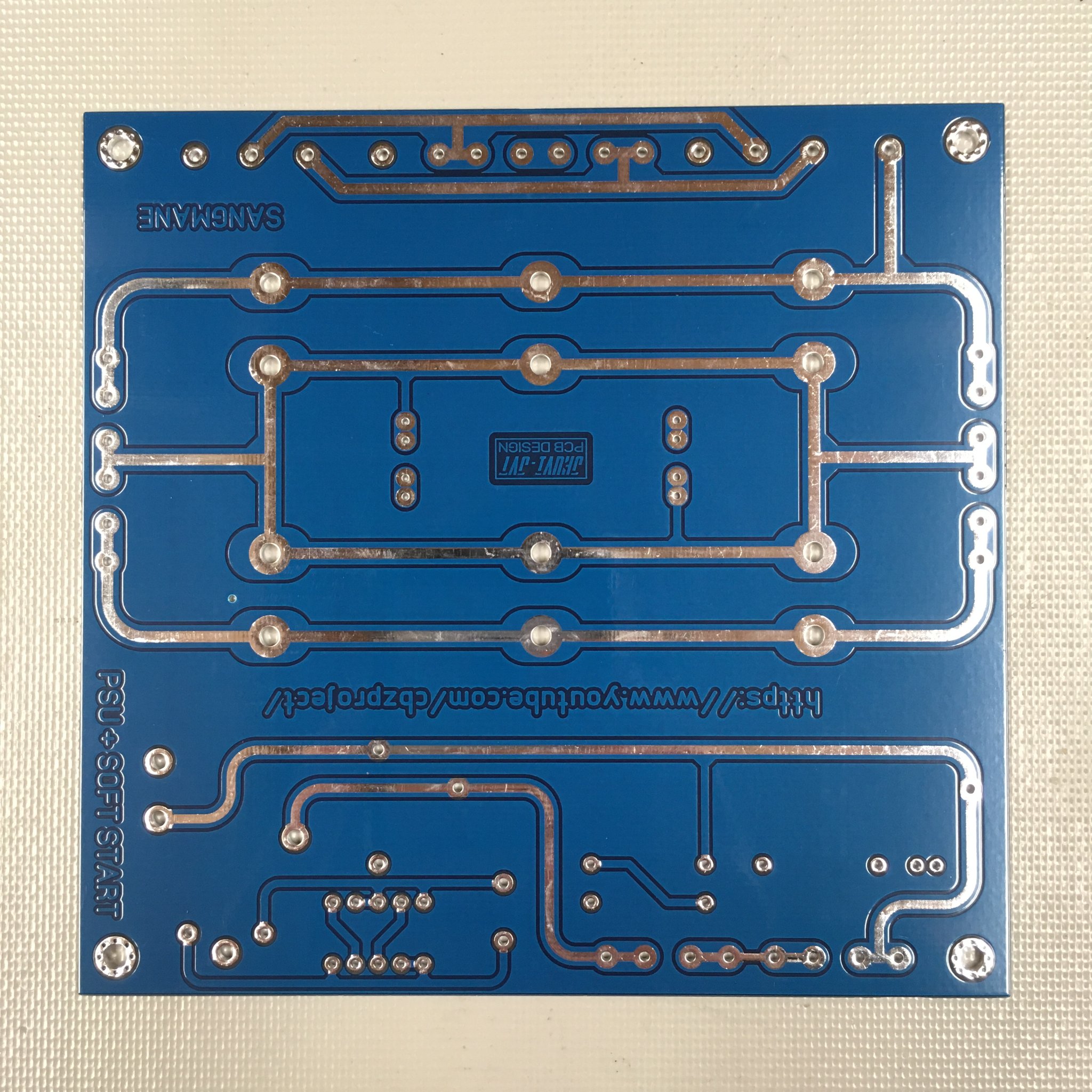

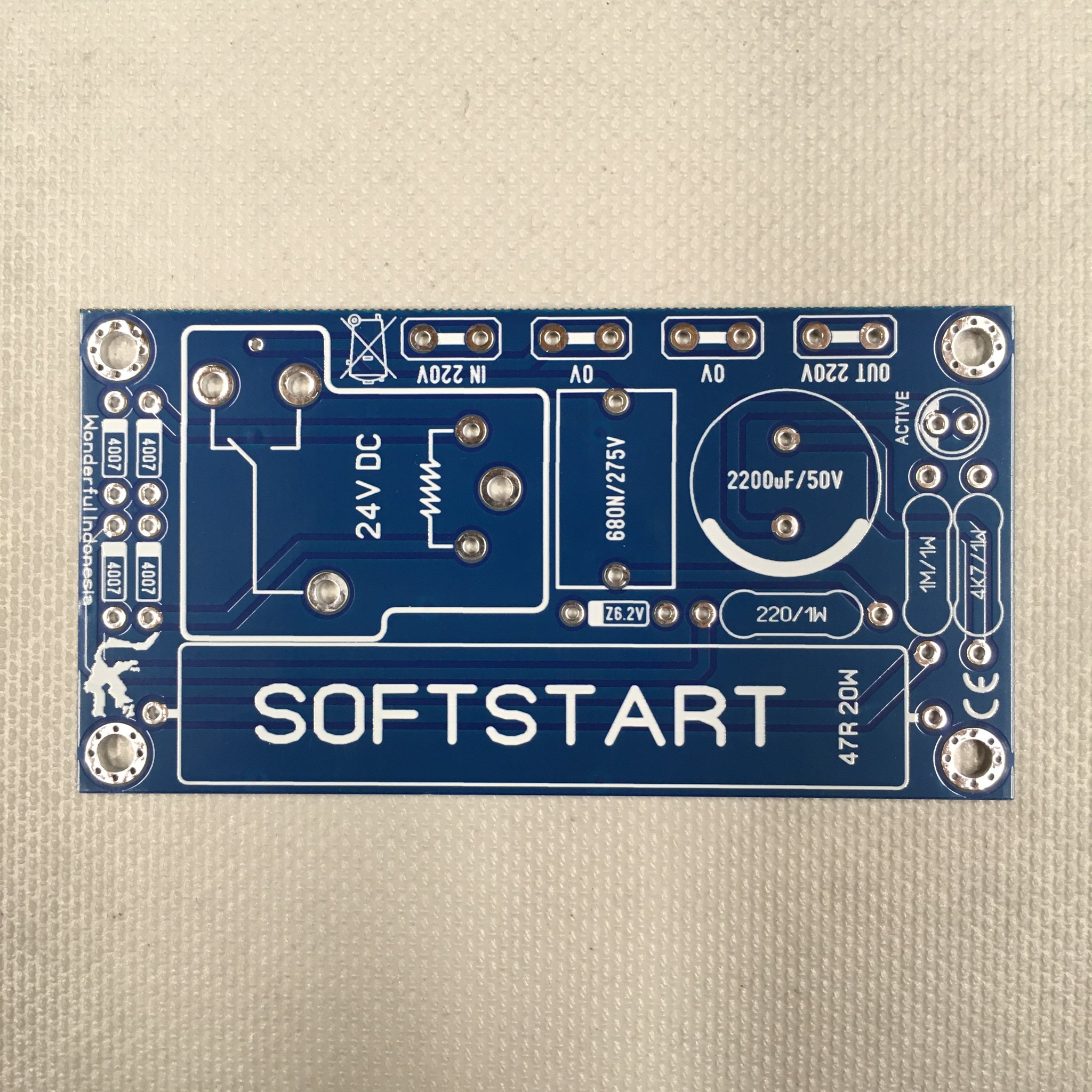

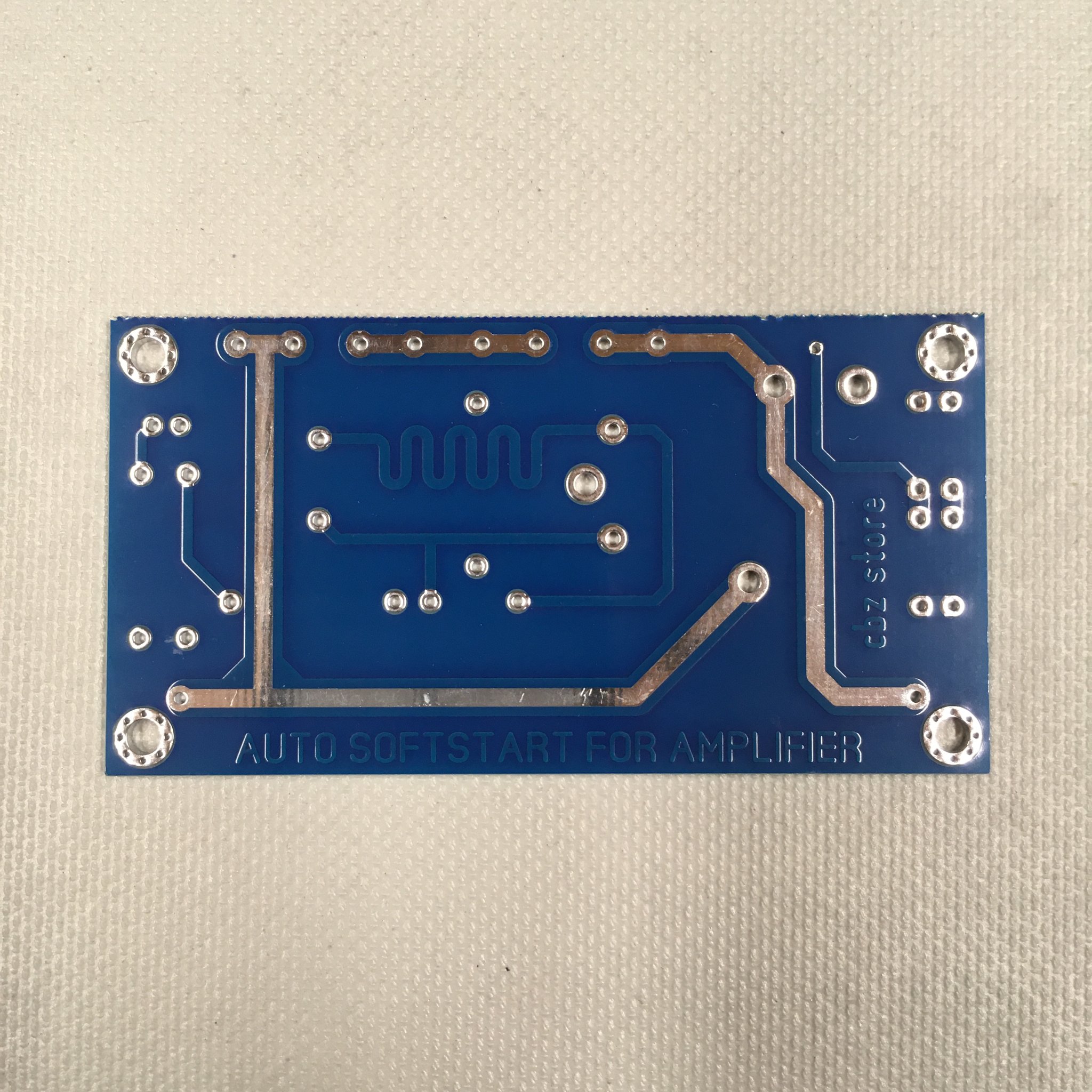

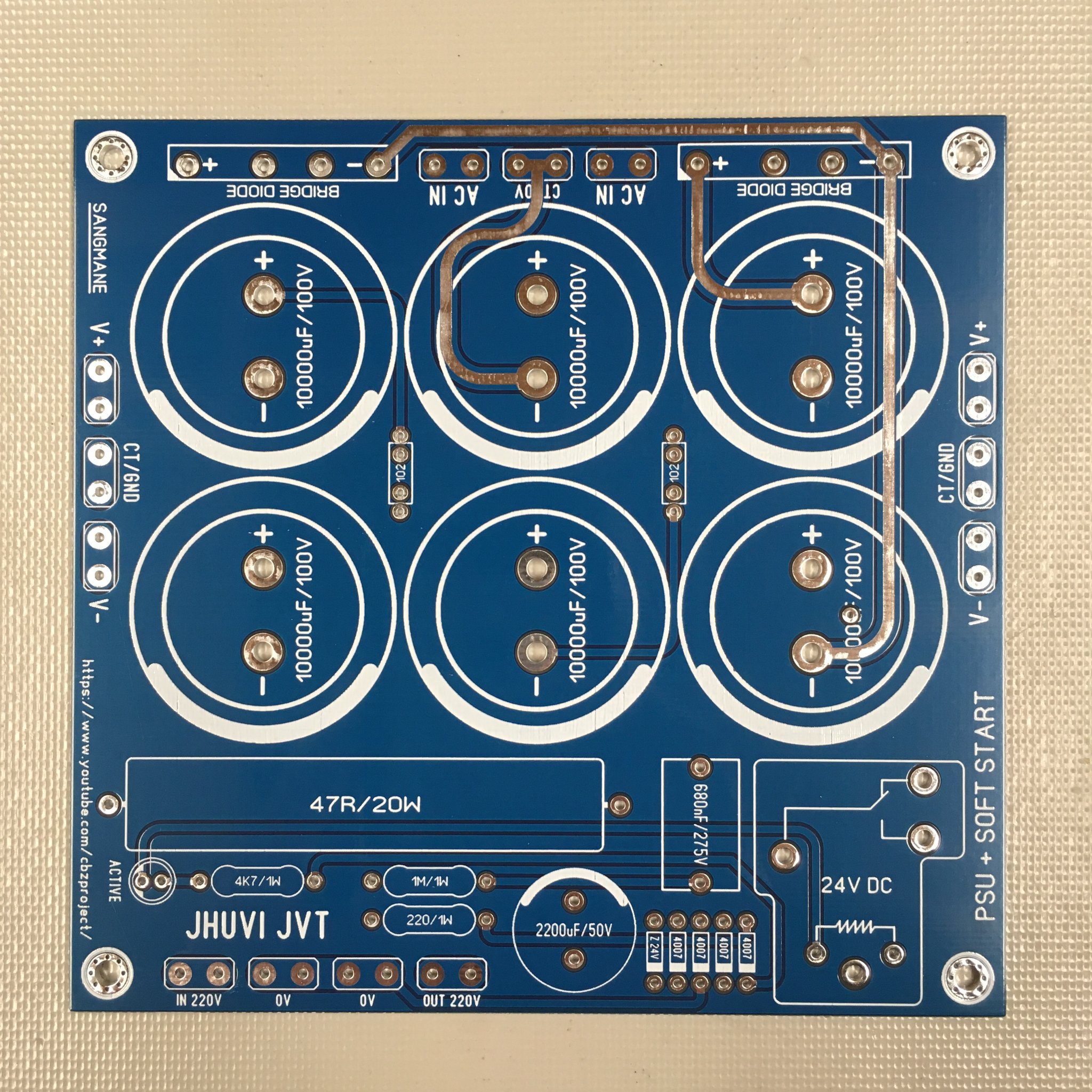

Linear power supply and soft start PCBs designed by CBZ Project also available. Combined shipping on multiple items.
PCBs sold at cost. No profit from the sale of items designed by others.

The PCBs are stenciled for 220 volts, but can be used with 110-120 volts if the dropper and filter capacitors are replaced with different values.
Also the PCB is stenciled for 10,000uF / 100V filter/smoothing capacitors. Less capacity and lower max voltage capacitors can be used instead.



[spippy71]

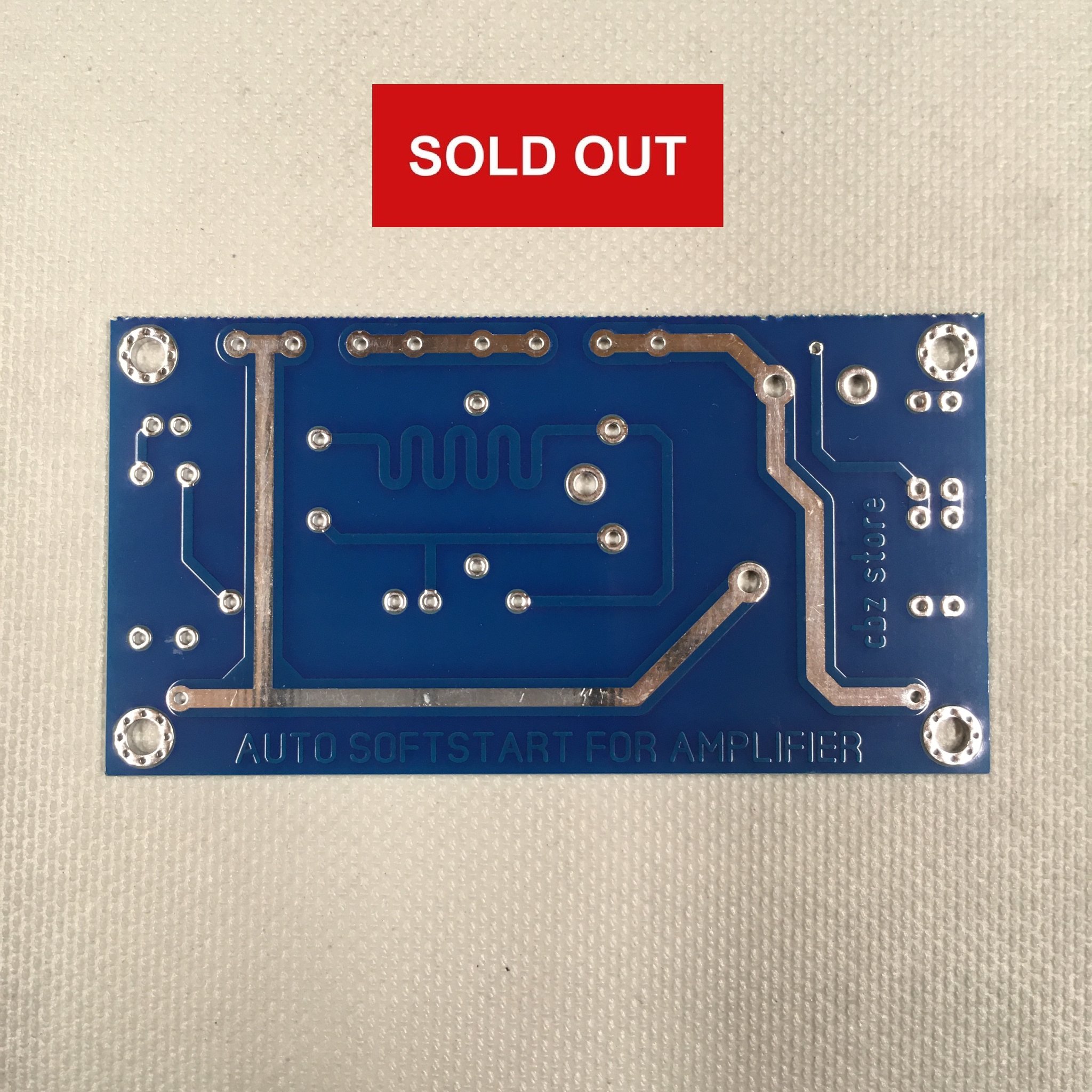

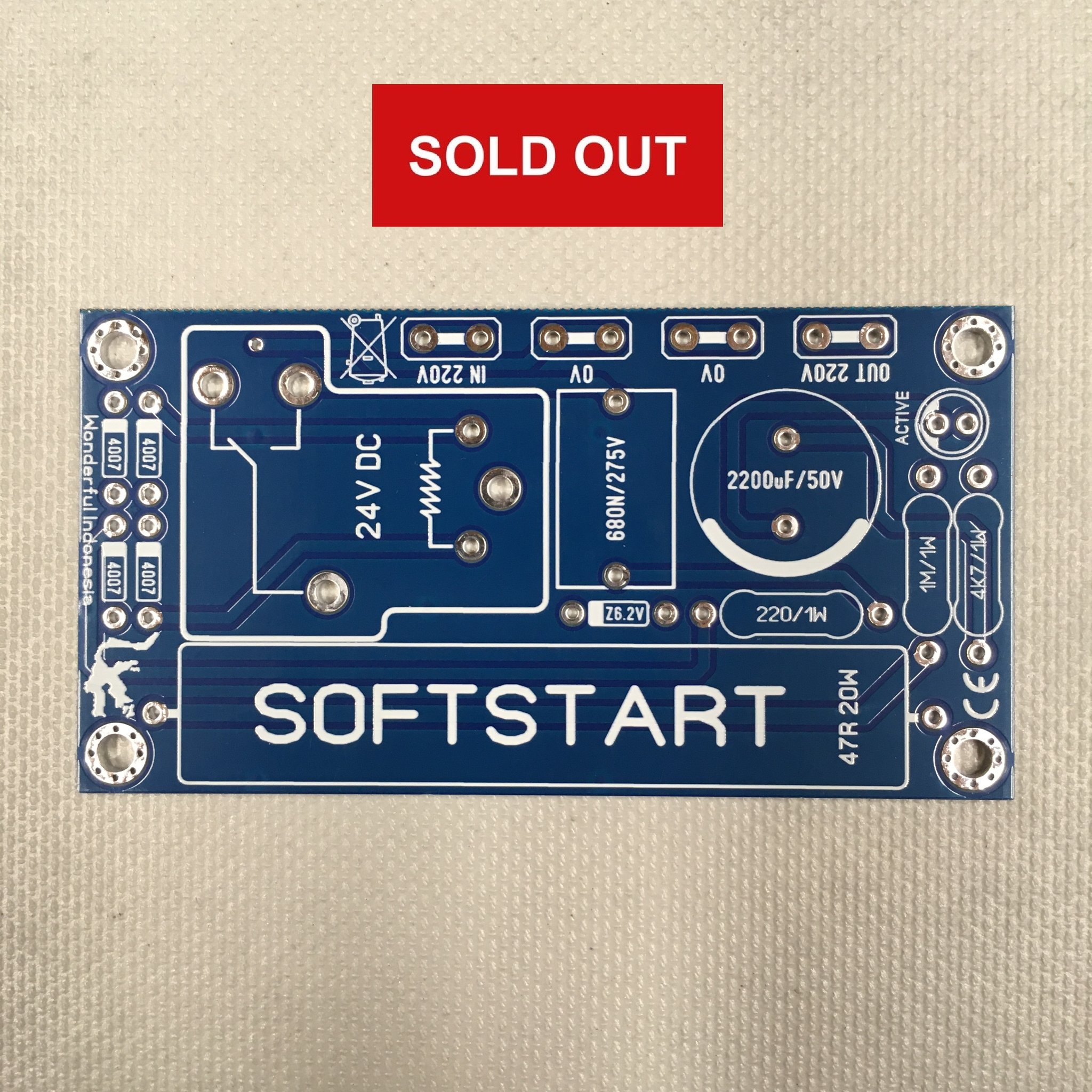

Update: all of the smaller Softstart boards are sold out. The JAT501 boards and larger PSU with Softstart boards are still available.



[spippy71]

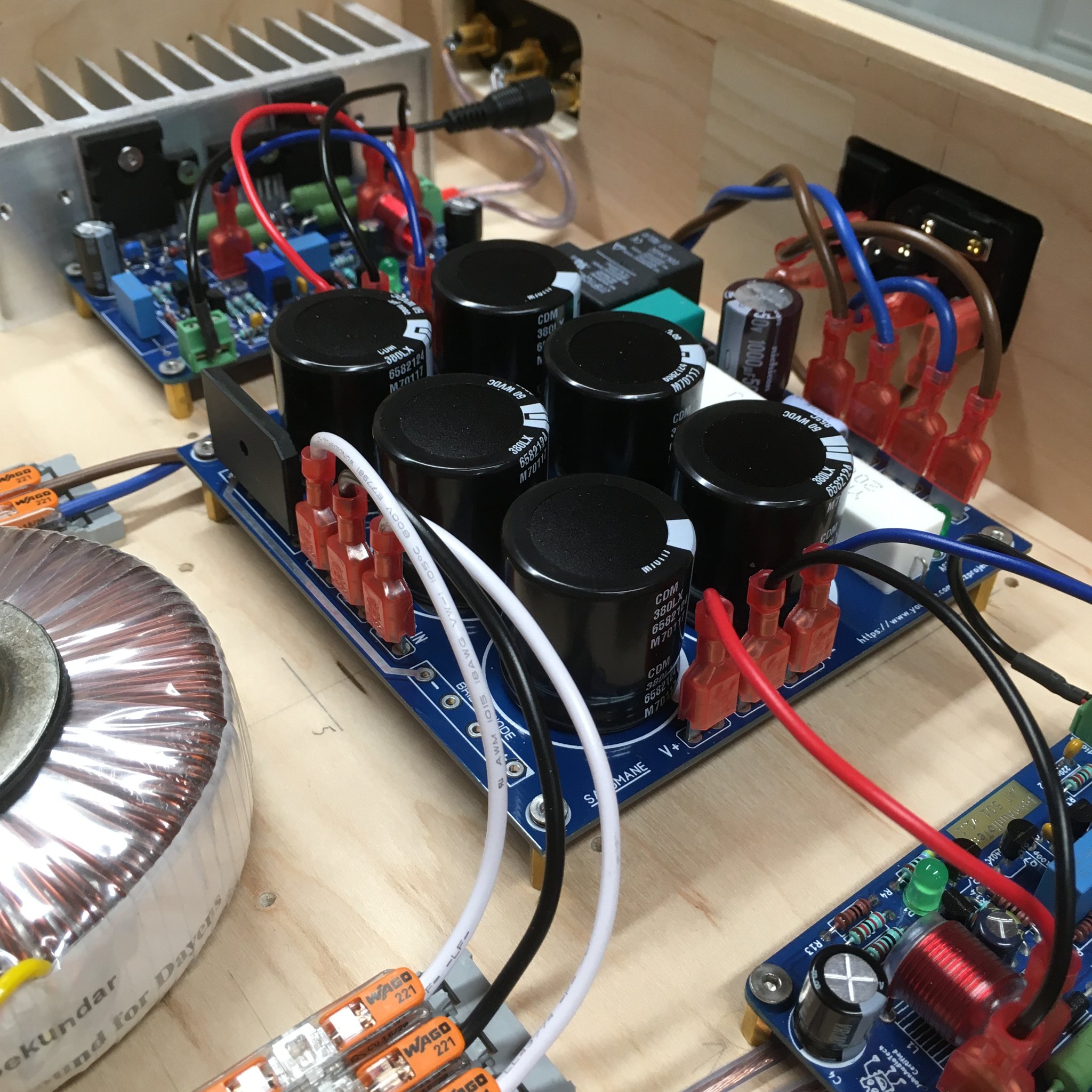

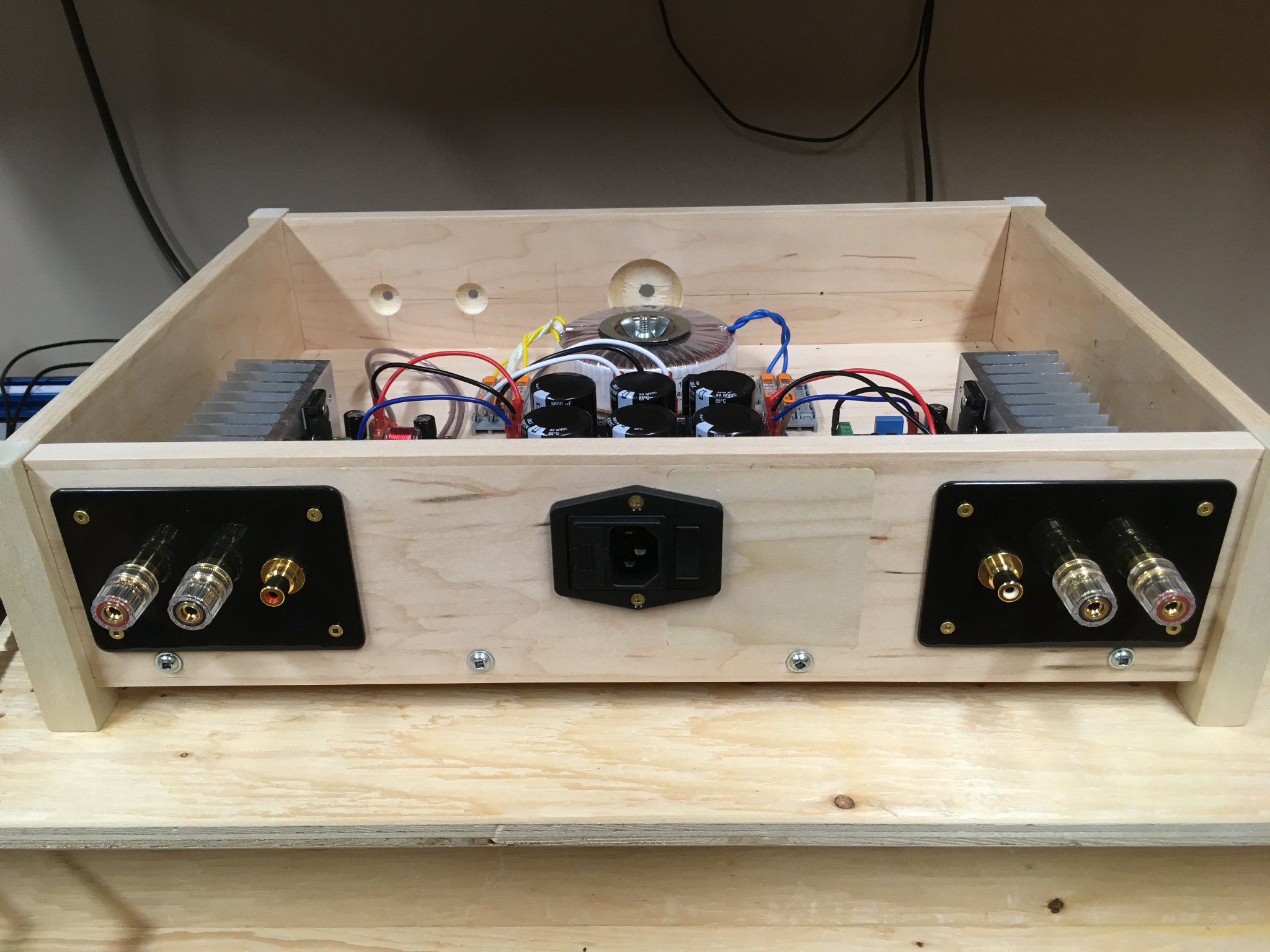

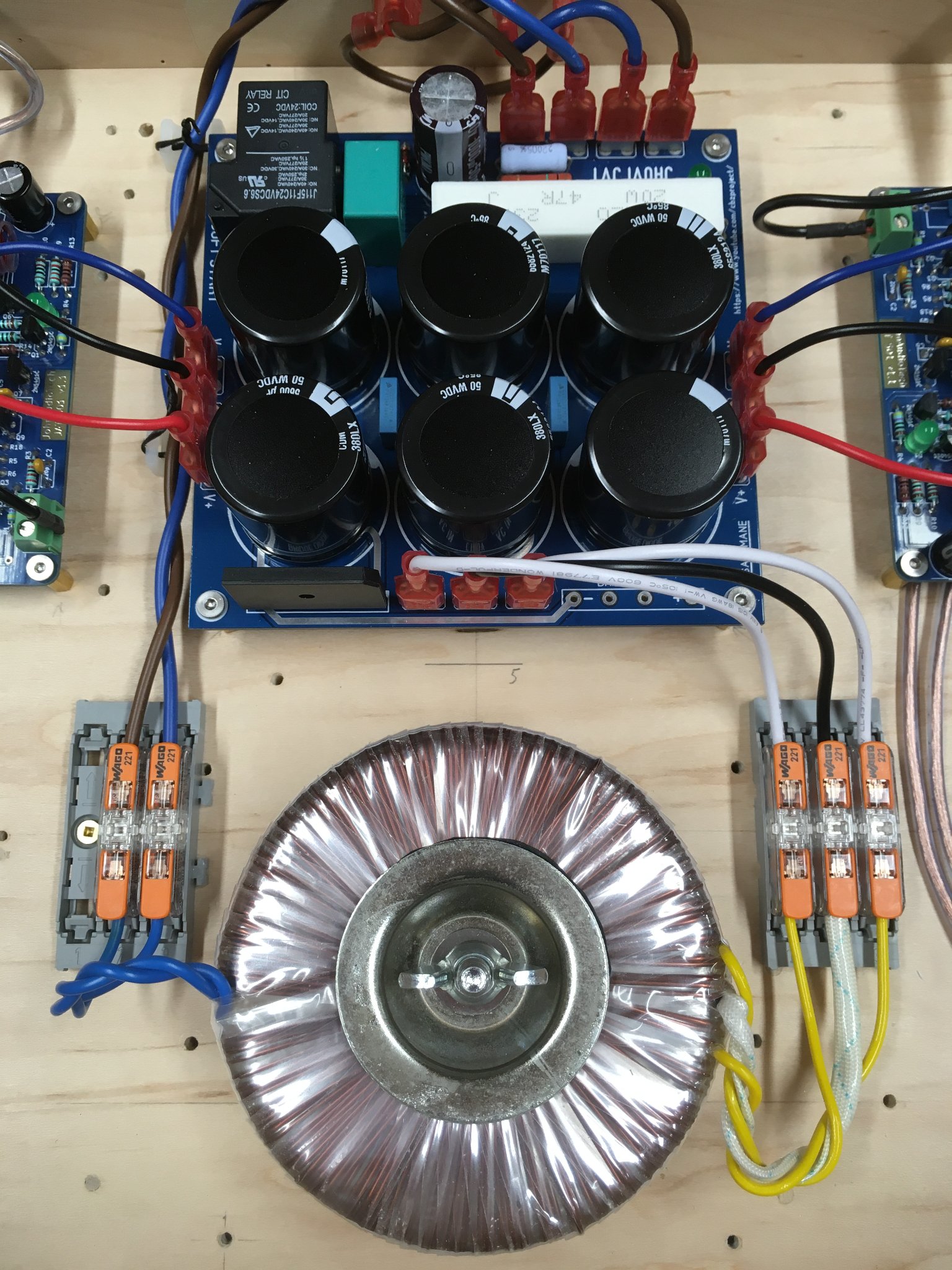

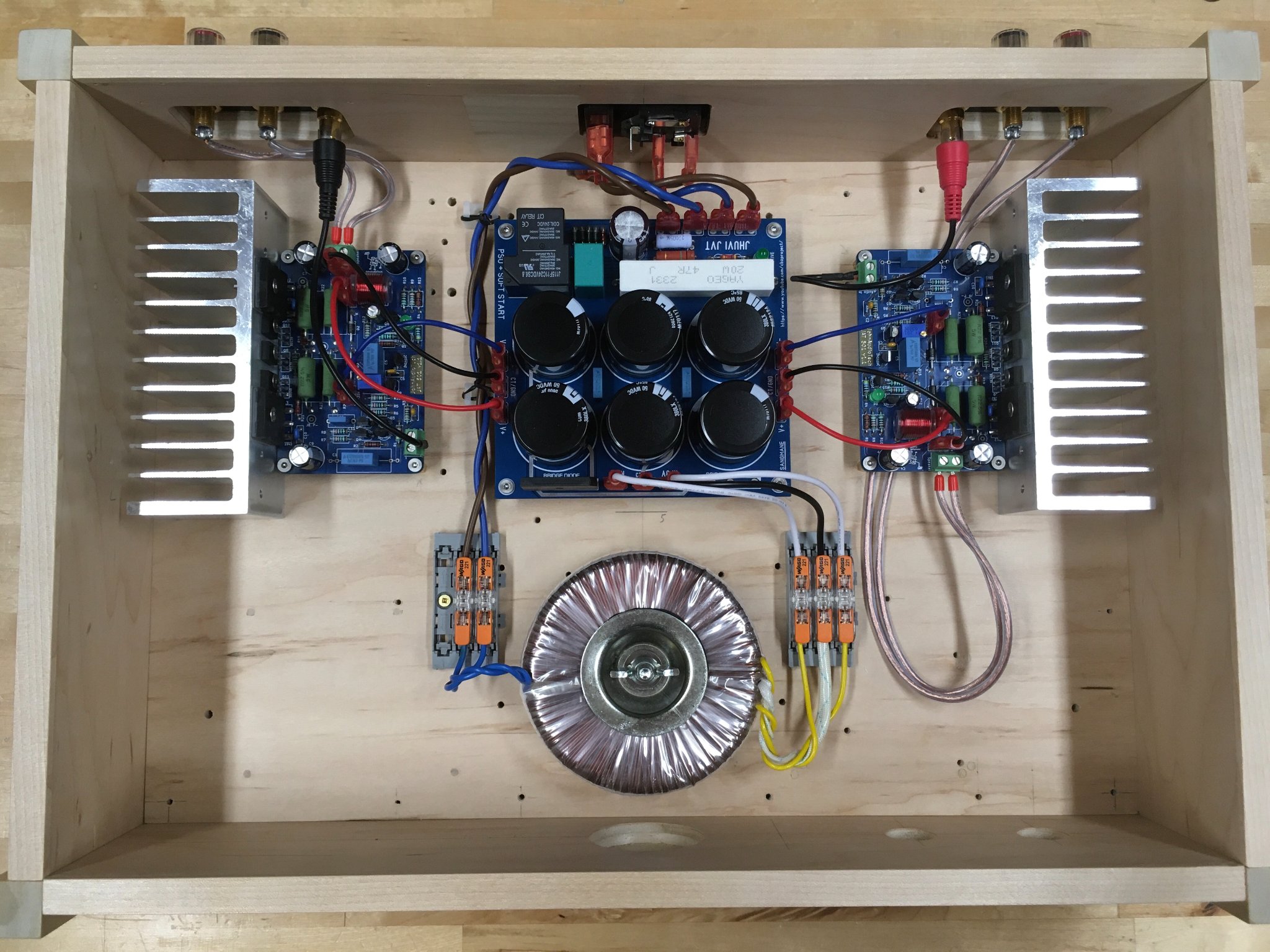

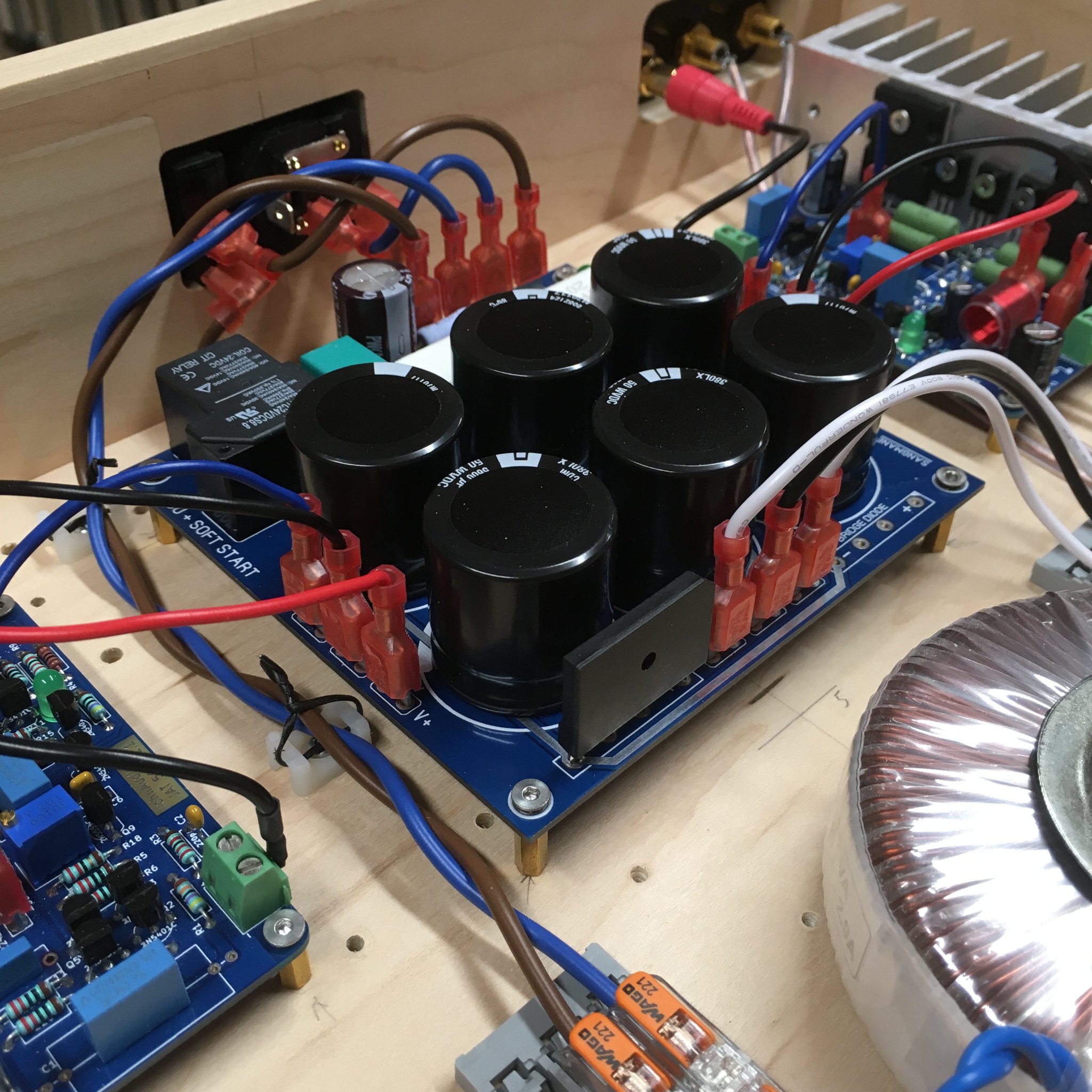

Example of the JAT501 boards and PSU board together in one project.



[spippy71]

The completed JAT501 and Power Supply boards shown in previous posts are available for purchase in a completed power amplifier. Listed on Canuck Audio Mart from seller ebunnube. See the following link for more information.

FOR SALE: JohnAudioTech JAT501 Class AB Amplifier Stereo Power Amp



[spippy71]

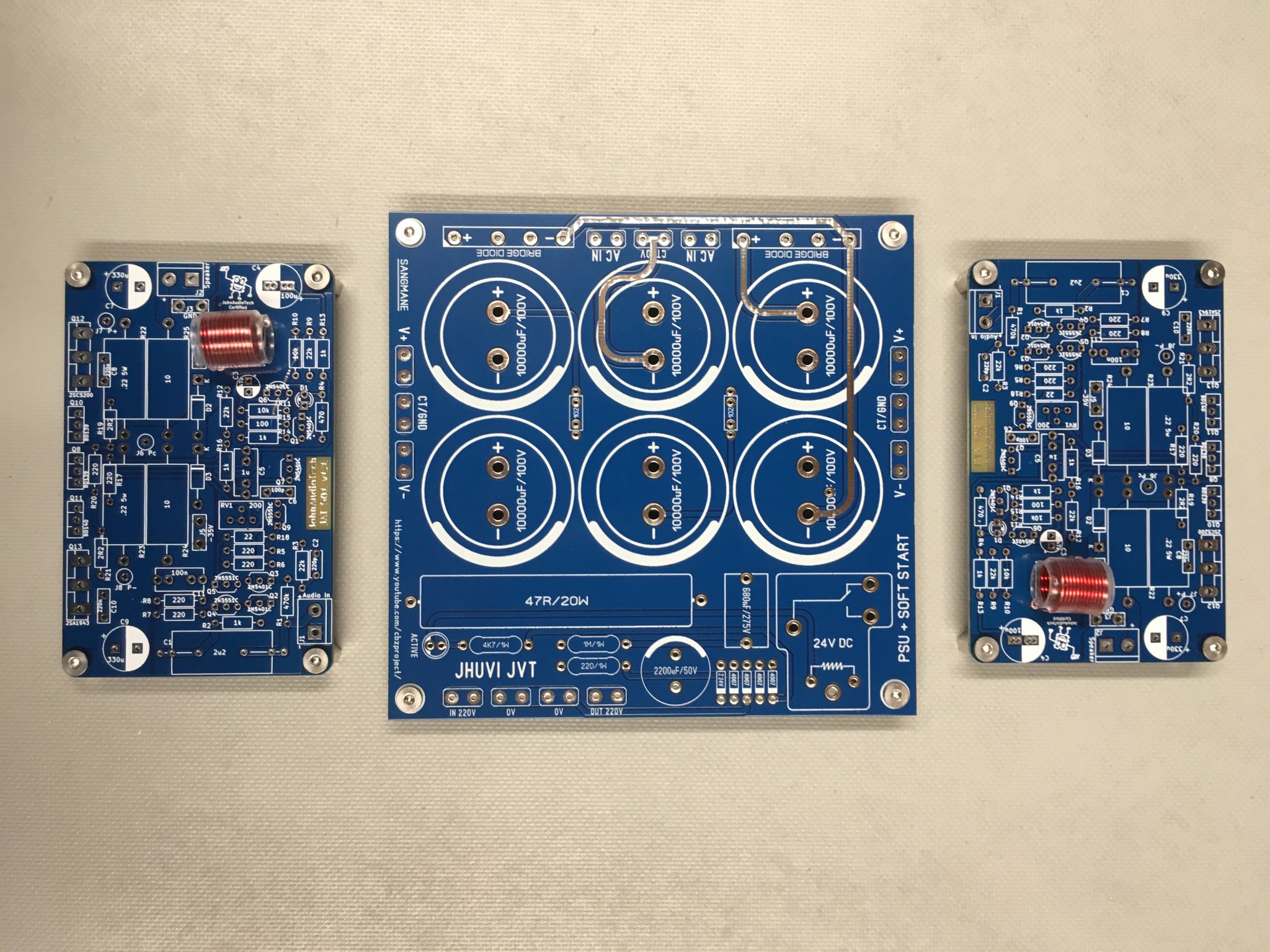

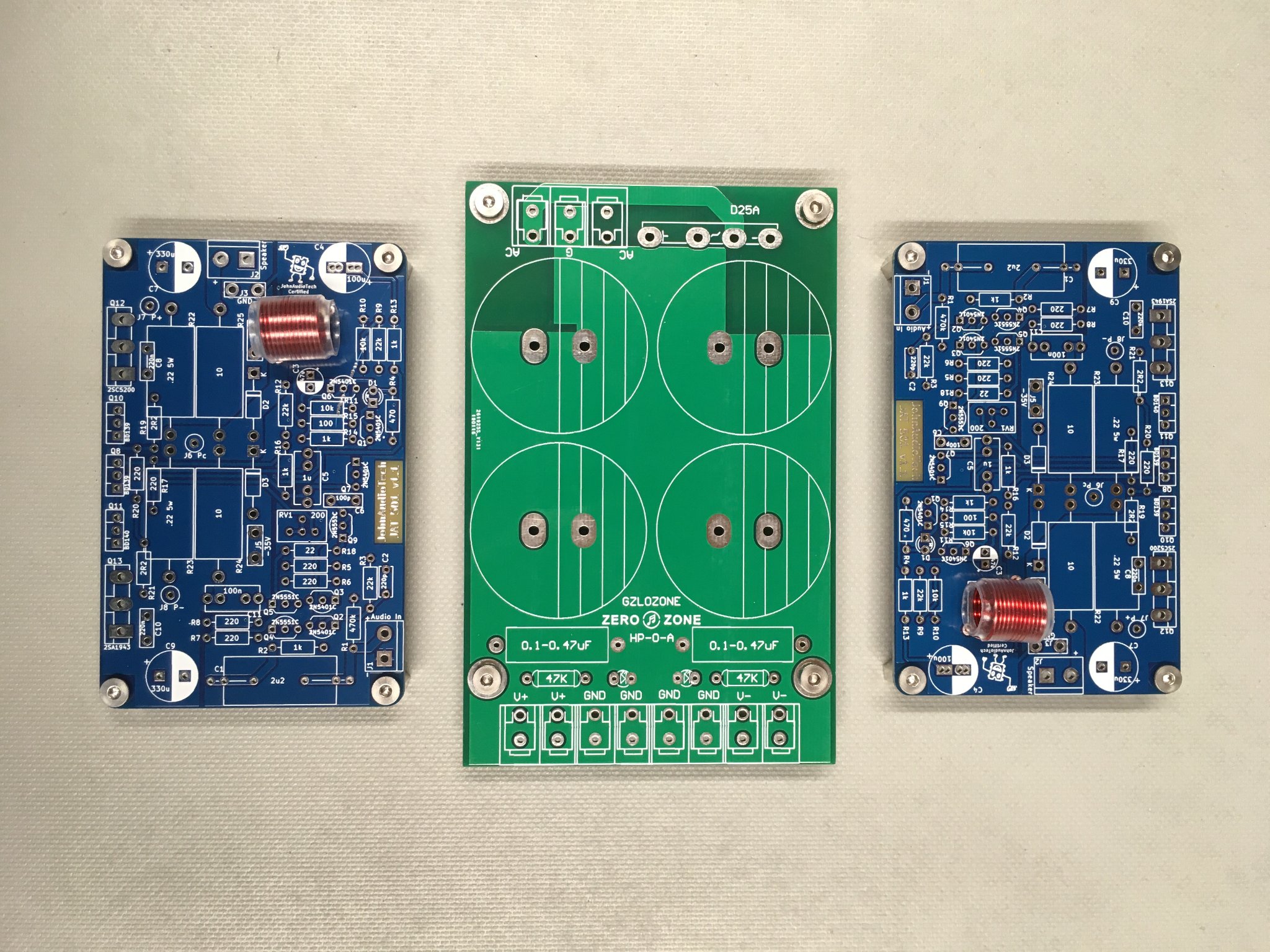

More options available:

1. JAT501 boards, coils, and CBZ Project PSU board with soft start.
2. JAT501 boards, coils, and ebay PSU board no soft start.

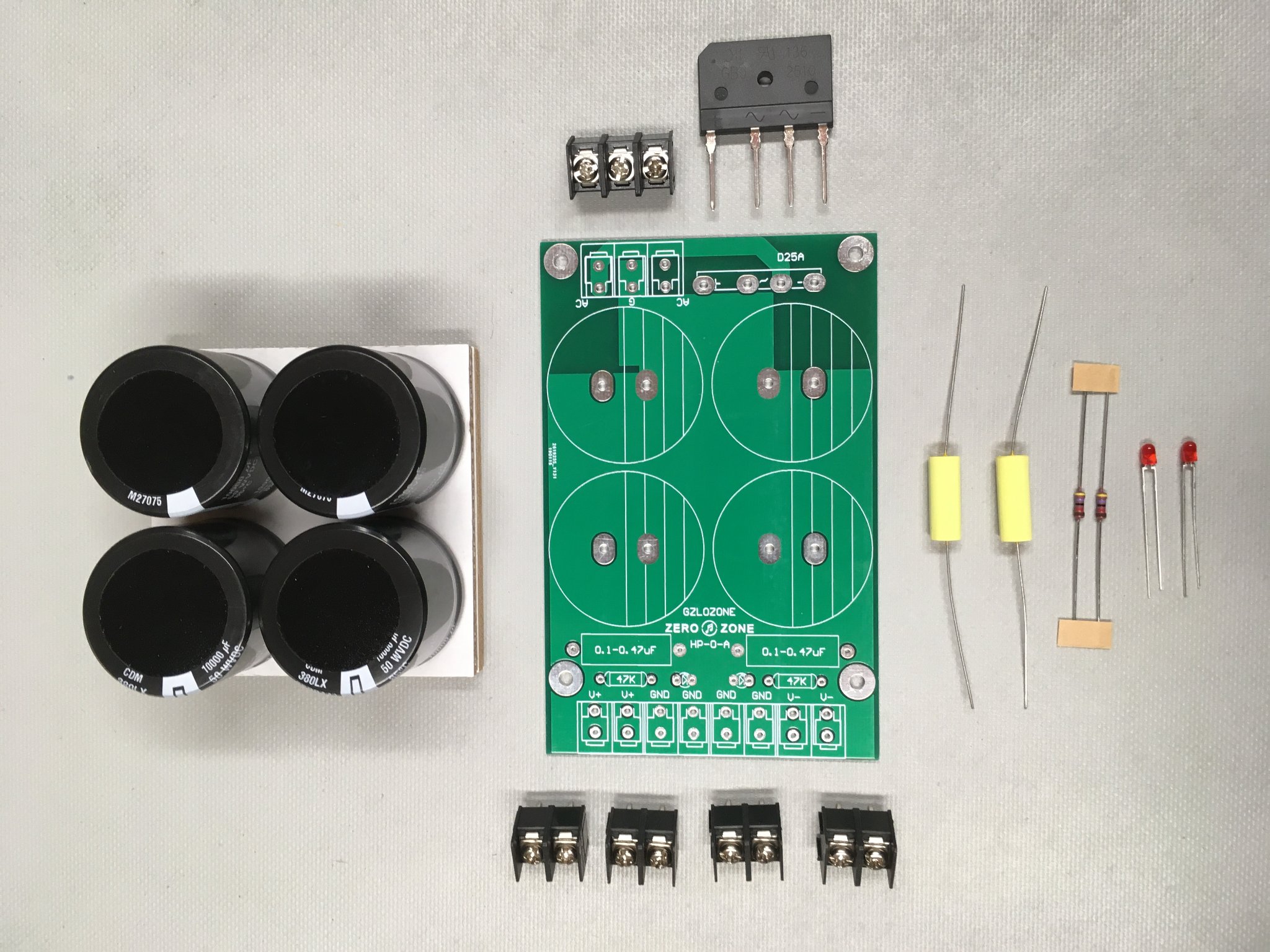

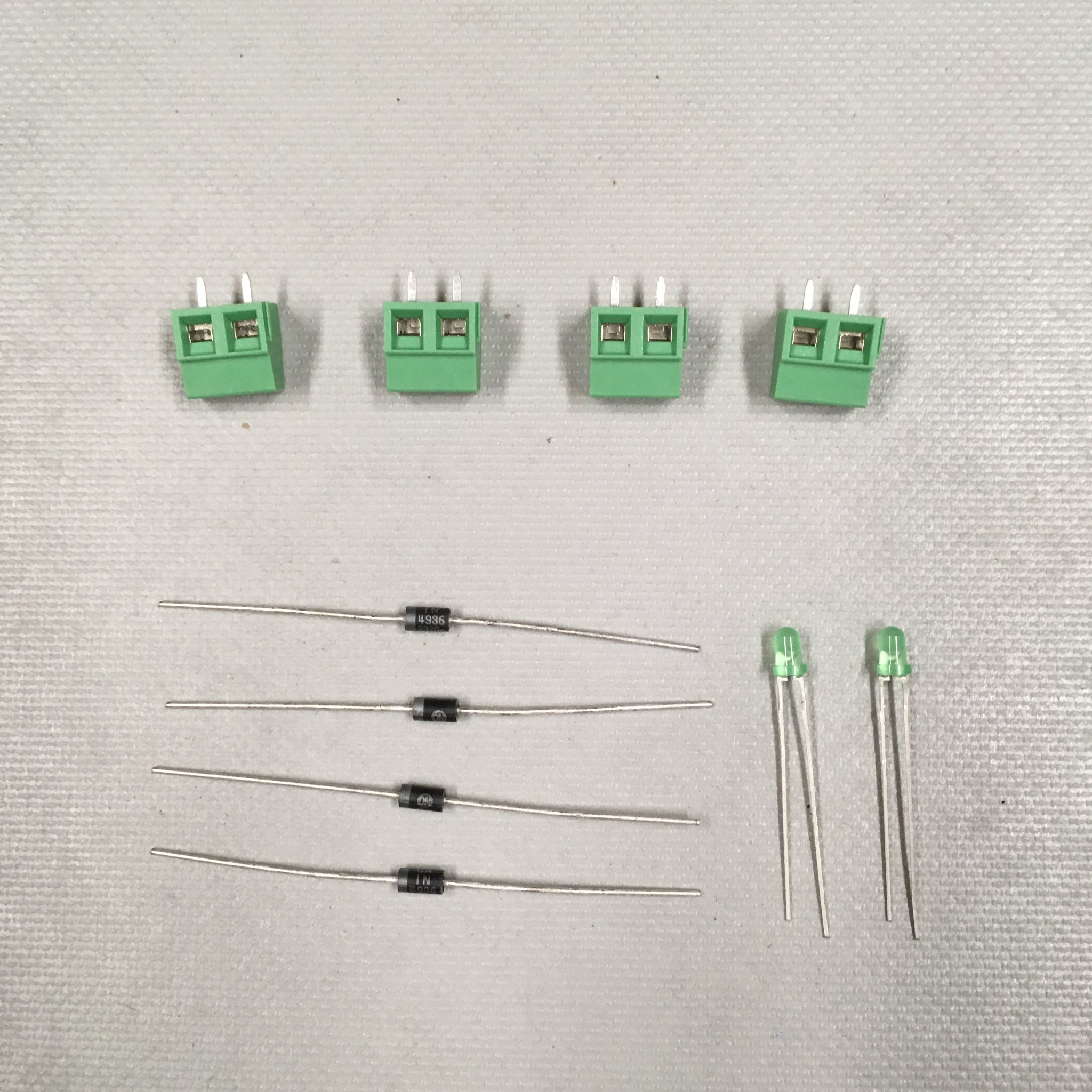

3. JAT501 boards, coils, and ebay PSU board no soft start. PSU board as a kit.



[pcjoe123]

4 of 5 pairs sold. Last final set remaining.
Made from JohnAudioTech's publicly available JAT501 gerber files. No modifications to John's design were made. Inline layout, board revision 1.1, two layer, double sided, and blue solder mask.

$10 Canadian plus shipping. This sale is not for profit. It is being offered as a service to the community. And to help promote John's channel.
