Sorry but if your class D is radiating rf then it a crap design... A class D amp is a modulated SMPS they can both be done so they don't radiate, CE and FCC get a bit tetchy about products that radiate...
That's where measurement comes in useful as well as good engineering practice...... And a basic understanding of rf and noise coupling mechanisms....
😀
I used to do warranty service on HK and my experience back then was 2RU or so high late 80's gold fronted integrated amps...I forget the model numbers.
I found their sound to be 'drive me out of the room' falsely 'sharp and detailed', and their typical failure mode of cracked solder joints due to high running temps did not endear me to them.
That said, I had a friend with an old school HK preamp with 5 band eq on the front panel driving HK Citation 16.
This combination running into chest high JBL's (I forget the model, L220 ?) did a wonderful job at a bunch of parties, with huge fat sound and dancin' on the tables all night until the sun came up 😉.
I have found/developed an interesting filter solution that makes anything sound good/pleasing/detailed/musical, so nowadays I just don't bother to get anal about any of this any more.
Dan.
I found their sound to be 'drive me out of the room' falsely 'sharp and detailed', and their typical failure mode of cracked solder joints due to high running temps did not endear me to them.
That said, I had a friend with an old school HK preamp with 5 band eq on the front panel driving HK Citation 16.
This combination running into chest high JBL's (I forget the model, L220 ?) did a wonderful job at a bunch of parties, with huge fat sound and dancin' on the tables all night until the sun came up 😉.
I have found/developed an interesting filter solution that makes anything sound good/pleasing/detailed/musical, so nowadays I just don't bother to get anal about any of this any more.
Dan.
Last edited:
Do they radiate rf? if so then there is something wrong. Most competent designs are done so they DONT radiate rf that's what EMC testing is for. As for IcePower don't have any of their stuff so cant comment on radiated rf.
Rayma posted a good link RE: Bruno Putzy AES presentation regarding EMI, I started a thread 2011 on switcher EMC design (didn't go far, around that time someone on another thread said this is DIY, EMC doesn't matter, so I gave up), there is a ton of info regarding good practice, especially layout out there.
Those that dis ferrites, which type of ferrite specifically should we be wary of in audio?
Rayma posted a good link RE: Bruno Putzy AES presentation regarding EMI, I started a thread 2011 on switcher EMC design (didn't go far, around that time someone on another thread said this is DIY, EMC doesn't matter, so I gave up), there is a ton of info regarding good practice, especially layout out there.
Those that dis ferrites, which type of ferrite specifically should we be wary of in audio?
I'll take your word for it Dan, I have a 10 year hole in my acquaintance with H/K 1980-1990, I have no idea what they did at that time. I sort of reconnected with them in 1991.
Given how good the self oscillating class D is, is anyone working on actual digital power amplifiers any more for high end stuff? Seems its a good old analog problem that just requires the embrace of as much NFB as you can get, then a good filter on the output.
Sure.
I don't have figures re IcePower, so I can't comment, except to say that ime I feel/know when they are powered/idling, ditto the Sony mixer-amp I mentioned.
Typical ferrites contain Manganese and Nickel, and these elements in direct contact/intake can be toxic.
I suspect/propose that Mg/Ni spectrum radiation can excite/enhance already present Mg/Ni in biological processes.
Dan.
You do realise this is horribly close to the studies on teachers who complained that the wifi gave them headaches? Kudos if you can hear 300kHz of course 🙂
You'll be dangling crystals over your food next!
I regularly put crystals on my food, don't you? Or do Brits really only eat bland food? 🙂
I think you might be getting a little out of your element here. NMR frequencies are somewhat higher that the audio band.
That and warm beer.
https://www.youtube.com/watch?v=vWkUbyjEsTY This may not transfer too well, but hilarious if you know anything about UK friday night habits.
Dan, there's another interpretation of that old adage;
He who laughs last, is not being serious. 😀
Sleep, good diet, generally staying healthy (exercise + prior two). Pick your parents wisely.
This discussion about the possibility for a single driver (no passive cross-over interfering) to show a Z lower than it’s DC resistance makes me scratch my head.
With the means I have and under the restrictions (if any) of sinusoidal continuous excitation, I tried to test the idea that an external force due to adverse acoustic loading may make the moving assy resist the action of the Lorenz force in an awkward way and reduce the Z of the coil below it’s RDC value.

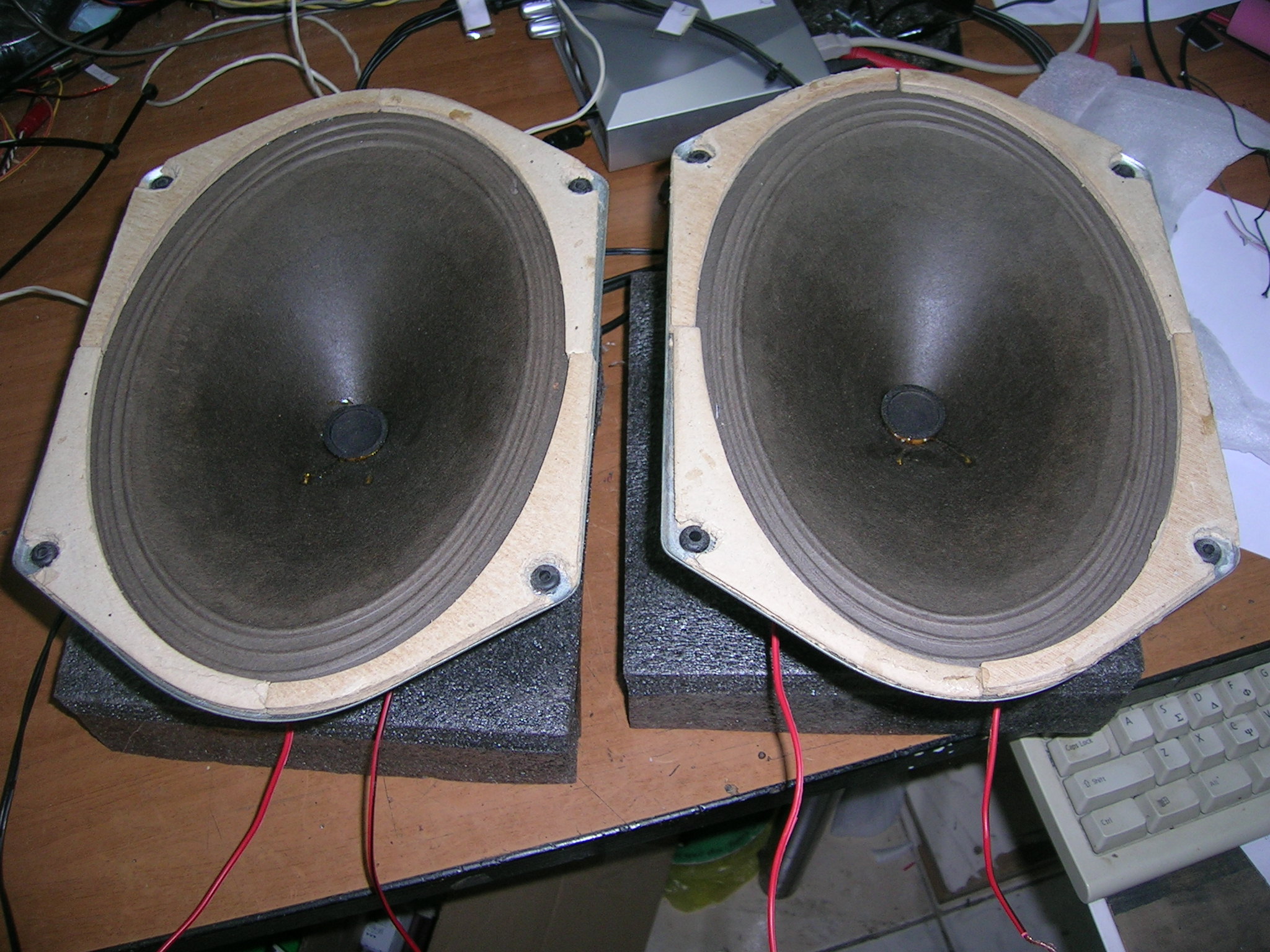

I took impedance plots from two bare drivers of the same type connected in all possible combinations on air (not boxed).

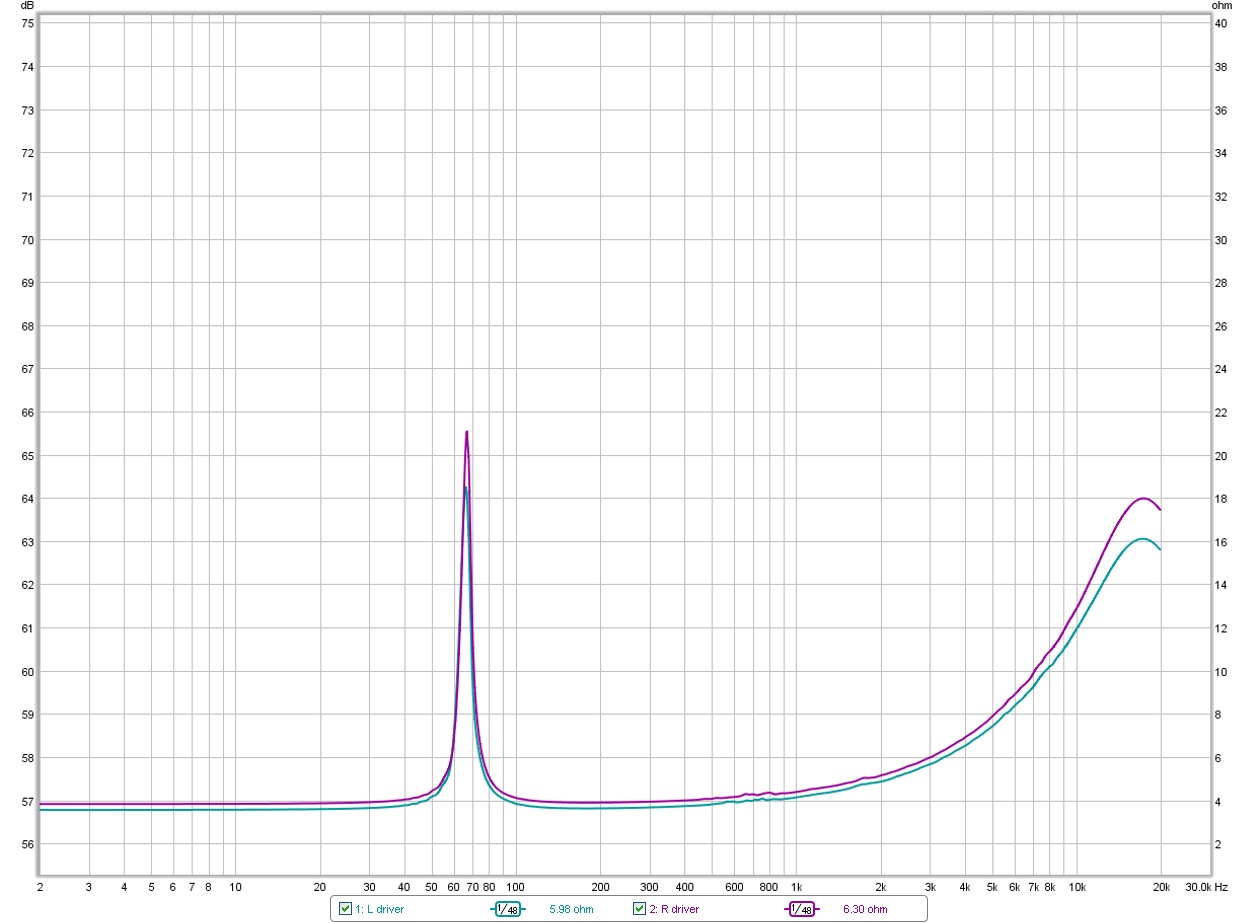

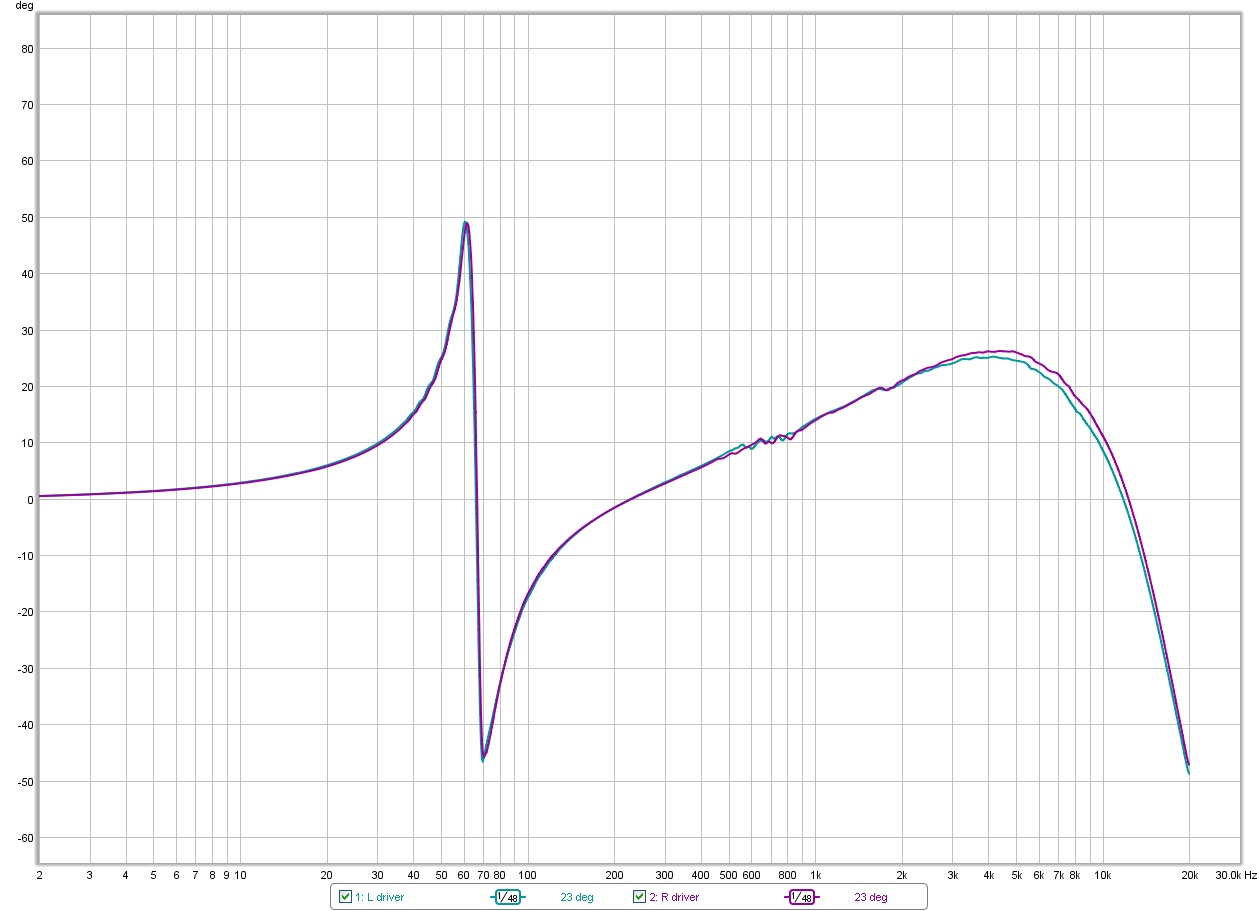

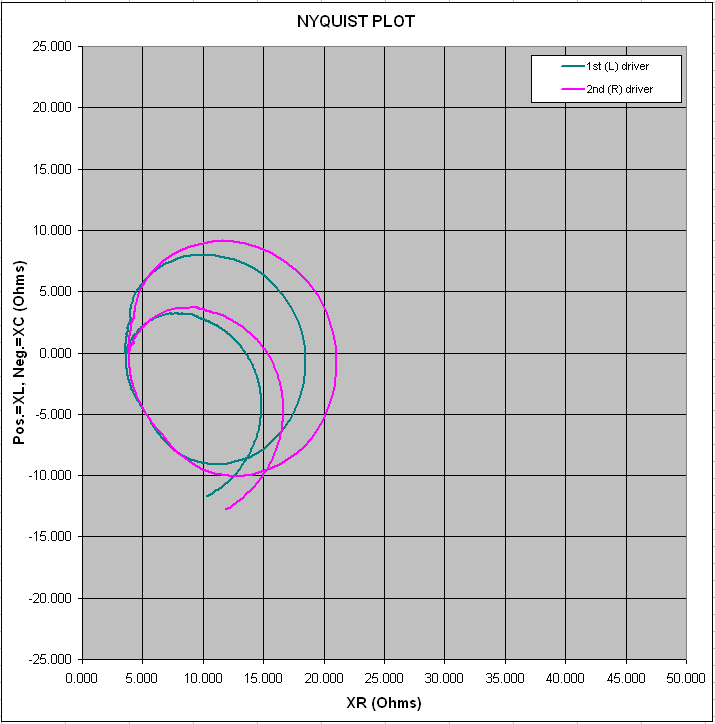

I) Each one single.

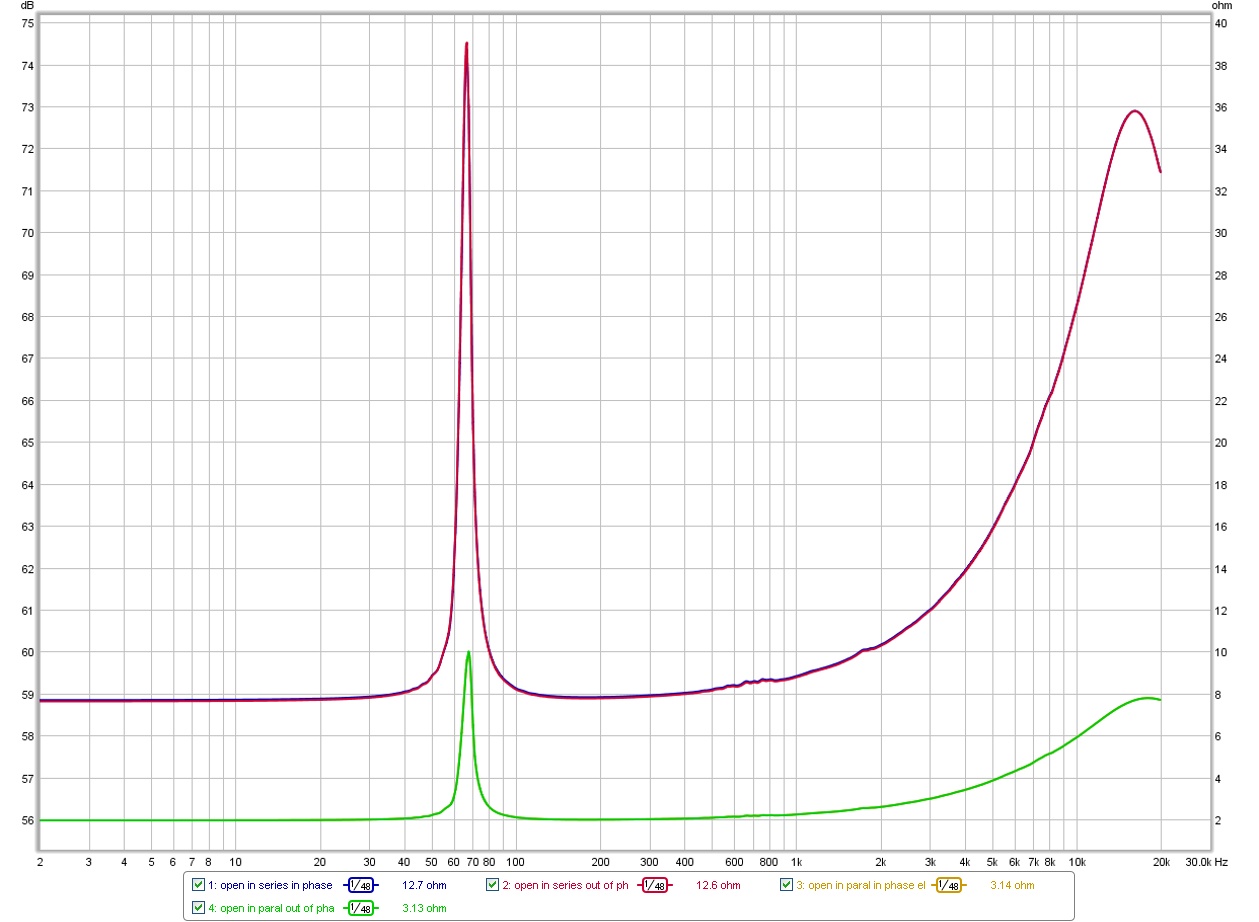

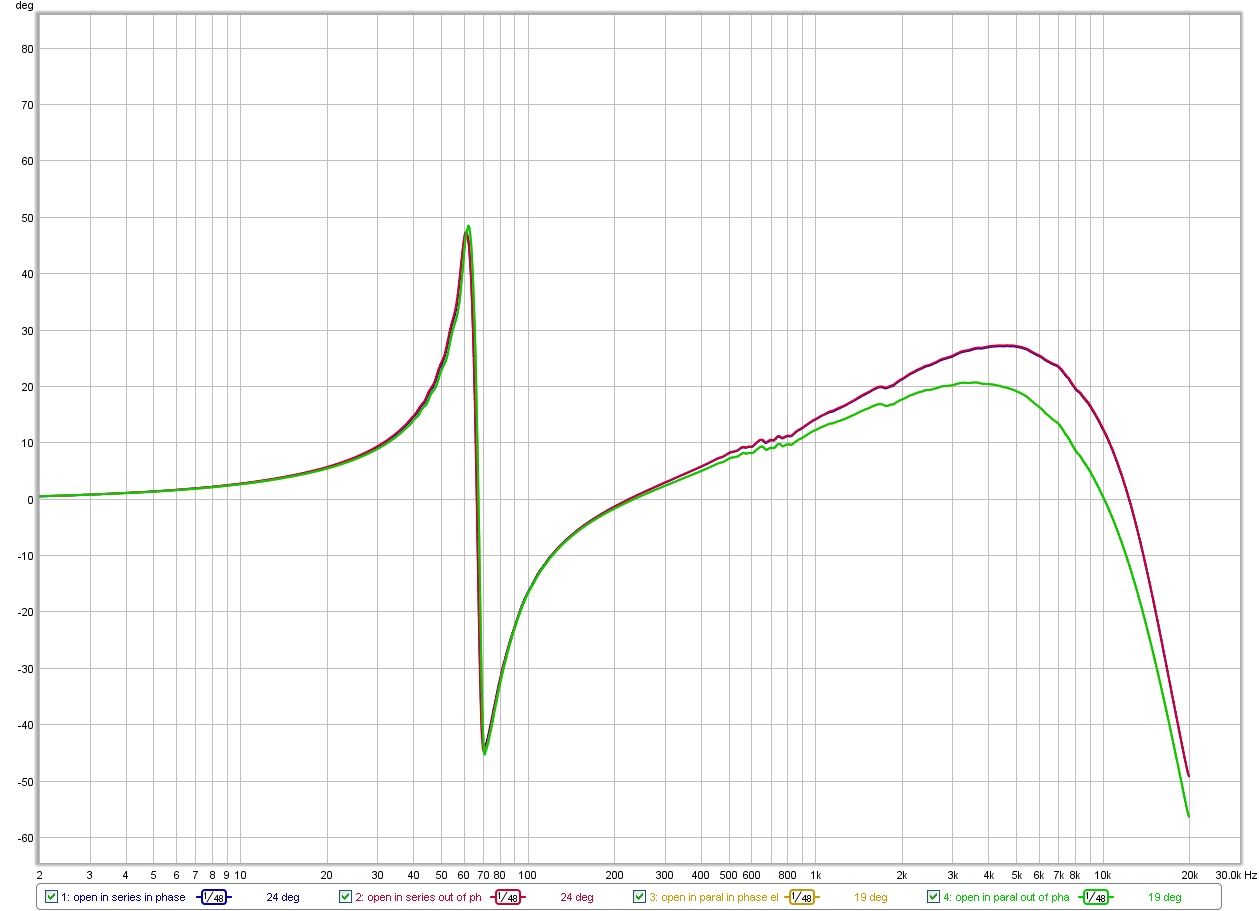

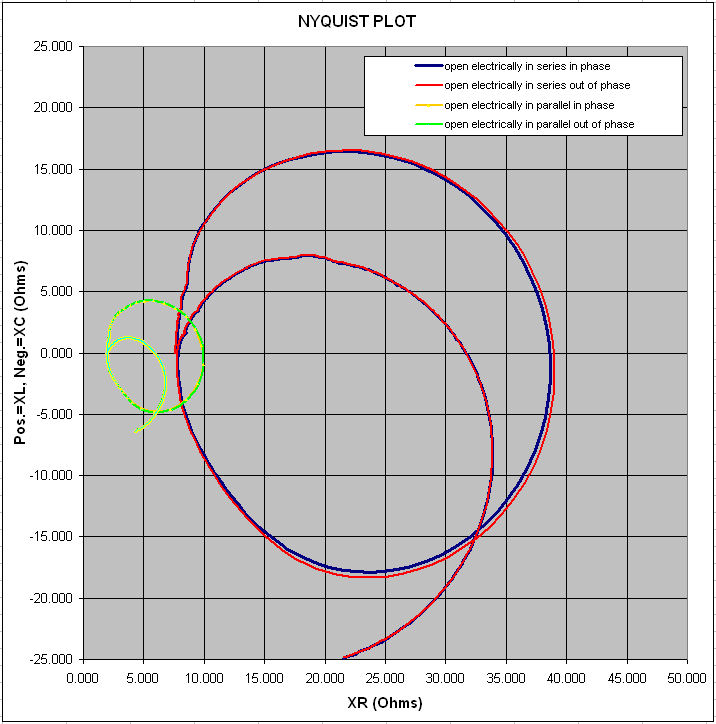

II) Both physically placed at a distance to each other to reduce acoustic coupling and electrically connected in series
IIa1) in phase and
IIa2) out of phase.
Then electrically connected in parallel
IIb1) in phase and
IIb2) out of phase.

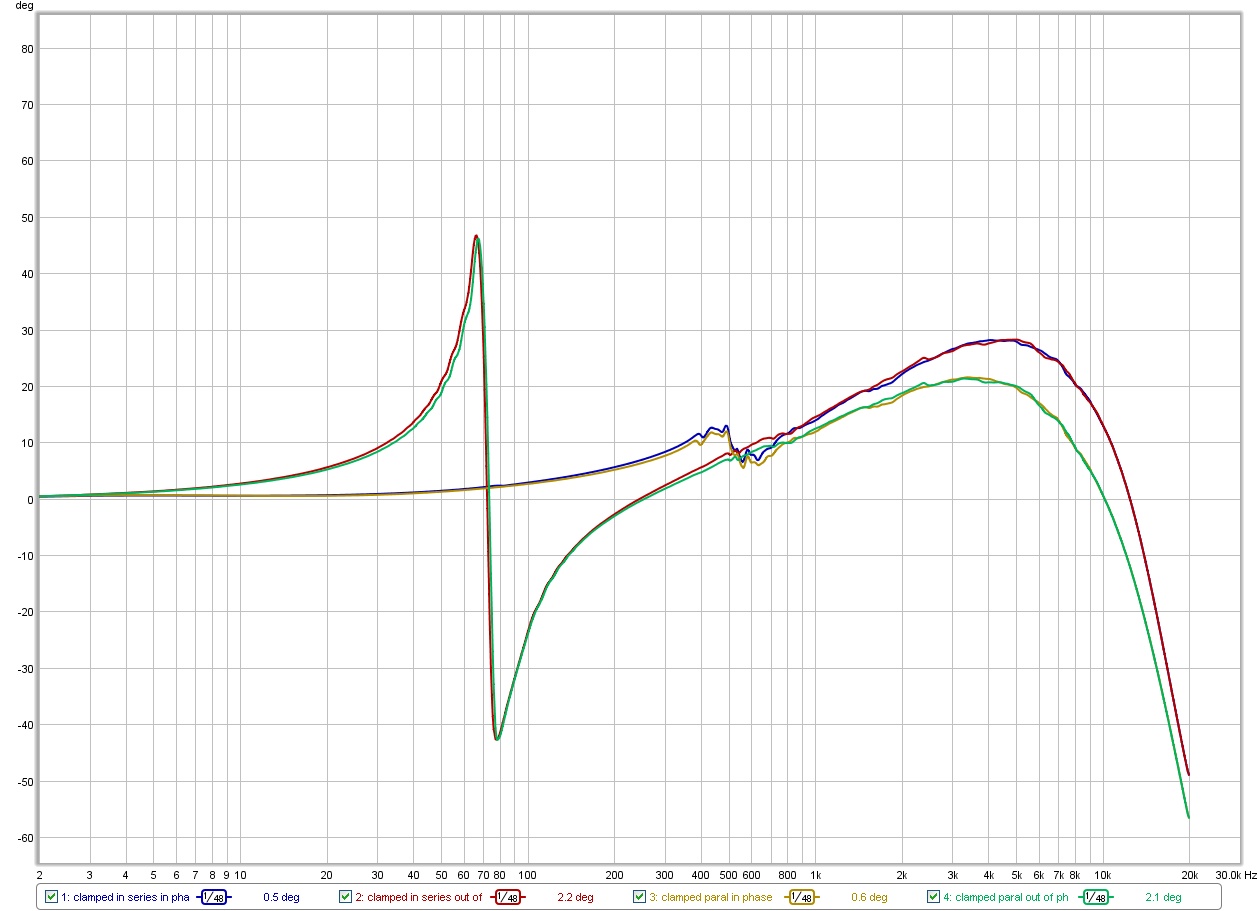

III) Both physically placed face to face, clamped against each other to maximise acoustical coupling and electrically connected in series
IIIa1) in phase and
IIIa2) out of phase.
Then electrically connected in parallel
IIIb1) in phase and
IIIb2) out of phase.
DC resistance as measured with a Keithley 175 bench multimeter is
1st driver: 3.53 Ohm
2nd driver: 3.84 Ohm
Drivers in series: 7.4 Ohm
Drivers in parallel: 1.86 Ohm
By looking at the impedance plots, there is no case which shows an impedance lower than the DCR of the respective electrical connection.

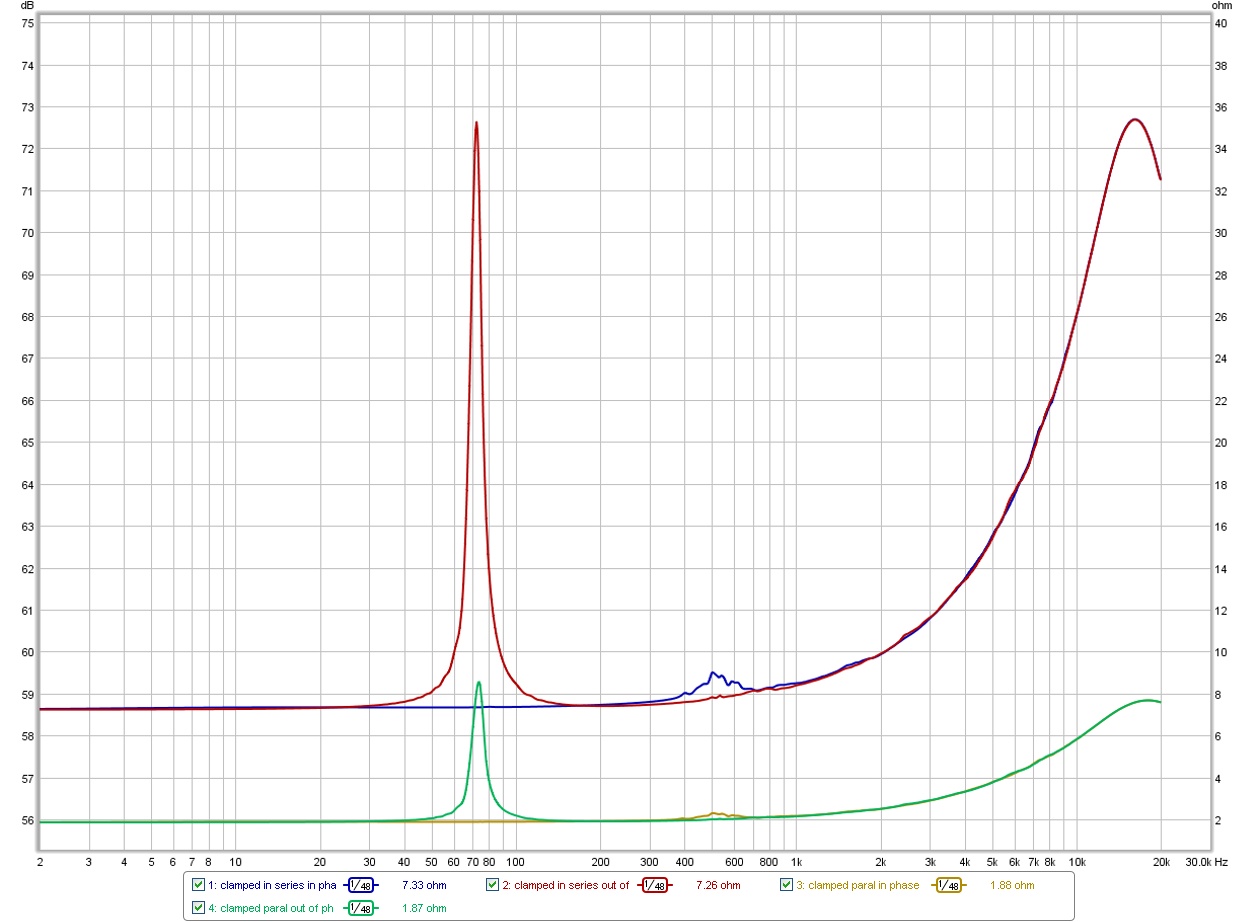

Arrangement III (speakers face to face, clamped against each other) presents a strong acoustic coupling of the cones.
When coils are electrically connected in phase, cones are moving in opposite directions and so acoustic loading hinders cone movement, thus no impedance peak at resonance.
The motional impedance at resonance is nullified, the Z drops down to the DCR value.
George
With the means I have and under the restrictions (if any) of sinusoidal continuous excitation, I tried to test the idea that an external force due to adverse acoustic loading may make the moving assy resist the action of the Lorenz force in an awkward way and reduce the Z of the coil below it’s RDC value.
I took impedance plots from two bare drivers of the same type connected in all possible combinations on air (not boxed).
I) Each one single.
II) Both physically placed at a distance to each other to reduce acoustic coupling and electrically connected in series
IIa1) in phase and
IIa2) out of phase.
Then electrically connected in parallel
IIb1) in phase and
IIb2) out of phase.
III) Both physically placed face to face, clamped against each other to maximise acoustical coupling and electrically connected in series
IIIa1) in phase and
IIIa2) out of phase.
Then electrically connected in parallel
IIIb1) in phase and
IIIb2) out of phase.
DC resistance as measured with a Keithley 175 bench multimeter is
1st driver: 3.53 Ohm
2nd driver: 3.84 Ohm
Drivers in series: 7.4 Ohm
Drivers in parallel: 1.86 Ohm
By looking at the impedance plots, there is no case which shows an impedance lower than the DCR of the respective electrical connection.

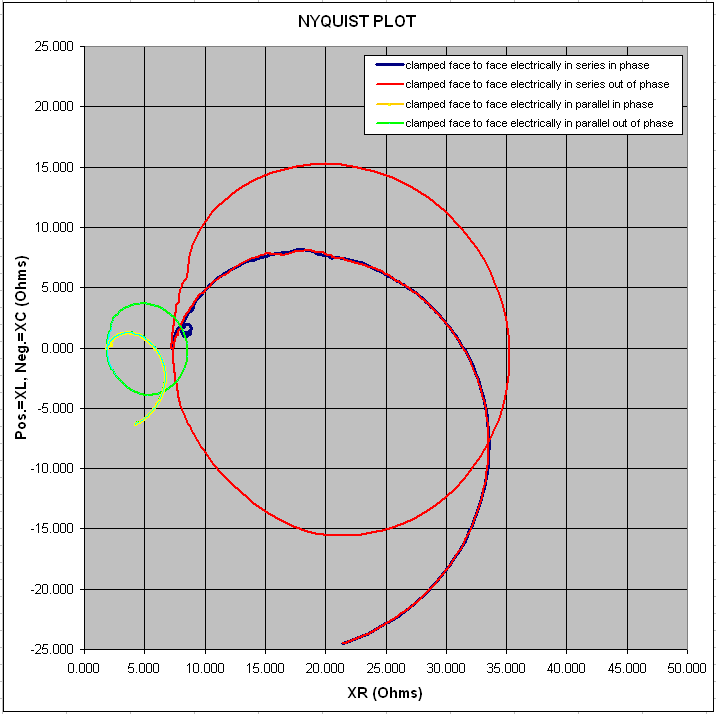

Arrangement III (speakers face to face, clamped against each other) presents a strong acoustic coupling of the cones.
When coils are electrically connected in phase, cones are moving in opposite directions and so acoustic loading hinders cone movement, thus no impedance peak at resonance.
The motional impedance at resonance is nullified, the Z drops down to the DCR value.
George
