hello everybody!
if you wouldn't mind, I really need some/your help, please. I am trying to trace the impedance curves for Eminence Beta 12A and Fane Sovereign 12-300 but, no matter which software I've been using, (vituixcad, spltrace and another one whose name i can't recall now) couldn't get it right. could anybody help me, please?
thank you in advance
if you wouldn't mind, I really need some/your help, please. I am trying to trace the impedance curves for Eminence Beta 12A and Fane Sovereign 12-300 but, no matter which software I've been using, (vituixcad, spltrace and another one whose name i can't recall now) couldn't get it right. could anybody help me, please?
thank you in advance
Attachments
Last edited:
Use the Tracing tool in VituixCAD .
It's by far the best ( the rest aren't worth the effort ).
VituixCAD also creates + exports a phase trace that's lacking in most others.

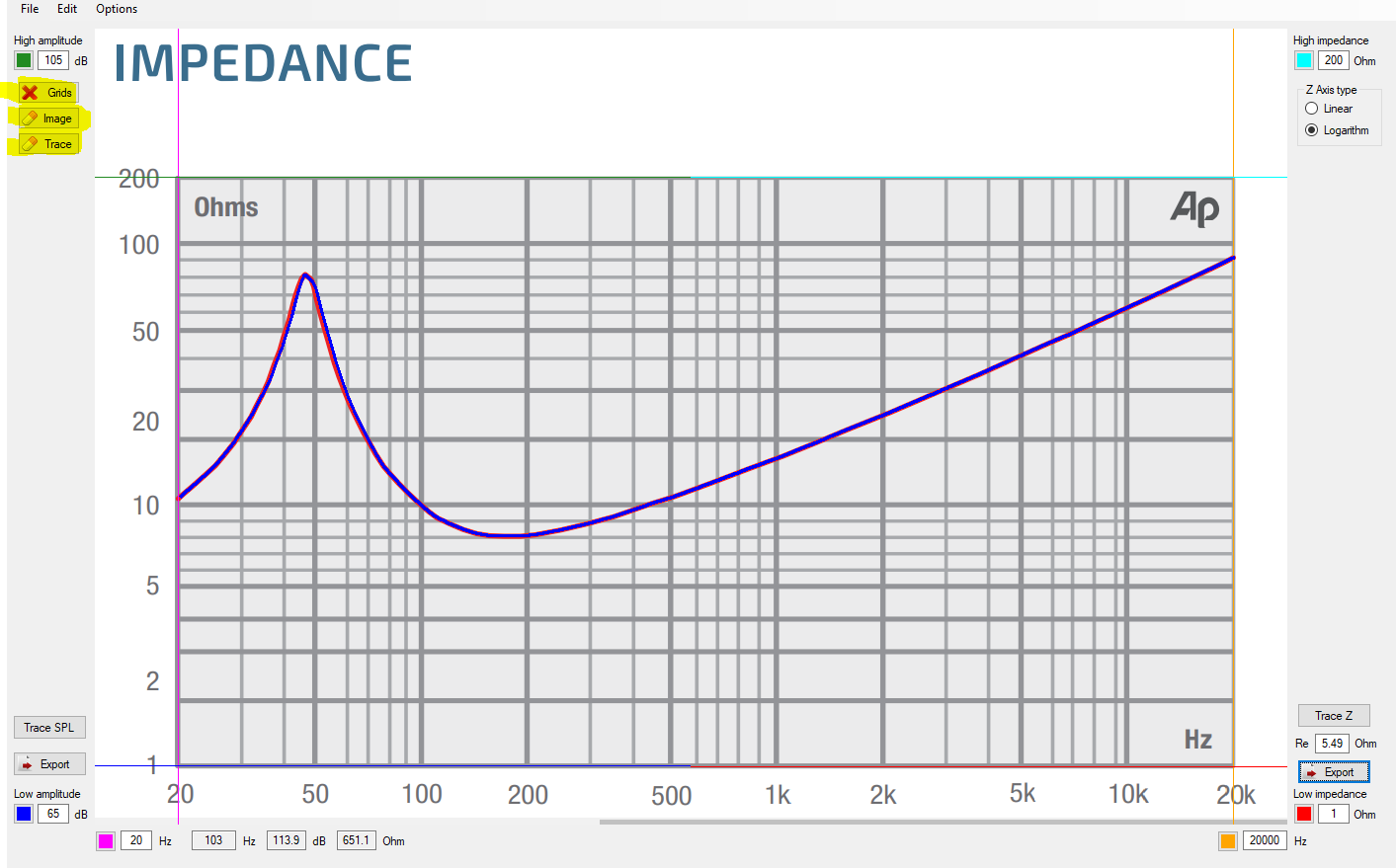

Learn to use its extra 3 picture tools which are found in the upper left hand area of the window ( highlighted in yellow in my posted pic of the FANE 12 ).
For the first pic that you posted, you'll need to use the "Grid Removal" tool ( since the impedance trace is the same color as the grid ).
The second pic that you posted is for a Fane 10" ( btw ).
- In the 2nd pic there shouldn't be any problem getting a clean trace when the printed trace is such a different color ( red in this case ).
- Maybe it's in your setup ( see my pic as to how to get this to trace properly and spit ought good numbers ).
I'll post files tomorrow if you can't get it together by then ( learn how to fish, etc. etc. etc. )
🙂
It's by far the best ( the rest aren't worth the effort ).
VituixCAD also creates + exports a phase trace that's lacking in most others.
Learn to use its extra 3 picture tools which are found in the upper left hand area of the window ( highlighted in yellow in my posted pic of the FANE 12 ).
For the first pic that you posted, you'll need to use the "Grid Removal" tool ( since the impedance trace is the same color as the grid ).
The second pic that you posted is for a Fane 10" ( btw ).
- In the 2nd pic there shouldn't be any problem getting a clean trace when the printed trace is such a different color ( red in this case ).
- Maybe it's in your setup ( see my pic as to how to get this to trace properly and spit ought good numbers ).
I'll post files tomorrow if you can't get it together by then ( learn how to fish, etc. etc. etc. )
🙂
Attachments
There is also an instruction video: vituixcad spl trace
VituixCAD SPL Trace (1.1.18.1 or later) - YouTube
VituixCAD SPL Trace (1.1.18.1 or later) - YouTube

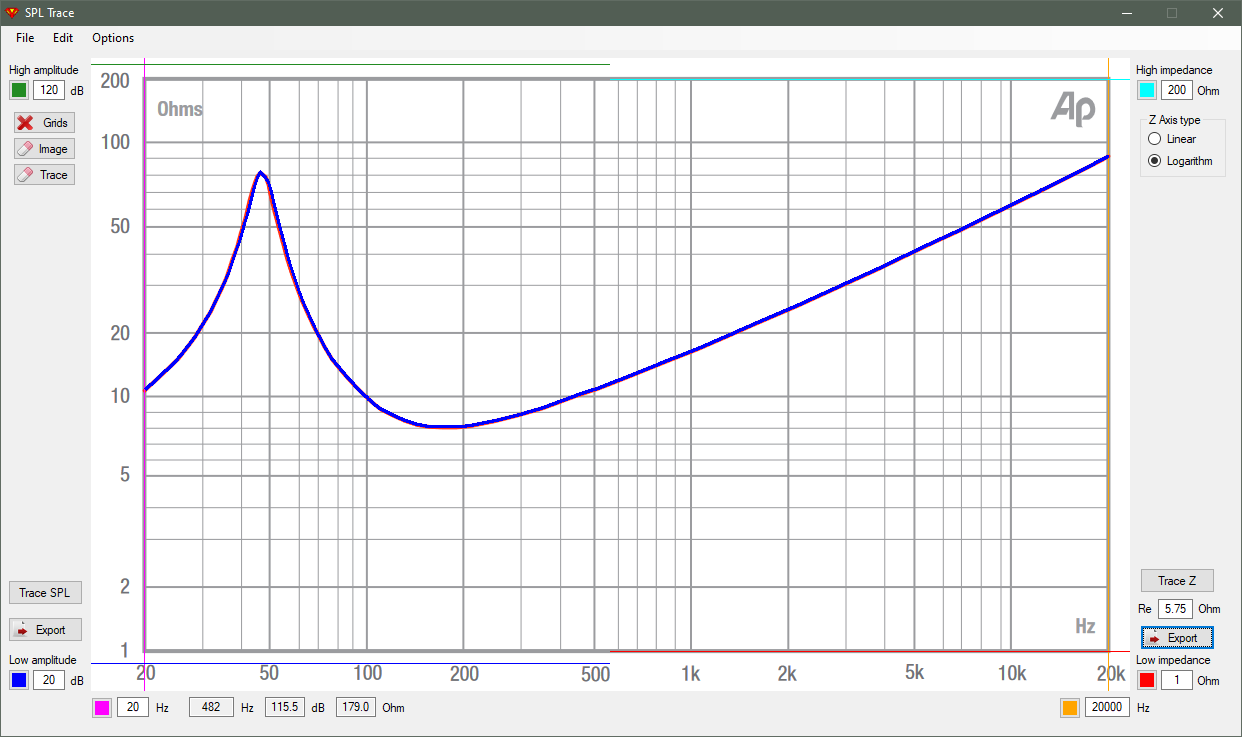

Settings for ZR tracing Fane with VCAD2. Note that Re is entered after tracing, just before clicking Export ZR.
Attachments
Last edited:
Thank you all! My problem was the Z axis which was set as linear instead of logarithmic.
