ScanaQuad SQ200 (IKALOGIC) 4-channels 200MHz

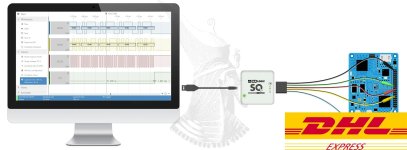

ScanaQuad (SQ) is a series of high performance 4 channels logic analyzers and digital pattern generators. They are designed to be your best companion when working on serial protocols like UART, SPI, I2C, 1-Wire, USB, I2S, CAN, LIN, RS232, RS485, and more. With ScanaQuad Logic Analyzers, you can capture signals, you can play them back, and you can even build genuine test signals and generate them!
Being able to capture and generate logic patterns simultaneously with the same tool, is extremely useful when debugging Logic signals, and it only comes with ScanaQuad.
RoHS Compliant 2011/65/EC. This device does not contain any of the substances in excess of the maximum concentration values (“MCVs”) defined in the EU RoHS Directive.
Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B) / NMB-3 (B)
ScanaQuad (SQ) is a series of high performance 4 channels logic analyzers and digital pattern generators. They are designed to be your best companion when working on serial protocols like UART, SPI, I2C, 1-Wire, USB, I2S, CAN, LIN, RS232, RS485, and more. With ScanaQuad Logic Analyzers, you can capture signals, you can play them back, and you can even build genuine test signals and generate them!
Being able to capture and generate logic patterns simultaneously with the same tool, is extremely useful when debugging Logic signals, and it only comes with ScanaQuad.
All ScanaQuad devices have 4 channels. They can Capture digital signals, Generate digital patterns, or do both simultaneously.
UNIQUE FEATURES, UNIQUE PRICE TAG
MIXED MODE OPERATION
The ability to capture and generate signals simultaneously open a whole new set of perspectives when it comes to debugging your electronic project.
DECODE AND ANALYZE
Analyze protocols with software tools that gives you a global views of your data and helps you to identify bugs quickly.
ADVANCED TRIGGER
Enjoy a versatile trigger system that can target a specific UART byte, I2C address or any other sophisticated data pattern.
TRIGGER OUT capability to their logic analyzers!

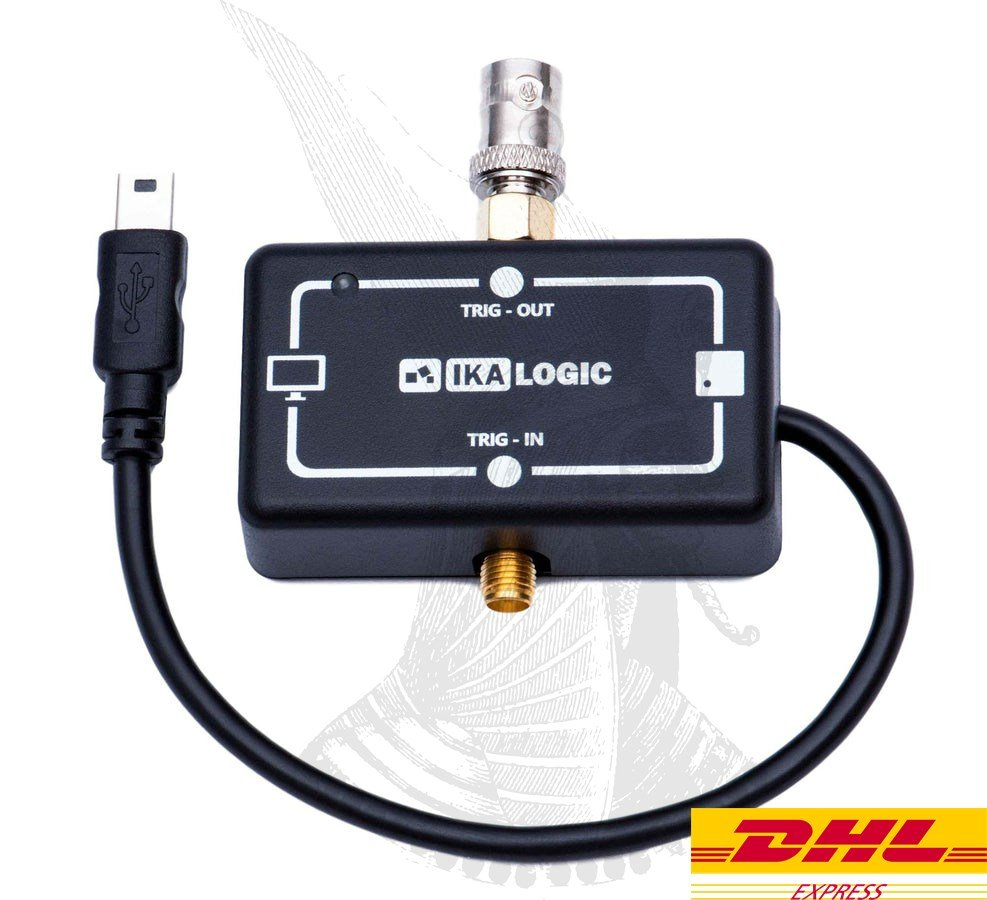

As the name implies, it adds Trigger IN/OUT capability to the existing range of ScanaQuad logic analyzers. The way it works is quite simple: A special synchronization signal is exposed to the 5th pin of the USB connector, and a custom (5 wires) USB cable is used to get that sync signal to TrigBox. Adequate circuitry then provides deterministic propagation delays as well as 50 Ohm drive capability on the Trigger OUT line.

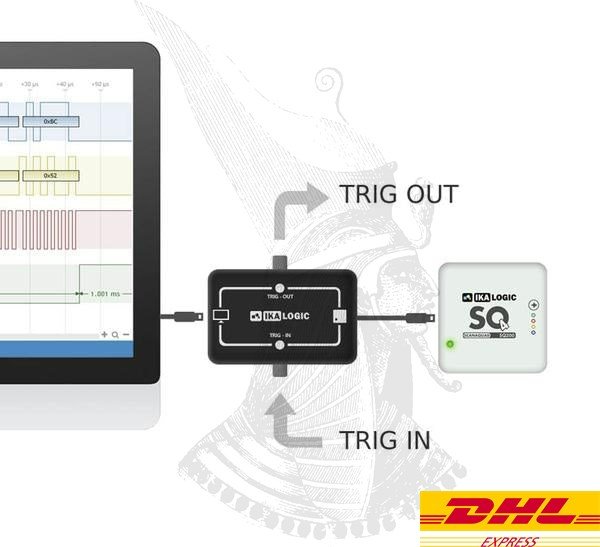

TrigBox allows ScanaQuad to sync with any existing instrument. For instance, you can use the ScanaQuad to trigger an oscilloscope on a specific protocol feature. Alternatively, you can use trigger IN feature of TrigBox to let ScanaQuad start capturing signals according to another instrument in your lab.
ScanaQuad (SQ) is a series of high performance 4 channels logic analyzers and digital pattern generators. They are designed to be your best companion when working on serial protocols like UART, SPI, I2C, 1-Wire, USB, I2S, CAN, LIN, RS232, RS485, and more. With ScanaQuad Logic Analyzers, you can capture signals, you can play them back, and you can even build genuine test signals and generate them!
Being able to capture and generate logic patterns simultaneously with the same tool, is extremely useful when debugging Logic signals, and it only comes with ScanaQuad.
LEGAL Information
Complies with the following applicable European Directives: Electromagnetic Compatibility (EMC) Directive 2004/108/EC, Low-Voltage Directive 2006/95/EC, IEC61326-2.RoHS Compliant 2011/65/EC. This device does not contain any of the substances in excess of the maximum concentration values (“MCVs”) defined in the EU RoHS Directive.
Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B) / NMB-3 (B)
ScanaQuad (SQ) is a series of high performance 4 channels logic analyzers and digital pattern generators. They are designed to be your best companion when working on serial protocols like UART, SPI, I2C, 1-Wire, USB, I2S, CAN, LIN, RS232, RS485, and more. With ScanaQuad Logic Analyzers, you can capture signals, you can play them back, and you can even build genuine test signals and generate them!
Being able to capture and generate logic patterns simultaneously with the same tool, is extremely useful when debugging Logic signals, and it only comes with ScanaQuad.
All ScanaQuad devices have 4 channels. They can Capture digital signals, Generate digital patterns, or do both simultaneously.
| Model | SQ25 | SQ200 |
| Sampling Frequency (Max.) | 25MHz | 200MHz |
| Embedded memory | 1MB | 16MB |
| Digital pattern generator | YES | YES |
| Mixed mode | YES | YES |
| Input protection | ± 12V | ± 35V |
| Trigger options | Edge - Level - Pulse | Edge - Level - Pulse - serial protocol |
| Adjustable in/out voltage | NO | YES |
| Adjustable input impedance | NO | YES |
| Open drain output option | NO | YES |
| Differential input pairs | NO | 2 |
UNIQUE FEATURES, UNIQUE PRICE TAG
MIXED MODE OPERATION
The ability to capture and generate signals simultaneously open a whole new set of perspectives when it comes to debugging your electronic project.
DECODE AND ANALYZE
Analyze protocols with software tools that gives you a global views of your data and helps you to identify bugs quickly.
ADVANCED TRIGGER
Enjoy a versatile trigger system that can target a specific UART byte, I2C address or any other sophisticated data pattern.
TRIGGER OUT capability to their logic analyzers!
As the name implies, it adds Trigger IN/OUT capability to the existing range of ScanaQuad logic analyzers. The way it works is quite simple: A special synchronization signal is exposed to the 5th pin of the USB connector, and a custom (5 wires) USB cable is used to get that sync signal to TrigBox. Adequate circuitry then provides deterministic propagation delays as well as 50 Ohm drive capability on the Trigger OUT line.
TrigBox allows ScanaQuad to sync with any existing instrument. For instance, you can use the ScanaQuad to trigger an oscilloscope on a specific protocol feature. Alternatively, you can use trigger IN feature of TrigBox to let ScanaQuad start capturing signals according to another instrument in your lab.
