The PCB in work is for this amp. It works increadibly well constructed on cheap vero board, it should work with a properly designed and built PCB...the current challenge is to not make any mistakes!! ...may take months to optimize.

Hi,
You put this amp on vero board?? Wow.

EDIT: Do you have a picture of that?



[AKSA]

My golly CBS,

It looks like the wall texture from Tomb Raider!!

WOW!! All on veroboard, too!!

However, as an aside, it's probably too complex and you might like to try to distill it down to something much more simple with as good a sound..... that is your challenge!

Cheers,

Hugh



[CBS240]

😀

rediculous, eh?

But yes, since most all components are SMD, it fits🙂...in the 'Ugly Amp' thread.
http://www.diyaudio.com/forums/showthread.php?postid=1369406#post1369406


That prototype construction method is another thing I learned...hey, it works and it's cheap.
🙄



[KLe]

Hi CBS240

That's excellent, please keep us posted 🙂
I remember reading through those posts a little while ago, but, I did not understand everything. Kanwar, certainly did though 🙂
Homemade HeatSinks and excellent eye sight 🙂


Maybe someone would like to Spice it 😀 and tell us the results.

thanks
ciao



[MJL21193]

Maybe someone would like to Spice it 😀 and tell us the results.

That would take a while. Like translating the Dead Sea scrolls, or completing the Human Genome Project.



[CBS240]

My golly CBS,

It looks like the wall texture from Tomb Raider!!

WOW!! All on veroboard, too!!

However, as an aside, it's probably too complex and you might like to try to distill it down to something much more simple with as good a sound..... that is your challenge!

Cheers,

Hugh

It isn't really as complicated as it appears, lots of cascode😀. Actually it is just multiple amplifier's in cascade with direct coupling, essentially. I should be able to use several SOT-563 package devices for most of the small signal BJT's, they will be well below 100mW, Pd is not very large for SOT-563. This will save lots of space. Many resistors qualify the specs for SMD size 201, if I can see them. Most are but a few mW.

Maybe someone would like to Spice it 😀 and tell us the results.

Good luck with the Spice sim for this one.



[U102324]

It isn't really as complicated as it appears, lots of cascode😀. Actually it is just multiple amplifier's in cascade with direct coupling, essentially. I should be able to use several SOT-563 package devices for most of the small signal BJT's, they will be well below 100mW, Pd is not very large for SOT-563. This will save lots of space. Many resistors qualify the specs for SMD size 201, if I can see them. Most are but a few mW.



Good luck with the Spice sim for this one.

Wow SMD 201! are you planning to make it pocket size?


EDIT: I would be afraid to redraw it let alone put it on vero-board



[D_o_S]

Ok, thanks for the replies...

Any opinions on the simple killer amp by Greg Ball then?

Here is what I have atm:
Sonus Faber Concertino Domus speakers, 4 ohms, rated at 100-150W
Technics GA-SX690 integrated amplifier...

I am looking to build a pre-amp as well as a power amplifier...

I would like it to drive the speakers, so 100W is a minimum...

I would like it to be class A.

I will take a look at the Pass Labs forum...
EDIT: Just checked out Pass Labs, that looks like what I would like to build, the Aleph-X



[Greg Erskine]

Here is what I have atm:
Sonus Faber Concertino Domus speakers, 4 ohms, rated at 100-150W
Technics GA-SX690 integrated amplifier...

I am looking to build a pre-amp as well as a power amplifier...

I would like it to drive the speakers, so 100W is a minimum...

I would like it to be class A.

Hi D_o_S,

You have not mentioned the efficiency of the speakers. The is probably the most important spec to determine the size of amp required.

Do you understand the power dissipation of a 100-150 watt class A amp? It will require enormous heat sinks and power supply i.e. expensive.

Ask your dad about the differences between class A and class AB amps.

regards



[KLe]

Hi D_o_S

For opinions of the SKA have a read of this thread ... http://www.diyaudio.com/forums/showthread.php?s=&threadid=72172

ciao



[U102324]

Do you understand the power dissipation of a 100-150 watt class A amp? It will require enormous heat sinks and power supply i.e. expensive.

regards

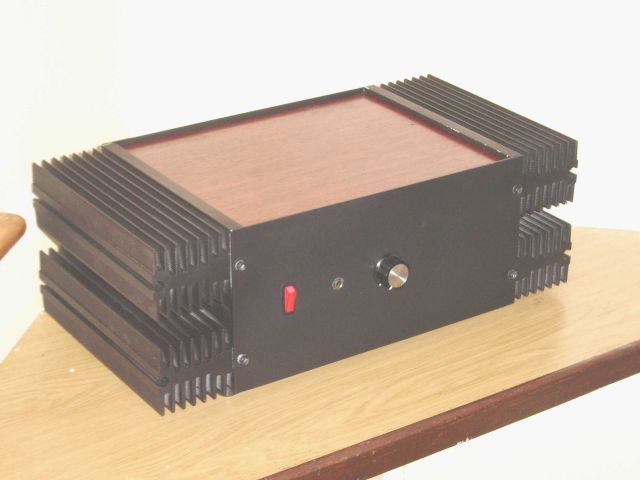

I would like to stress what Greg says. This is a 32 watt/ch and it runs hot to touch.



[Cloth Ears]

Hi D_o_S,

You have not mentioned the efficiency of the speakers. The is probably the most important spec to determine the size of amp required.

Do you understand the power dissipation of a 100-150 watt class A amp? It will require enormous heat sinks and power supply i.e. expensive.

Ask your dad about the differences between class A and class AB amps.

regards

Greg,

The Sonus Faber Concertino Domus are about 88dB/W/m from the Sonus Faber sheets. And they recommend 30-150W amplifier. You could probably get away with anything in that poewr range depending on the size of the room it's going to be used in. But for a class A in the higher power range, you'll be spending at least as much as for the speakers even to create the amplifier - let alone get it working OK. But you won't need to use your heating in winter...🙂



[Pocoyo]

Quality Design

Hiii DOS
You are in the right place NOW ... DIYAudio Forum

All the quality product you can build but it is
Depend how much your BUDGET & Powers need
Dont forget ... more expert more quality you get

For Class A, you can look
- Blowtorch preamp and John Curl amp
- Aleph 1.7 preamp and Pass Lab F4 amp
- Krell KSA 50 or 100 mkII
- Mark Levinson ML38 preamp

For Class AB
Aksa amp, Aussieamplifiers, DX amp, Symasym, etc

For Chip Amp
BPA 300, Audiosector Amp, etc

Maybe you must read it that thread one by one 😀
After read it slowly, you can choose it
Without any regret 😀

Regards, Jeffry W



[D_o_S]

Re: Quality Design

Hiii DOS
You are in the right place NOW ... DIYAudio Forum

All the quality product you can build but it is
Depend how much your BUDGET & Powers need
Dont forget ... more expert more quality you get

For Class A, you can look
- Blowtorch preamp and John Curl amp
- Aleph 1.7 preamp and Pass Lab F4 amp
- Krell KSA 50 or 100 mkII
- Mark Levinson ML38 preamp

For Class AB
Aksa amp, Aussieamplifiers, DX amp, Symasym, etc

For Chip Amp
BPA 300, Audiosector Amp, etc

Maybe you must read it that thread one by one 😀
After read it slowly, you can choose it
Without any regret 😀

Regards, Jeffry W

Can someone link me to these please:
- Blowtorch preamp and John Curl amp
- Aleph 1.7 preamp and Pass Lab F4 amp
- Mark Levinson ML38 preamp

I need a schematic, PCB layout, and how-to (I managed to find the Krell stuff myself).

When searching for Blowtorch preamp and John Curl amp in google, I get like nothing, with some links to this forum...

When I search for Aleph 1.7, I found some cool stuff, like this:
http://bygselvhifi.dk/alephp.htm
And the Pass Labs site, but I can't find any info regarding the Aleph, other than its been discontinued? Also the same for the F4

Mark Levinson - found some pics of what someone made, but no shematics...

I would greatly appreciate it if someone could link me...



[Pocoyo]

Hiii Mate

You are very lucky will find them with one click

I found them in my first six month in my newbee period
I read all thread in solid state, chip amp, digital, market
place (vendor bazar, group buys and trading post) from
THE BEGINING

C T C B L O W T O R C H
Maybe this is the best PreAmp in the world realease by
GOD Of Audio, John Curl with his two bussiness partner

Threat
http://www.diyaudio.com/forums/showthread.php?s=&threadid=71189

PCB Group Buys / Trading Post
No one sell this PCB but i believe they make PCB themself
Learn from the threat, becareful to make posting in there
Make no hard felling too because all the god talking there

PCB Schematic

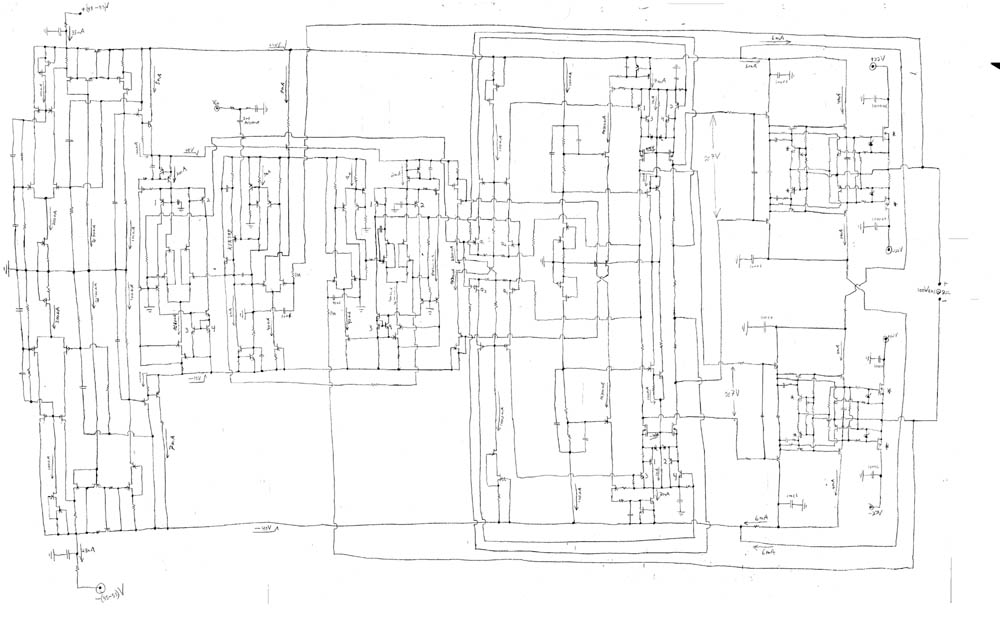

At last John Curl realease the schematic (Hand Writing)
Needed Expert Skill

J O H N C U R L A M P 3
This in the legendary world realease amplifier by (who else)
GOD Of Audio, John Curl when he was joined Mark Levinson

Threat
http://www.diyaudio.com/forums/showthread.php?s=&threadid=107592

PCB Group Buys / Trading Post
No one sell this PCB but i believe they make PCB themself
Learn from the threat, becareful to make posting in there
Make no hard felling too because all the angel in there.

PCB Schematic
With permit from John Curl, Mike W realeased schematic
he give us Build of Material, Schematic and PCB Drawing
Needed Expert Skill



[Pocoyo]

Pass Aleph 1.7 & F4

Pass Aleph 1.7 Pre Amp, Aleph J / F4 Amp
Create by Nelson Pass, The very kind GOD
He give us his knowledge without any FEE

Threat
Looks in PASS LAB Forum, search one by one
http://www.diyaudio.com/forums/forumdisplay.php?s=&forumid=8

PCB Group Buys / Trading Post

Aleph 1.7 Preamp
I buy Aleph 1.7 from Veteran
http://www.diyaudio.com/forums/showthread.php?s=&threadid=63356

F4
I buy F4 "Group buy" with Peter, you can ask him
http://www.diyaudio.com/forums/showthread.php?s=&postid=1392073#post1392073

PCB Schematic
Looks in PASS LAB Forum, search one by one
http://www.diyaudio.com/forums/forumdisplay.php?s=&forumid=8



[Pocoyo]

Mark Levinson No 38 Preamp

M L 3 8
Preamp come with darker sound character
Build this Preamp from scratch

I always remember what Peter says in Beginning
This thread is dedicated mostly to all brave people who
decided to buy ML38 boards with a hope that some day
they will turn it into a working preamp

This Pre Amp came from ML PCB left and we must build from
the beginning after finish you must mods them to make the
sound clear as cristal bright likes the day no tommorrow

Threat
http://www.diyaudio.com/forums/showthread.php?s=&threadid=33409

Group buys / Trading Post
I buy from someone, I can show you if you
still interest after you see the cost product

PCB Schematic
Look the schematic in the thread

This project need expert skill too



[si_jopie0382]

Hope you got what you dream DOS



[Progg70]

Nice Class-A kit

Hi!

I suggest that you start with a kit. A class-a single end power amplifier with transistors is really simple to build and have a really good signal management who grant a nice sound to listen to.
If you don’t want a kit you can easily make one your self by use an OP. Easy good sound.
I now that A&O Audio in Sweden soon are going to sell nice kit’s in different prices over the Internet. www.Aoaudio.se.
One disadvantage is that Class-a needs good transformers and cooling profiles who can be expensive… But the sound… listen to the details in the silence…

Good luck



[D_o_S]

Hi,

jeffry_widjaja, Thank you very much! Brings me much, MUCH closer to what I was looking for.

I have decided to turn things around a bit, and I will be building a pre-amp first. I want to see what can be done with the Aleph P1.7...

I will also take a look at some kits...

Other ideas are still welcome...
