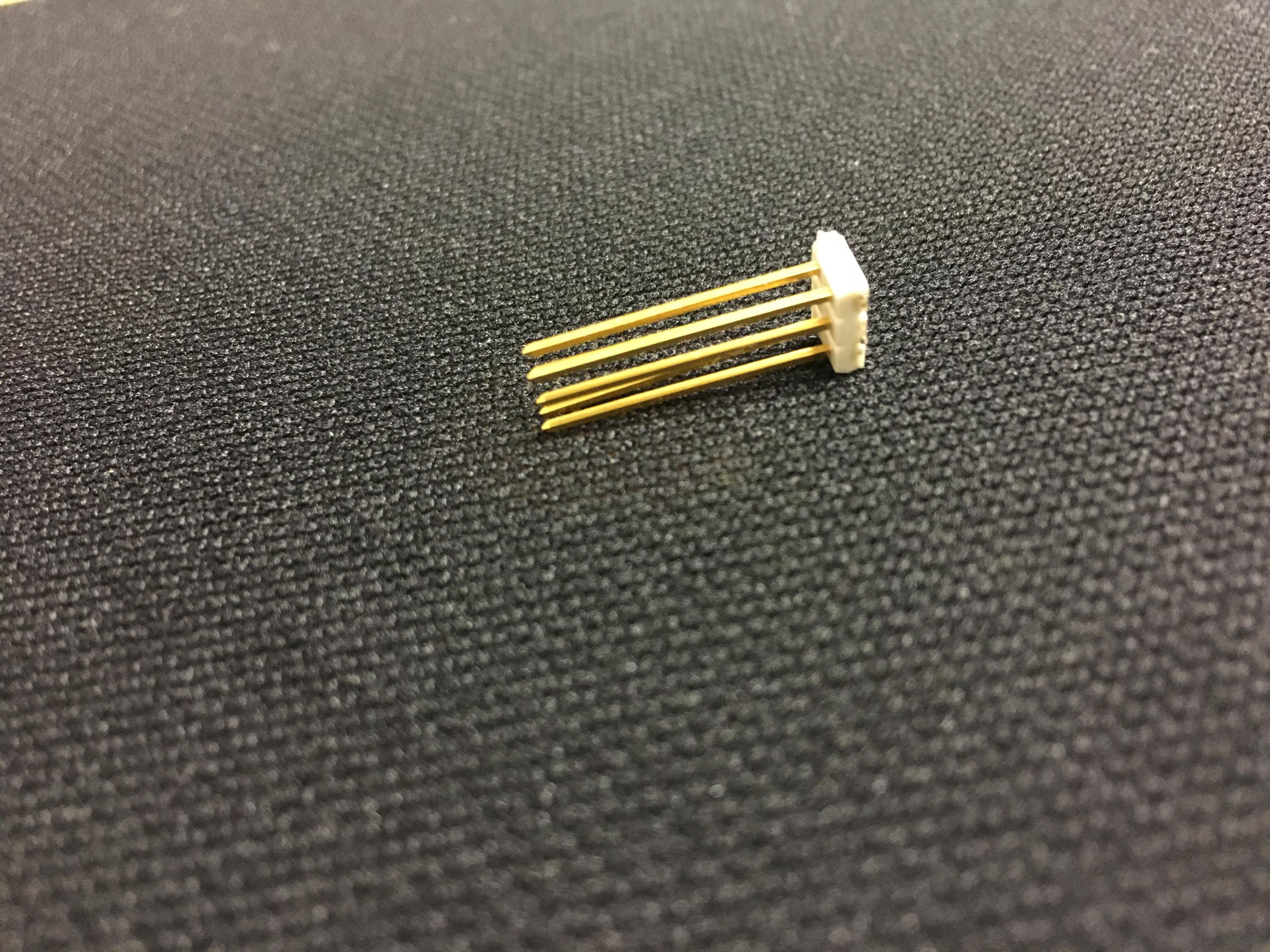

Where can I get such connectors and just curious, what are they used for? Thanks!
R ridikas Member Joined 2011 2016-05-24 9:06 pm #1 2016-05-24 9:06 pm #1 Where can I get such connectors and just curious, what are they used for? Thanks! Attachments image.jpg 1 MB · Views: 86 ••• More options Share S sreten R.I.P. Joined 2003 2016-05-24 9:41 pm #2 2016-05-24 9:41 pm #2 Hi, What is the continuity between the five pins ? , rgds, sreten. ••• More options Share M MAAC0 Member Joined 2010 2016-05-24 10:46 pm #3 2016-05-24 10:46 pm #3 Do You mean this ? 2-826925-0 TE Connectivity / AMP | Mouser ••• More options Share C cliffforrest Member Joined 2004 2016-05-24 11:03 pm #4 2016-05-24 11:03 pm #4 What is on the otherside of the white plastic? Those are square wire-wrap pins. ••• More options Share R ridikas Member Joined 2011 2016-05-24 11:33 pm #5 2016-05-24 11:33 pm #5 The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online. Attachments image.jpeg 21 KB · Views: 46 ••• More options Share DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
S sreten R.I.P. Joined 2003 2016-05-24 9:41 pm #2 2016-05-24 9:41 pm #2 Hi, What is the continuity between the five pins ? , rgds, sreten. ••• More options Share M MAAC0 Member Joined 2010 2016-05-24 10:46 pm #3 2016-05-24 10:46 pm #3 Do You mean this ? 2-826925-0 TE Connectivity / AMP | Mouser ••• More options Share C cliffforrest Member Joined 2004 2016-05-24 11:03 pm #4 2016-05-24 11:03 pm #4 What is on the otherside of the white plastic? Those are square wire-wrap pins. ••• More options Share R ridikas Member Joined 2011 2016-05-24 11:33 pm #5 2016-05-24 11:33 pm #5 The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online. Attachments image.jpeg 21 KB · Views: 46 ••• More options Share DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
M MAAC0 Member Joined 2010 2016-05-24 10:46 pm #3 2016-05-24 10:46 pm #3 Do You mean this ? 2-826925-0 TE Connectivity / AMP | Mouser ••• More options Share C cliffforrest Member Joined 2004 2016-05-24 11:03 pm #4 2016-05-24 11:03 pm #4 What is on the otherside of the white plastic? Those are square wire-wrap pins. ••• More options Share R ridikas Member Joined 2011 2016-05-24 11:33 pm #5 2016-05-24 11:33 pm #5 The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online. Attachments image.jpeg 21 KB · Views: 46 ••• More options Share DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
C cliffforrest Member Joined 2004 2016-05-24 11:03 pm #4 2016-05-24 11:03 pm #4 What is on the otherside of the white plastic? Those are square wire-wrap pins. ••• More options Share R ridikas Member Joined 2011 2016-05-24 11:33 pm #5 2016-05-24 11:33 pm #5 The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online. Attachments image.jpeg 21 KB · Views: 46 ••• More options Share DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
R ridikas Member Joined 2011 2016-05-24 11:33 pm #5 2016-05-24 11:33 pm #5 The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online. Attachments image.jpeg 21 KB · Views: 46 ••• More options Share DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
The pins have no continuity between them. They go right through the plastic connector and protrude on the other side. Although they have been clipped, I'm guessing the other side was shorter for PCB mounting? I found this picture online.
DUG Member Joined 2003 2016-05-25 2:35 am #6 2016-05-25 2:35 am #6 Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking. ••• More options Share
Similar to SAMTEC TSM series only lower profile: http://suddendocs.samtec.com/prints/tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf Used for board stacking.
