Harman Kardon "Citation" Series - complete Overview wanted

[tiefbassuebertr]

On the web I don't find a complete Overview of all launched "Citation" audio devices from Harman. I have found follow models:
Citation A,B, I, II, IIB, III, IIIX, IV, X, X-II, XX, 3, 4, 11, 12, 13, 14, 15, 16, 16pro, 17, 17S, 18, 19, 21, 22, 23, 24, and 25;
also with numbers written in letters, e. g. "eleven", "twelve" or twenty two.

But there must be a lot of additional models from the "Citation" series.
Who knows, where I can find a complete model overview?

About the URLs
http://www.harmankardon.com/resourc.../en-US/ProductInformation/DEC2003BROCHURE.pdf
HK Archive Cover Page
Harman Kardon
Harman Kardon
ƒJ�[ƒI�[ƒfƒBƒI�@harman / kardon(ƒn�[ƒ}ƒ“ ƒJ�[ƒhƒ“)�@�»•i�î•ñ
there are interesting informations, but such an overview I don't find.



[tiefbassuebertr]

now I have find the most models of Citation Series:

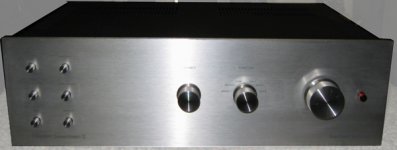

1) Citation A and Citation B: Harman's first launched solid state amplifiers
(pre - power, CitationA and CitationB) go to
http://www.diyaudio.com/forums/soli...ion-harman-kardon-citation-b-1963-1964-a.html

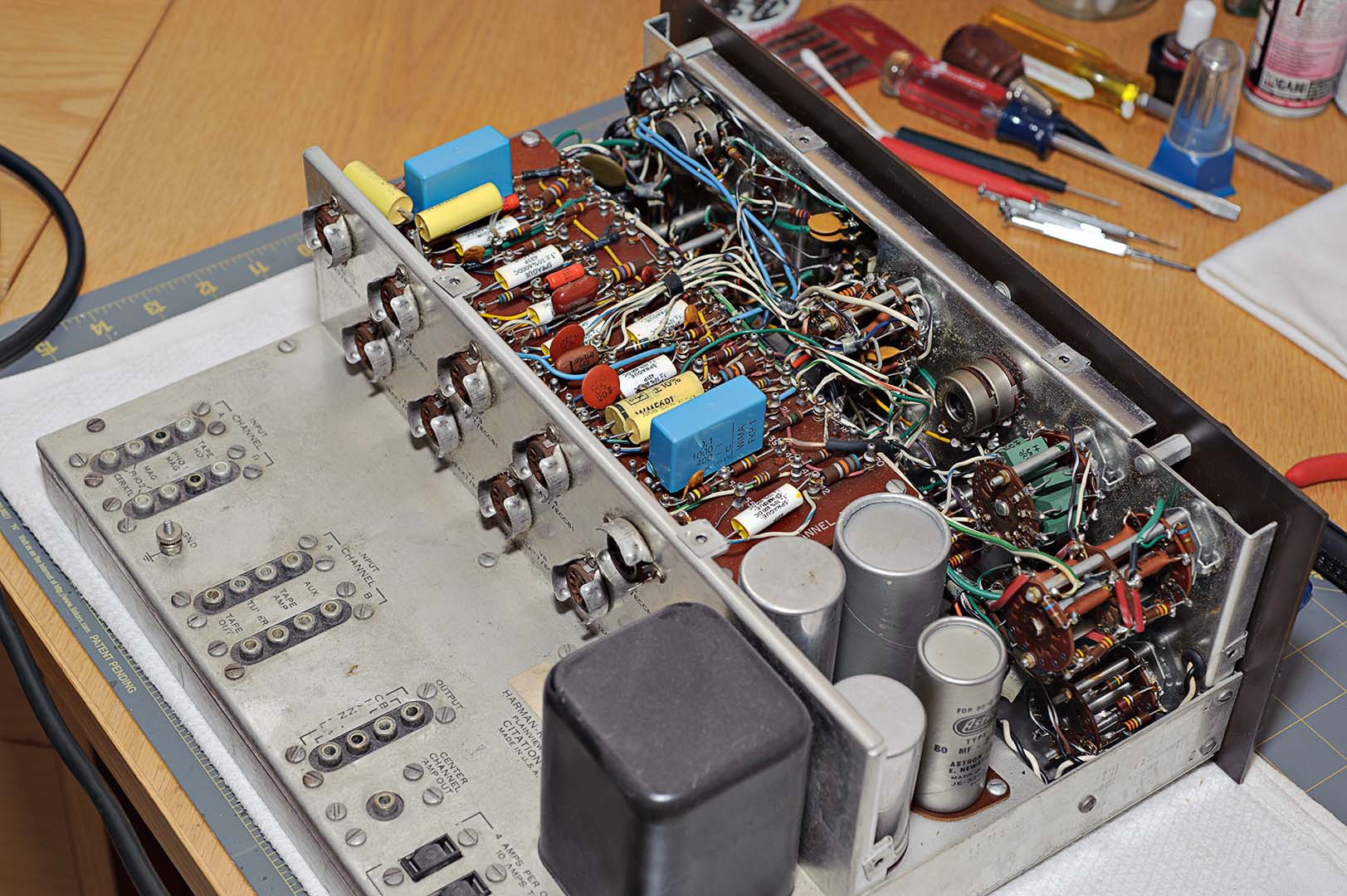

2) Citation 1, 2, 3 and 4 all tube; distinguishing feature by model No: roman numerals instead - as usual - written arabic numbers:

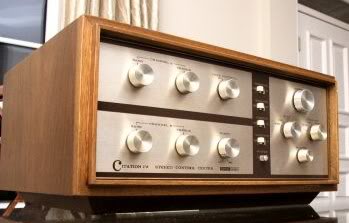

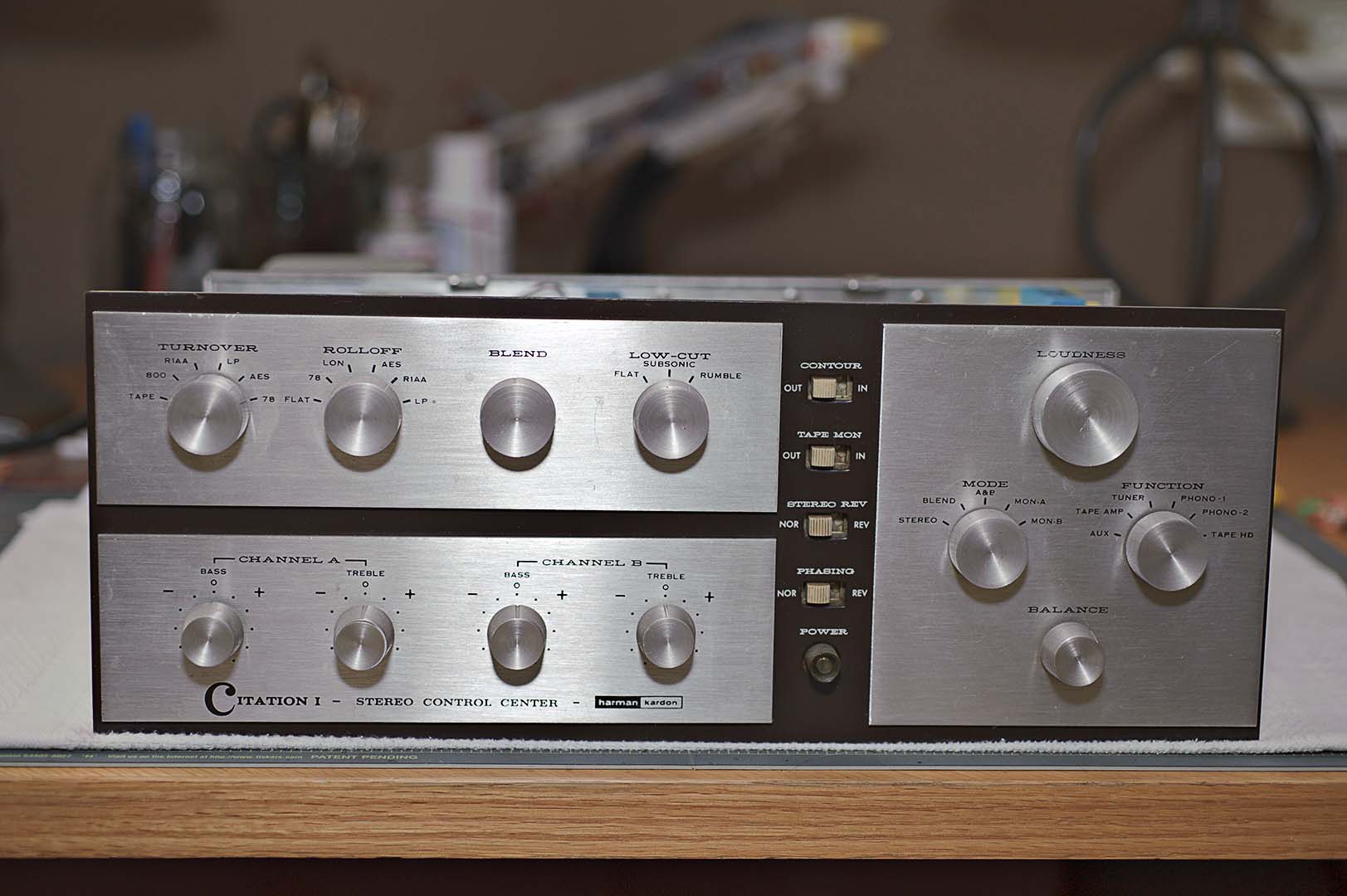

Citation I and Citation IV: preamplifier

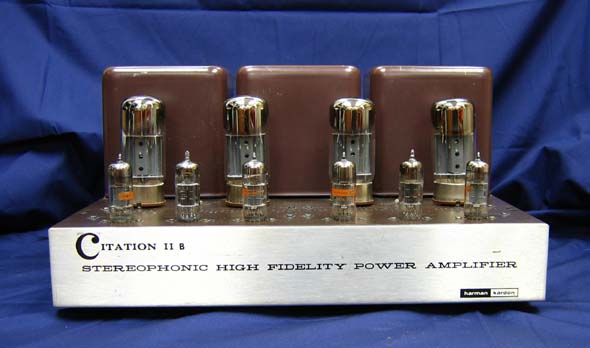

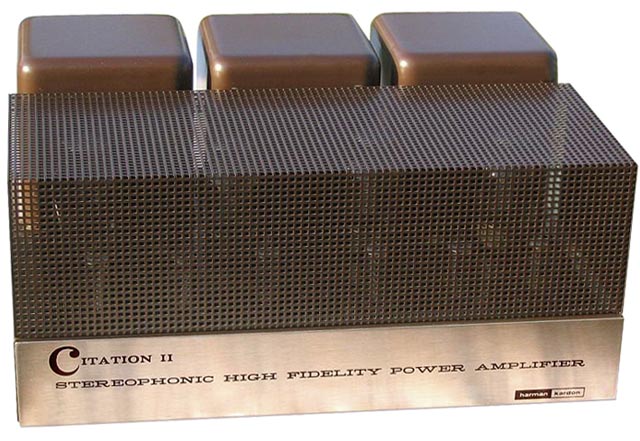

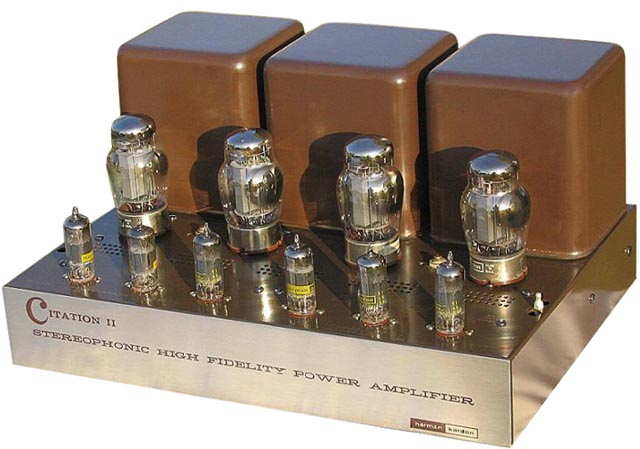

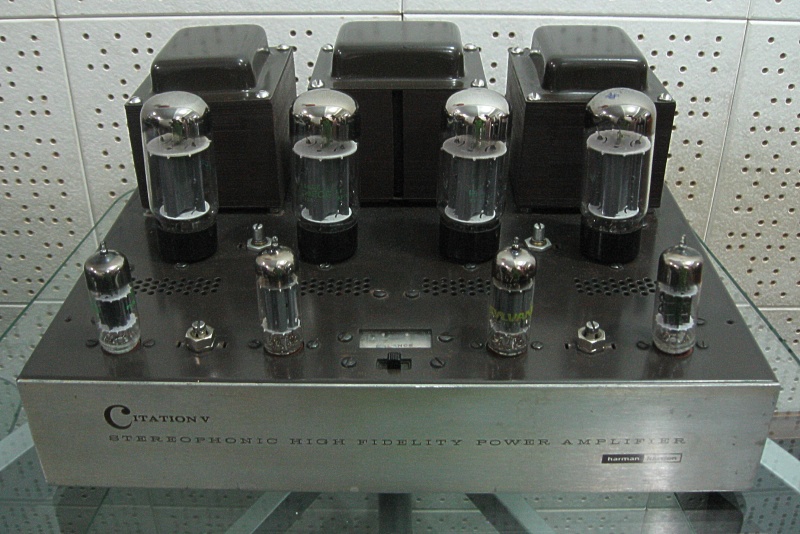

Citation II and Citation V: power amplifier

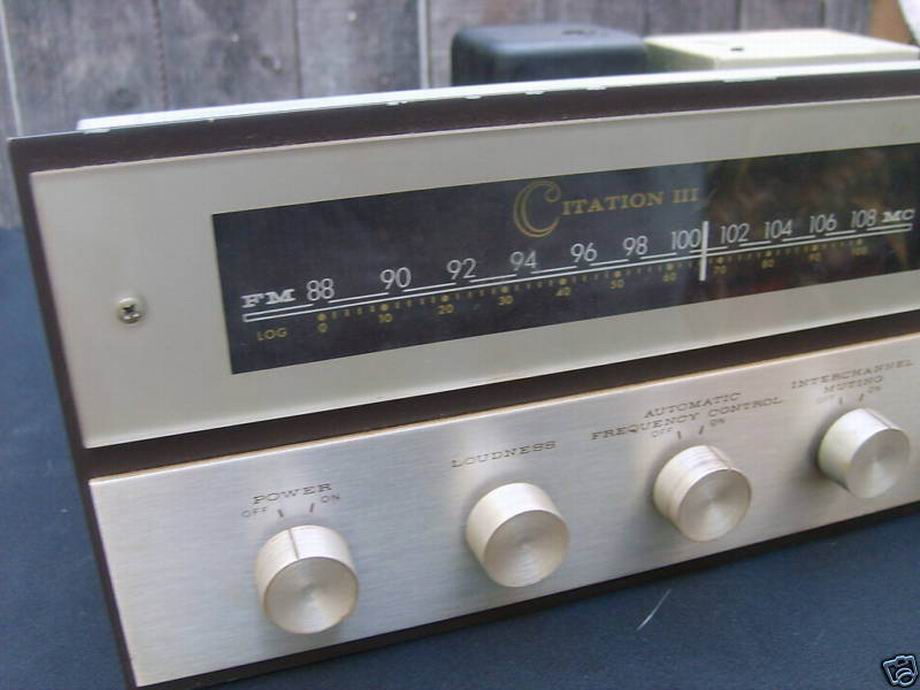

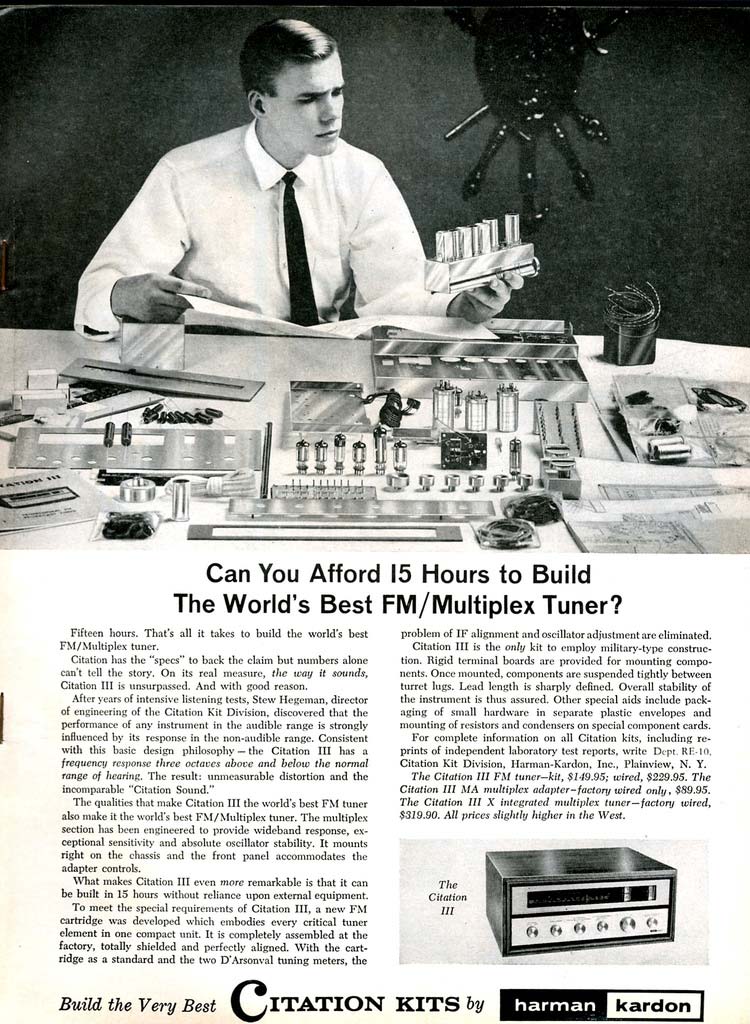

Citation III: FM-Stereo Tuner
ULRs:
Picasa Web Albums - licavintage - harman kardon...
WiredState Audio Community • View topic - DIY & RESTORATION GALLERY: McIntosh C26 preamplifier
Harman Kardon Citation 1 - Singapore Hifi Equipment Supplier|Speaker System Distributor|Audio Products Provider|Hifi System|Home Entertainment|Amplifier Supplier|Sound System Accessories|Home Theater Sound System Supplier|Hifi Accessories Distributor
Harman Kardon Citation III Tuner (Citation III, Tuner)
http://pages.prodigy.net/jimmcshane/citpage.htm (Citation II power amp)
VAS Citation One Preamp & Citation Two Power Amplifier | AVguide
Harman Kardon Citation V Amplifier
HK Archive Cover Page

3) Citation 5, 6, 8 and 9: unknown



[tiefbassuebertr]

4) Citation 7.0 and 7.1
AV controller and 4-channel power amp

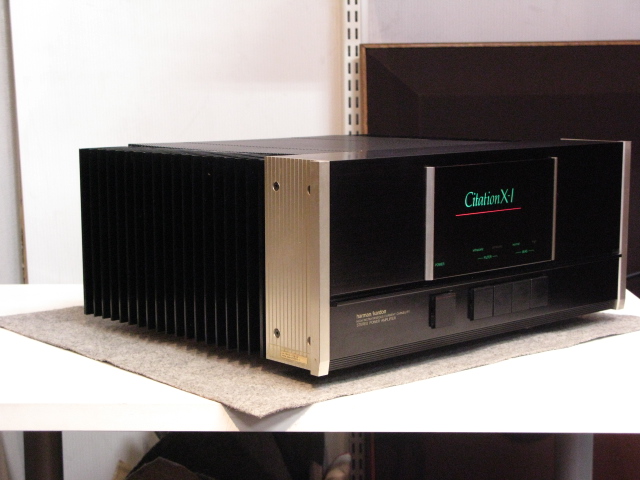

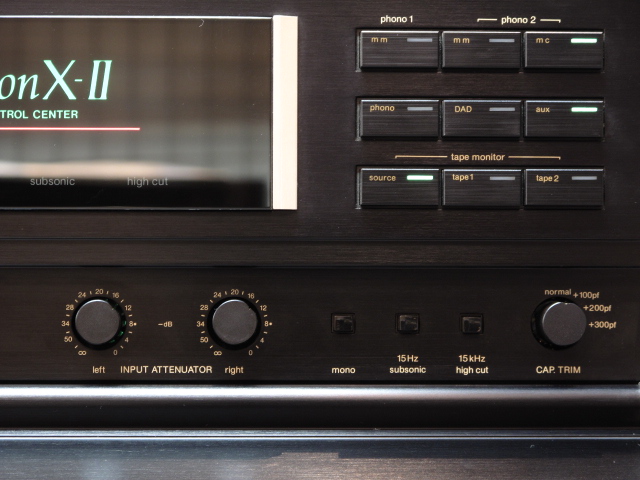

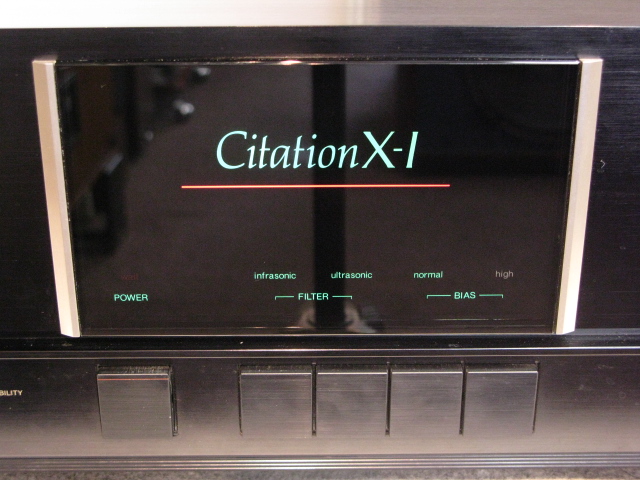

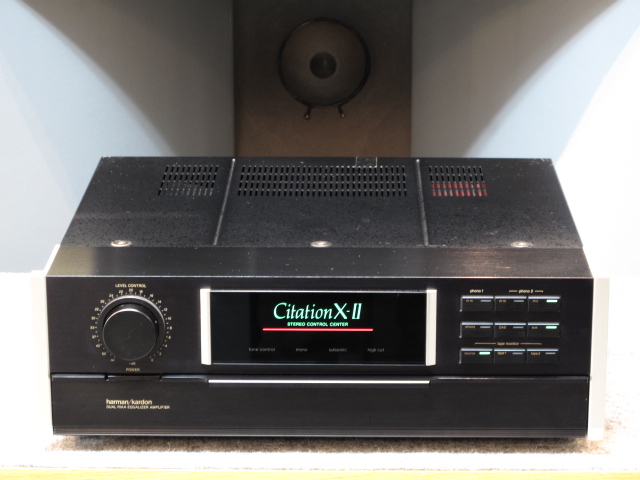

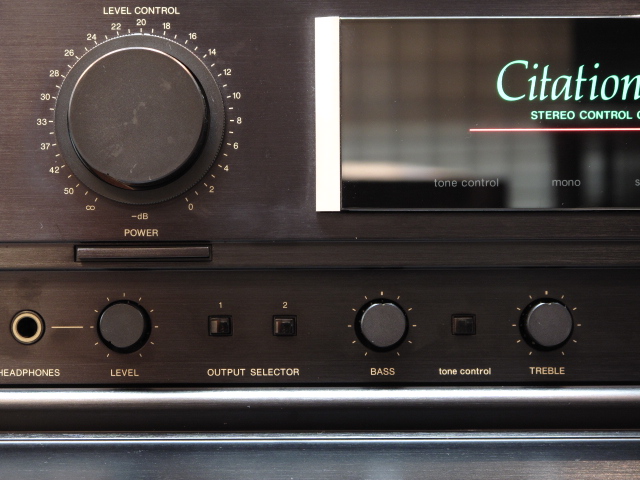

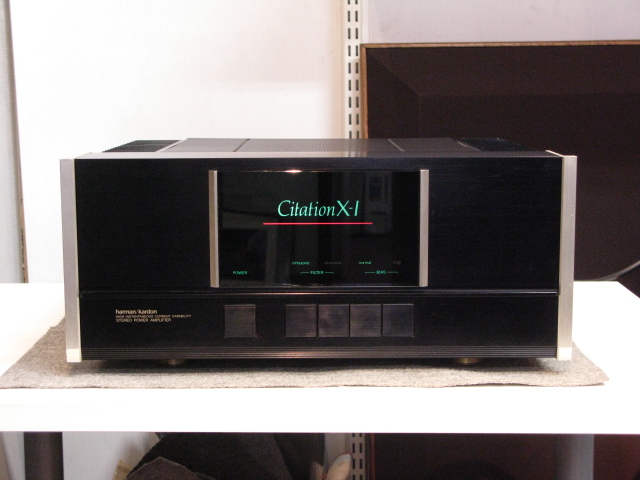

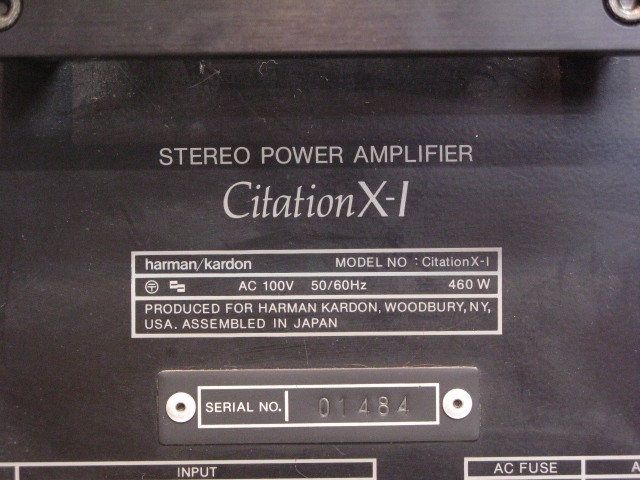

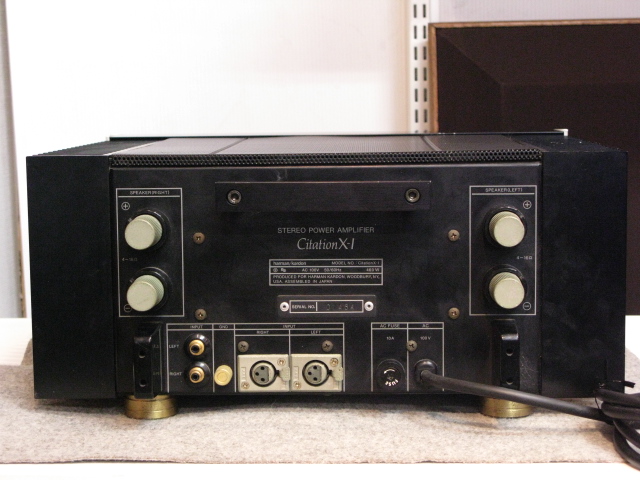

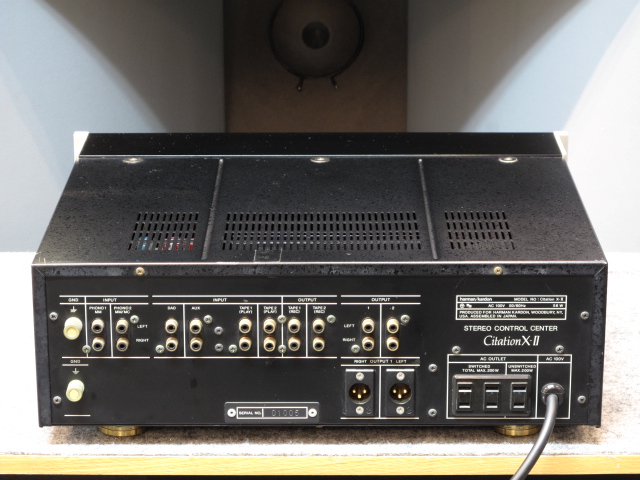

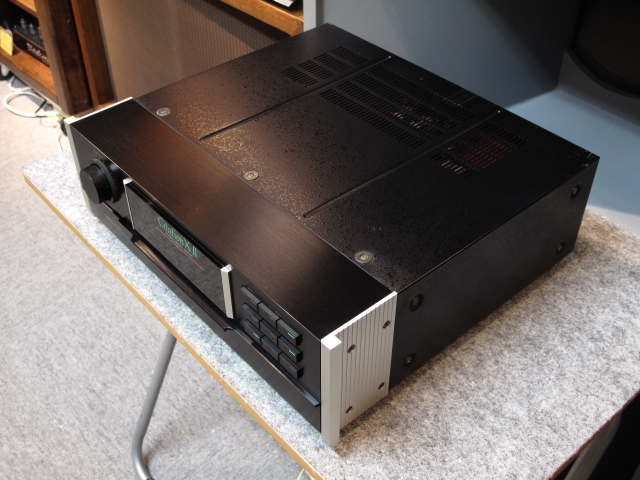

5) Citation 10 = Citation X-I (power) and Citation X-II (pre)
Harman/Kardon CitationX-I Service Manual free download,schematics,datasheets,eeprom bins,pcb,repair info for test equipment and electronics (Citation X-I schema power amp)



[tiefbassuebertr]

5) Citation 10 = Citation X-I (power): continue

5) Citation 10 = Citation X-I (power) and Citation X-II (pre); continue



[tiefbassuebertr]

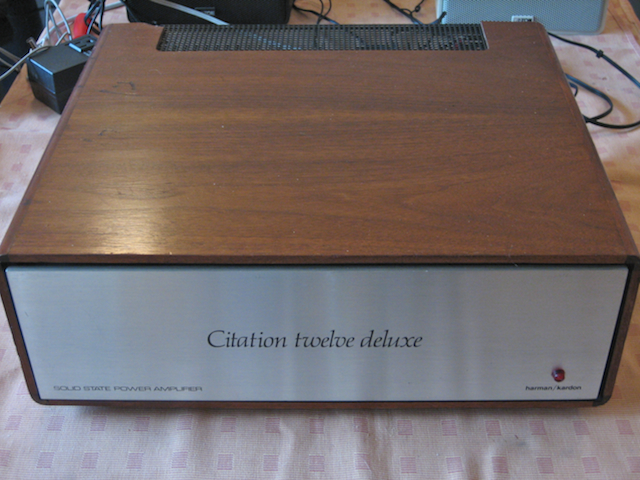

6) Citation 11, 12 (deluxe) and 13:

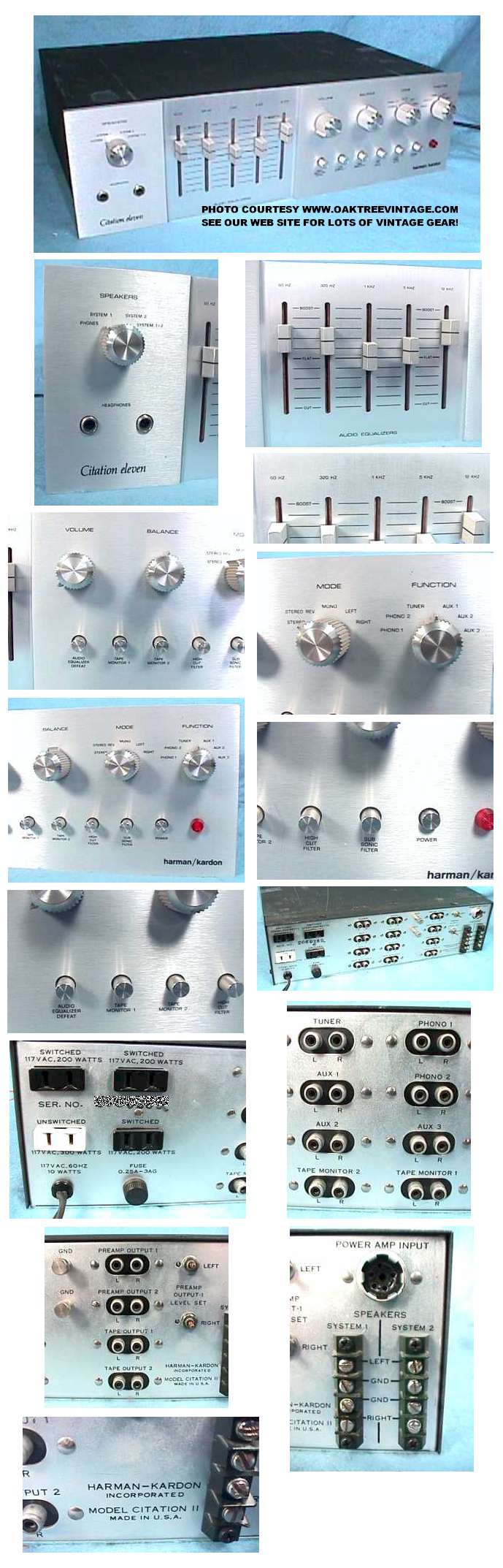

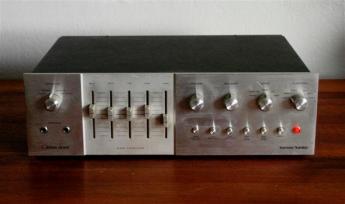

Citation eleven: preamplifier
Citation twelve: power amplifier

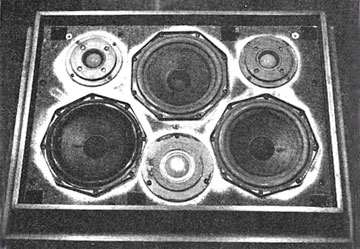

Citation thirteen: omnidirectional loudspeakers, test in High Fidelity Feb 72
Citation X and Eico HFS-2 Speaker Systems
http://manuals.harman.com/hk/Service Manual/Citation eleven sm.pdf (Pre)
http://manuals.harman.com/hk/Service Manual/Citation twelve sm.pdf (Power)
http://cygnus.ipal.org/mirror/www.passlabs.com/images/citation.pdf (Nelson Pass Article)
http://www.passdiy.com/pdf/citation.pdf (Nelson Pass Article part II)
and
http://www.diyaudio.com/forums/pass...omplementary-mosfet-citation-12-taa-book.html
http://www.diyaudio.com/forums/pass-labs/168696-mosfet-citation-12-negative-swing-clip-first.html
http://www.diyaudio.com/forums/pass-labs/22938-where-citation-name-comes.html

more pics from Citation twelve you will find there:
http://www.diyaudio.com/forums/soli...-models-quasi-complementary-power-output.html (post #89)
http://www.diyaudio.com/forums/pass-labs/160736-citation-12-schematic.html (post #7)



[tiefbassuebertr]

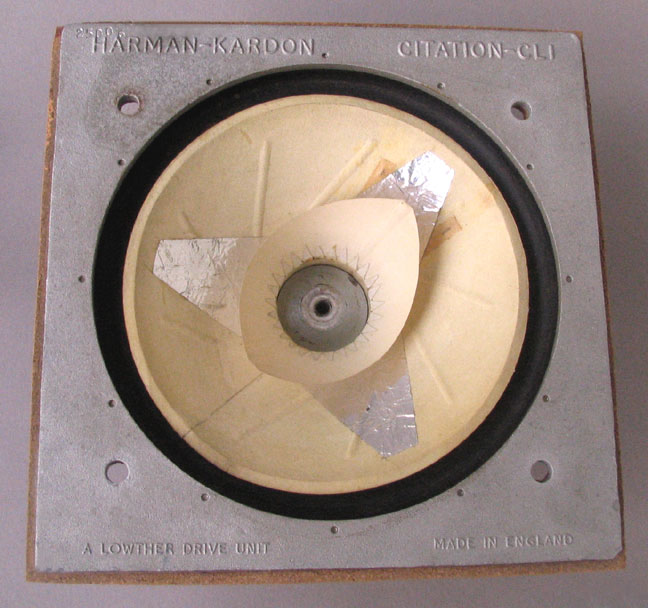

Speaker for Citation X-I and Citation X-II: "Citation X"

Citation X and Eico HFS-2 Speaker Systems
http://www.roger-russell.com/eico/citationxstu.htm
Eico HFS-2 Advertisement
My Experience With Sound
http://www.harmankardon.com/resourc...dDocuments/en-US/OwnersManual/CitationXom.pdf



[tiefbassuebertr]

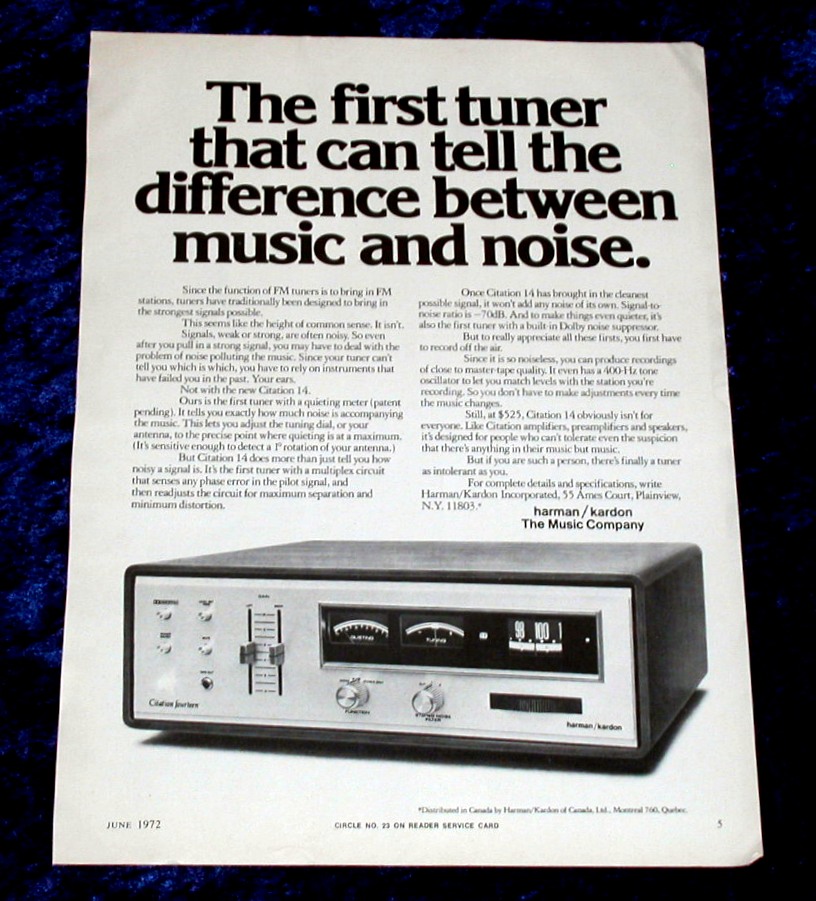

7) Citation 14 and 15:

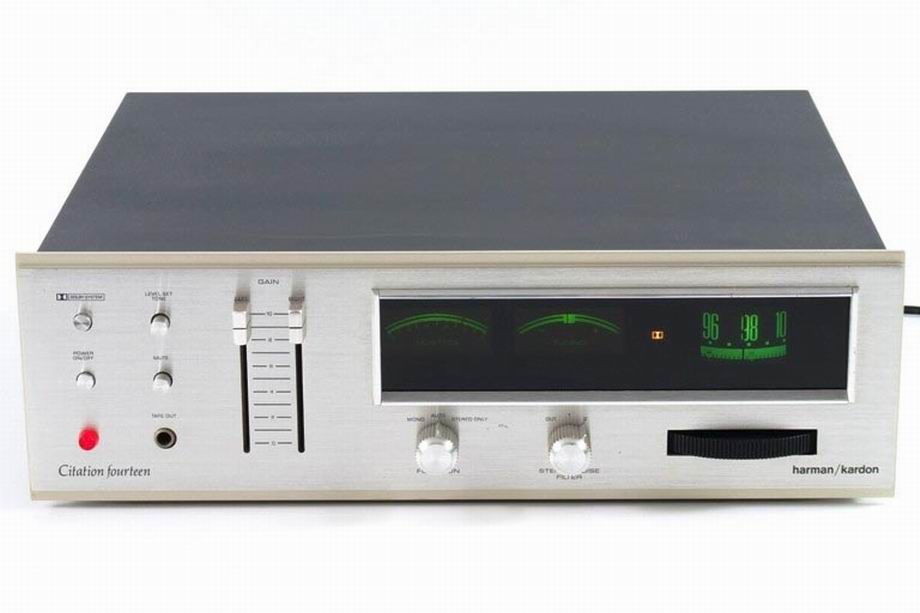

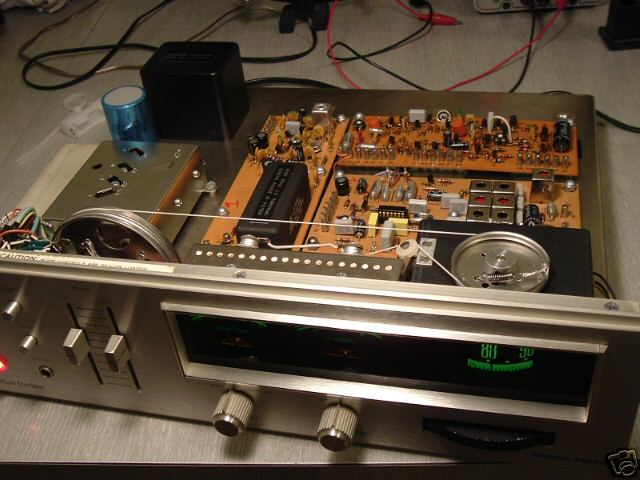

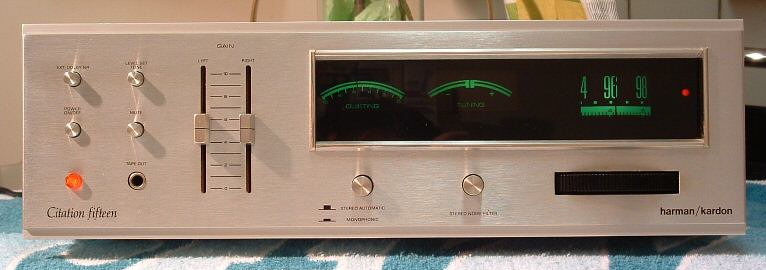

Citation fourteen and Citation fifteen (FM Stereo Tuner)
http://www.fmtunerinfo.com/Citation14service.pdf
http://manuals.harman.com/hk/Service Manual/Citation fifteen sm.pdf



[tiefbassuebertr]

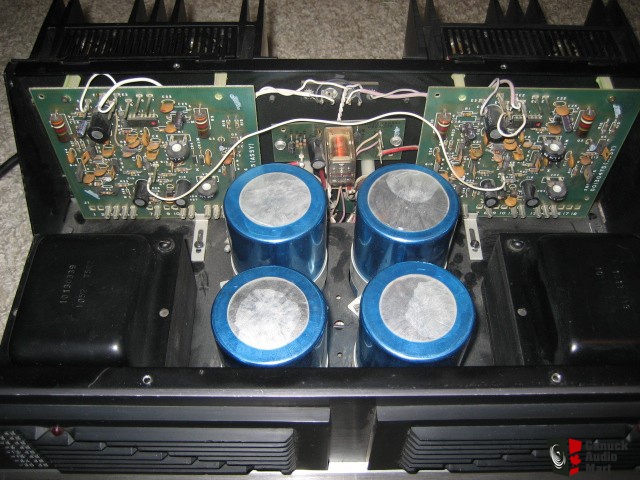

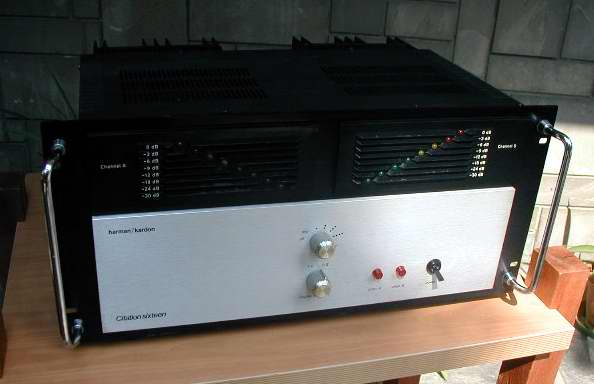

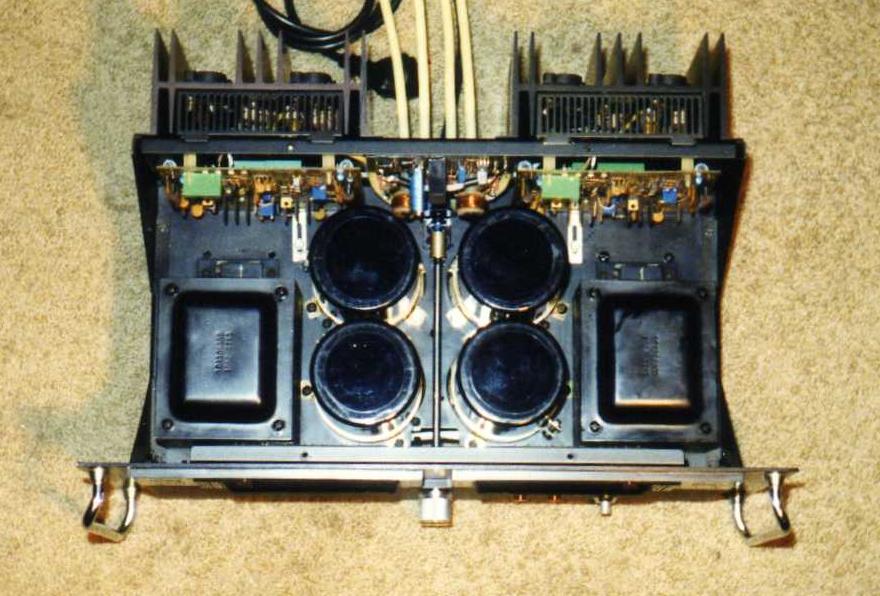

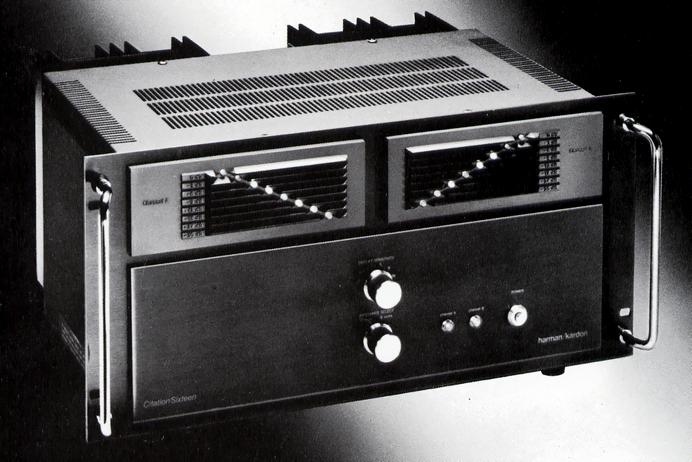

8) Citation 16/16A:

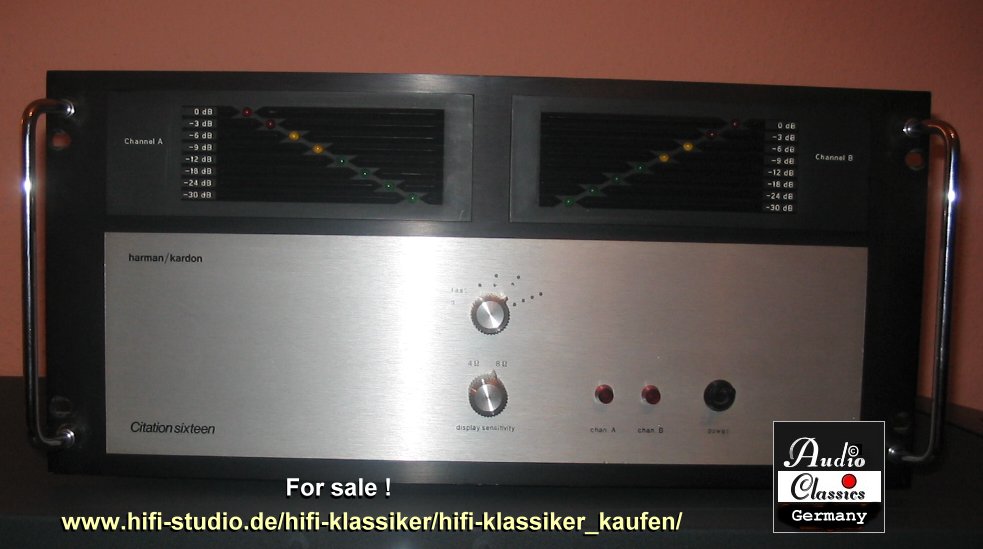

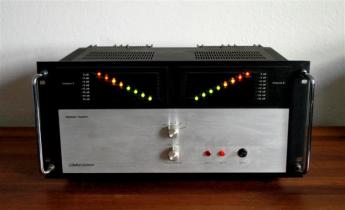

Citation Sixteen and Citation Sixteen A

http://manuals.harman.com/hk/Service Manual/Citation sixteen sm.pdf (Power)



[tiefbassuebertr]

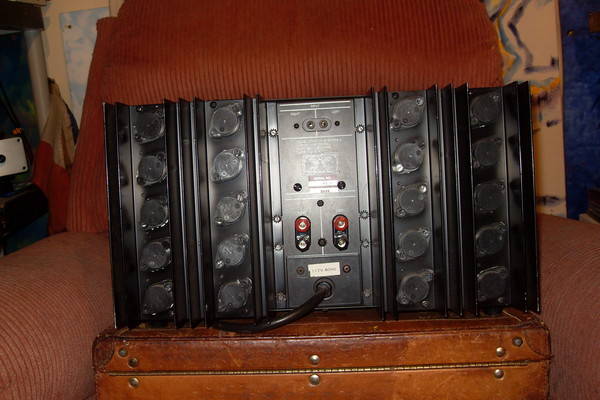

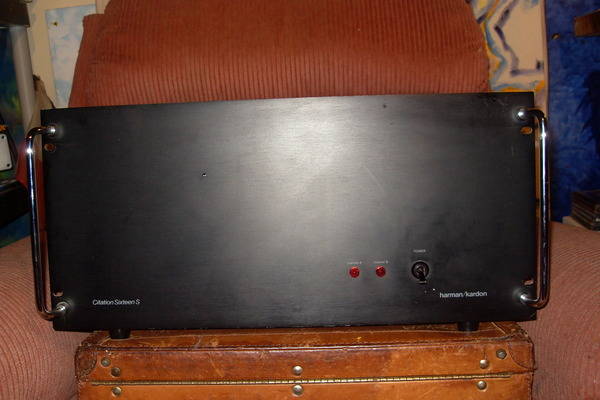

8) Citation 16/16A/16S continue:
Citation Sixteen/Citation Sixteen A and Citation Sixteen S



[tiefbassuebertr]

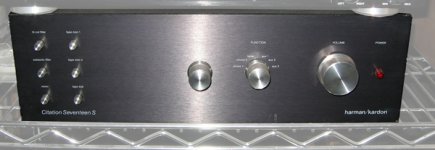

9) Citation 17, 17S, 18 and 19:

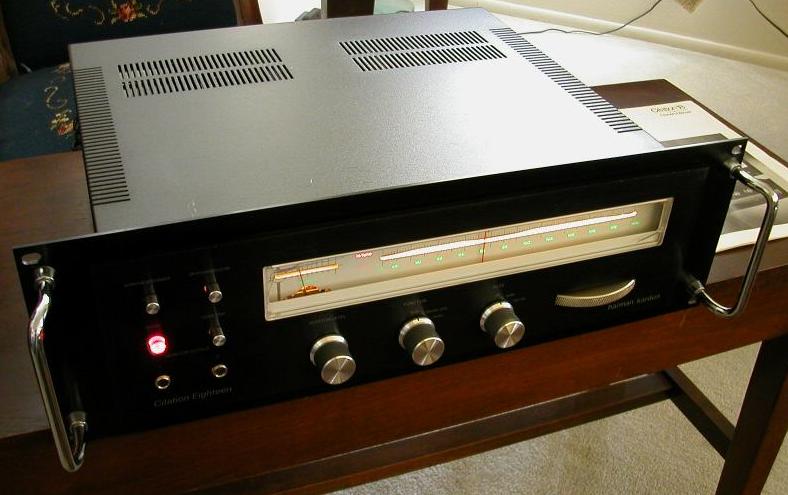

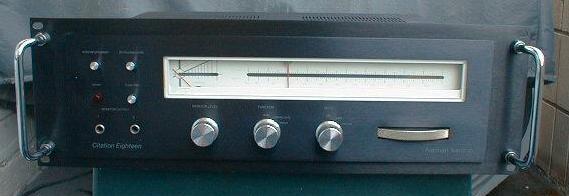

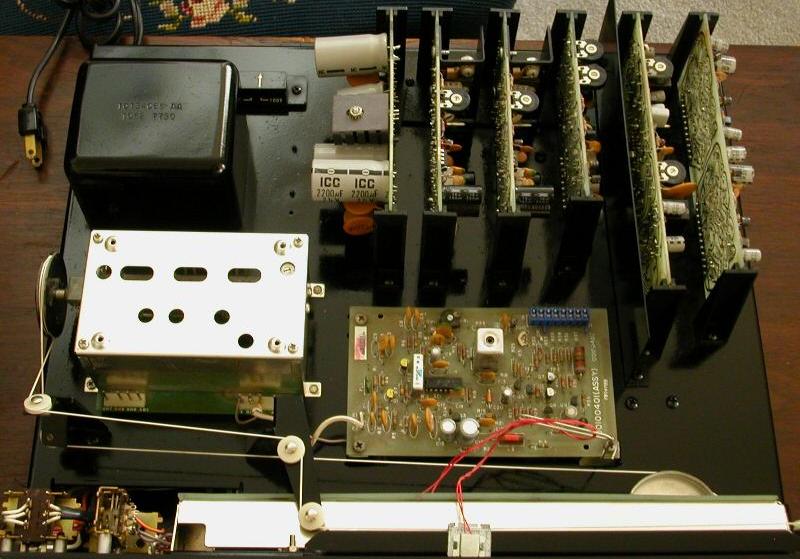

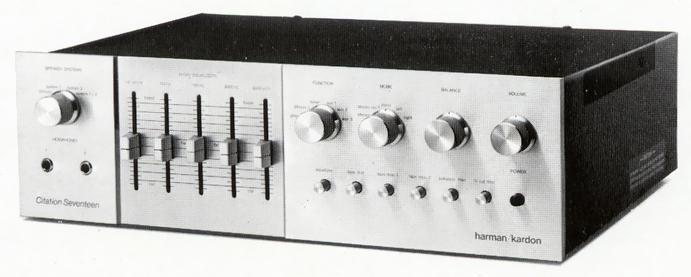

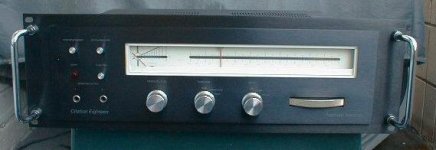

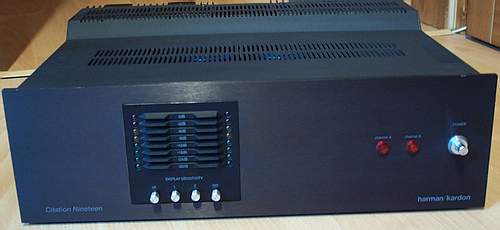

Citation Seventeen (pre,amp), Citation Eighteen (tuner) and Citation Nineteen (power amp)
http://manuals.harman.com/hk/Service Manual/Citation seventeen sm.pdf (pre)
http://manuals.harman.com/hk/Service Manual/Citation eighteen sm.pdf (Tuner)
http://manuals.harman.com/hk/Service Manual/Citation Nineteen sm.pdf (Power)

10) Citation 20: unknown



[tiefbassuebertr]

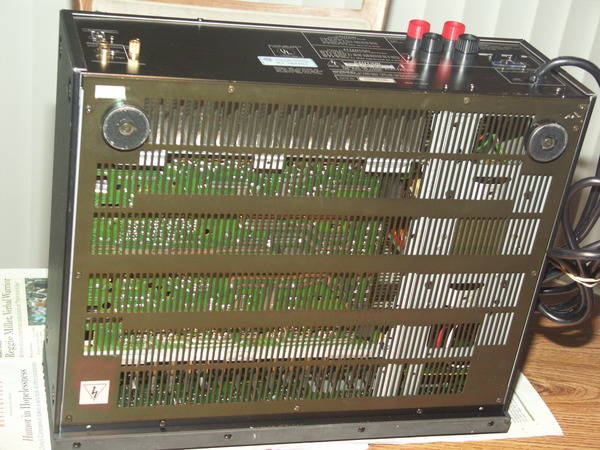

11) Citation 21 - 26:

Citation twenty one: pre
Citation twenty two: power

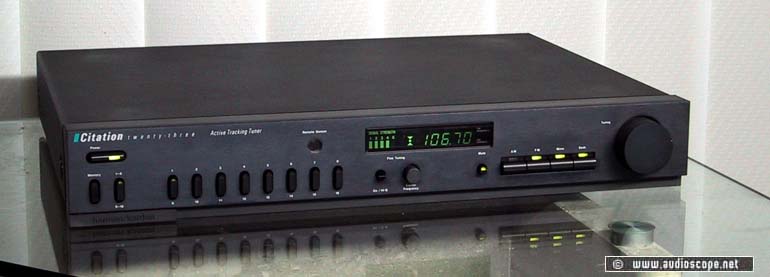

Citation twenty three: fm tuner
Citation twenty four: power

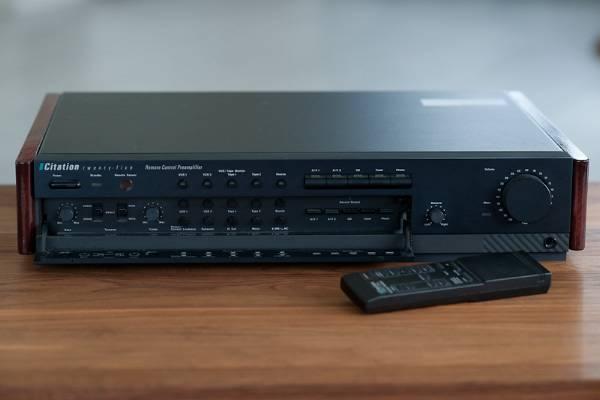

Citation twenty five: pre
Citation twenty six: DAT test in Stereo Review August 88

http://manuals.harman.com/hk/Service Manual/Citation 21 sm.pdf (Citation 21 Pre Manual 112A)
http://manuals.harman.com/hk/Service Manual/Citation 22 sm.pdf (Citation 22 Power Manual 113A)
http://manuals.harman.com/hk/Service Manual/Citation 23 sm.pdf (Citation 23 Tuner Manual 114B)

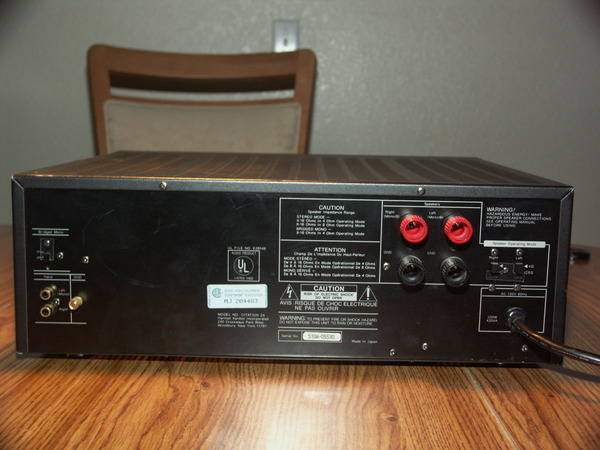

http://manuals.harman.com/hk/Service Manual/Citation 24 sm.pdf (Citation 24 Power Manual 118A)
http://manuals.harman.com/HK/Owner's Manual/Citation22-24 om.pdf (Citation 22+24 owner's)
http://manuals.harman.com/hk/Service Manual/Citation 25 sm.pdf (Citation 25 Pre Manual 129A)



[tiefbassuebertr]

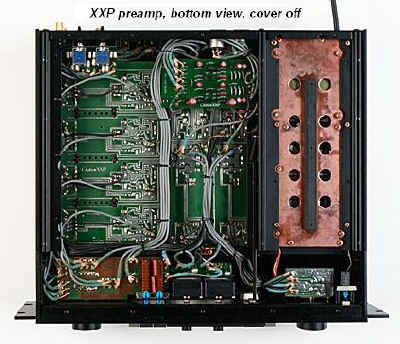

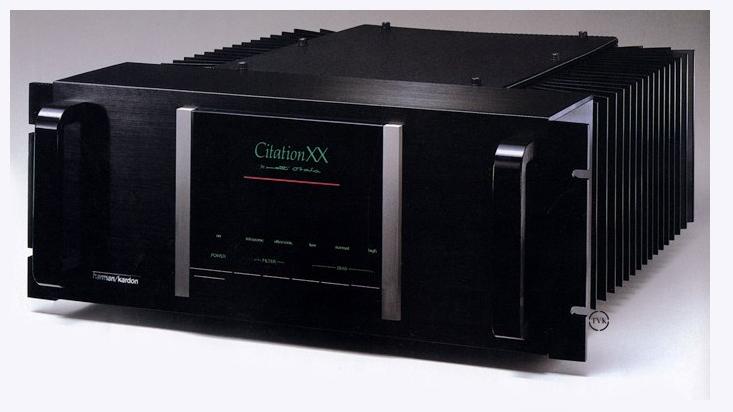

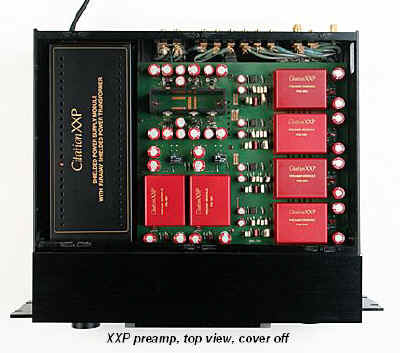

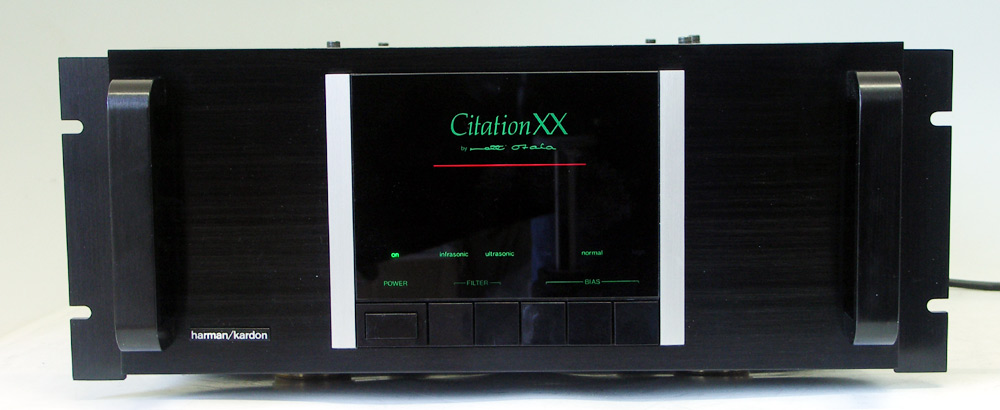

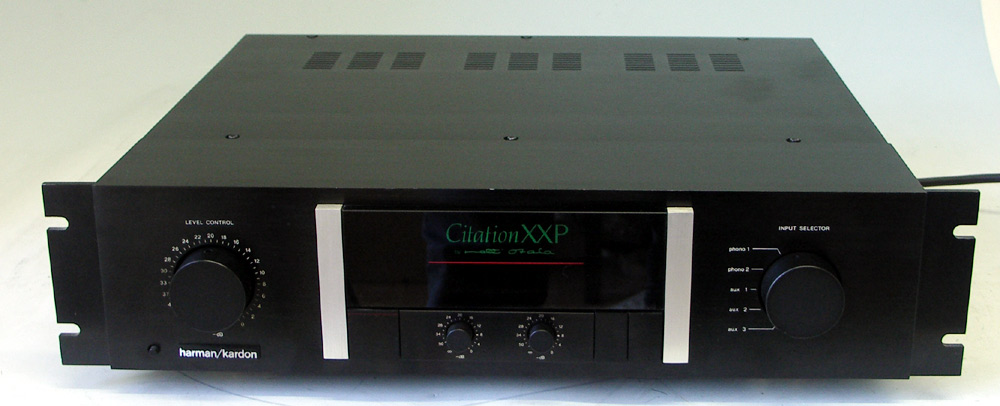

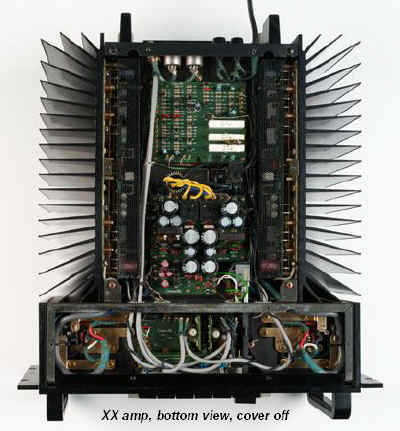

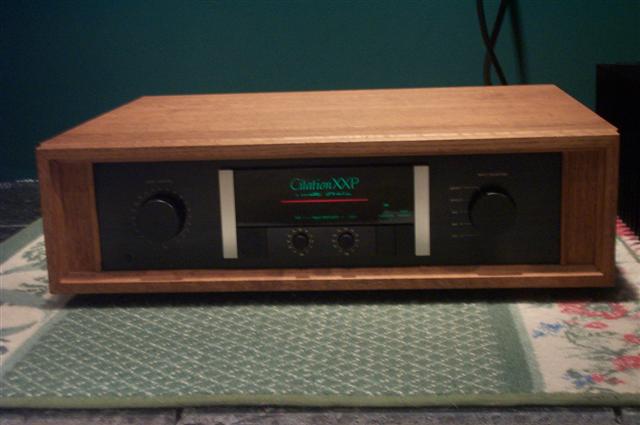

12) Citation XX and Citation XXP

As I know the last Citation stereo amp devices:
http://manuals.harman.com/HK/Service Manual/Citation XX schems.pdf (Citation XX)
http://www.popolo.com/Cust_MH/xxphkdocumentation.pdf (Citation XXP dokumentation)



[tiefbassuebertr]

Schematic still wanted from the very first Solid State "Citation"

From the Power Amp "Citation B" now a service manual was sent to me, but without schematic - see attachements about
http://www.diyaudio.com/forums/soli...don-citation-b-1963-1964-a-2.html#post2345628

Even
Harman Kardon - Designed to Entertain
itself can't send this schematic to me

Perhaps this amp was the OEM version of JBL's/Lansing's first "Solid State Energizer Transducer"
go to post #5, #6 and #46 about
http://www.diyaudio.com/forums/soli...id-state-audio-amplifier-components-want.html
From this devices I also don't find schematics.



[tiefbassuebertr]

11) Citation 21 - 26:

Citation twenty one: pre
Citation twenty two: power
Citation twenty three: fm tuner
Citation twenty four: power
Citation twenty five: pre
Citation twenty six: DAT test in Stereo Review August 88

http://manuals.harman.com/hk/Service Manual/Citation 21 sm.pdf (Citation 21 Pre Manual 112A)
http://manuals.harman.com/hk/Service Manual/Citation 22 sm.pdf (Citation 22 Power Manual 113A)
http://manuals.harman.com/hk/Service Manual/Citation 23 sm.pdf (Citation 23 Tuner Manual 114B)
http://manuals.harman.com/hk/Service Manual/Citation 24 sm.pdf (Citation 24 Power Manual 118A)
http://manuals.harman.com/HK/Owner's Manual/Citation22-24 om.pdf (Citation 22+24 owner's)
http://manuals.harman.com/hk/Service Manual/Citation 25 sm.pdf (Citation 25 Pre Manual 129A)

Because Harman has updated their website, this URLs are death.
there are several other portals for free-download like hifi engine or
Harman Kardon CITATION 23 Manuals, Support and Troubleshooting - Amps
but I would like to know the new URL from Harman itself. Who knows that URL?



[Greg M]

Citation 23



[tiefbassuebertr]

Citation 23

Harman's homepages are completely revised.
Where are now the download aera for the legacy products (particularly service manuals) ??
Even the employers by harman itself can't help me to find the download aera and inform me, to order copies against a fee of about $ 20 the service documents about the authorized service center.

Supplement to post #2:
Audio Note Kits - My Parents Stereo System



[tiefbassuebertr]

5) Citation 10 = Citation X-I (power) and Citation X-II (pre); continue

who specializes in the repair of these models?
Anyone familiar with the design errors and it's elimination ?



[billnavas]

Citation xx

As I know the last Citation stereo amp devices:
http://manuals.harman.com/HK/Service Manual/Citation XX schems.pdf (Citation XX)
http://www.popolo.com/Cust_MH/xxphkdocumentation.pdf (Citation XXP dokumentation)

Looking at the main pc board of xx ,you can see that is like XI or 22 .The circuit is the same for 99% ,except for power and assembler.I can say that XI perhaps is better in the input stage(j fet).The output use 7+7 power (+2 driver)transistors(as naka pa7,mc intosh 7200 ecc),a common number for 250 w/8ohm.Are the same used by integra (MT200).More inteligent and appeared for the first time is the cancel of temperature distorsion ,with direct contact in a high temperature thermo capacity gildet plate....you can find a manual with the input ,lamps and suply schematic.Also the input is of old version without the source transistor .That exist in XI (are the same,as in new version).I can see in the pcb 4+4 pre driver and bias(2 relays) transistors ,also 3+3 for the protection.Is ease to make a clone ,but i haven't a photo near distance of pcb .Only from a repair center its possible to have.
Its difficult to find in ebay that amplifier cause the numbers of units was 1000-1500 pieces.The onest cost today must be 1000 euro. Is a more of 35 years old piece....Today accuphase is the king of quality..

billkunavas@yahoo.gr



[citationfan]

Not to forget:

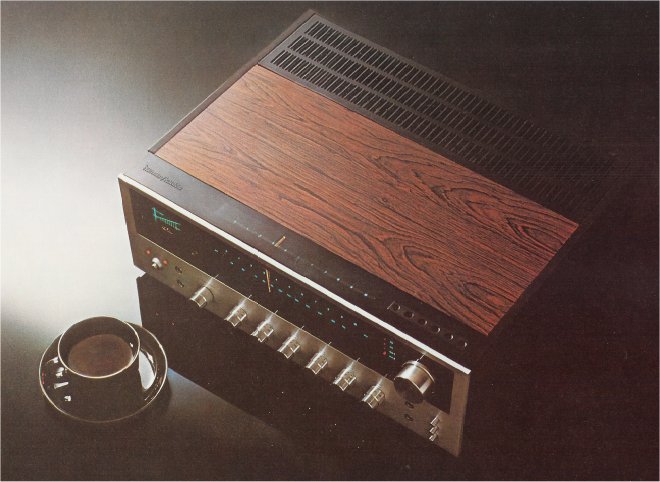

The Citation Receiver!
