GU50 Screen Driven, DC Coupled

My new idea with GU50. Screen driven and DC coupled. Is that possible?

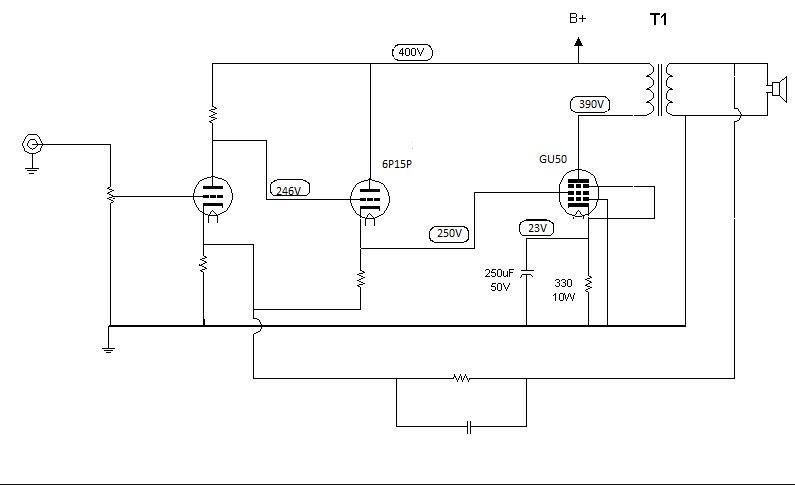

Very first schematic:


Attachments

  • GU50 SCREEN DRIVEN.png
    GU50 SCREEN DRIVEN.png
    13.6 KB · Views: 244

artosalo

Member
2010-02-16 9:00 am
It is possible, but screen drive is not very linear and high driving level is required.
With 100 Vpp the output power is some 3,3 W (2k5 OPT), THD = 6 %
With 240 Vpp, 13 W, THD = 14 %. Distortion is mainly 2nd harmonic.
All the above values are from LT Spice simulation.
