Group buy: DCT03 DC trap (filter) for toroidal transformers

[jwjarch]

Thanks PA. According to the datasheet the 10A10 diodes have a 1V forward voltage at 10A. Seems relatively close to the 6A diodes which are .9V at 6A.



[Erlend Sæterdal]

The diodes are OK. The ripple current is determined by the forward voltage of the diodes but I would say that any snap-in capacitor will work as long as the capacitance is high enough.

Hi Peranders do you know if it's necessary to have a fuse in series with DCT03? "CE". There is only series components so what could possible be dangerous?



[peranders]

If you have 10 amps fuse in the wall I think this is sufficient but if you have more than 10 amps I recommend that you add a fuse.



[kffern]

Hi, I bought 3 boards about a year ago and I still can't find the instruction sheet anywhere in my paypal email address or any other. Could someone please forward me a copy before I finally power this up? Looking through this thread it seems I'm not the only one.
Thanks,
kffern



[peranders]

Hi, I have sent you an email with links. If you post a picture I can tell you if it should work or not.



[kffern]

Thanks Peranders, I still need to get the wago connectors. I bought the rest from Mouser and couldn't find them there.
kffern



[peranders]

You can also use other brands but I have in case you are interested.



[tiefbassuebertr]

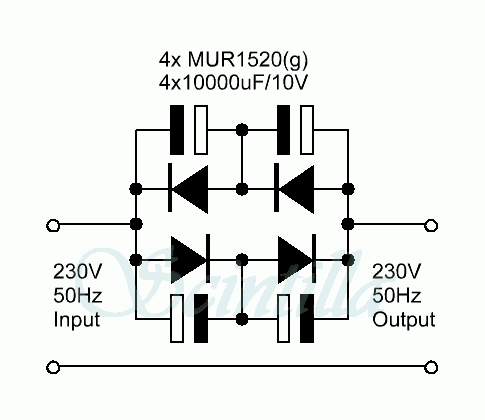

is on this DC blocker unit realized the circuit diagram from approach under
https://scintilla-buizenversterkers...erkers/zelfbouw/zelfbouw sites/DC-Blocker.htm

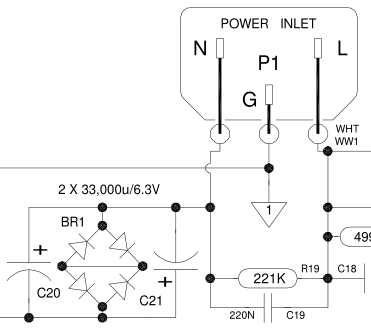

(go to first attachment), or the usual, most used circuit topology from post #14 under
https://www.vintage-radio.net/forum/showthread.php?t=143087
(go to second attachment) ?



[Erlend Sæterdal]

Jeg har et ufærdigt filter med tilhørende præcis tilpasset købt kabinet. Har lavet mange af dem.



[Erlend Sæterdal]

Sælges færdigt



[Cal Weldon]

English speaking forum. Please also add a translation
Thank you.

Google Translate:
I have an unfinished filter with an associated exact fit purchased housing. Have made many of them.
and:
Sold complete



[Erlend Sæterdal]

I write in English but the site translate to Danish. But not anymore Spooky.



[Cal Weldon]

Spooky indeed.
