ground symbol confusion

[AndrewT]

What is circuit post19 called?
What does it do?



[madtecchy]

It is a Fast DC stabilied amplifier. The circuit descriptionis attached.



[madtecchy]

Sorry Andrew i will try again.



[madtecchy]

And here is the link for the full data sheet PDF http://cds.linear.com/docs/Application%20Note/an21f.pdf



[jitter]

Hi Jitter

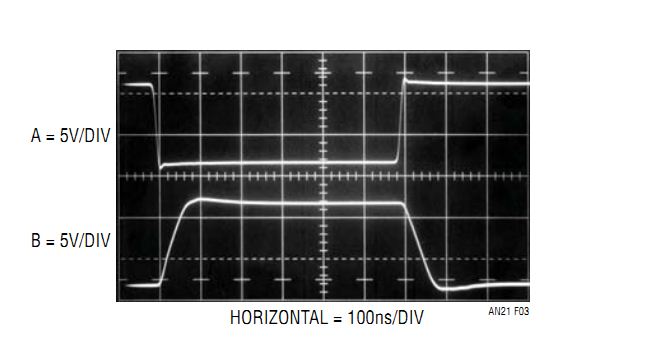

Here is a schematic i found for you . It only took a few seconds to find it with a google search.

Friendly Regards Ian

I had to resort to googling "AN21 F02" that's next to the ground symbol in your attachment before I found it.

I stand corrected. Clever way to use the opamps by controlling the offset pins...

Edit: Ah, you posted the appliction note in the mean time...



[cliffforrest]

In simple terms it bypasses the internal bipolar differential stage allowing a precision (?) external input pair to be used, but retaining the gain and drive of the OpAmp.

I believe a certain member here may have had something to do with it ....😉



[AndrewT]

It wisnae me !
