GB - F5 Clone

[suds]

Hi,

Here is another version of F5 Clone,

Mr Pass, please let me know your concern..

Single PCB for around $5 USD each plus shipping.

Shipping Options -

EMS - $20 - $27 USD
Normal Registered post - $10 - $15 USD

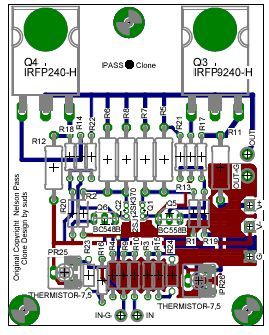

Attached is Artwork:

PCB Spec:
Double Side PCB, PTH 1OZ copper , Silk Screen and solder mask.

(Original copyright, Nelson Pass, Pass Labs)


Thanks



[suds]

F5 Clone - Stereo Board

Hi,

This is B1 Clone Stereo version in single board.
attached is layout design.

Cost of each B1 Stereo board would be $12 , plus shipping.



[suds]

F5 Clone Stereo version

Hi,

( Sorry about previous post, where I mentioned B1, I am working on B1 with some modifications. Moderators, please delete previous post ! can you make edit option available for about a minute after post. ? )

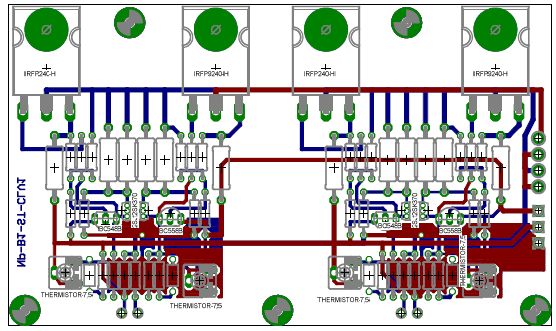

This is F5 Clone Stereo version in single board.
attached is layout design.

Cost of each F5 Stereo board would be $12 , plus shipping.



[suds]

This is redesign version F5 Stereo Clone PCB Set.
Stereo Set: 2 x Amplifier PCB, 1 x PSU PCB.

PCB Spec : FR-4, 70micron copper, 2mm PCB, PTH with HAL, Solder Mask, Legend (Silk Screen), Size : 8 inch x 2inch

Separate PCB for Both channel, and PSU PCB.

Cost per Stereo Set: $21 + Shipping, Paypal $28

Will ship in 7 working days.

mail me for details, layout : sudhirmt@gmail.com


Thanks
suds
