For sale are two pairs of bare PCBs for Nelson Pass AB100 amplifier. The design closely follows that by NP himself, with added mounting holes that comply to diyAudioStore's Universal Mounting Specification.
The price is $25 for one pair of boards (two channels, one board per channel) plus shipping ($5 within continental US, $10 to Canada, $15 elsewhere). Please PM me if interested.

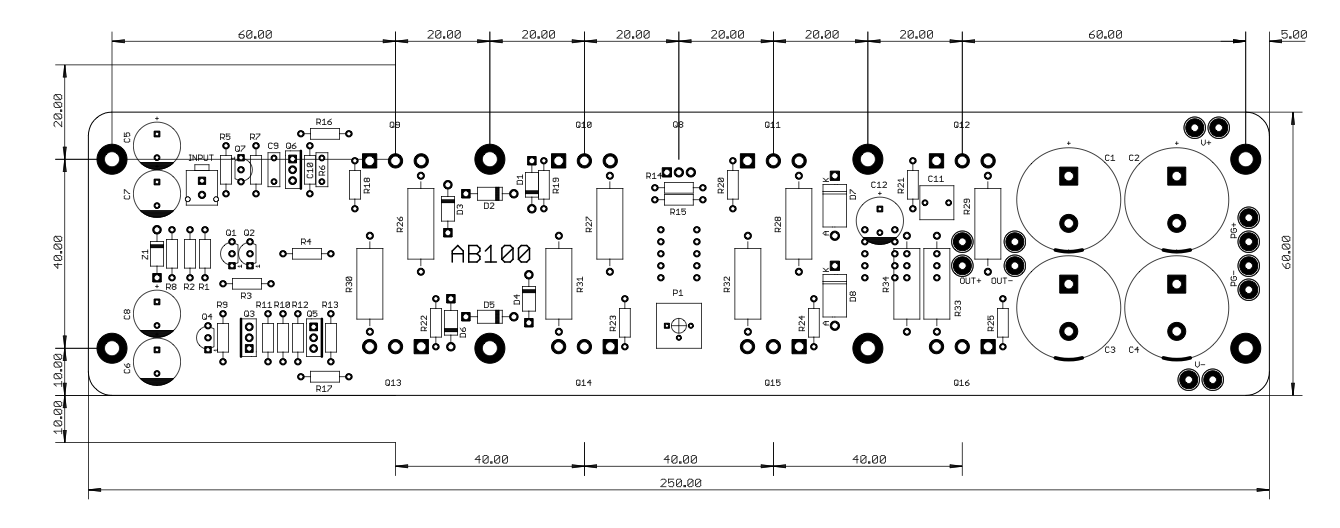

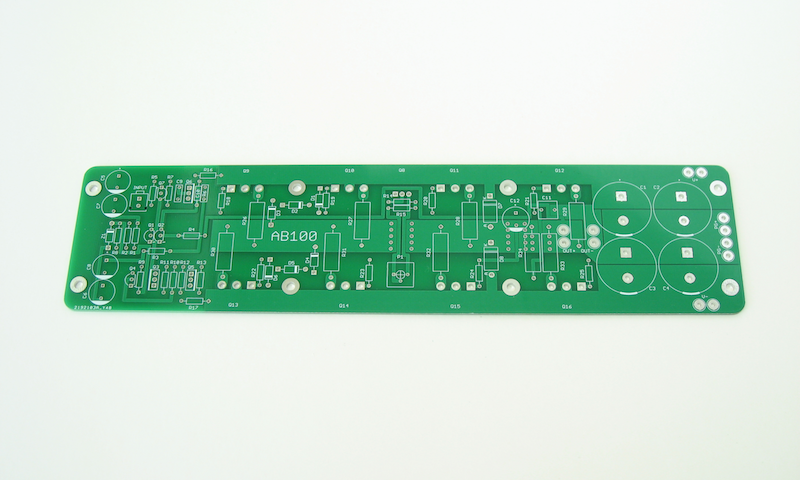

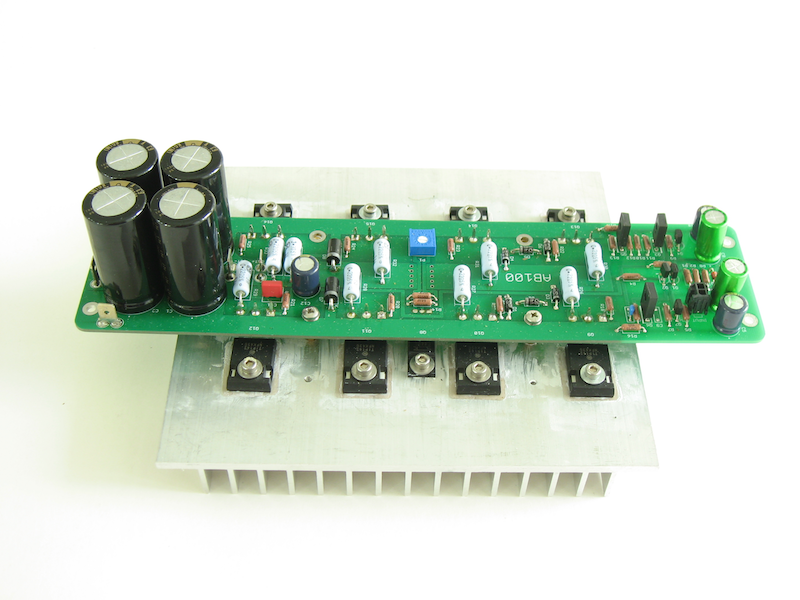

Attached are a photo of an actual board, another of a completed build of one channel on a test heatsink, and a picture with the board's dimensions.
The price is $25 for one pair of boards (two channels, one board per channel) plus shipping ($5 within continental US, $10 to Canada, $15 elsewhere). Please PM me if interested.
Attached are a photo of an actual board, another of a completed build of one channel on a test heatsink, and a picture with the board's dimensions.
Attachments
Last edited:
AB100 BOM
Here is the link to a shared BOM at Mouser and another to the same BOM at Octopart. Also, I attach the BOM as a PDF.
Note that AB100 allows broad substitution of parts, so any published BOM should be taken as an example, not a guideline. One can usually find many suitable parts at hand without ordering.
Here is the link to a shared BOM at Mouser and another to the same BOM at Octopart. Also, I attach the BOM as a PDF.
Note that AB100 allows broad substitution of parts, so any published BOM should be taken as an example, not a guideline. One can usually find many suitable parts at hand without ordering.
