Paul Hirst

Member
Joined 2017

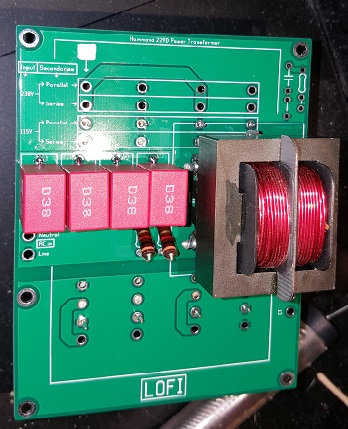

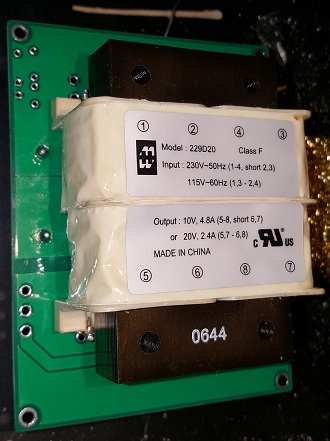

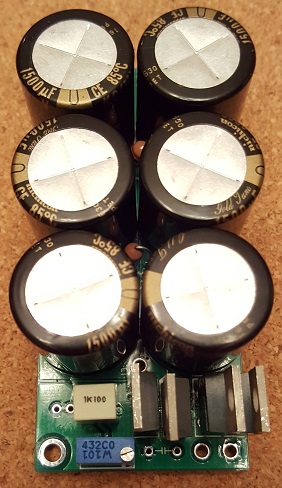

Here are the DCS2 and the LOFI. I am a complete noob at this so you will not see a professional looking board. LOFI took me about 10 minutes. The DCS2 about 20 min because I put one of the components on backwards and had to remove and resolder.

attachment.php


attachment.php


attachment.php


Paul


Attachments

  • DCS2 good light.jpg
    DCS2 good light.jpg
    83.8 KB · Views: 517
  • corrected lofi top.jpg
    corrected lofi top.jpg
    90.3 KB · Views: 1,074
  • corrected lofi bottom.jpg
    corrected lofi bottom.jpg
    68.5 KB · Views: 1,060
P

Paul Hirst

Member
Joined 2017

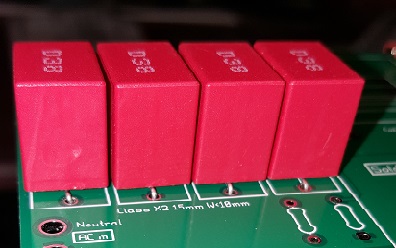

This is what I did to make the x2 fit. Again, I am new at this so if there is a better way please post so that people like me can learn. I used tweezers to bend the posts. After I soldered the bottom I went back and soldered the top side of the bent post (see second last picture).

attachment.php


attachment.php


attachment.php


attachment.php


attachment.php


Paul


Attachments

  • x2mod2.jpg
    40.4 KB · Views: 492
  • x2mod3.jpg
    39.9 KB · Views: 484
  • x2mod4.jpg
    35.7 KB · Views: 482
  • x2mod6.jpg
    34.9 KB · Views: 483
  • x2mod5.jpg
    52.4 KB · Views: 474
