First passive crossover build - Does it look correct?

[neo004]

Hi all,

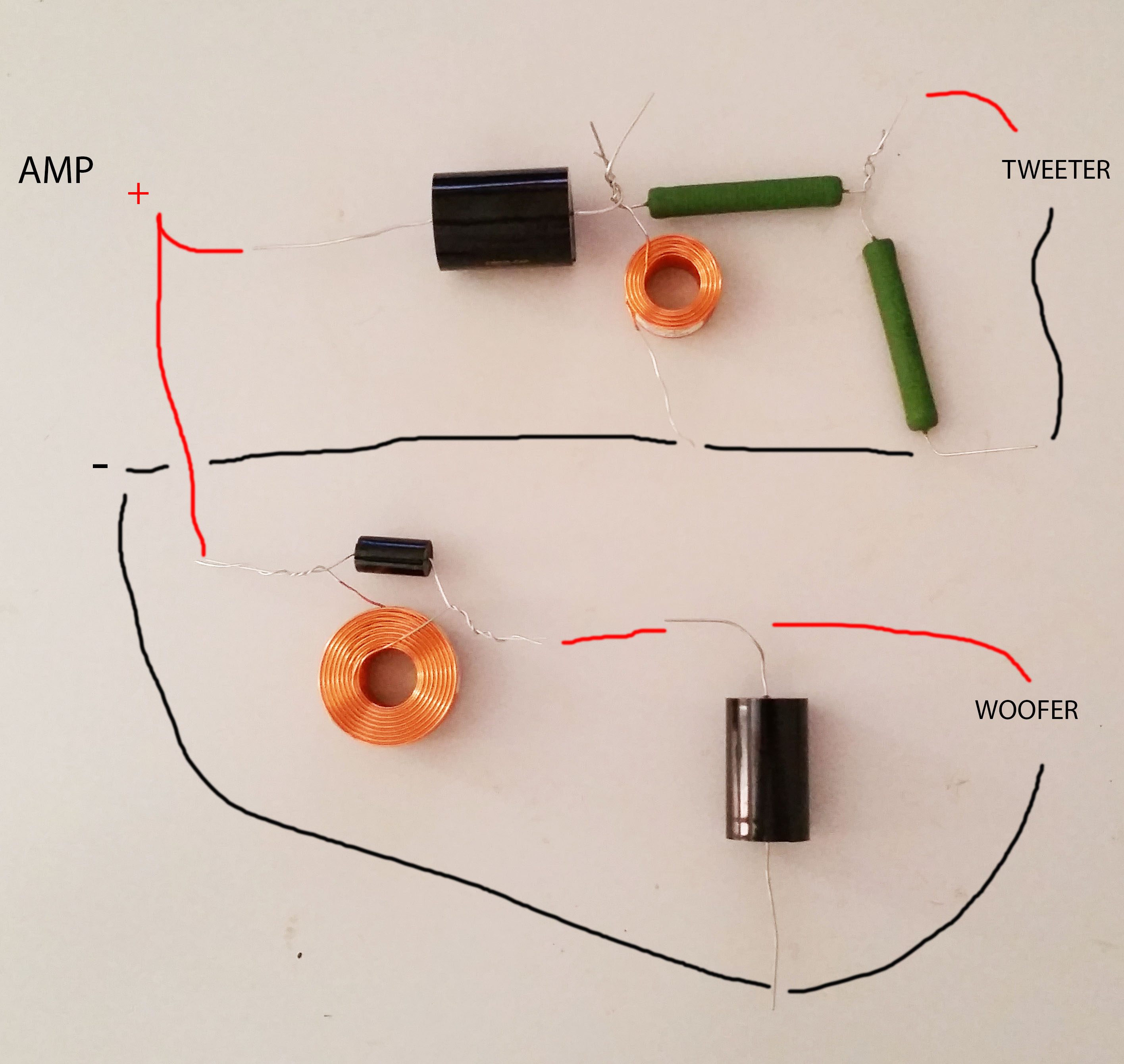

Due to this being my first passive crossover build, before i solder or test anything, can someone pls double check this looks correct based on the schematic?

I still have to tidy it up but just making sure the layout is ok

Thanks heaps!



[Choong]

The configuration is correct, there is this kind of config, its just that if chosen component values do the job well or not.



[Inductor]

What woofer and what tweeter? Impossible to say if the correct component values. Did you designed it yourself? The LF .33 cap gives a better roll-off at crossover frequency (probably). The components position looks ok, a repeat from Choong above. Have fun.



[neo004]

The crossover has been design by a well respected guy from another forum.

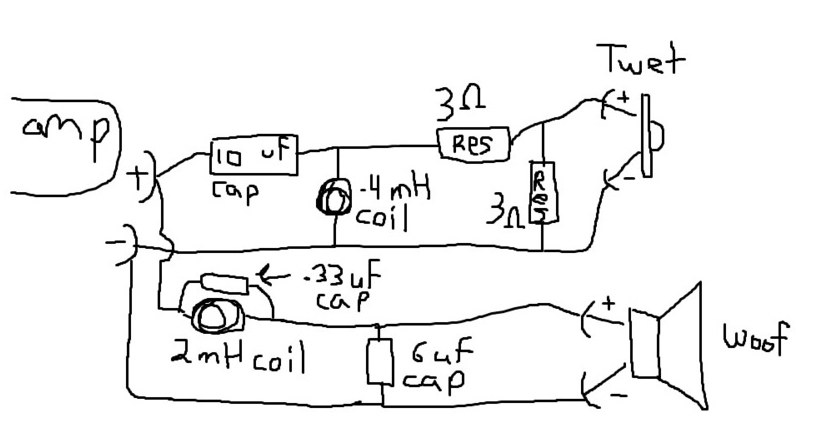

I was more asking if i have layed out the components as per the crossover diagram done by hand.

Just wanted to check before i soldered it up



[adason]

yup, go for it!
