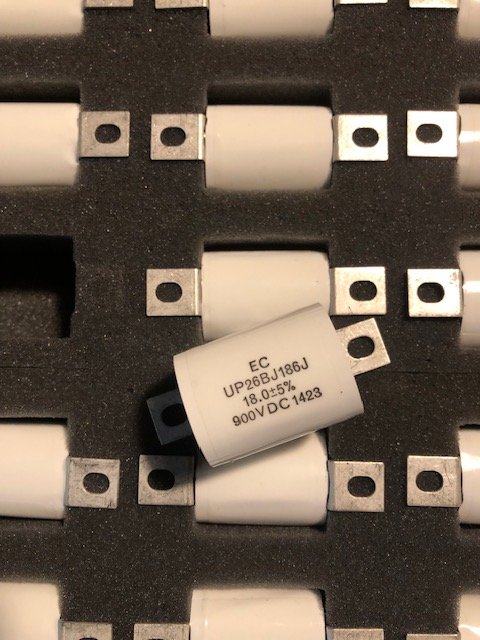

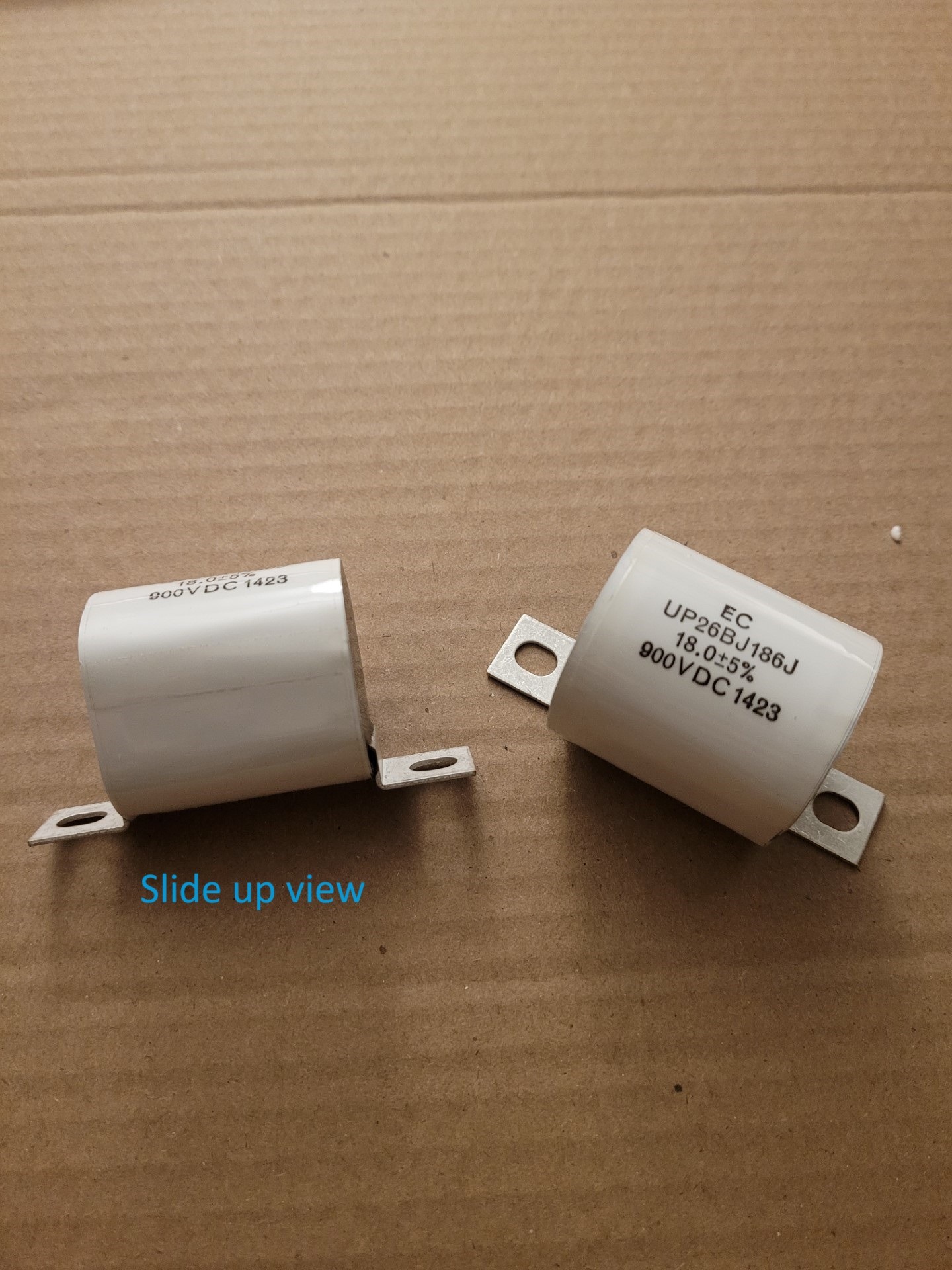

For Sale Electronic Concepts Film Capacitors 18µF/900VDC

[pcjoe123]

Part Number: ECI UP26 BJ186J

Specifications:

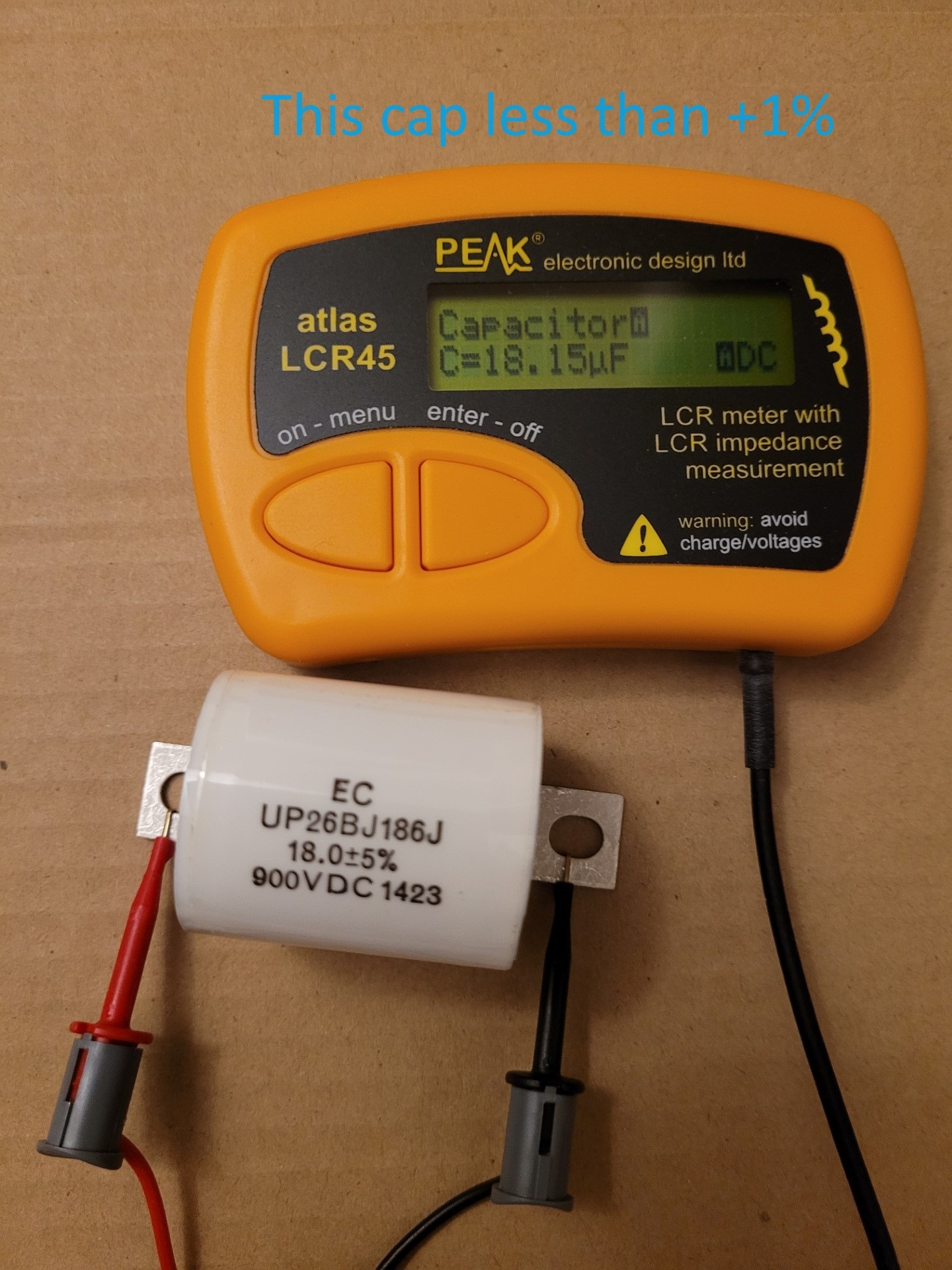

• Capacitance: 18µF ±5%
• Voltage Rating: 900VDC
• ESR (Equivalent Series Resistance): 5 milli-Ohms
• Date Code: 2014 week 23
• Condition: New Old Stock (NOS), stored in optimal conditions

Features:

• High current handling capability with low profile design
• Constructed of Unlytic polypropylene in an oval polyester wrap
• Tin-plated copper terminals
• Ideal for high voltage applications and speaker crossover circuits

Performance Data:

• ESL (Equivalent Series Inductance): 28 nH
• Resonance Frequency (Fres): 224kHz
• Current Ratings: 32A @ 25°C, 26.1A @ 55°C, 16.8A @ 85°C

Application: Suitable for >500V reservoir capacitor replacements, offering improved transient response and audio clarity.

Manufacturer Information:

• Manufacturer: Electronic Concepts Inc. (ECI)
• Established: June 1969
• Production Facility: Galway, Ireland

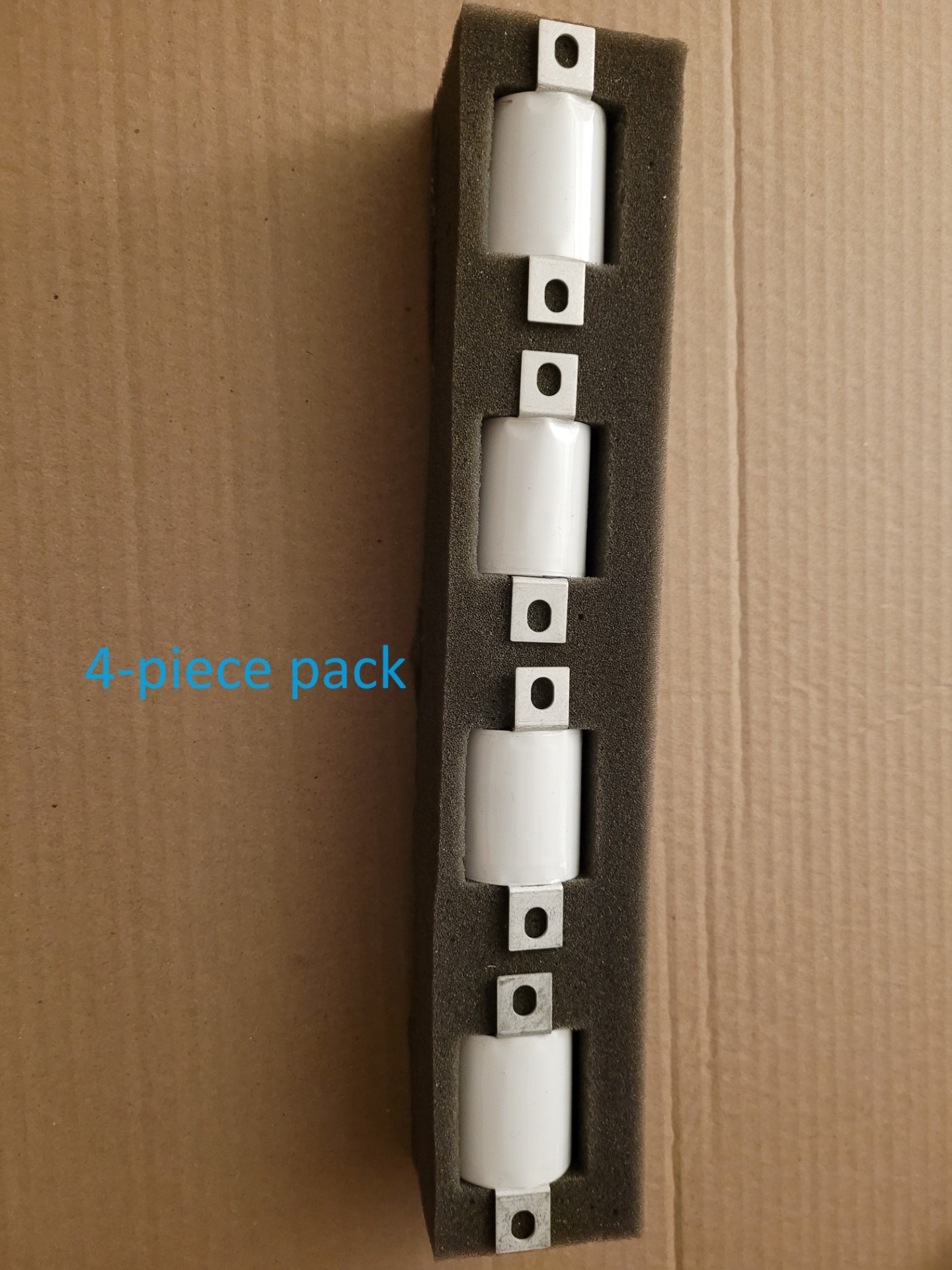

Packaging Options:

• 12-piece pack: US$29
• 18-piece pack: US$42
• 44-piece pack: US$97

Additional Information:

• Prices exclude shipping; shipped from BC of Canada V5L 4N9
• No packing and handling fees apply.
• Learn more: UP2 Series Information

Interested in enhancing your equipment’s performance? Contact me for more information!

Thanks for looking.
Joe



[mazzer]

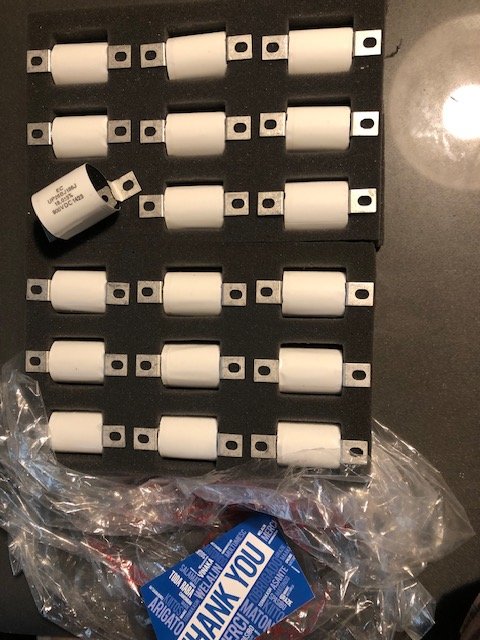

Some nice caps arrived today. Joe even provided updated shipping info as they made their way to me.
Super well packed. Thanks!



[pcjoe123]

Great to hear that, Mazzer. Thanks to the smooth transaction and I'm grateful to the couriers (Canada Post and USPS) for ensuring seamless delivery.

However, I always look forward to hearing your thoughts and suggestions. I appreciate your input.

Joe



[mdpaudio]

Are the tabs solderable?



[rayma]

Soldering the tabs of such a film capacitor could damage it.
These capacitors are intended for mounting with bolts.
The leaded version is intended for soldering.
That said, the tabs are tin plated copper.



[pcjoe123]

Yes, "rayma".

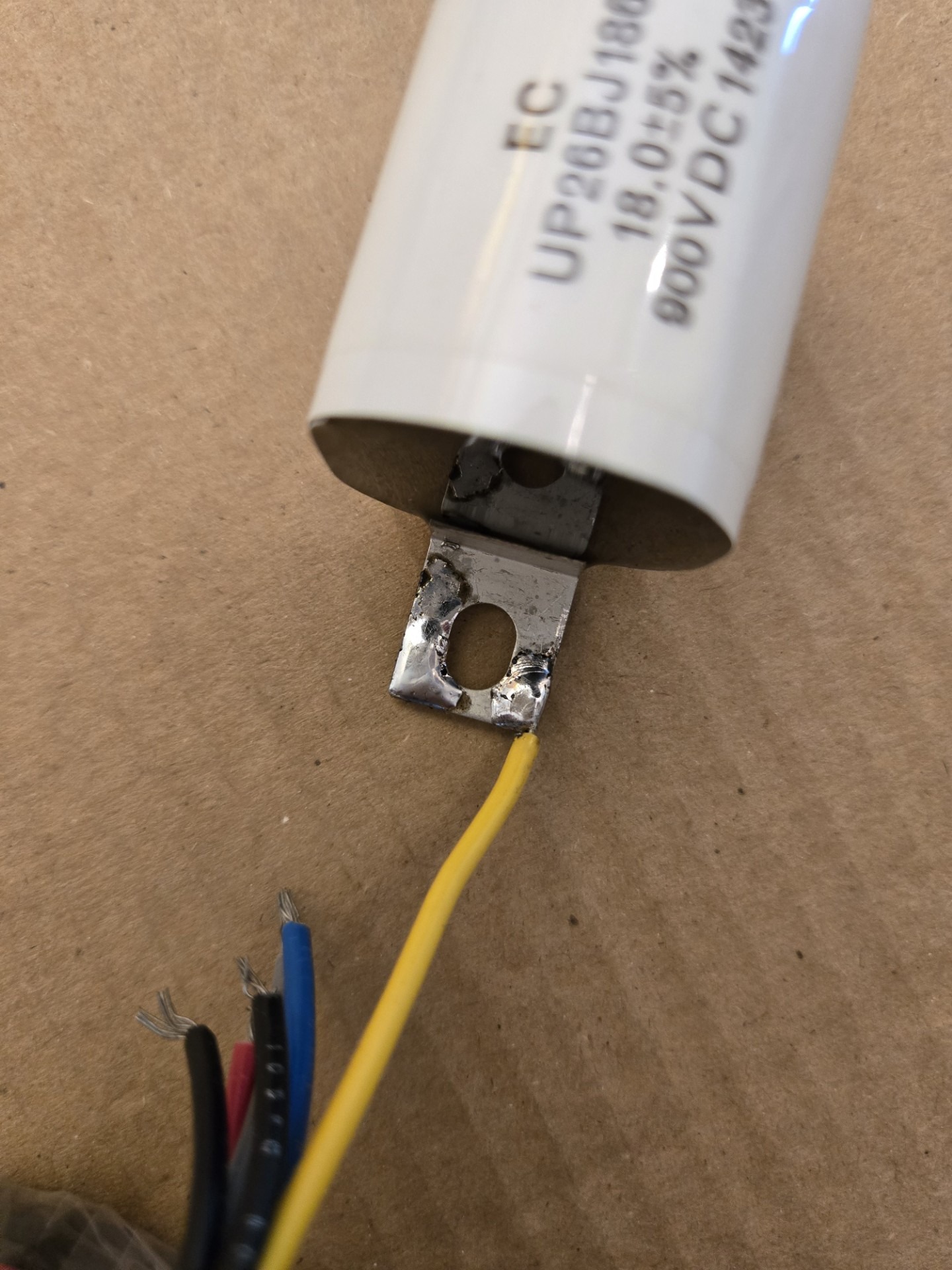

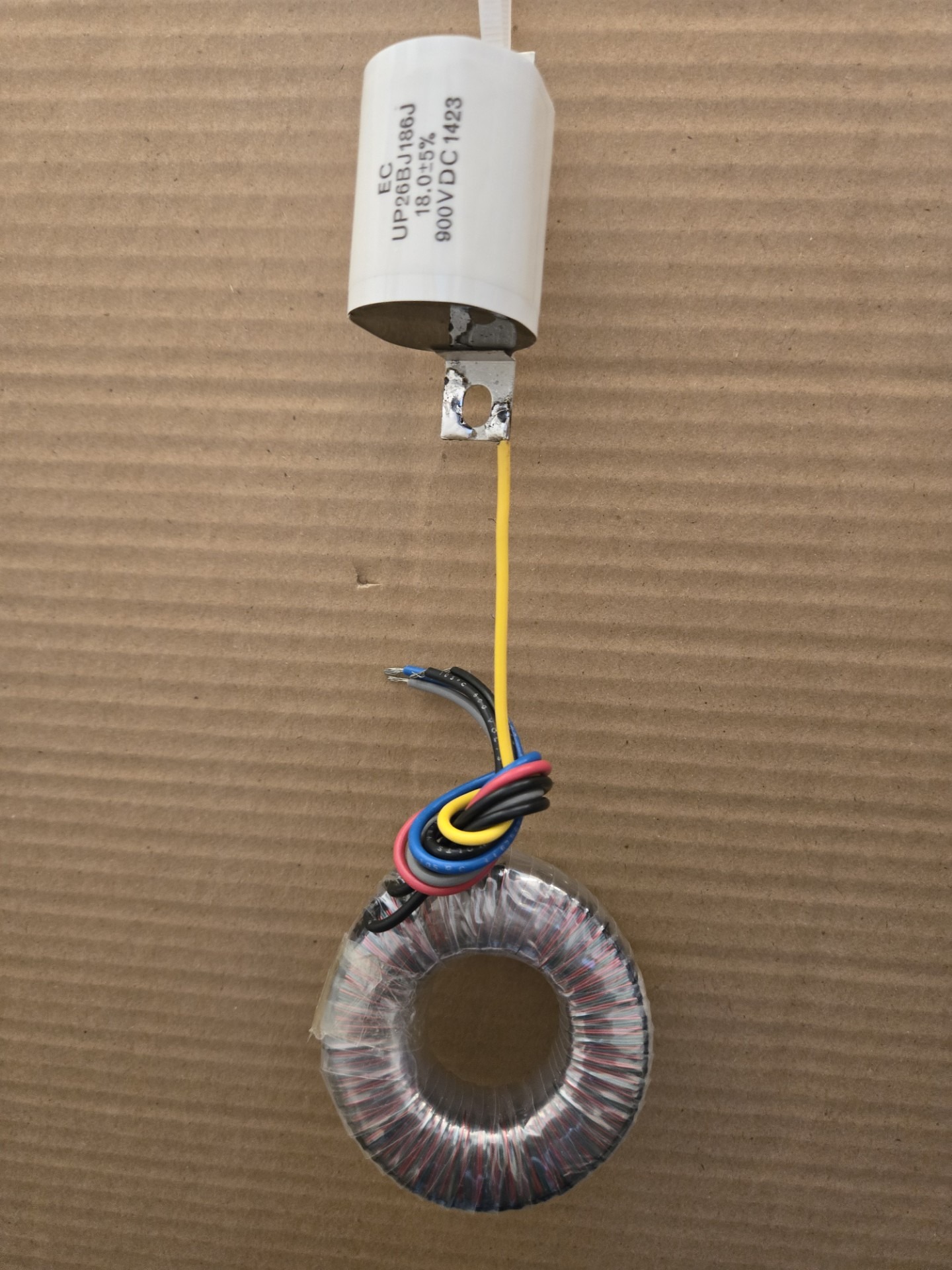

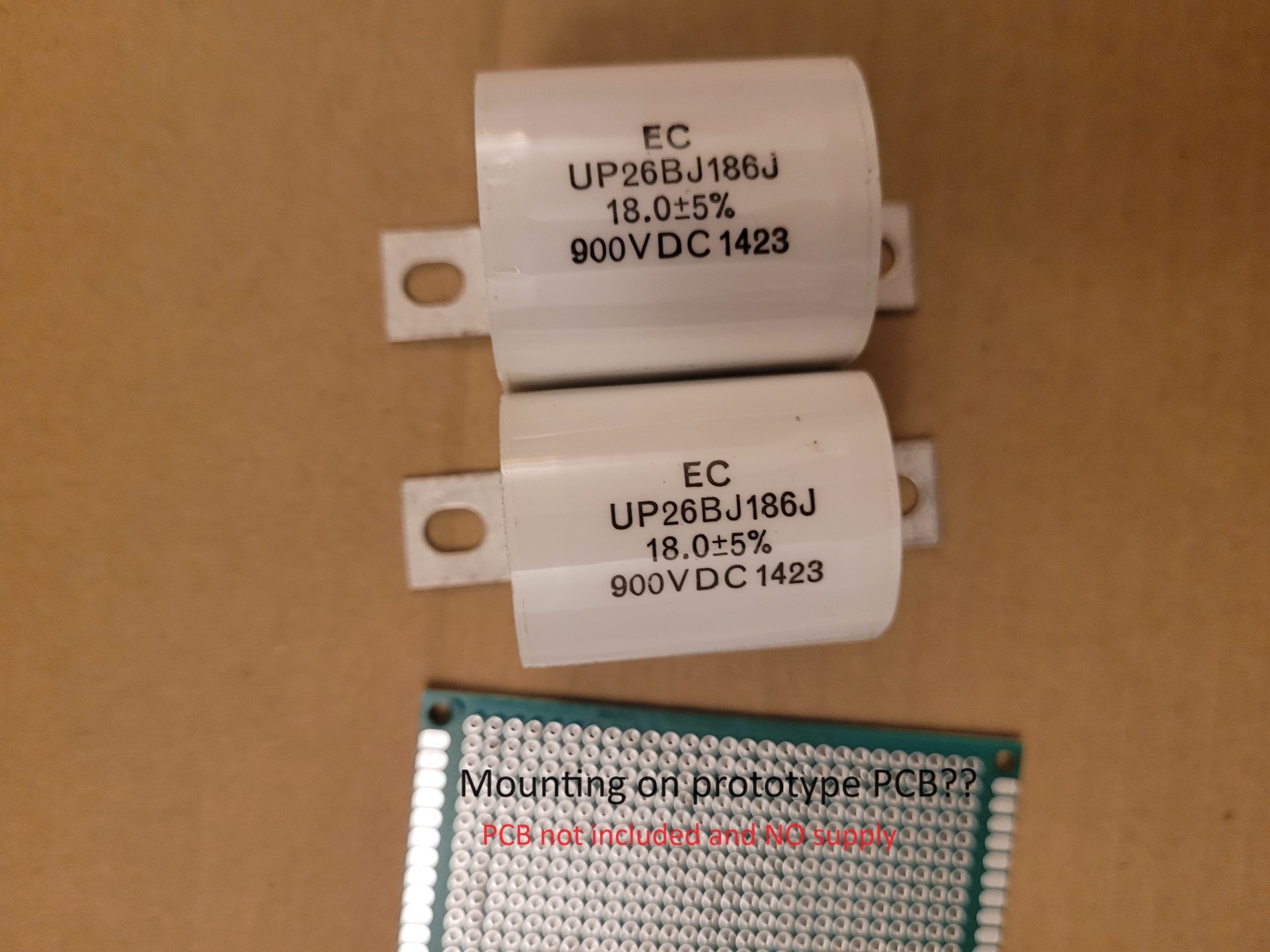

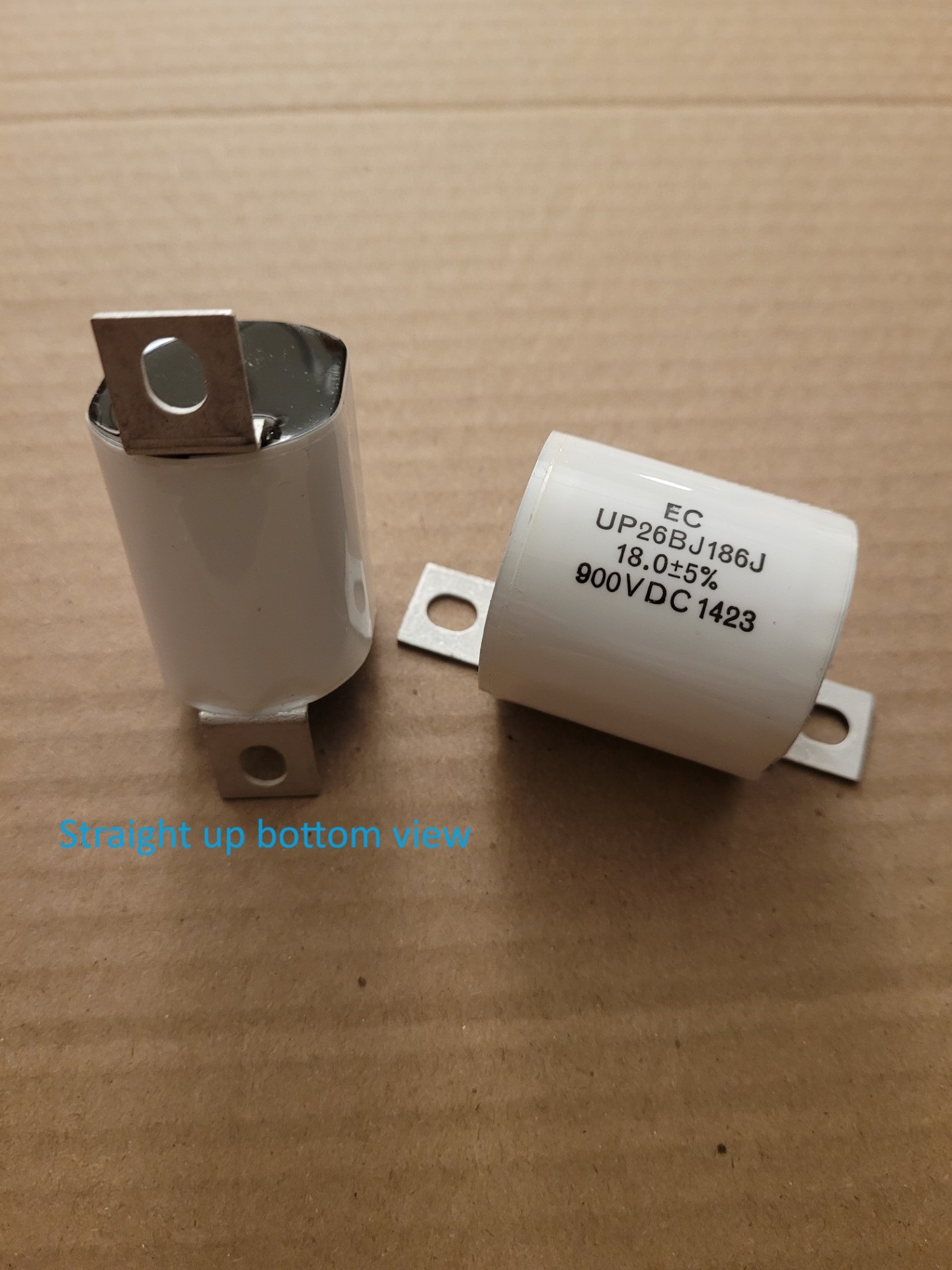

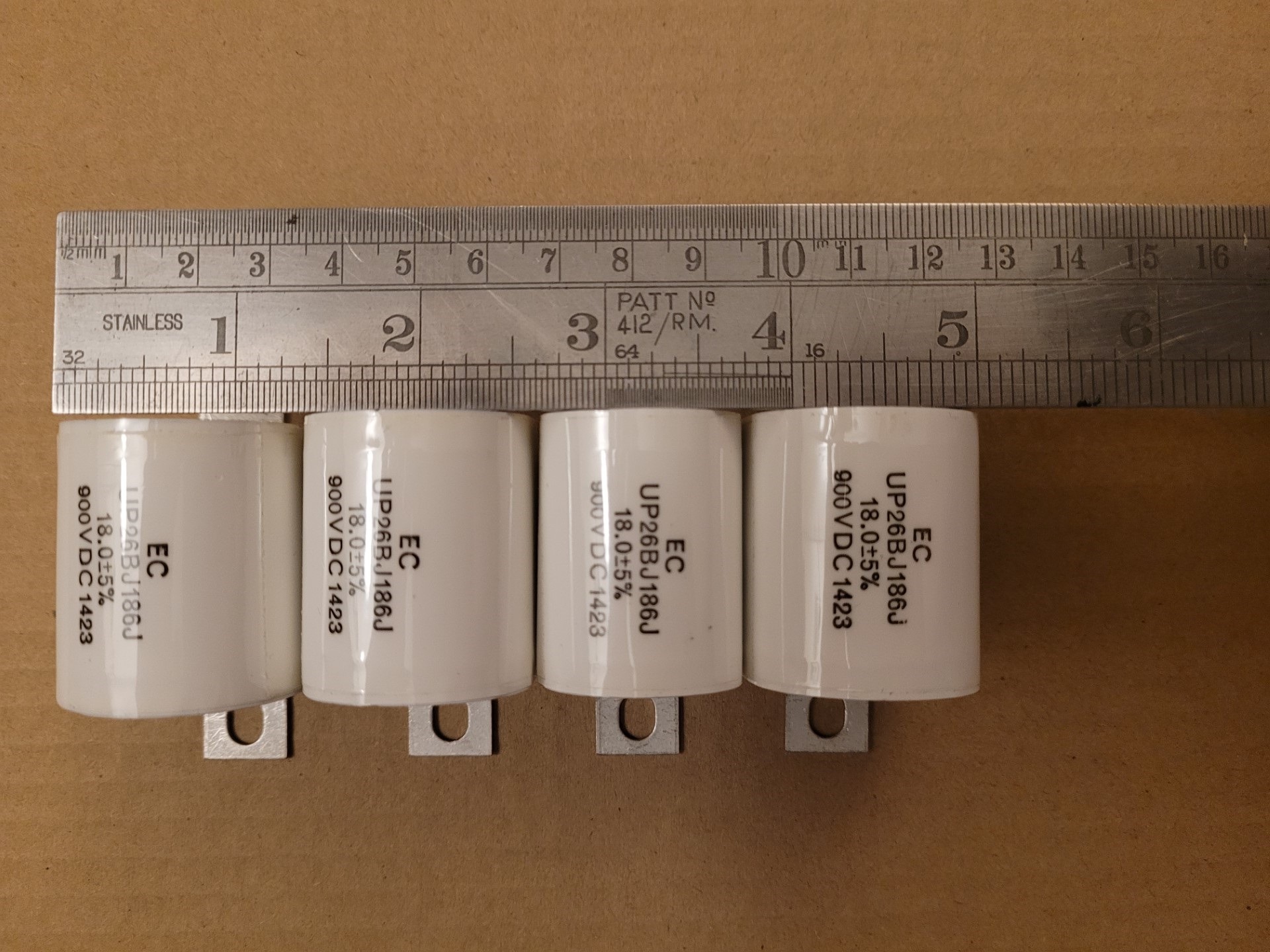

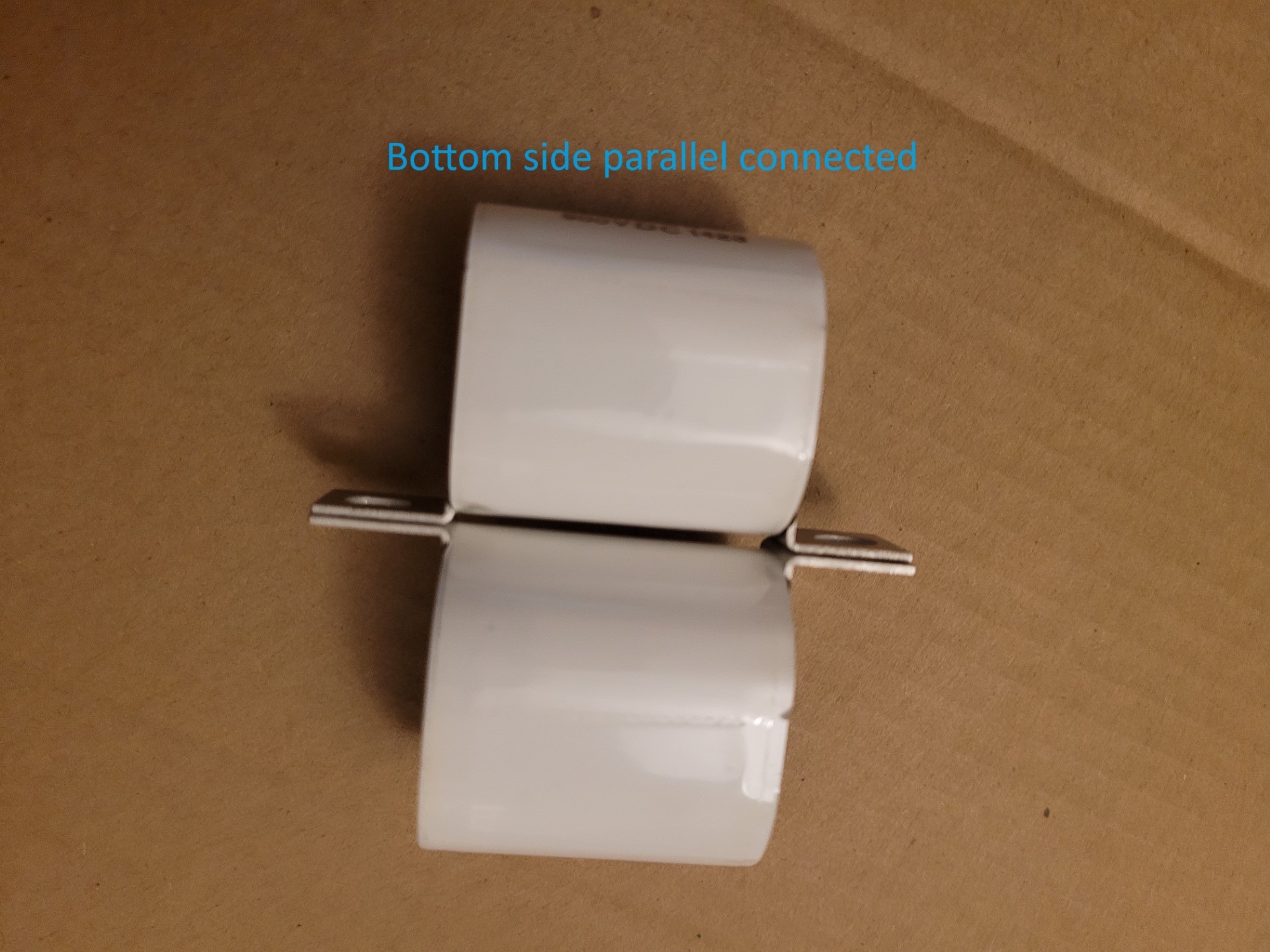

The tags are "Tinned Copper Terminals". Hopefully two photos can express it better than words can. The caps can be soldered or fixed on PCB.
However, since the larger area tags dissipate heat efficiently, a higher temperature soldering iron makes the job easier.

Thanks,
Joe



[rayma]

I think he meant soldering to a copper plane.
Soldering a wire to the terminal defeats the low inductance design.



[mazzer]

I clamp a couple small copper alligator clips on the leads between the body of the cap and where I'm soldering as heat sinks. Use a hot iron and work fast.



[pcjoe123]

Thank you for sharing, 'mazzer". Your experience is invaluable. The crocodile clip helps prevent excessive heat goes in to the cap during soldering process. Plier is also handy for this job.

"mdpaudio", please feel free to ask questions and be a happy user.



[pcjoe123]

Let it up again!



[gupsta]

Tempted; hadn't seen this post until your bump.

Do you have a good stock to go.

Could you let me know the shipping costs to the UK; not sure what quantity I'd need for later, but I guess shipping could end up being a significant proprotion of the total.

Whats the most secure way of mounting these; screw down onto a piece of FR4 with a ring lug.



[pcjoe123]

Thanks for your inquiry, gupsta.

I have some in stock for your consideration.

For example, a package of 18 pieces measuring 10"x6"x6", 3 lbs. = US$24 mailed to SW1A 1AA (the postal code for Buckingham Palace, London). FYI, the same package shipped to the Western US is $20 and about $26 to the Eastern. All postage include $74 insurance.

That is a great way to mount them on the FR4 using ring lugs and bolts.

Joe



[pcjoe123]

Let it up..... 😊



[pcjoe123]

saba - your package is on the way to you. Tracking # via PM. Thanks.
