Do transformers invert phase

disco

Member
2006-04-17 6:27 pm
Holland

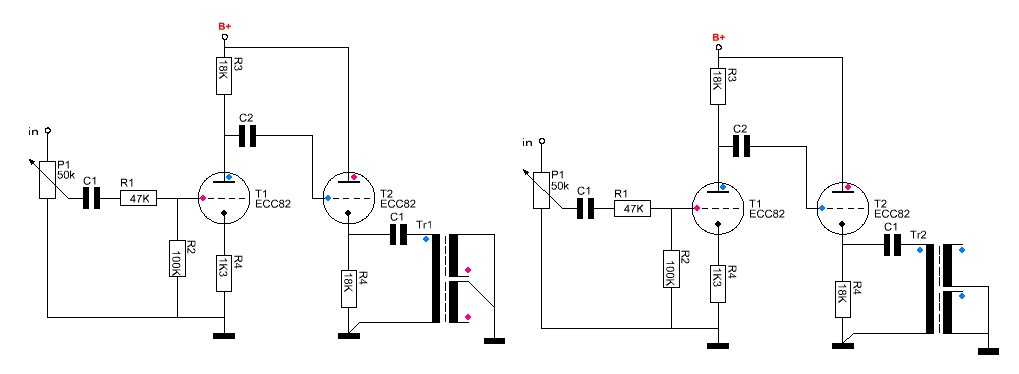

follow the colours


Attachments

  • ex1.JPG
    41.8 KB · Views: 374

rayma

Member
2011-04-29 8:37 pm

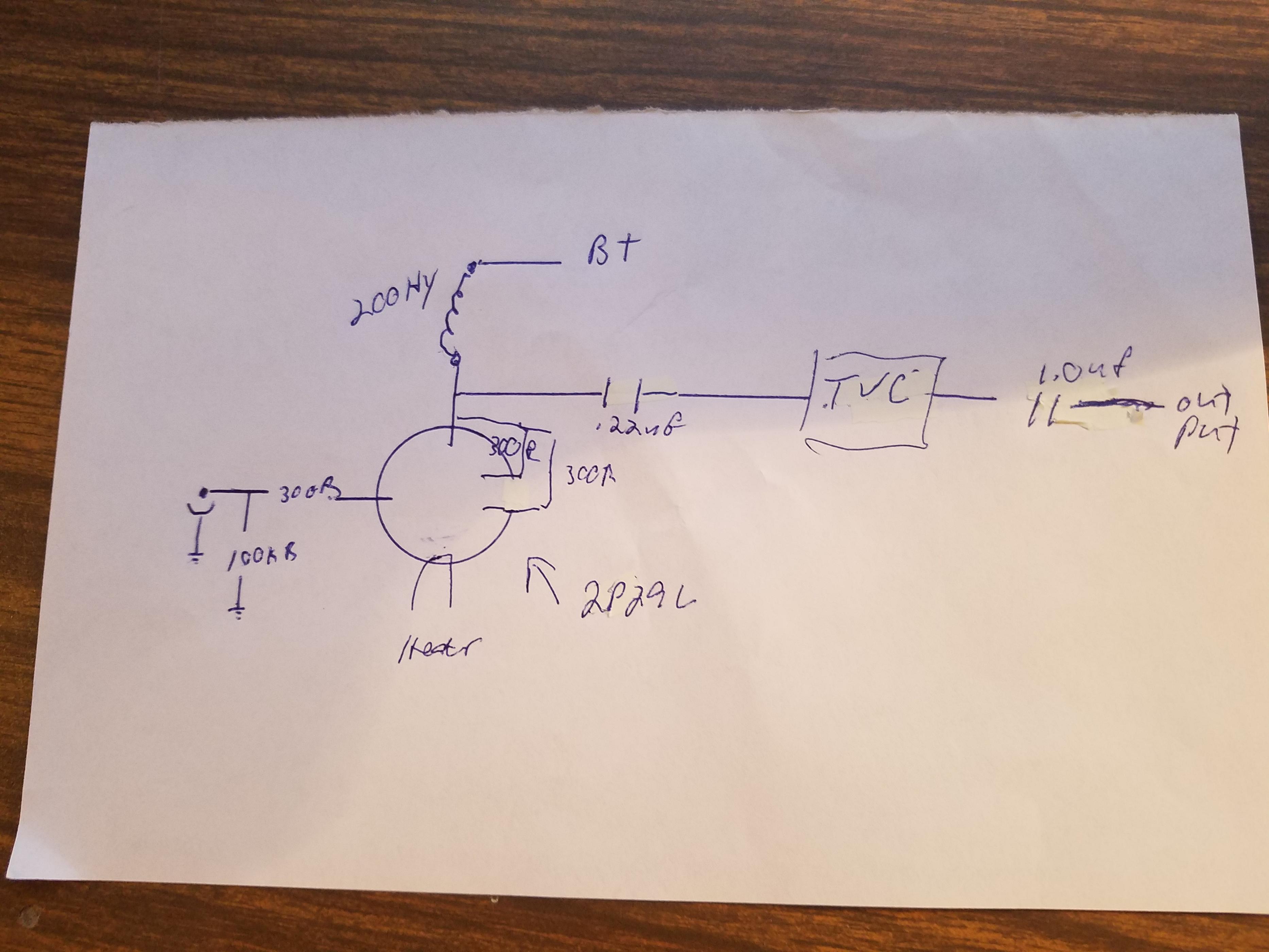

You can hook up each of the audio transformer windings either way.
Whether the signal polarity is inverted depends on how it is connected.

If you want that circuit to preserve absolute polarity, since the tube inverts,
you would reverse one of the transformer windings so that it inverts also.
The capacitor following the transformer may not be necessary.

Last edited:
Well,
I simply inverted the speaker connections at the power amp it sound correct now.
I did some system changes and things did not seem right, but I have to admit my brain does not recognise out of phase as quickly as other folks I know.
Thanks for all the responses.

Last edited:

disco

Member
2006-04-17 6:27 pm
Holland
With a mono channel the human ear is unlikely to detect out of phase. Out of phase usually becomes a problem with stereo where the channels are out of phase. The bass part of the sound cancels out when the speakers are out of phase. If the sound has poor bass in stereo then its likely one channel is wrong.

You're saying what I was thinking: phase is relative to something, but that's the electrical way to look at the phenomenon. Human hearing works with phase to locate direction and distance, the brain filters out some audible program at request. Some of us have an absolute hearing, detecting phase foolproof.


EMRR: Transformer Volume Control, most of the time a single winding with 24 (or so) taps.

Last edited:

6A3sUMMER

Member
2016-06-07 6:50 am
Kay Pirinha,

I believe TVA is a Transformer Volume Control.
